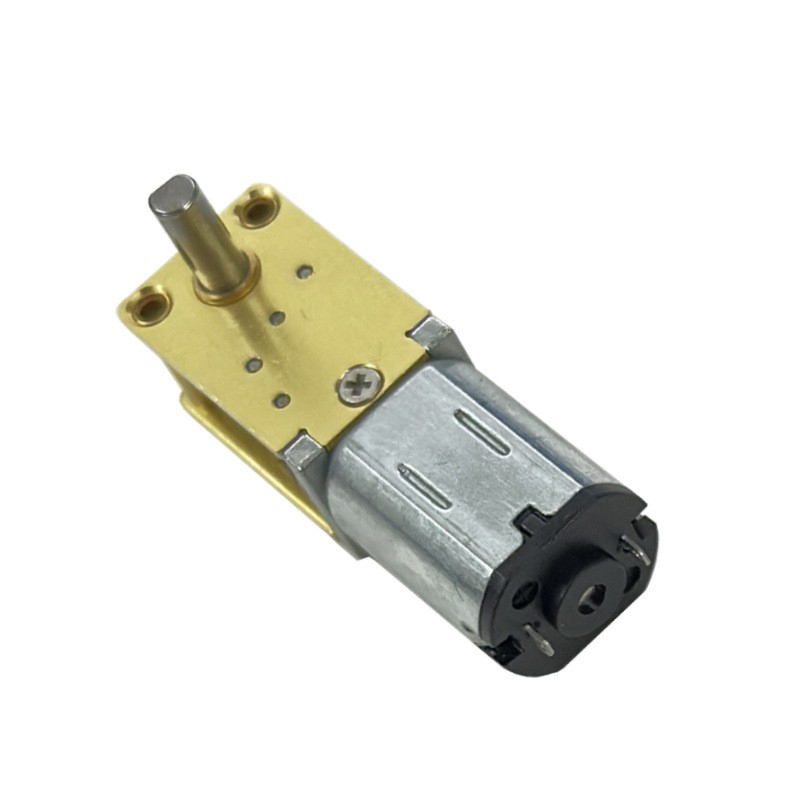

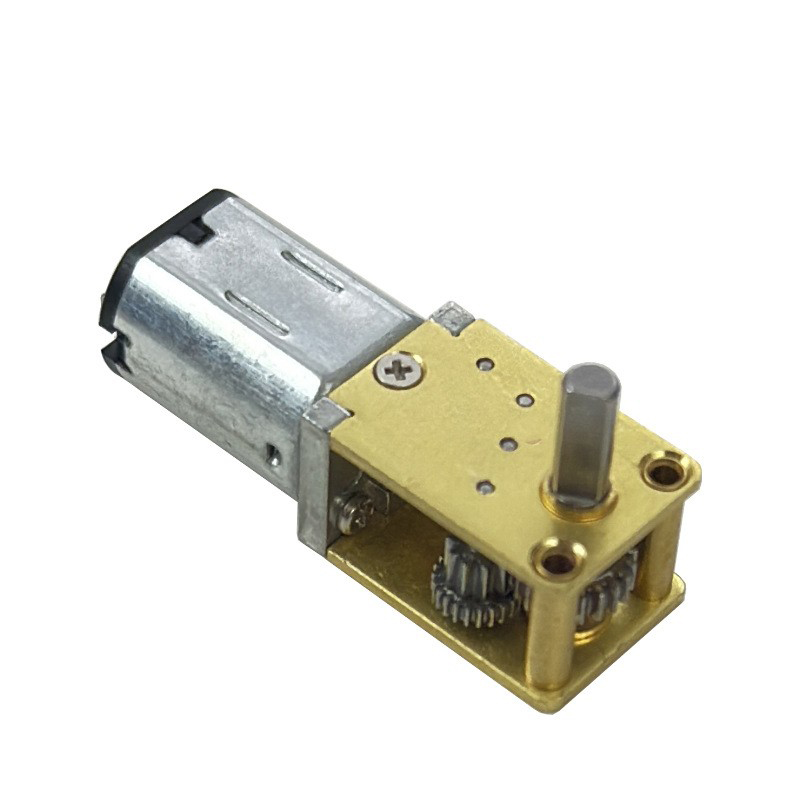

12MM * 18MM High Torque Right Angle Shaft N20 3V 4.5V 5V 6V 12V Micro DC Worm Gear Motor for Intelligent Robot
12MM * 18MM High Torque Right Angle Shaft N20 3V 4.5V 5V 6V 12V Micro DC Worm Gear Motor for Intelligent Robot
12MM * 18MM High Torque Right Angle Shaft N20 3V 4.5V 5V 6V 12V Micro DC Worm Gear Motor for Intelligent Robot
12MM * 18MM High Torque Right Angle Shaft N20 3V 4.5V 5V 6V 12V Micro DC Worm Gear Motor for Intelligent Robot
12MM * 18MM High Torque Right Angle Shaft N20 3V 4.5V 5V 6V 12V Micro DC Worm Gear Motor for Intelligent Robot
1 / 5
12MM * 18MM High Torque Right Angle Shaft N20 3V 4.5V 5V 6V 12V Micro DC Worm Gear Motor for Intelligent Robot
12MM * 18MM High Torque Right Angle Shaft N20 3V 4.5V 5V 6V 12V Micro DC Worm Gear Motor for Intelligent Robot
12MM * 18MM High Torque Right Angle Shaft N20 3V 4.5V 5V 6V 12V Micro DC Worm Gear Motor for Intelligent Robot
12MM * 18MM High Torque Right Angle Shaft N20 3V 4.5V 5V 6V 12V Micro DC Worm Gear Motor for Intelligent Robot
12MM * 18MM High Torque Right Angle Shaft N20 3V 4.5V 5V 6V 12V Micro DC Worm Gear Motor for Intelligent Robot

12MM * 18MM High Torque Right Angle Shaft N20 3V 4.5V 5V 6V 12V Micro DC Worm Gear Motor for Intelligent Robot

Send Inquiry

Product Description

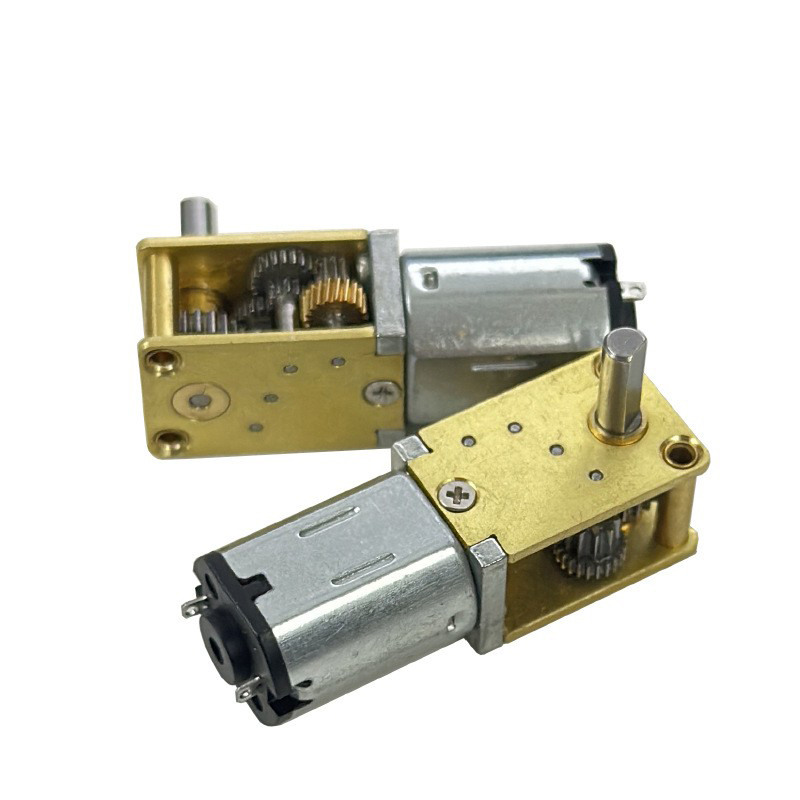

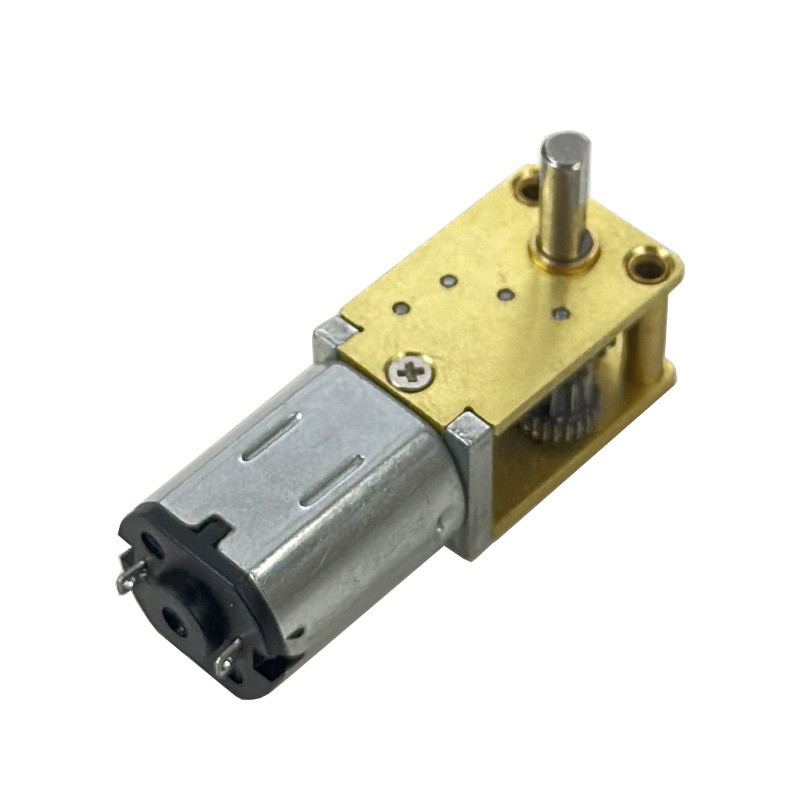

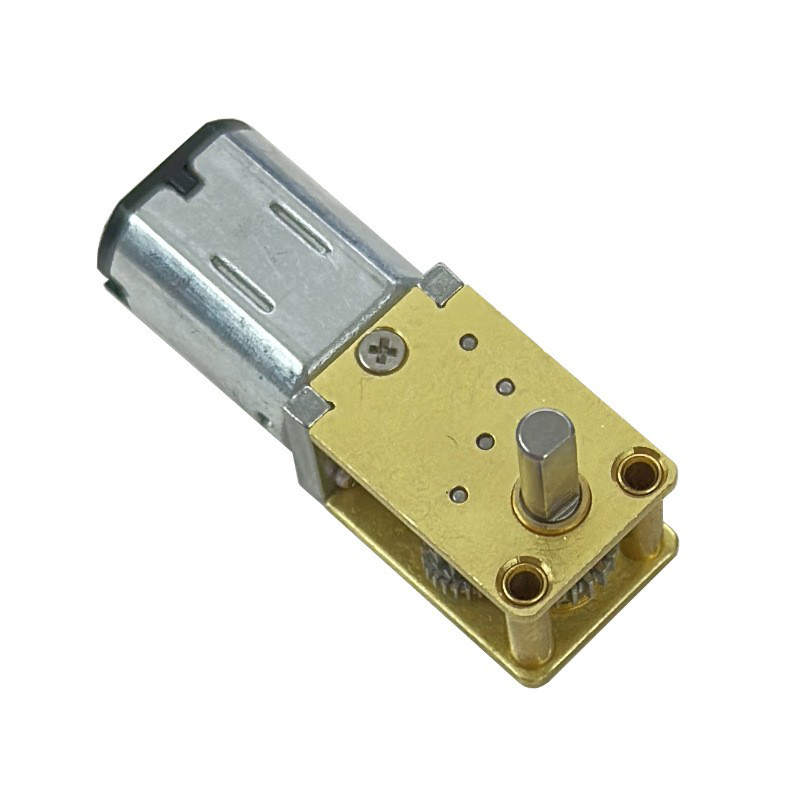

12MM * 18MM High Torque Right Angle Shaft N20 Micro DC Worm Gear Motor
DC Worm Gear Motor
Key Features:
Matched with N20 Brush DC Motor, this 12mm*18mm spur gearbox provides high torque for precision applications. Available in various voltages: 3V, 4.5V, 5V, 6V, 12V, and 24V.
📊 Technical Parameters
Motor Type DC Gear Motors Model Number HGM1218-N20
Voltage Range 1.5 ~ 28.0V Nominal Voltage 3V / 4.5V / 5V / 6V / 9V / 12V / 24V
No Load Speed 10 ~ 200 RPM No Load Current < 0.1A
Max Efficiency Speed: 10~180rpm; Current: <0.5A; Torque: 100~2000g·cm; Output power: <3W
Stall Torque 500 ~ 4000g·cm Stall Current < 3A
Shaft Length Customizable Net Weight Approx 12g

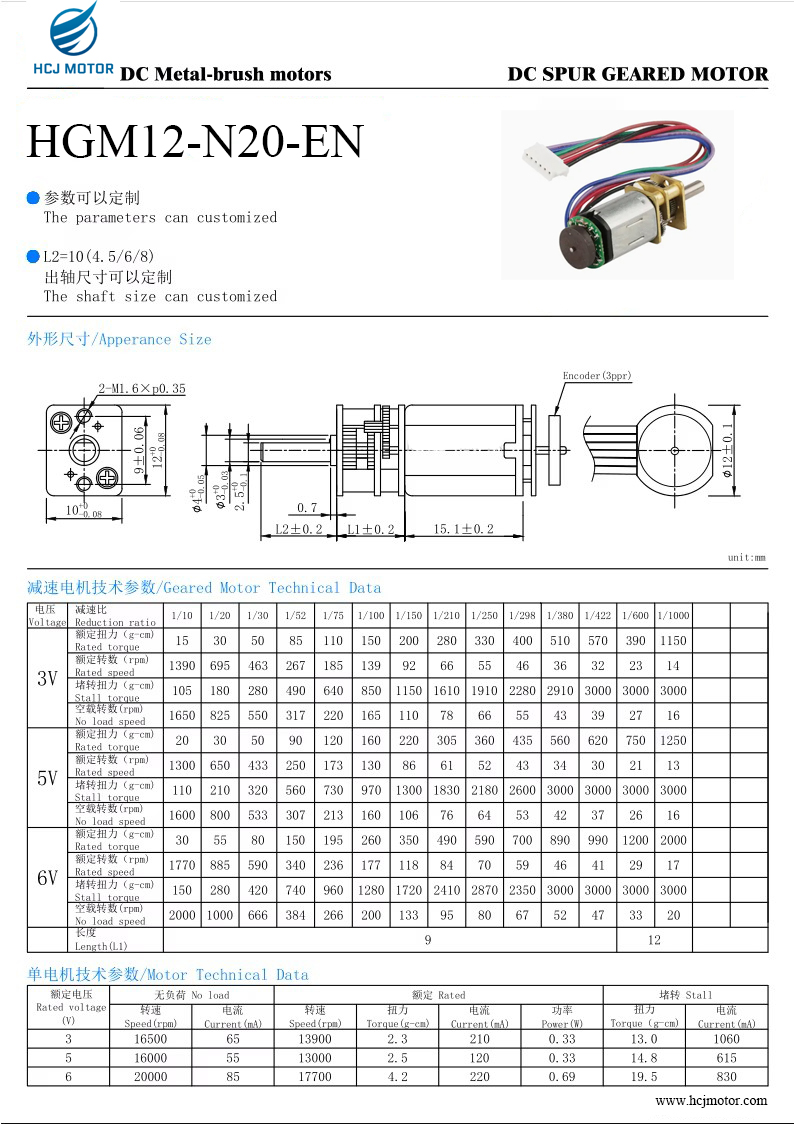

🔍 Engineering Specifications

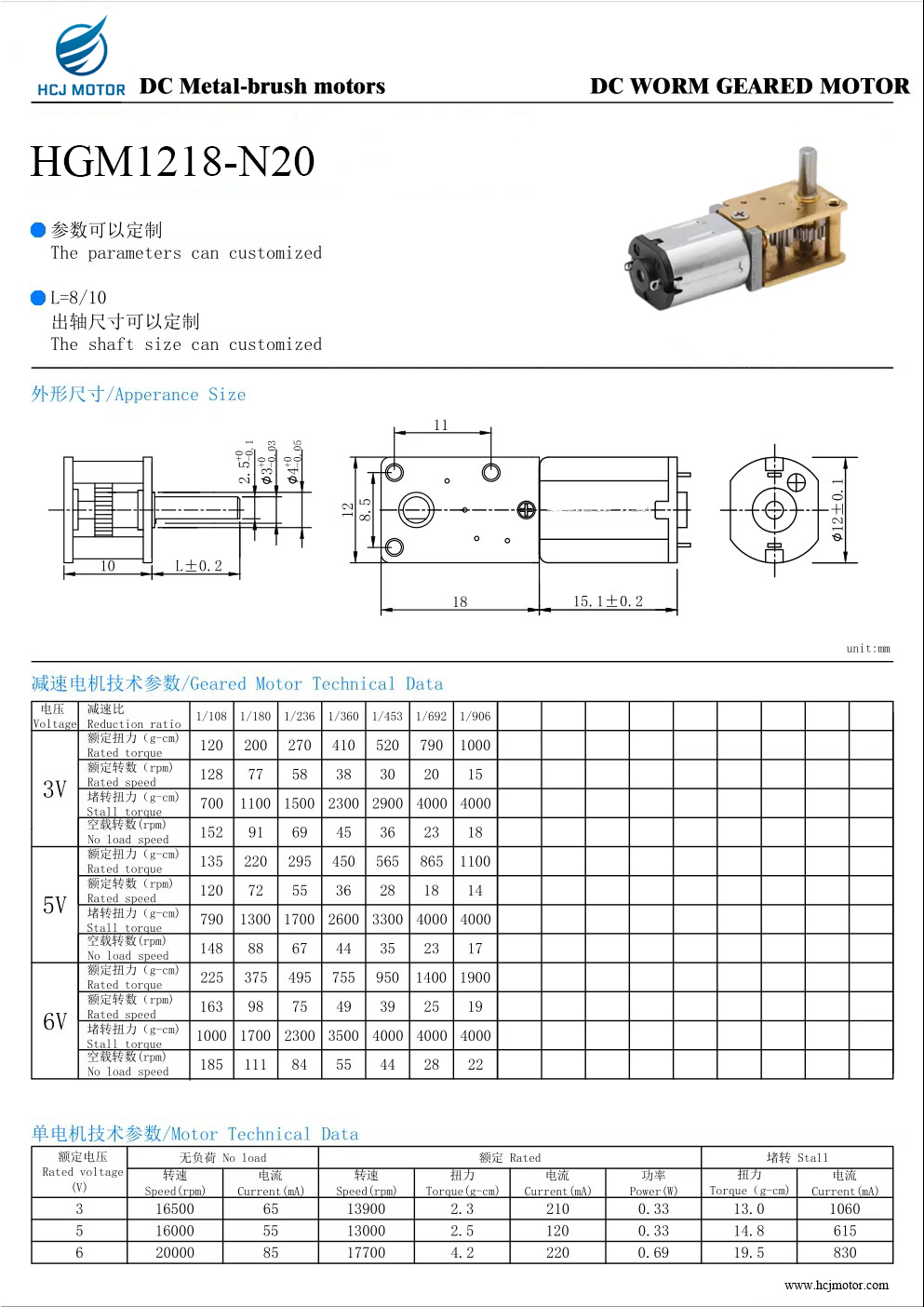

Motor Specifications
🚀 Industry Applications
  • Business Machines: Intelligent robots, Copiers, Scanners, 3D Printers, Tattoo pens.
  • Electric Powered: Toothbrushes, Electric tools, Curtains, Razors, Drills.
  • Smart Home: Window openers, Vacuums, Coffee machines, Hair driers, Door locks.
  • Food & Beverage: Blenders, Mixers, Juicers, Ice makers, Soy milk makers.
  • Medical: Sphygmomanometers, Massaging mattresses, Air pumps, Urine analyzers.
  • Robotics: Sweeping robots, Food delivery robots, Inspection robots, Underwater robots.

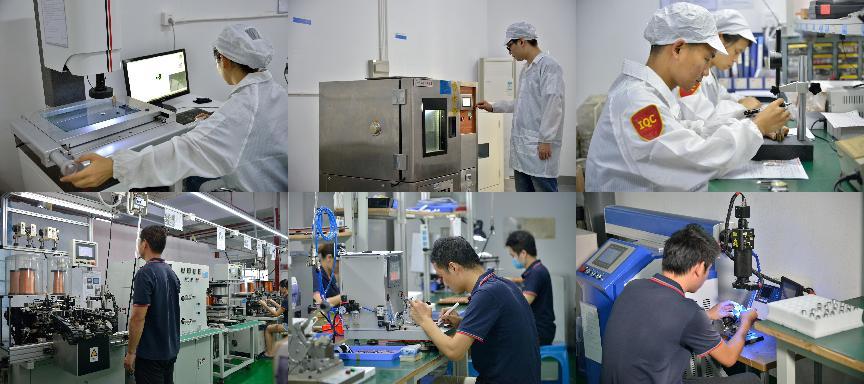

🏢 Professional Motor Manufacturer

As a specialist in the research, development, and production of micro DC gear motors, brushless motors, and coreless motors, our products are widely utilized in intelligent home appliances, power tools, medical equipment, and robotics industries. We offer custom design services to meet specific performance requirements, backed by decades of engineering expertise.

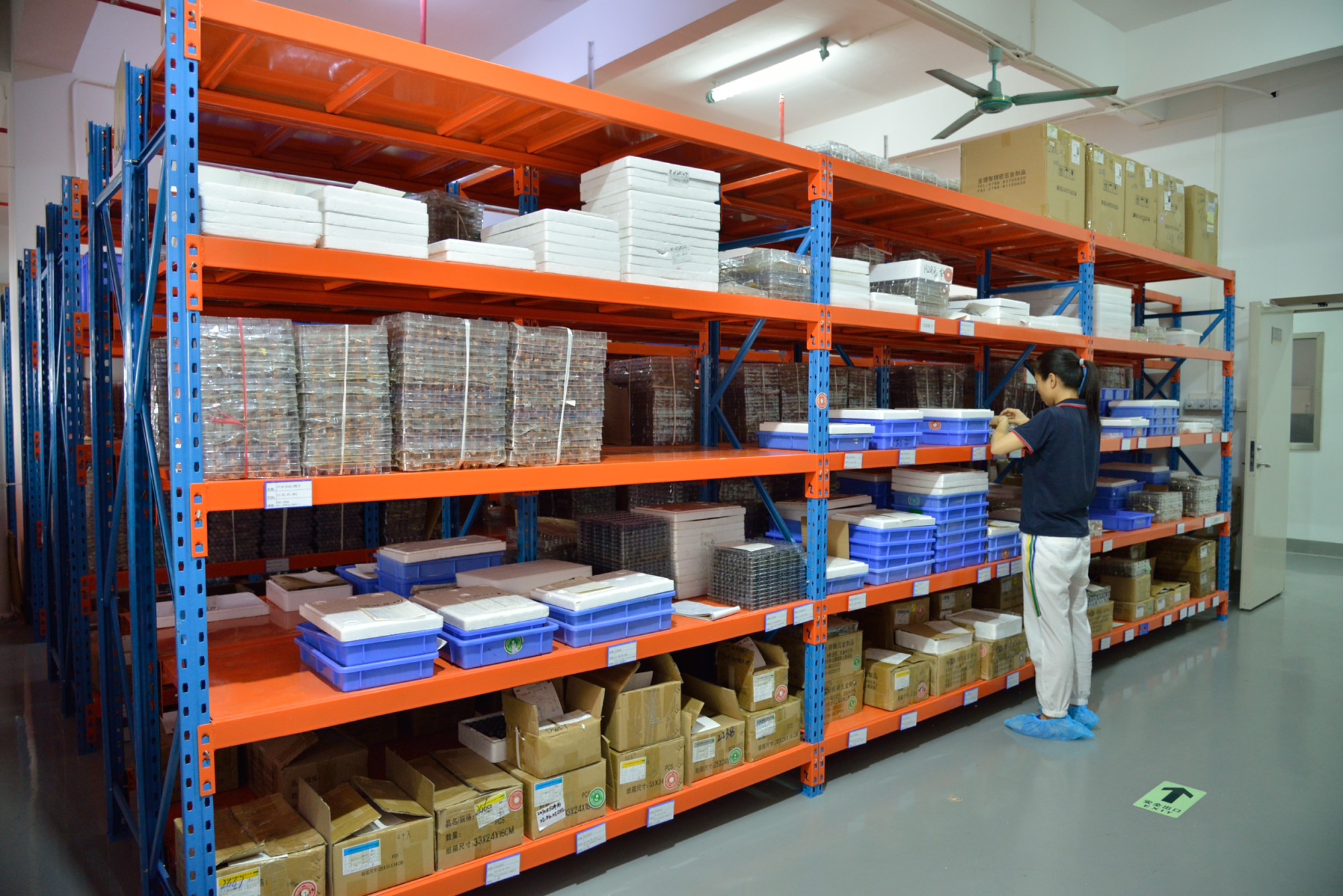

📦 Packaging & Delivery
- Standard crate, carton or pallet packaging.
- Shipping options: Air shipping, Sea shipping, or Express.
- Delivery time: 7-30 working days depending on order size.
🔗 Recommended Products
❓ Frequently Asked Questions
Q: Can you make the Gearbox with custom specifications? A: YES. We have strong R&D capabilities and a team of engineers with many years of experience to handle custom requests.
Q: Do you provide samples for testing? A: YES. We provide samples with a delivery time of 5-15 days depending on the required gearbox specifications.
Q: Do you have these items in stock? A: Most products are made to order based on specific customer requirements. Please contact us for current production status.
Q: How do I select a suitable DC Gear Motor? A: Please provide voltage, speed, torque, motor size, and application details. If you have drawings or pictures, that will help us recommend the best fit.

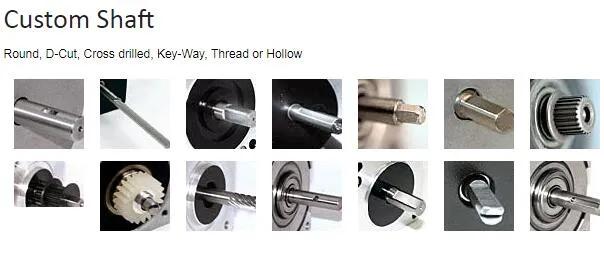

Q: What customized services do you offer? A: We can customize voltage, speed, torque, shaft size/shape, and add connectors, cables, or EMC components.
Q: What are the available payment methods? A: We accept T/T in advance, PayPal, credit cards, and other standard secure payment platforms.
