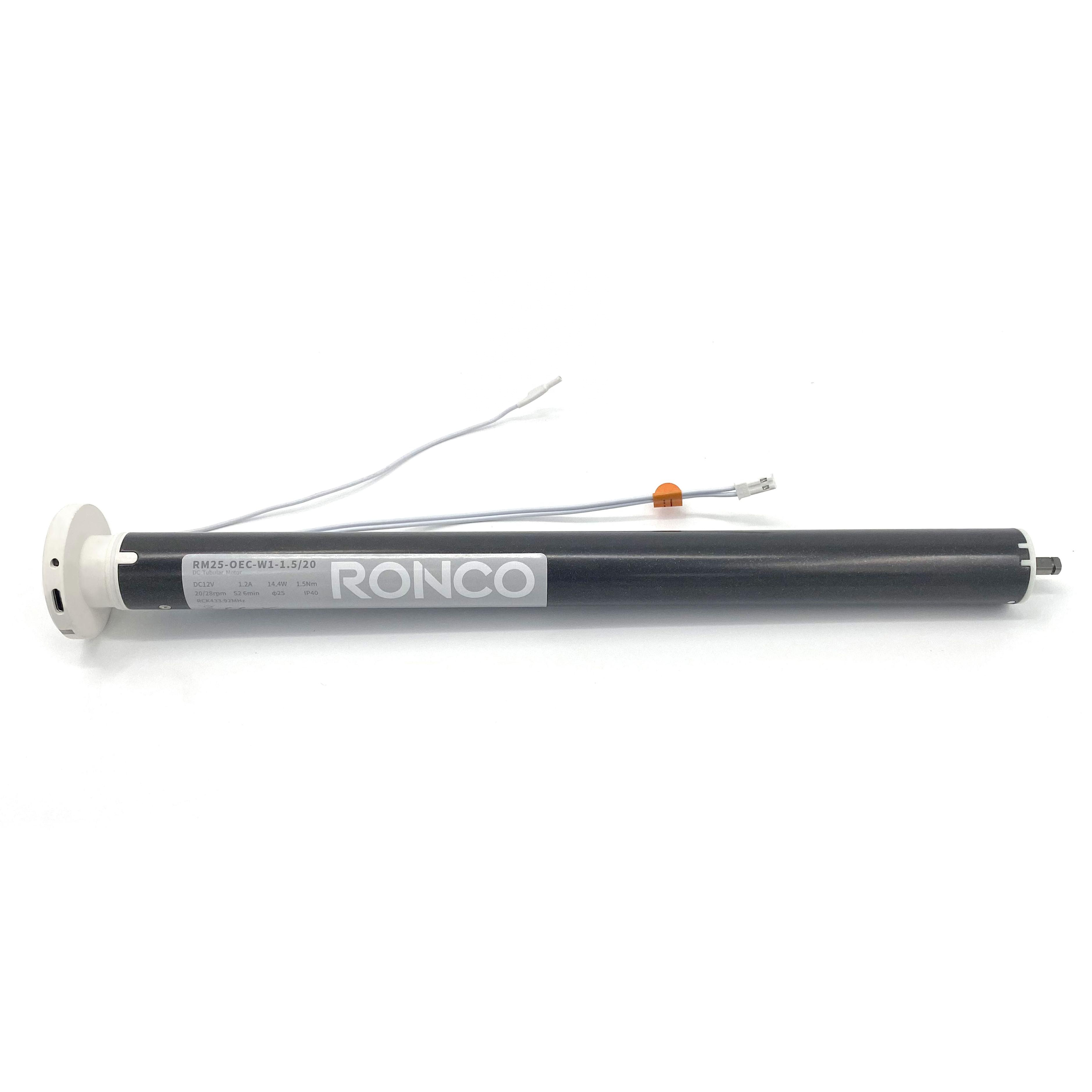

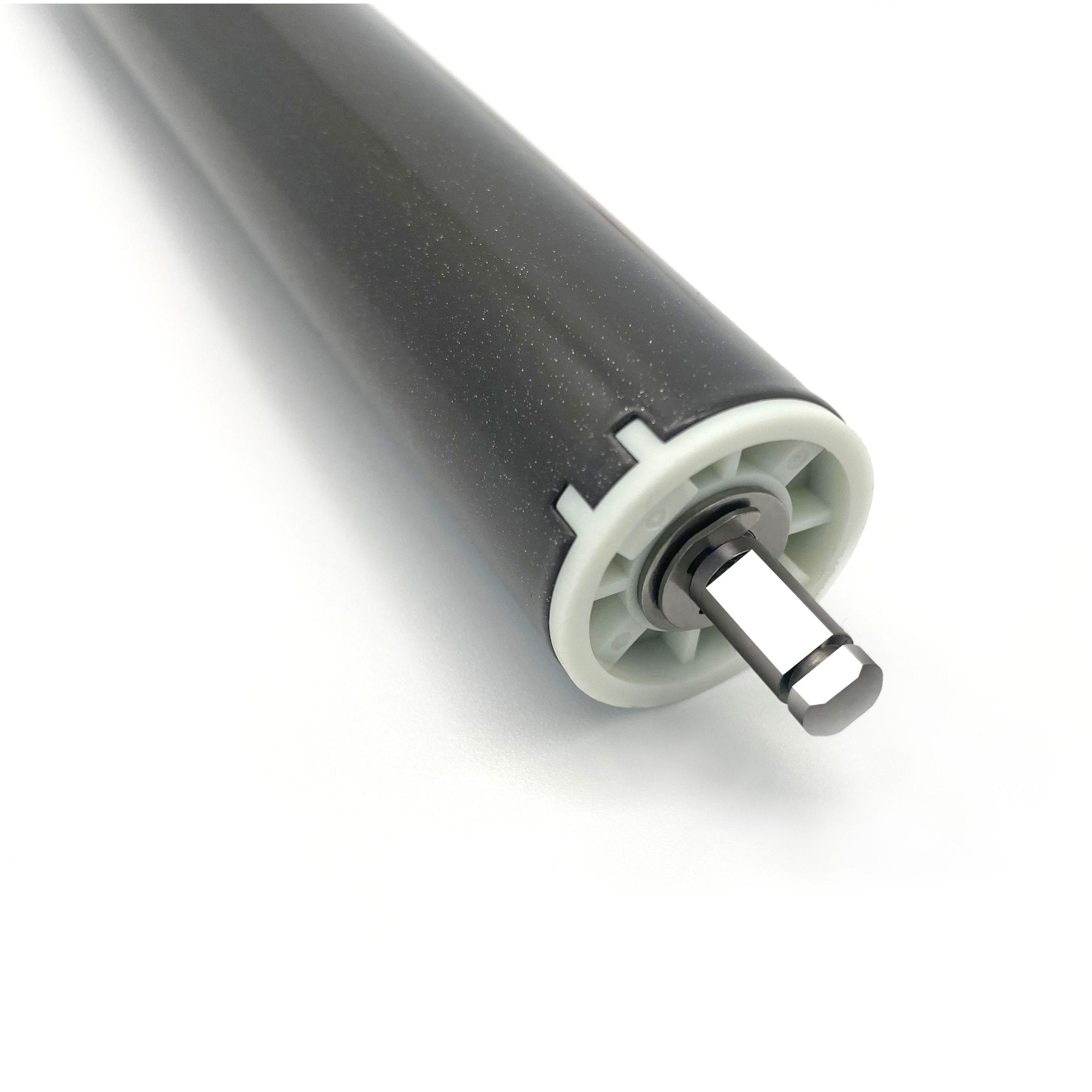

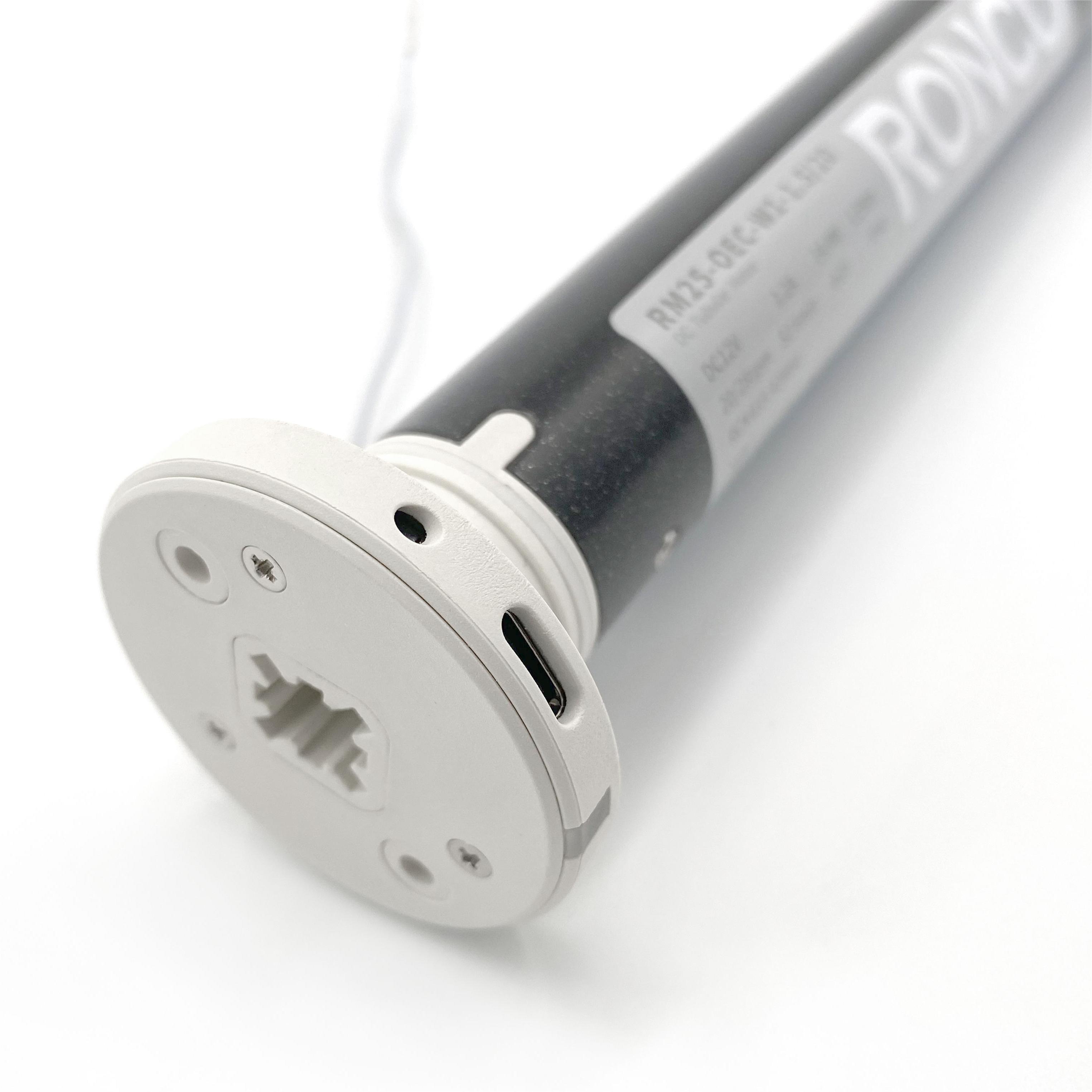

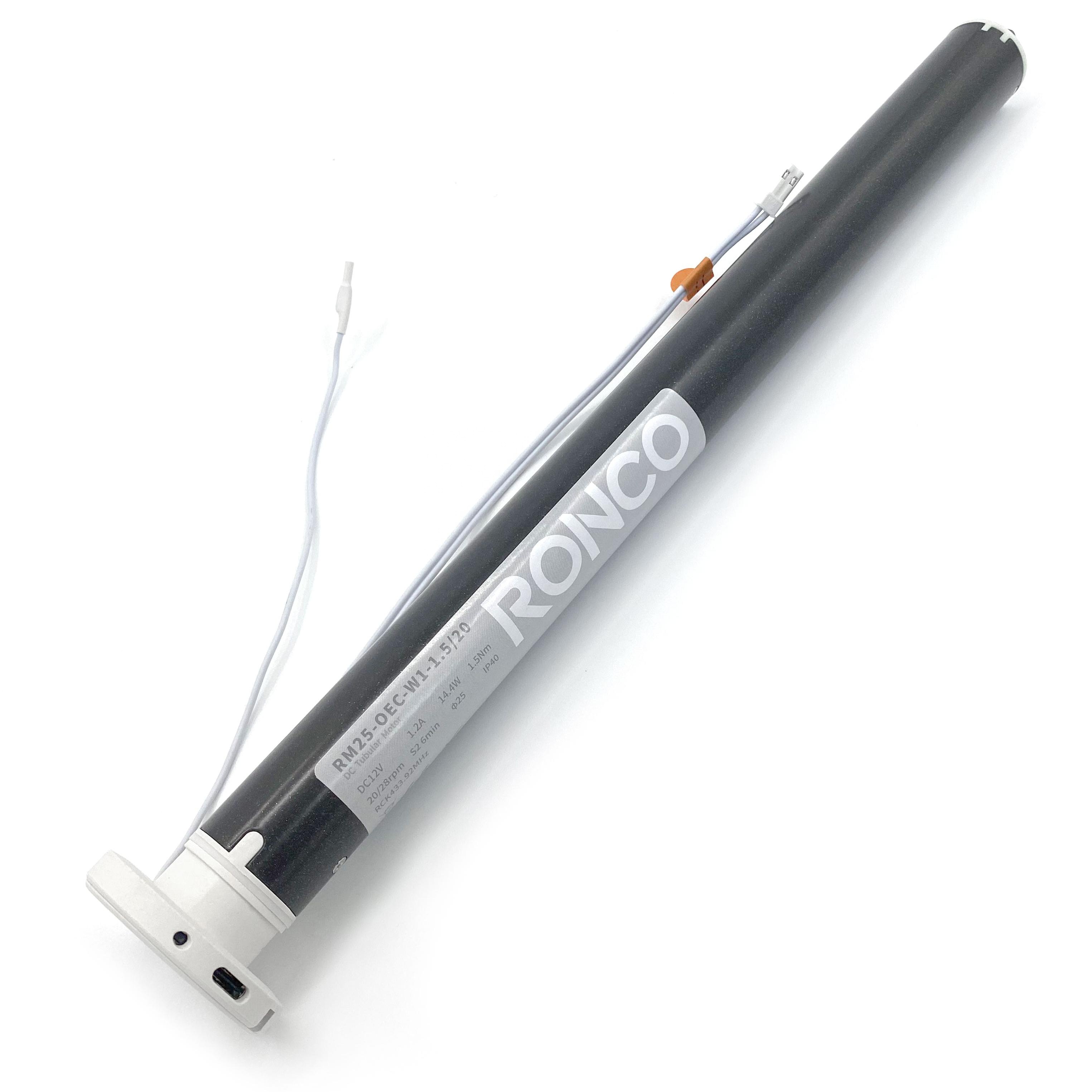

RM25-OEC DC 25mm 12V 24V 433 Remote control Polar panel Battery wand Low Voltage Quite Tubular Motor
Technical Parameters
Product Type
DC Tubular Motor
Product Series
RM25 OE Series
Product Code
RM25-OEC-W1-1.1/20
Rated Voltage (V)
12
Rated Current (A)
0.6
Rated Power (W)
7.2
Rated Torque (Nm)
0.7
Rated Speed (rpm)
20-28
Running Noise (dB)
<38
Running Time (min)
6
RF frequency (MHz)
433.92
Protection Grade
IP40
Insulation Grade
B

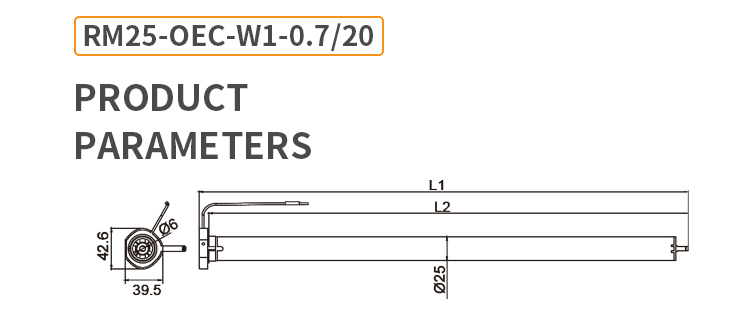

Length L1 (mm)
370/362

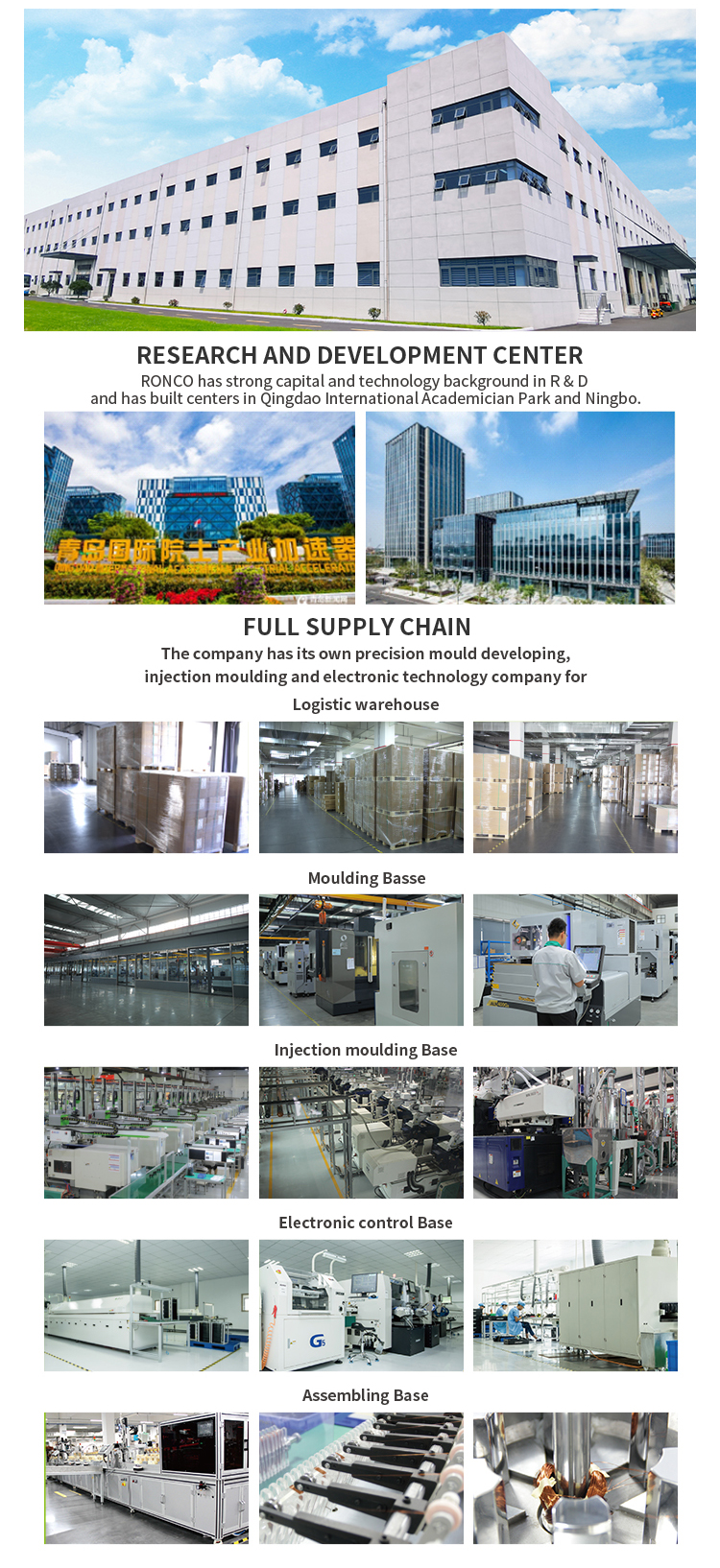

Professional Capabilities
The manufacturer is mainly engaged in the research and development of various types of smart curtains & blinds, and related supporting DC tubular motors, AC tubular motors, curtain motors, Venetian blinds motor, controller, and smart indoor and outdoor actuator devices. Professional and efficient pre-sales guidance, sales support, and after-sales tracking service systems are provided, offering targeted, feasible, and cost-effective solutions for different product needs raised by customers in various industries. The network covers major global regions including Europe, America, Southeast Asia, the Middle East, and East Asia.
Frequently Asked Questions
1. What is the noise level of the RM25-OEC motor?
The RM25-OEC motor is designed for quiet operation, with a running noise level of less than 38dB, making it ideal for indoor environments.

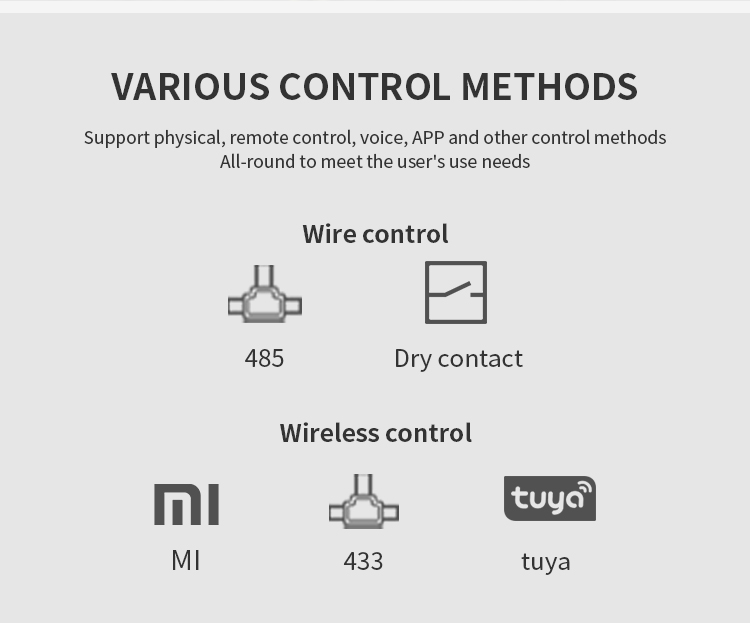

2. Does this motor support remote control?
Yes, it features a built-in RF receiver operating at a frequency of 433.92 MHz, compatible with remote control systems.
3. What are the power requirements for this tubular motor?
This motor operates on a rated voltage of 12V DC with a rated power consumption of 7.2W and a current of 0.6A.
4. Can this motor be used with solar panels?
Yes, the RM25-OEC is designed to be compatible with polar panels and battery wand systems for low-voltage applications.
5. What is the protection rating and durability?
The motor has a protection grade of IP40 and an insulation grade of B, with a maximum continuous running time of 6 minutes.

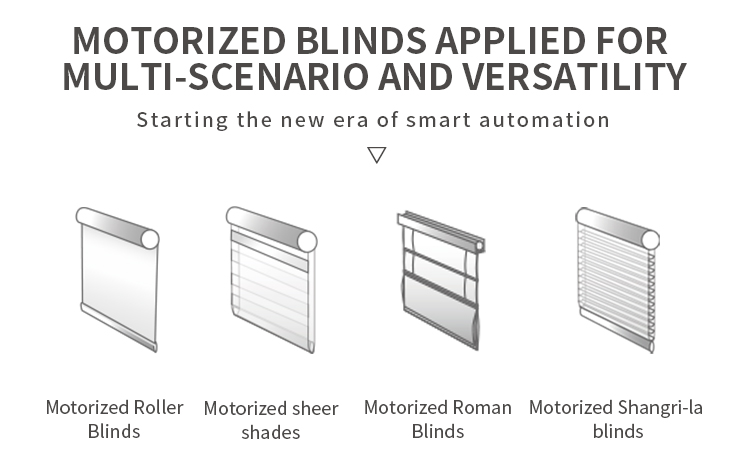

6. What type of blinds or curtains is this motor suitable for?
With a 0.7Nm torque and 25mm diameter, it is specifically designed for smart indoor blinds, roller shades, and light-duty actuator devices.
