High Precision 48V 3000W High-Power AC Servo Motor 14.8n. M High Torque Brushless DC Servo Motor for Car
High Precision 48V 3000W High-Power AC Servo Motor 14.8n. M High Torque Brushless DC Servo Motor for Car
High Precision 48V 3000W High-Power AC Servo Motor 14.8n. M High Torque Brushless DC Servo Motor for Car
High Precision 48V 3000W High-Power AC Servo Motor 14.8n. M High Torque Brushless DC Servo Motor for Car
High Precision 48V 3000W High-Power AC Servo Motor 14.8n. M High Torque Brushless DC Servo Motor for Car
1 / 5
High Precision 48V 3000W High-Power AC Servo Motor 14.8n. M High Torque Brushless DC Servo Motor for Car
High Precision 48V 3000W High-Power AC Servo Motor 14.8n. M High Torque Brushless DC Servo Motor for Car
High Precision 48V 3000W High-Power AC Servo Motor 14.8n. M High Torque Brushless DC Servo Motor for Car
High Precision 48V 3000W High-Power AC Servo Motor 14.8n. M High Torque Brushless DC Servo Motor for Car
High Precision 48V 3000W High-Power AC Servo Motor 14.8n. M High Torque Brushless DC Servo Motor for Car

High Precision 48V 3000W High-Power AC Servo Motor 14.8n. M High Torque Brushless DC Servo Motor for Car

Customization: Available
Application: Universal, Industrial, Household Appliances, Car, Power Tools, Crawler Robot
Operating Speed: Constant Speed
Send Inquiry

Product Description

Basic Specifications
Model NO.
LK130BS0430-15
Voltage
24V / 48V
Power
3000W
Rated Speed
1500rpm
Excitation Mode
Permanent Magnet
Number of Poles
16
Structure
Brushless
Certification
ISO9001
Encoder
Photoelectric Encoder 2500PPR
HS Code
8501310000
Origin
China
Function
Control, Driving
Product Description

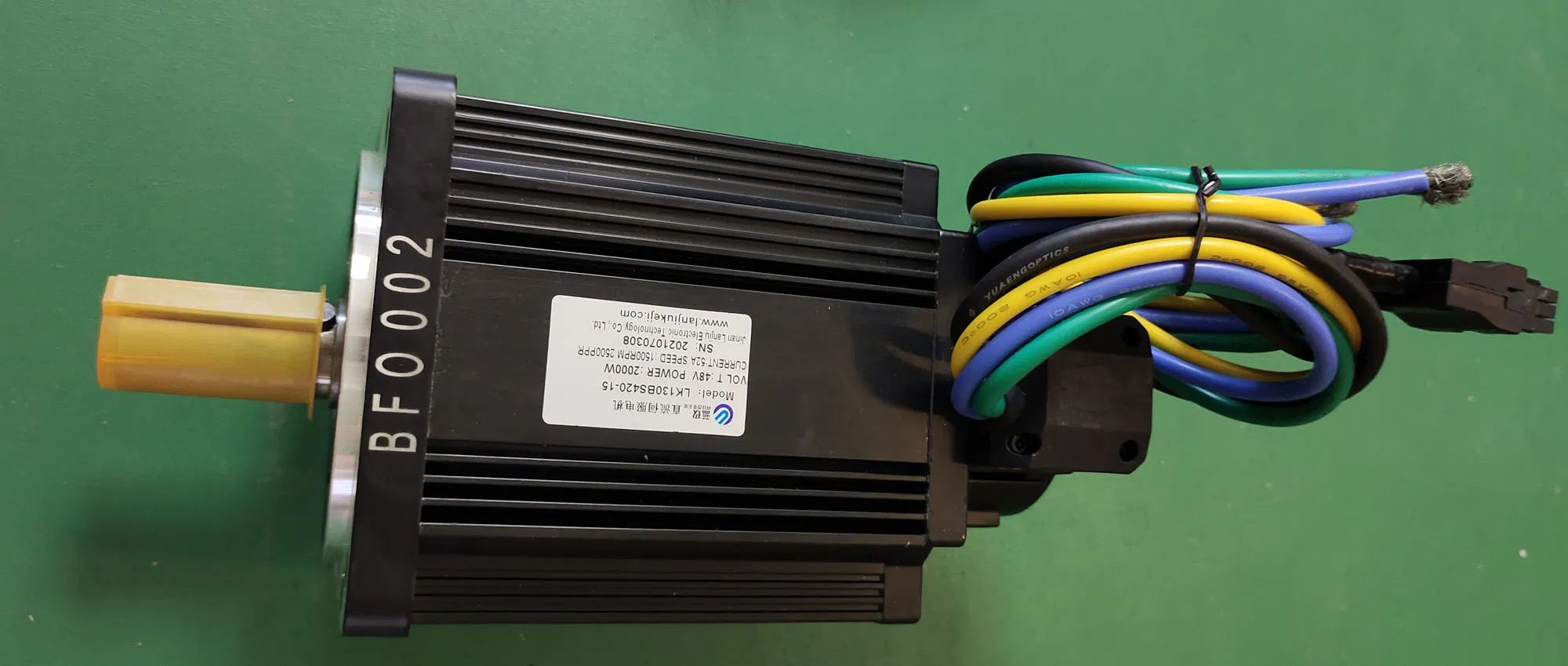

130MM DC Brushless Servo Motor with Encoder 48V 3KW 1500R 19N.m

The brushless servo motor features a robust overload capacity, low voltage operation, and high torque performance. Equipped with a 2500PPR photoelectric encoder, it is specifically designed for high-precision applications. It is widely utilized in crawler AGV systems. The supporting dual-channel brushless servo driver allows for versatile control, including compatibility with aeromodelling remote control systems.

DC Brushless Servo Motor Overview

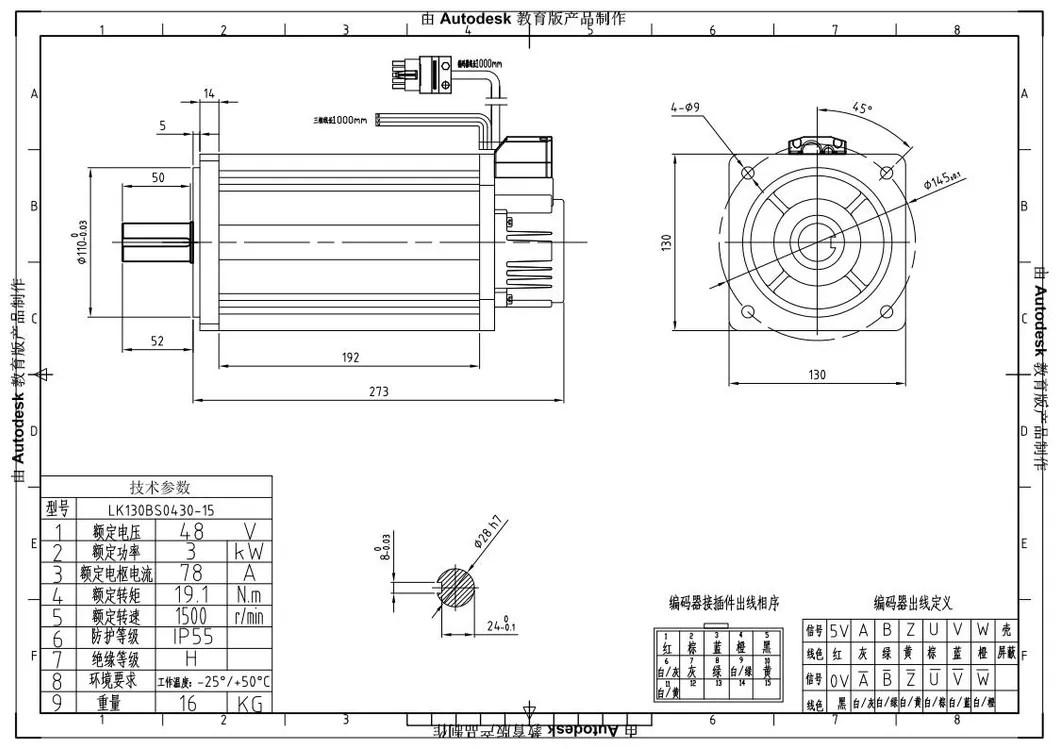

Servo Motor Technical Drawing 1

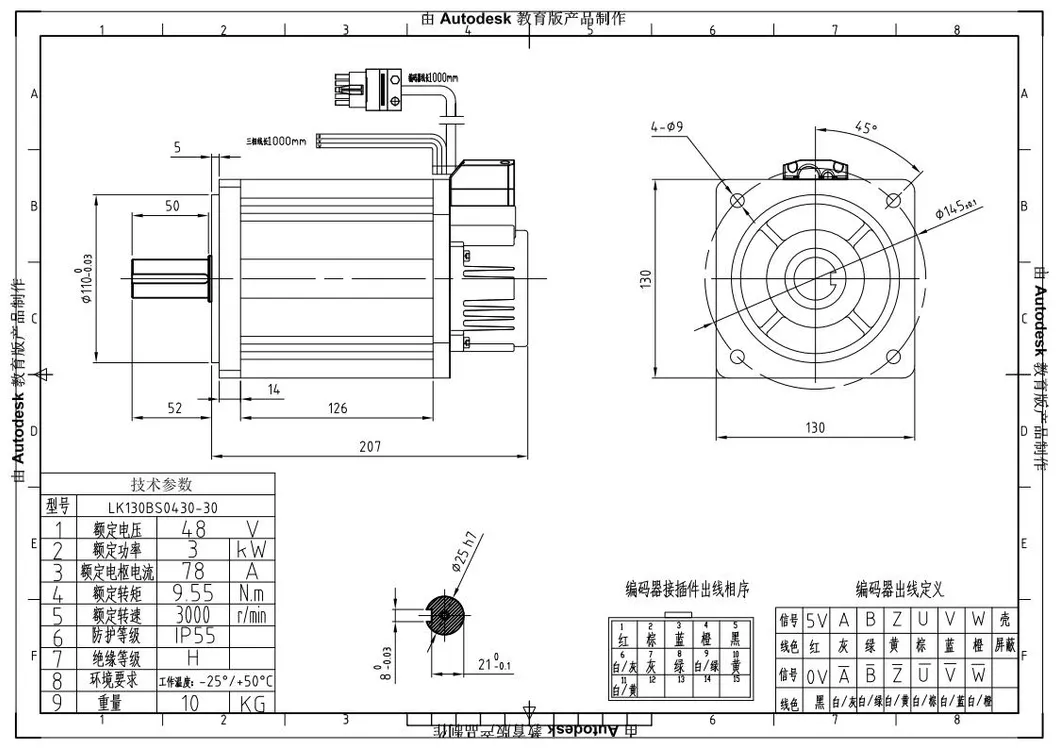

Servo Motor Technical Drawing 2

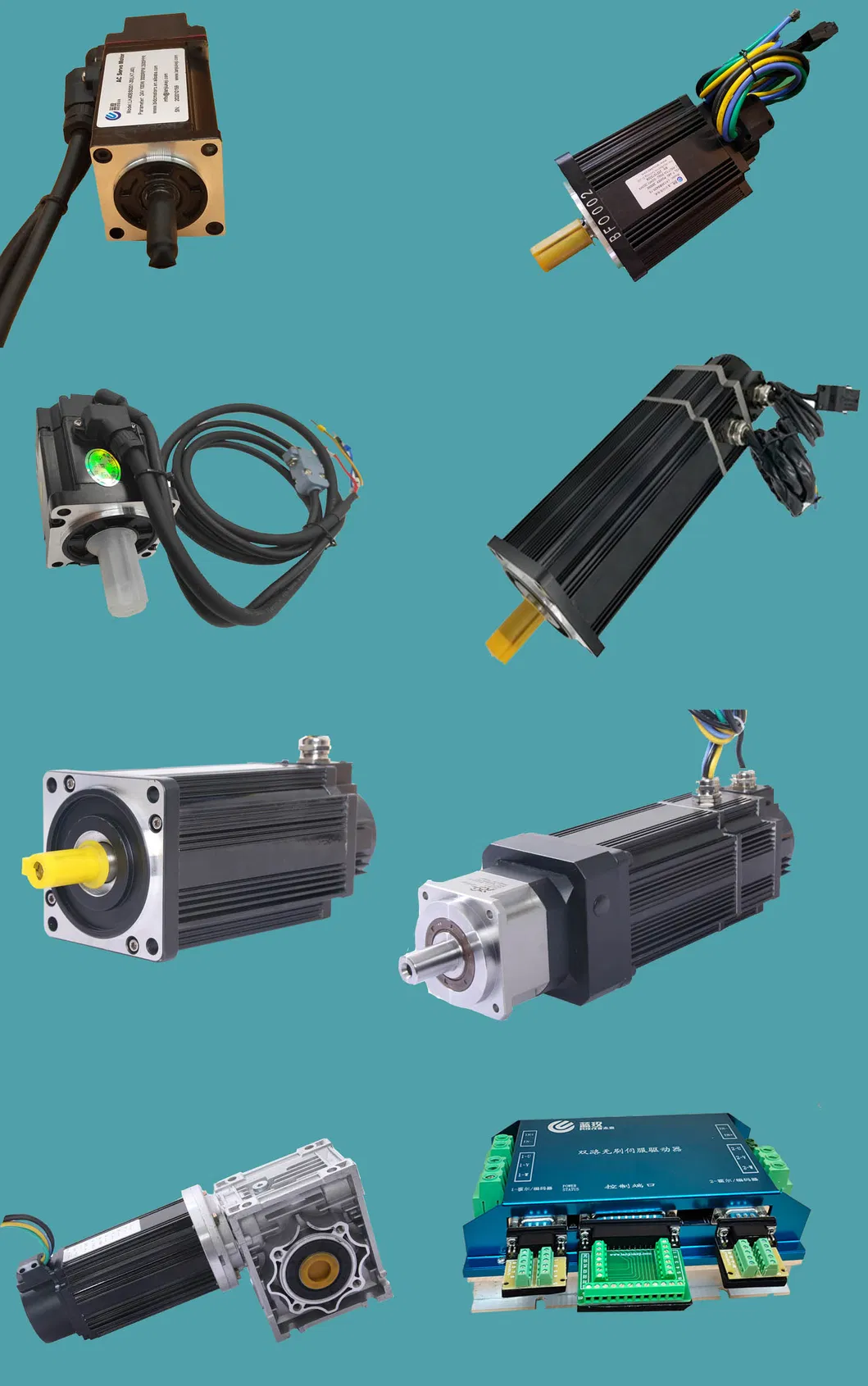

Detailed Specifications Chart

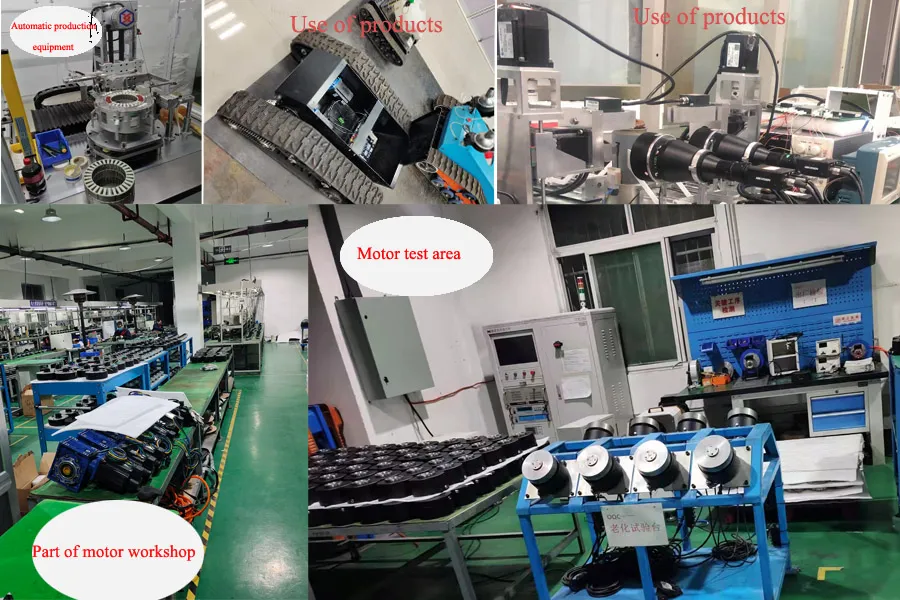

Product Live View
Encoder and Connector Detail
Packaging & Delivery
Package Size
30.00cm * 15.00cm * 15.00cm
Gross Weight
6.600kg
Transport Package
Standard Carton
Production Capacity
1000 Units/Month
Shipping and Packaging Details
Frequently Asked Questions
What are the primary applications for this 3000W servo motor?
This motor is specifically designed for high-torque and low-voltage applications, making it ideal for crawler AGVs (Automated Guided Vehicles), industrial robots, and automated driving systems.
What type of encoder is integrated into the motor?
The motor is equipped with a high-precision 2500PPR (Pulses Per Revolution) photoelectric encoder, ensuring accurate positioning and speed control.
Can the motor operate on both 24V and 48V?
Yes, the motor is designed to be compatible with both 24V and 48V DC power supplies, providing flexibility based on your system's power requirements.
Does this motor support remote control operation?
When paired with a compatible dual-channel brushless servo driver, the system can be controlled via standard aeromodelling remote control units.
What is the peak torque and rated speed of the LK130BS0430-15 model?
The model LK130BS0430-15 has a rated torque of 19N.m and a rated speed of 1500rpm, providing a balanced output of power and control.
Is the motor suitable for harsh industrial environments?
Yes, the motor is built with a permanent magnet brushless structure and is ISO9001 certified, ensuring high reliability and durability for industrial use.
