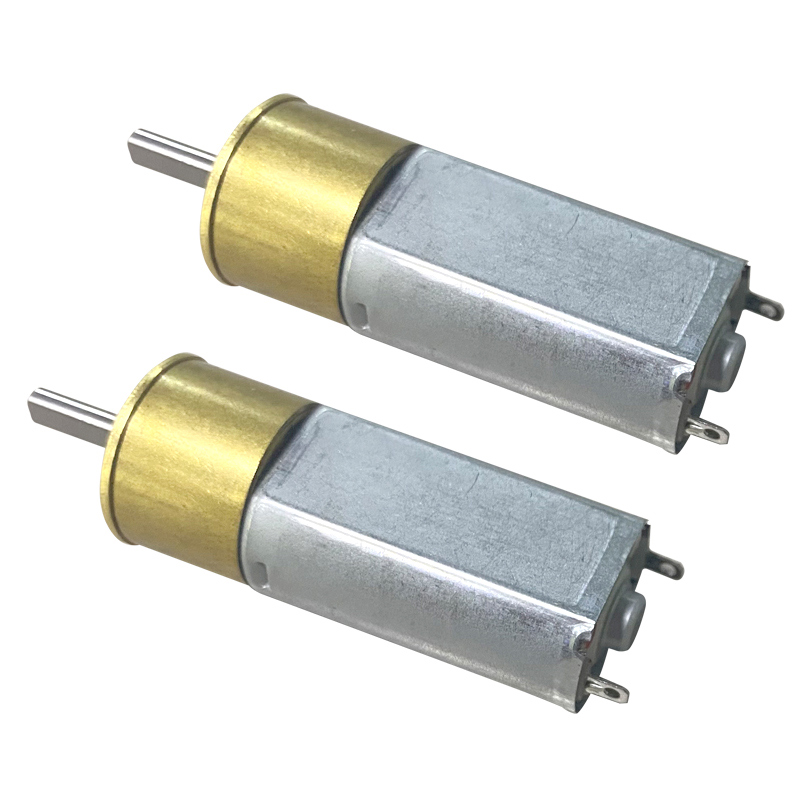

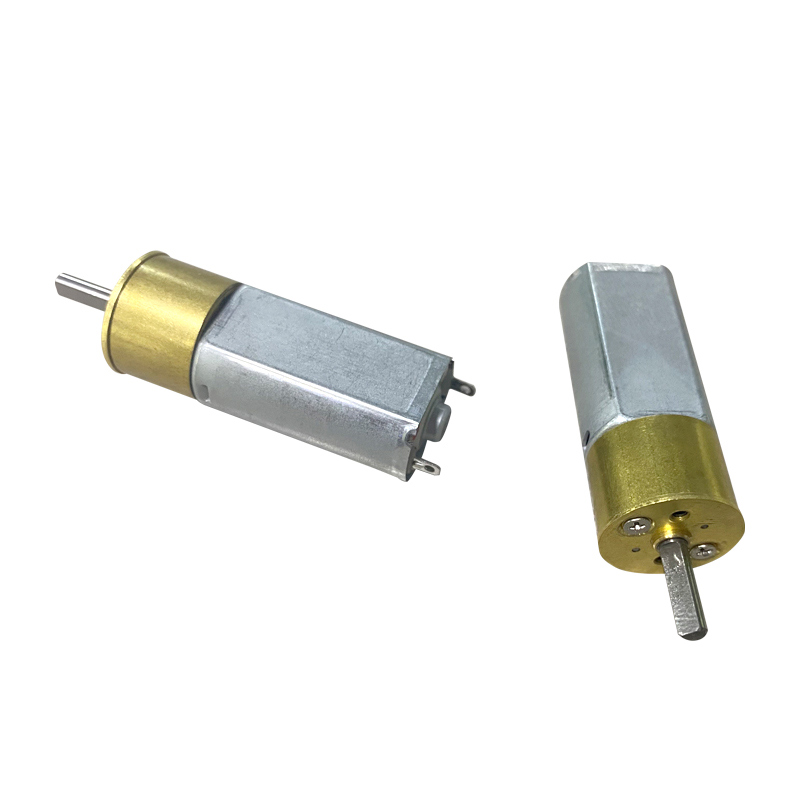

Sweg Motor
Sweg Motor
* Voltage, speed, and shaft can be customized based on requirements.

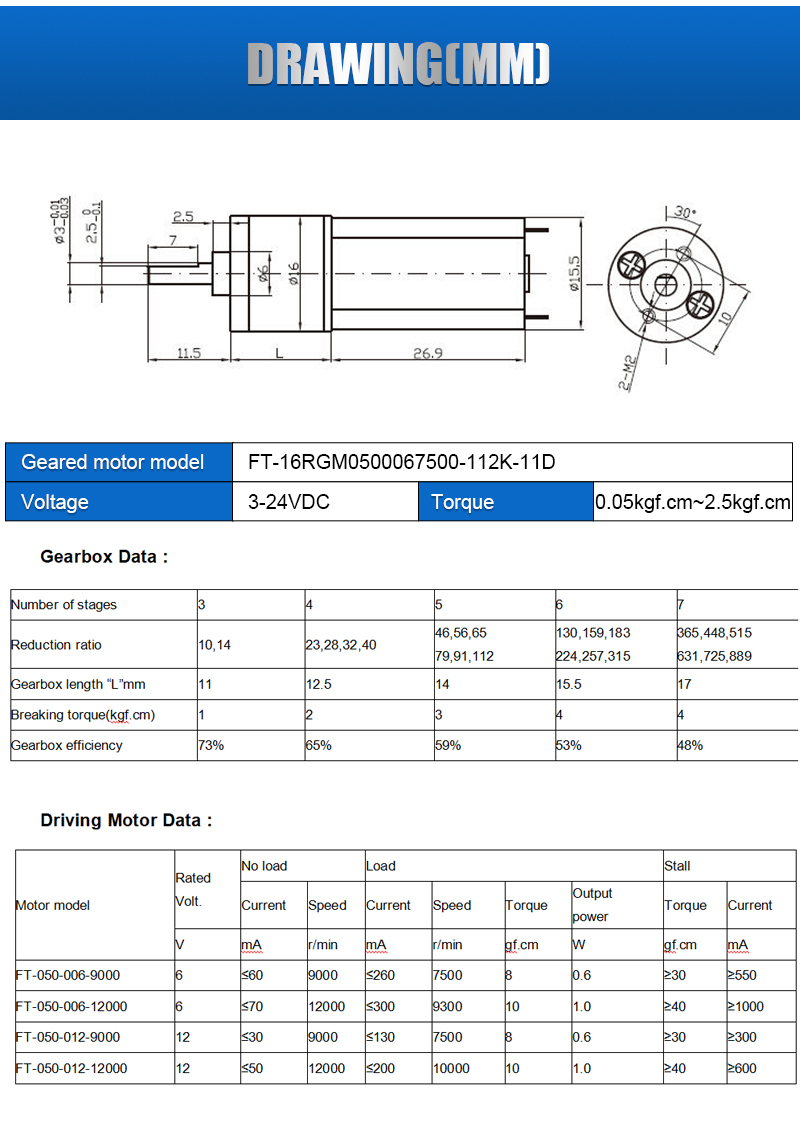

| Number of stages | 3 | 4 | 5 | 6 | 7 |
|---|---|---|---|---|---|
| Reduction ratio | 10, 14 | 23, 28, 32, 40 | 46, 56, 65, 79, 91, 112 | 130, 159, 183, 224, 257, 315 | 365, 448, 515, 631, 725, 889 |
| Gearbox length "L" (mm) | 11 | 12.5 | 14 | 15.5 | 17 |
| Breaking torque (kgf.cm) | 1 | 2 | 3 | 4 | 4 |
| Gearbox efficiency | 73% | 65% | 59% | 53% | 48% |
| Motor Model | Rated Volt (V) | No Load | Load | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Current (mA) | Speed (r/min) | Current (mA) | Speed (r/min) | Torque (gf.cm) | Output (W) | Torque (gf.cm) | Current (mA) | ||
| FT-050-006-9000 | 6 | ≤60 | 9000 | ≤260 | 7500 | 8 | 0.6 | ≥30 | ≥550 |
| FT-050-006-12000 | 6 | ≤70 | 12000 | ≤300 | 9300 | 10 | 1.0 | ≥40 | ≥1000 |
| FT-050-012-9000 | 12 | ≤30 | 9000 | ≤130 | 7500 | 8 | 0.6 | ≥30 | ≥300 |
| FT-050-012-12000 | 12 | ≤50 | 12000 | ≤200 | 10000 | 10 | 1.0 | ≥40 | ≥600 |

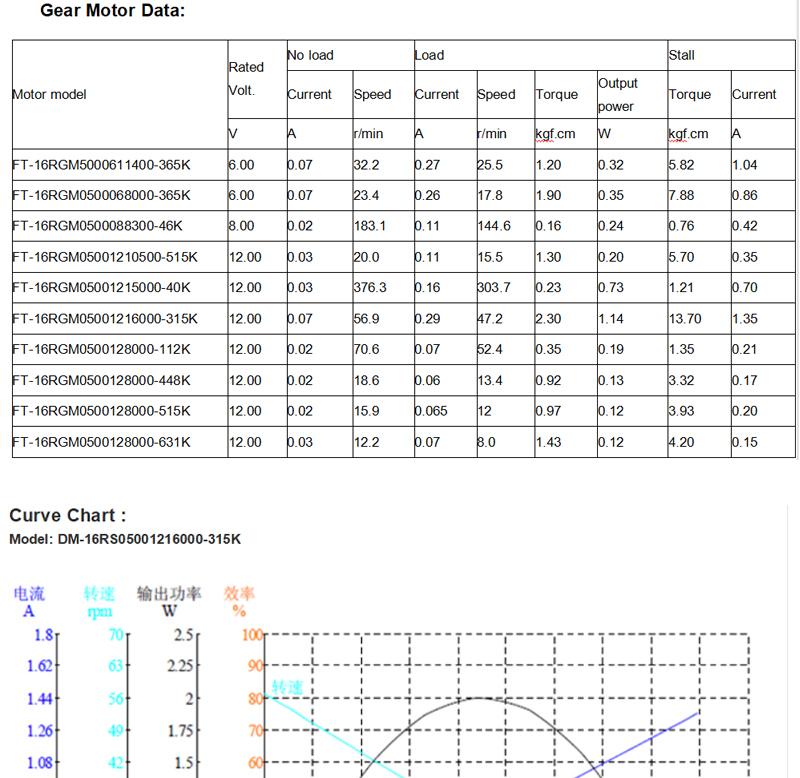

| Model Number | Rated Volt (V) | No Load | Load | Stall | |||||
|---|---|---|---|---|---|---|---|---|---|
| Current (A) | Speed (r/min) | Current (A) | Speed (r/min) | Torque (kgf.cm) | Power (W) | Torque (kgf.cm) | Current (A) | ||
| FT-16RGM5000611400-365K | 6.00 | 0.07 | 32.2 | 0.27 | 25.5 | 1.20 | 0.32 | 5.82 | 1.04 |
| FT-16RGM0500068000-365K | 6.00 | 0.07 | 23.4 | 0.26 | 17.8 | 1.90 | 0.35 | 7.88 | 0.86 |
| FT-16RGM0500088300-46K | 8.00 | 0.02 | 183.1 | 0.11 | 144.6 | 0.16 | 0.24 | 0.76 | 0.42 |
| FT-16RGM05001210500-515K | 12.00 | 0.03 | 20.0 | 0.11 | 15.5 | 1.30 | 0.20 | 5.70 | 0.35 |
| FT-16RGM05001215000-40K | 12.00 | 0.03 | 376.3 | 0.16 | 303.7 | 0.23 | 0.73 | 1.21 | 0.70 |
| FT-16RGM05001216000-315K | 12.00 | 0.07 | 56.9 | 0.29 | 47.2 | 2.30 | 1.14 | 13.70 | 1.35 |
| FT-16RGM0500128000-112K | 12.00 | 0.02 | 70.6 | 0.07 | 52.4 | 0.35 | 0.19 | 1.35 | 0.21 |
| FT-16RGM0500128000-448K | 12.00 | 0.02 | 18.6 | 0.06 | 13.4 | 0.92 | 0.13 | 3.32 | 0.17 |
| FT-16RGM0500128000-515K | 12.00 | 0.02 | 15.9 | 0.065 | 12 | 0.97 | 0.12 | 3.93 | 0.20 |
| FT-16RGM0500128000-631K | 12.00 | 0.03 | 12.2 | 0.07 | 8.0 | 1.43 | 0.12 | 4.20 | 0.15 |
