Product Description

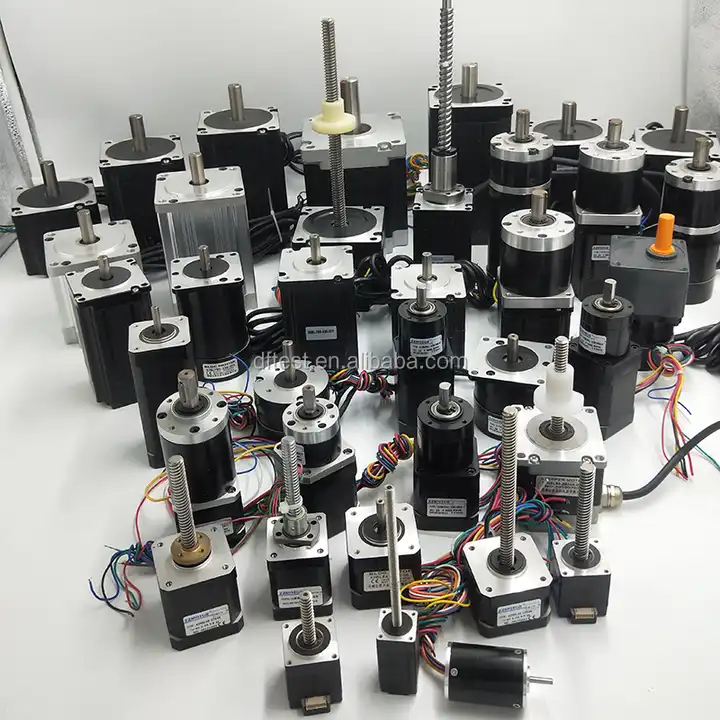

Adopt latest technology, under innovative tech, strict QC, our independent R& D team synchronously adopt international craft and cast great quality brushless motors. Our brushless motors include 42, 57, 60, 80, 86, 90 and 110 models.
Application
These brushless motor are widely used in digital controlled lathe, medical equipment, automation equipment, laser equipment and other industries dedicated automation equipment.

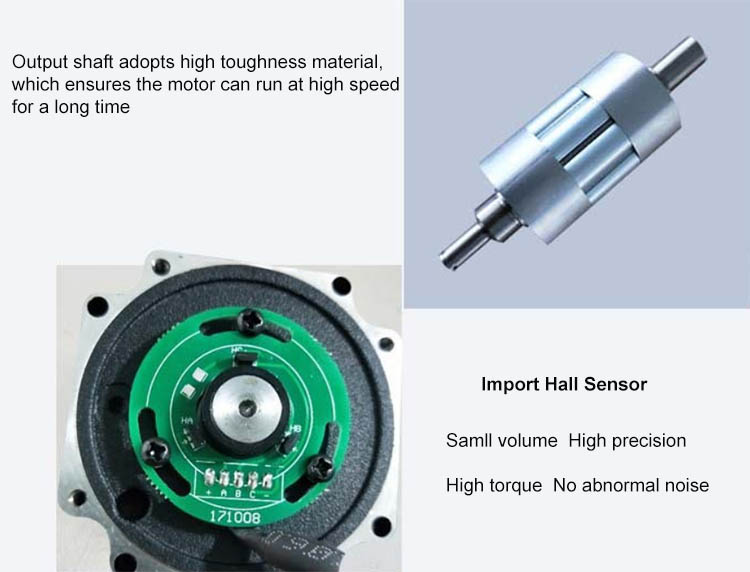

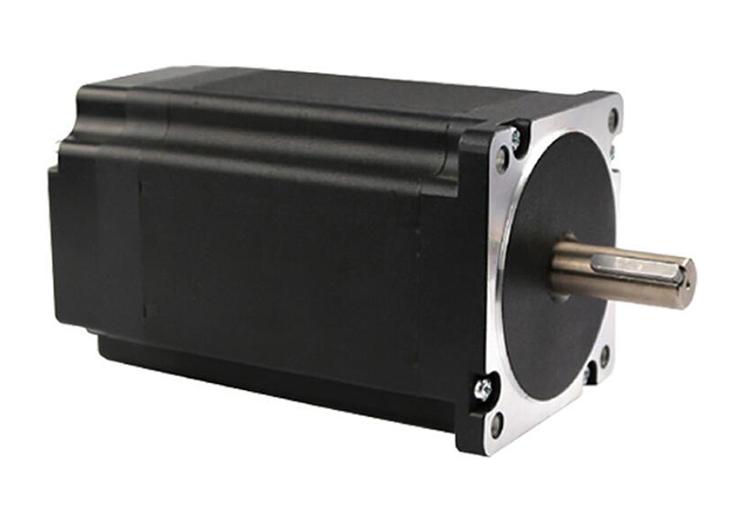

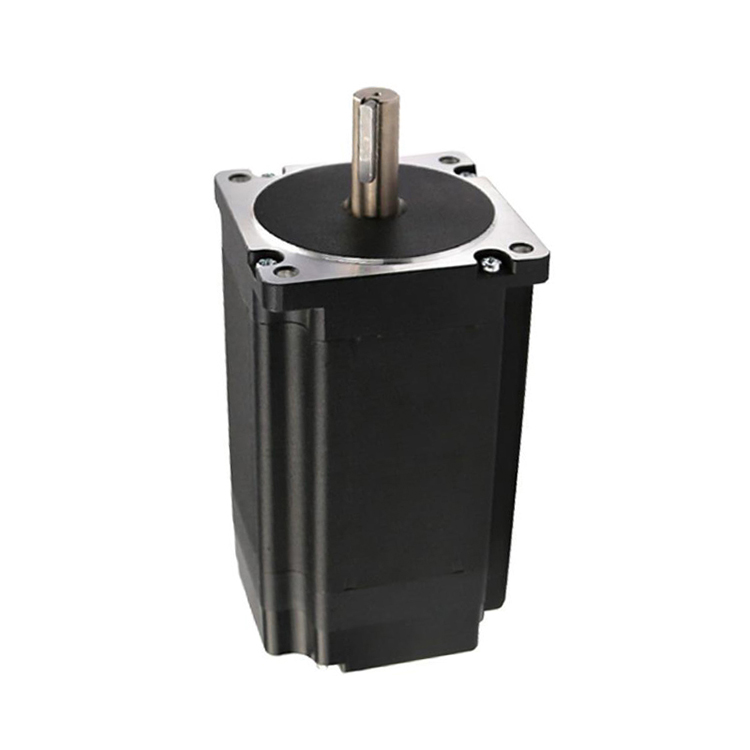

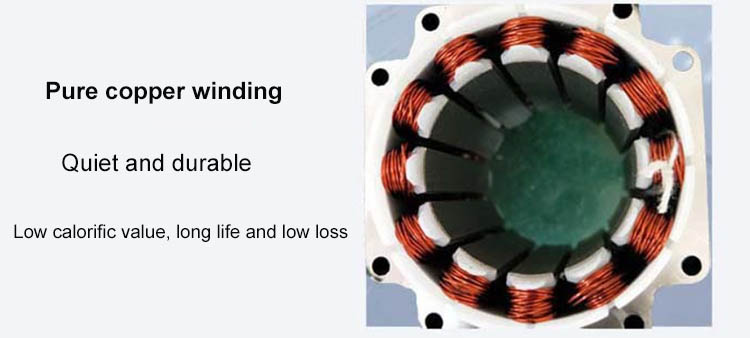

Product Details

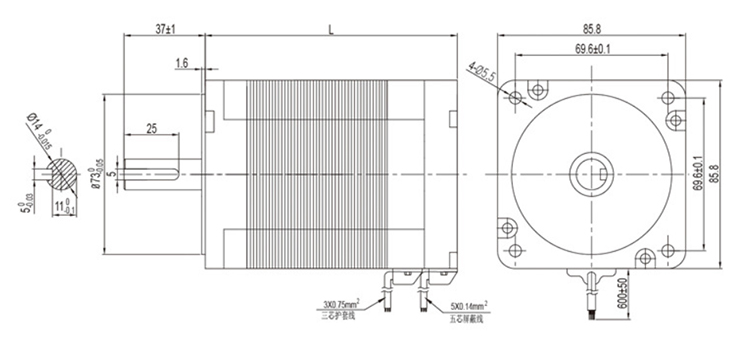

Mechanical dimensions of the brushless motor

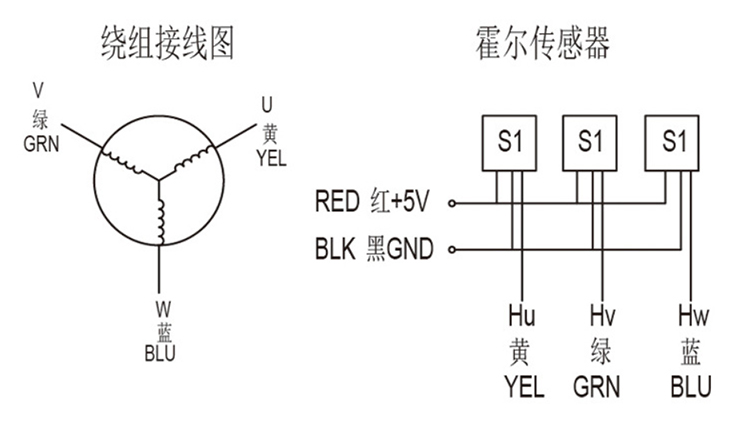

Wiring Diagram of the brushless motor
Parameter comparison of the brushless motors
| Model | Power (W) |
Model | Power (W) |
Model | Power (W) |
| 57BLY45-230 | 17 | 60BLF78-430 | 100 | 80BLF126-630 | 376 |
| 42BLF40-240 | 26 | 86BLF75-430 | 110 | 86BLF145-630 | 750 |
| 42BLF60-240 | 52 | 80BLF86-430 | 126 | 110BLF110-630 | 1000 |
| 57BLY55-230 | 55 | 60BLF99-430 | 200 | 110BLF170-630 | 2000 |
| 57BLY75-230 | 70 | 86BLF106-430 | 220 | 110BLF230-630 | 3000 |
Brushless DC motor numbering rules
1. Motor outer diameter dimension unit (mm)
2. Brushless DC motor
3. "F" square motor / "Y" round motor / "S" sintered magnetic material
4. Motor body length (mm) Note: exclude motor output shaft length
5. Rated voltage(DCV) "1":12V, "2":24V, "3":36V, "4":48V, "6":310V
6. Motor rated rotating speed "30": 3000rpm
Frequently Asked Questions
What is the typical lifespan of your brushless motors?

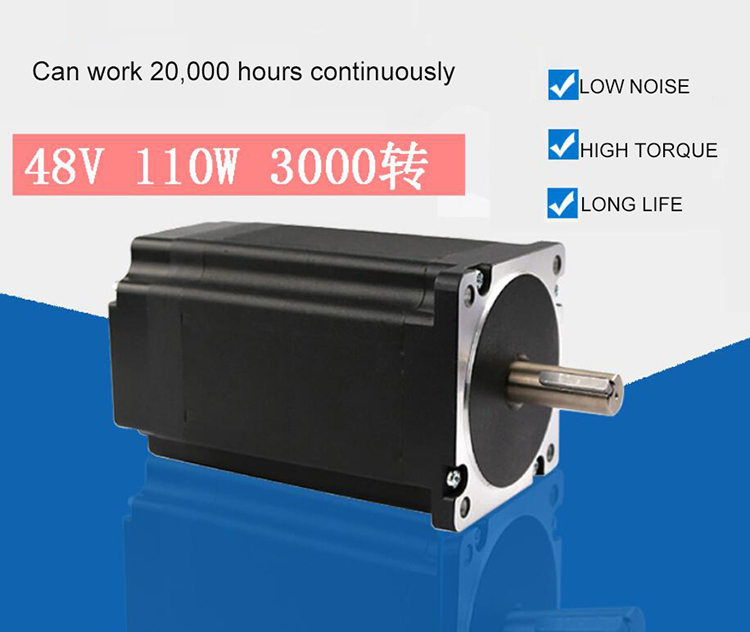

Our brushless motors are designed for longevity, typically working continuously for about 20,000 hours, which is ten times the lifespan of a traditional brushed motor.
In which industries are these motors primarily used?
They are widely applied in digital controlled lathes, medical instruments, automation equipment, laser machinery, and surveillance systems.
Do you offer customization for specific motor requirements?
Yes, we accept product customization to fit your unique mechanical or electrical specifications.
What is the advantage of brushless technology in terms of energy?
Brushless motors utilize frequency conversion technology, making them much more energy-efficient—consuming only about one-third of the power required by carbon brush motors.
What are the available voltage options for these motors?
We offer a range of rated voltages including 12V, 24V, 36V, 48V, and high-voltage 310V models.
What kind of technical support do you provide after purchase?
We provide a 1-year quality guarantee, free software, and technical training. Our engineers are available to provide professional support for any technical queries.
