500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor
500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor
500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor
500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor
500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor
1 / 5
500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor
500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor
500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor
500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor
500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor

500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor

Send Inquiry

Product Description

Product Banner

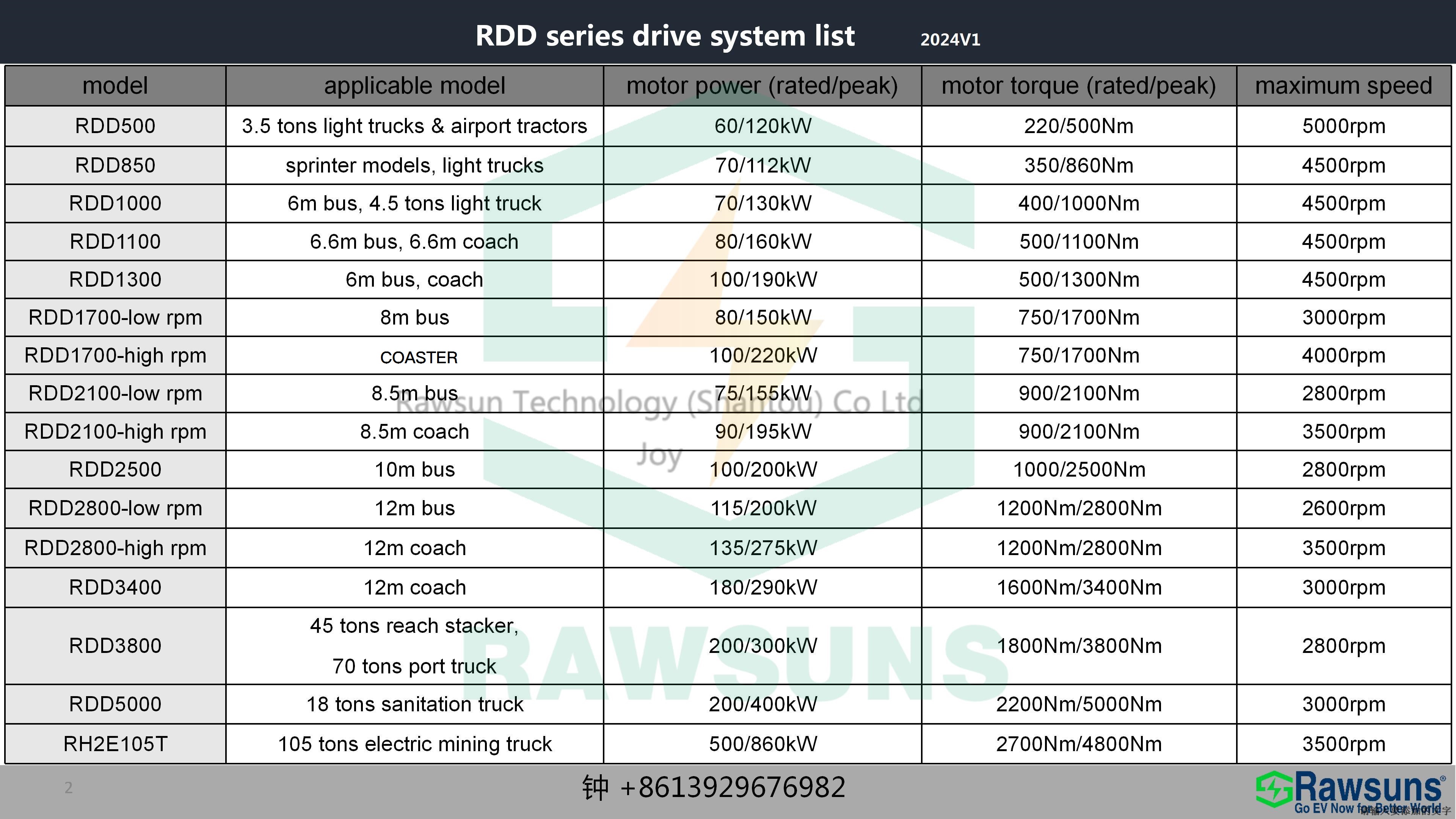

RDD Series Drive System List
500KW Inboard Ferry Yacht PMSM EV Marine Thruster Propeller Ship Engine Drive Motor Boat Electric Propulsion Synchronous Motor
Permanent Magnet Synchronous Motor (PMSM) is an electric motor that operates using permanent magnets embedded in the rotor, which interact with the stator's magnetic field to produce motion. Unlike traditional motors, PMSMs do not rely on induction, but instead use a fixed magnetic field provided by the permanent magnets.
Key Features of PMSM
🚀 High Efficiency
⚡ High Power Density
🎯 Precise Speed Control
🛠️ Low Maintenance
🔄 Regenerative Braking
🔇 Silent Operation
Scope of Supply

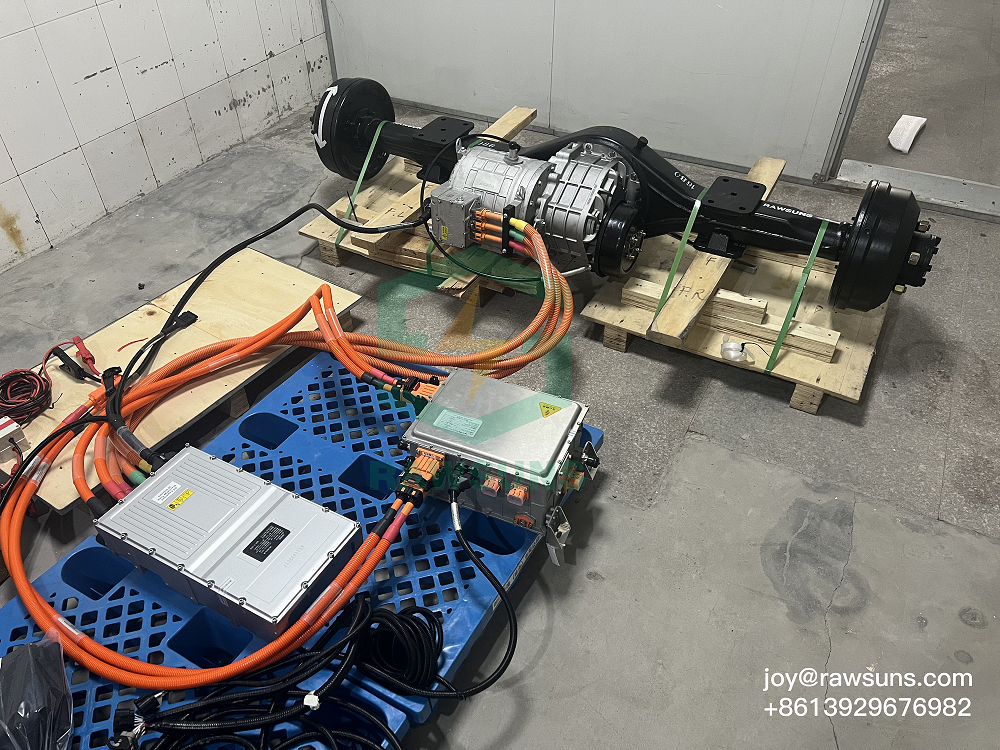

-- EV Drive System: 1. Drive motor, 2. Motor controller, 3. Gearbox, 4. Axle

-- EV Control System: 1. VCU with software, 2. BMS (with wire and harness), 3. Dashboard, 4. PDU/Precharge/DCDC/DCAC/OBC Integrated Controller, 5. Vacuum booster/Steering pump, 6. Braking air pump, 7. AC Compressor, 8. Intelligent cooling, 9. Wire harness, 10. Distribution box, 11. Gear Panel, 12. Accelerator pedal, 13. Ignition lock, 14. CANbus Analyzer, 15. OBD Interface, 16. HV Defroster (Optional), 17. Cloud monitoring (Optional), 18. Thermal management (Optional)

-- EV Lithium Battery System: 1. Customized battery packs, 2. Battery HV PDU Box, 3. Battery Wire Harness, 4. AC/DC Charger (Optional), 5. Range extender/DC generator (Optional)

Technical Parameters
Model Applicable Model Motor Power (Rated/Peak) Motor Torque (Rated/Peak) Max Speed

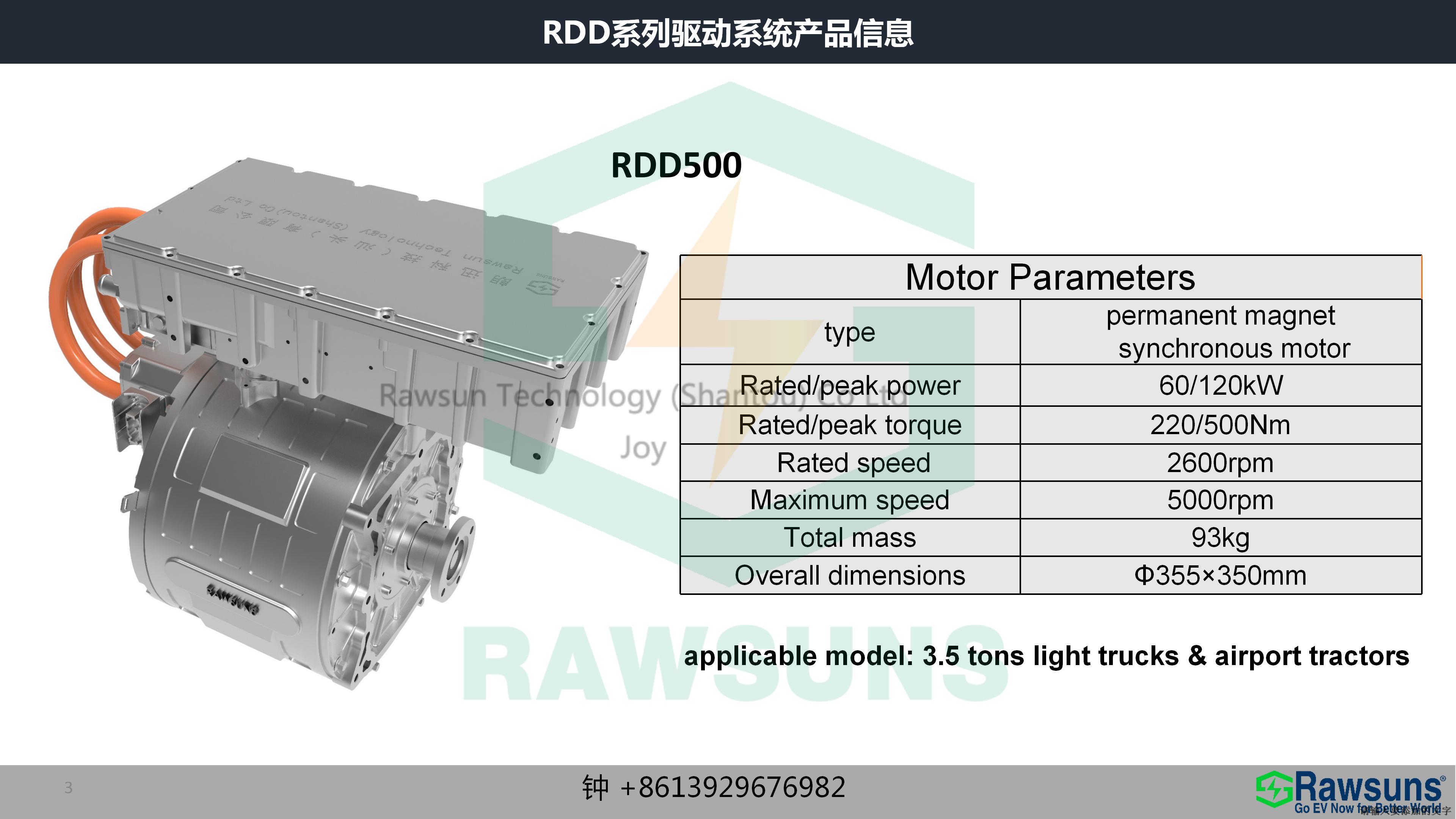

RDD5003.5 tons light trucks & airport tractors60/120kW220/500Nm5000rpm

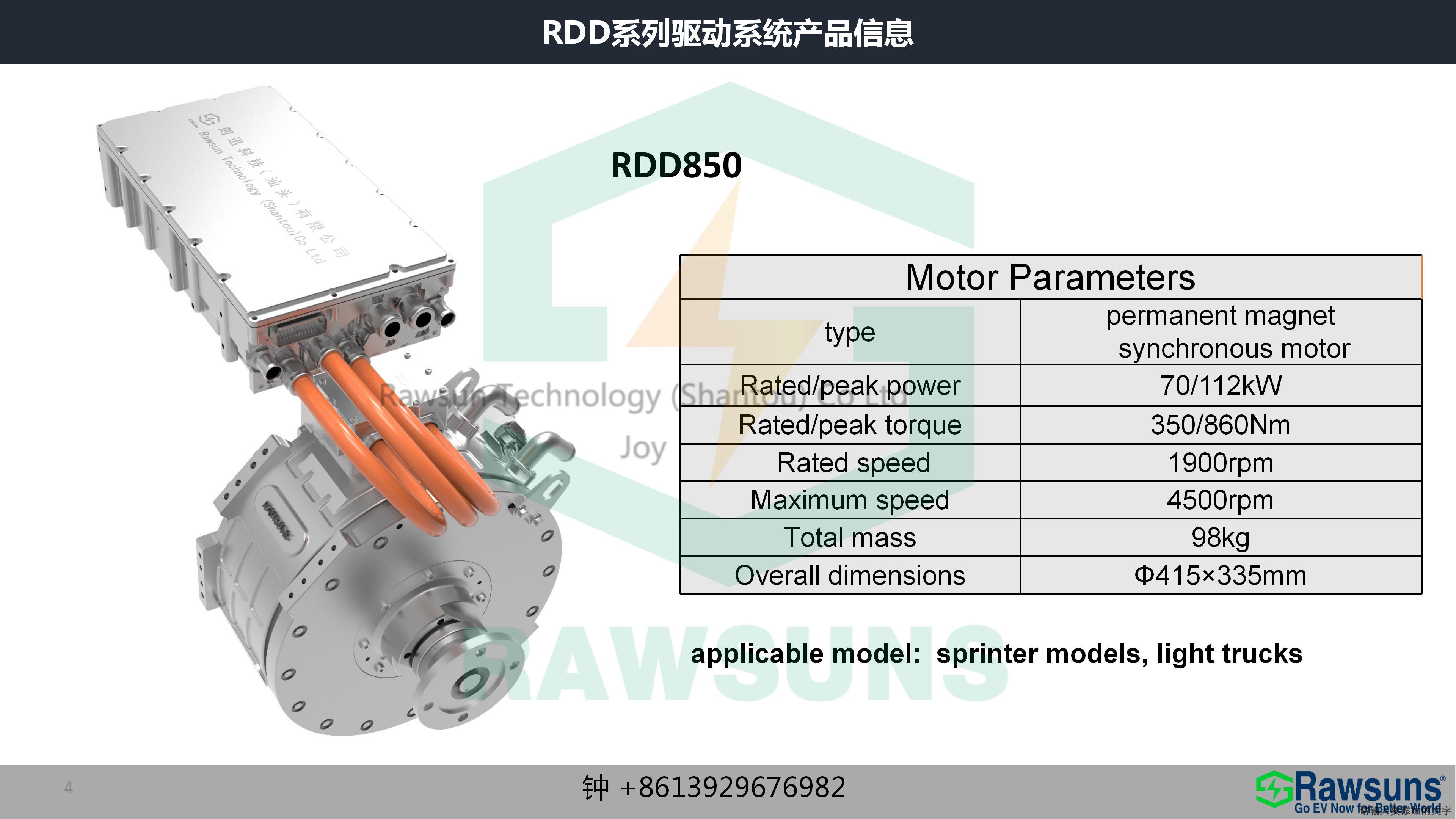

RDD850sprinter models, light trucks70/112kW350/860Nm4500rpm

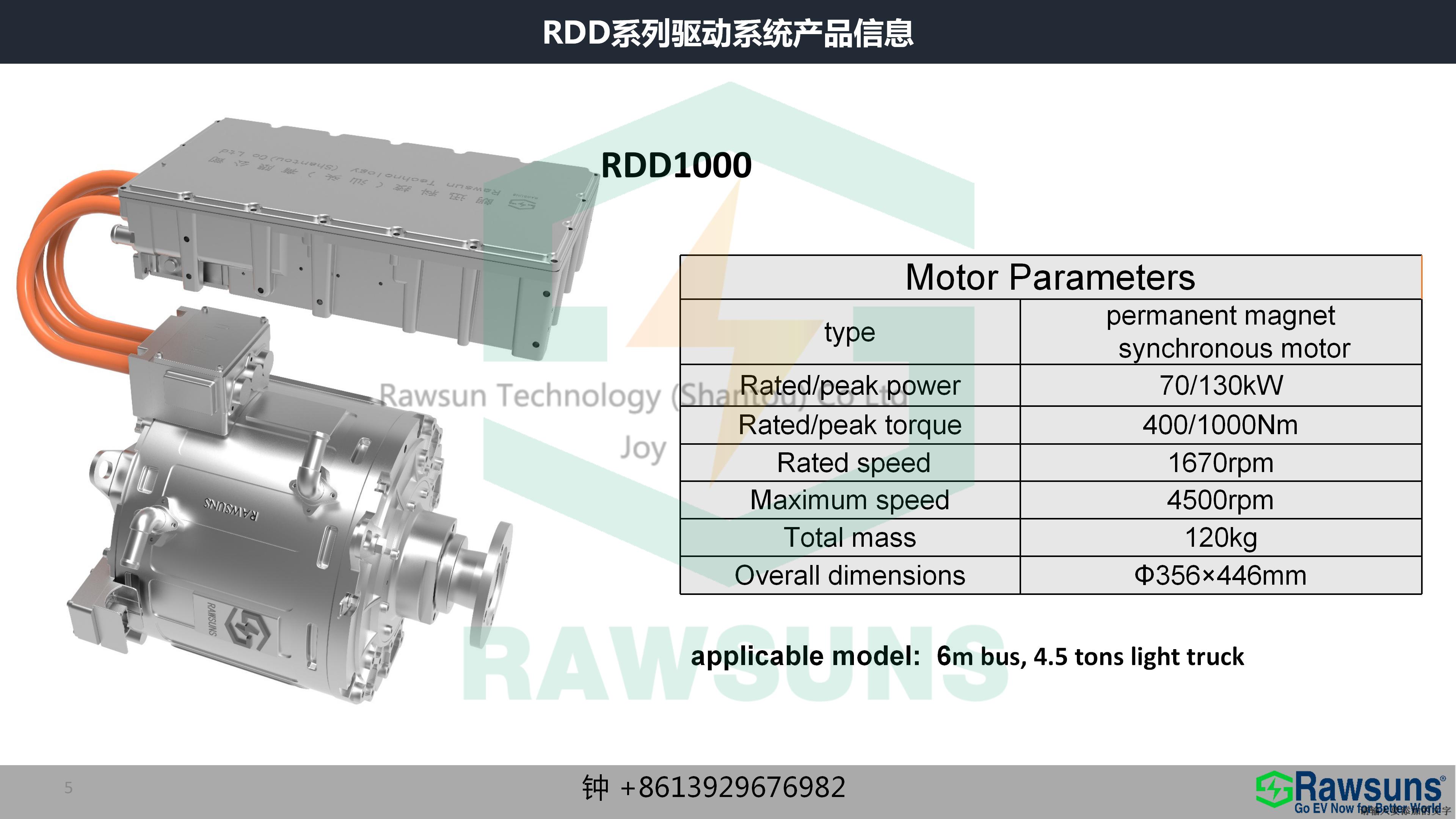

RDD10006m bus, 4.5 tons light truck70/130kW400/1000Nm4500rpm

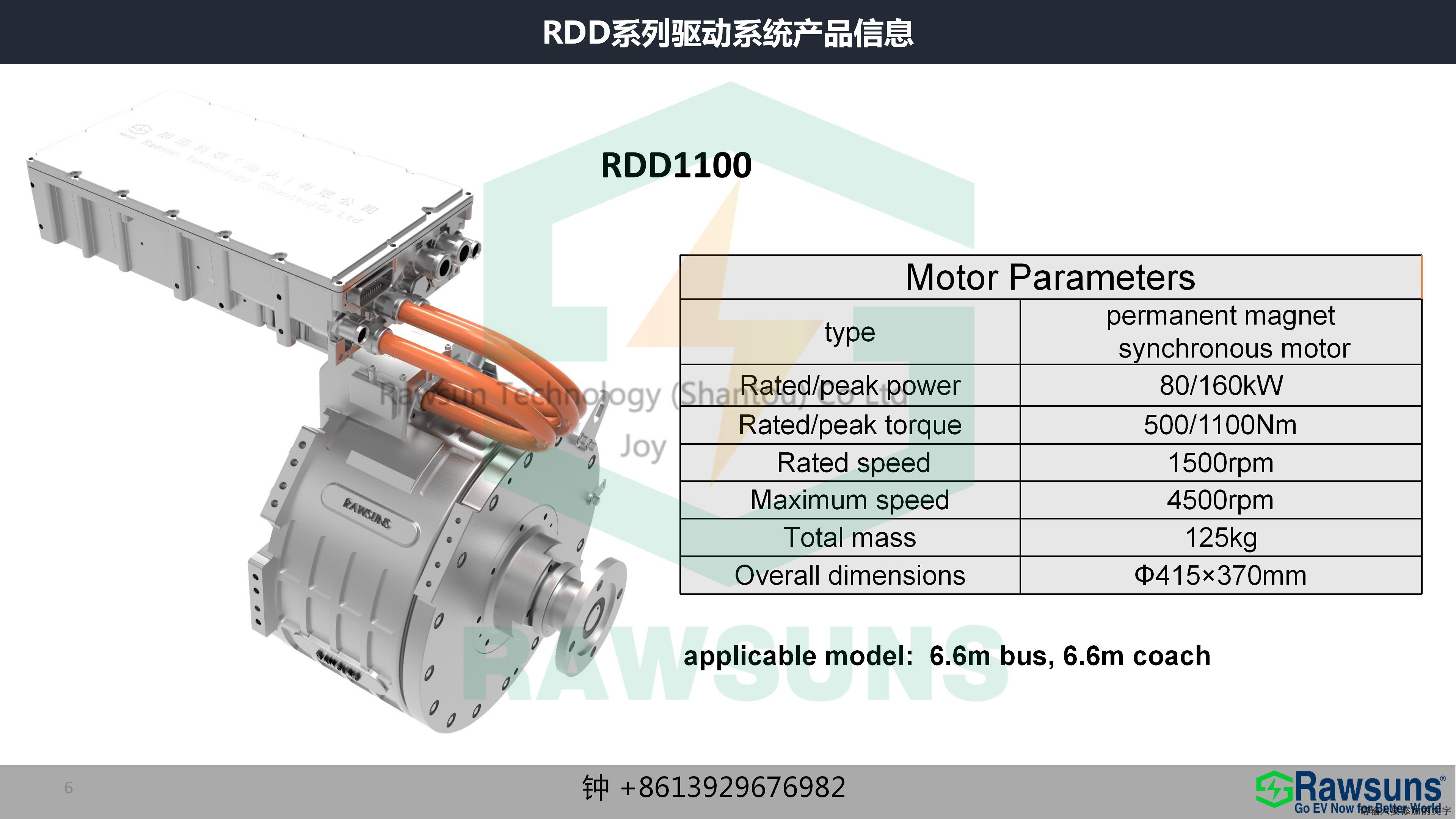

RDD11006.6m bus, 6.6m coach80/160kW500/1100Nm4500rpm

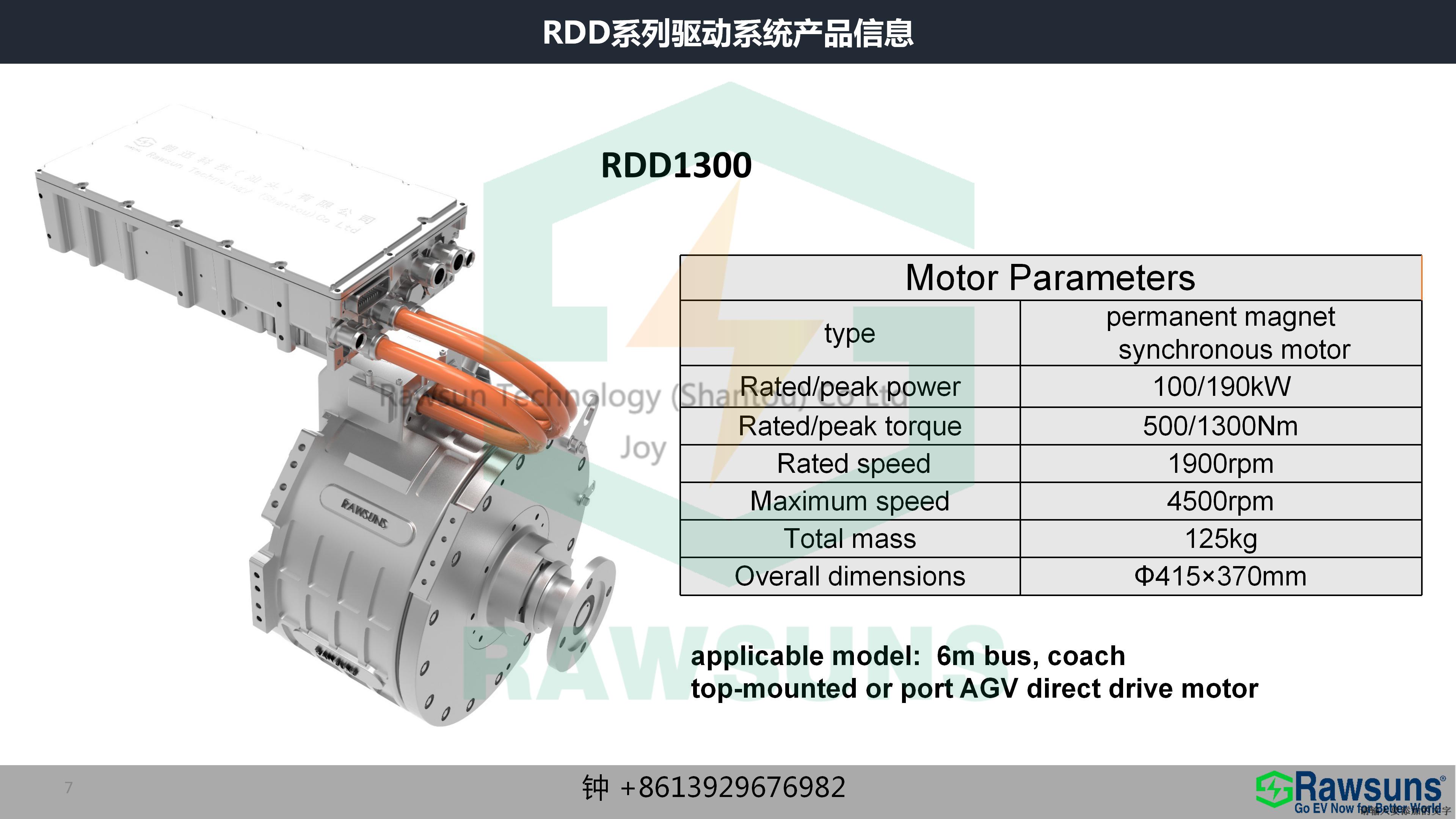

RDD13006m bus, coach100/190kW500/1300Nm4500rpm
RDD1700-low8m bus80/150kW750/1700Nm3000rpm
RDD1700-highcoaster100/220kW750/1700Nm4000rpm
RDD2100-low8.5m bus75/155kW900/2100Nm2800rpm

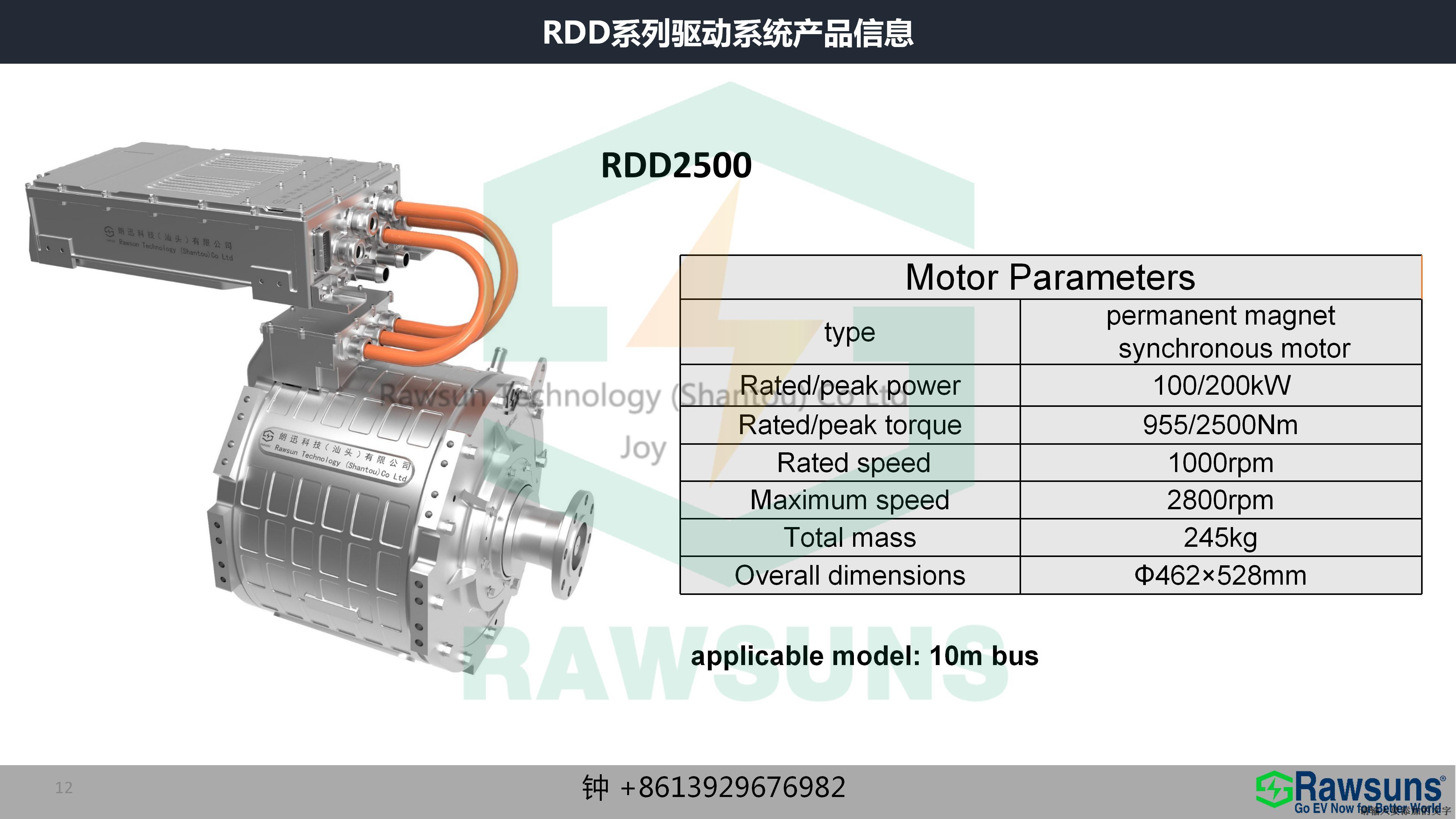

RDD250010m bus100/200kW1000/2500Nm2800rpm

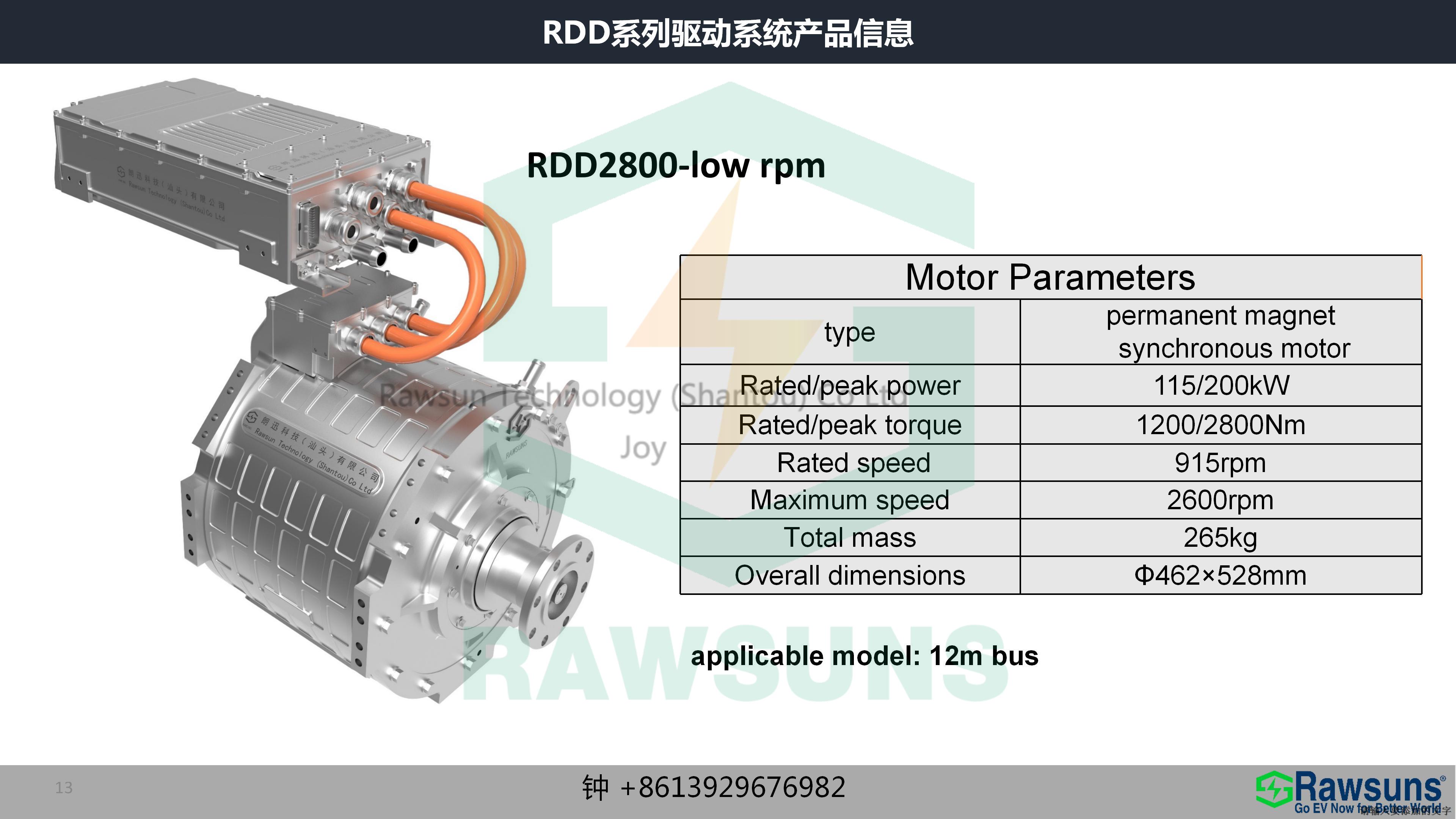

RDD2800-low12m bus115/200kW1200/2800Nm2600rpm
RDD340012m coach180/290kW1600/3400Nm3000rpm
RDD380045 tons reach stacker, 70 tons port truck200/300kW1800/3800Nm2800rpm
RDD500018 tons sanitation truck200/400kW2200/5000Nm3000rpm

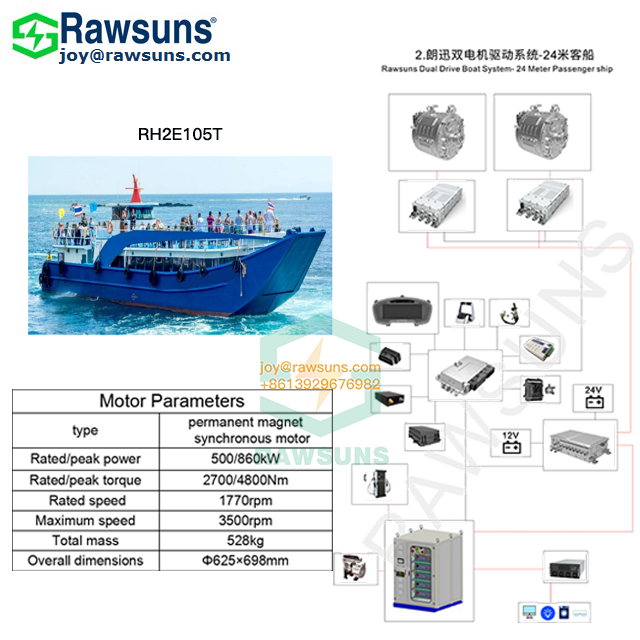

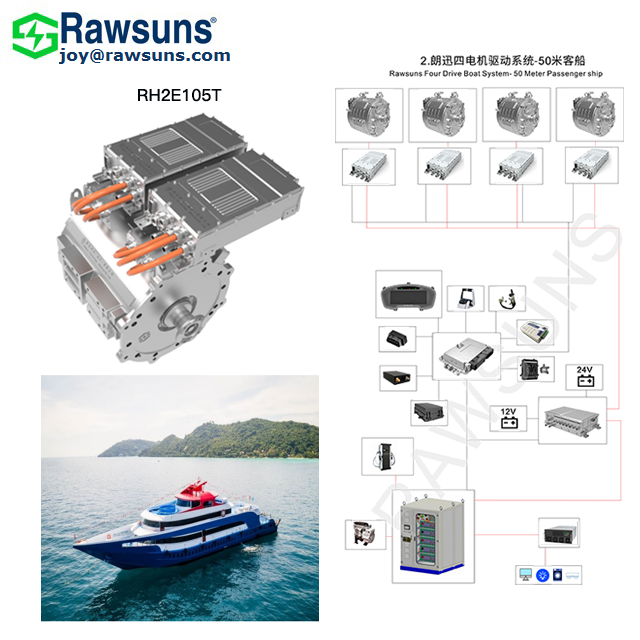

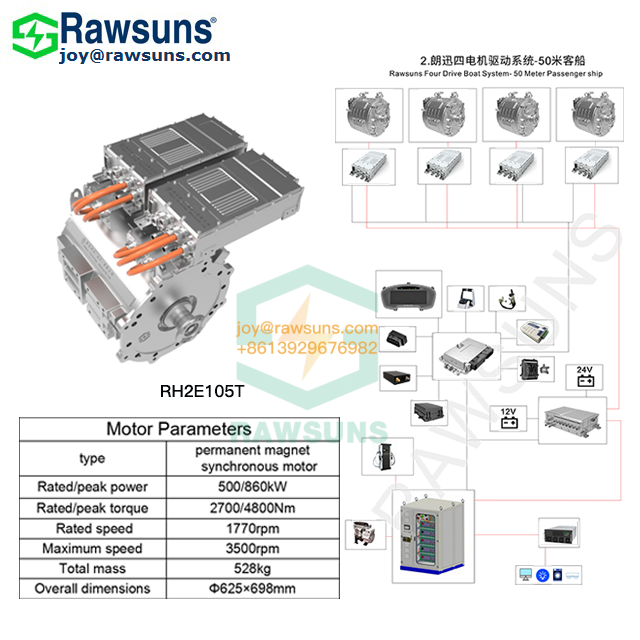

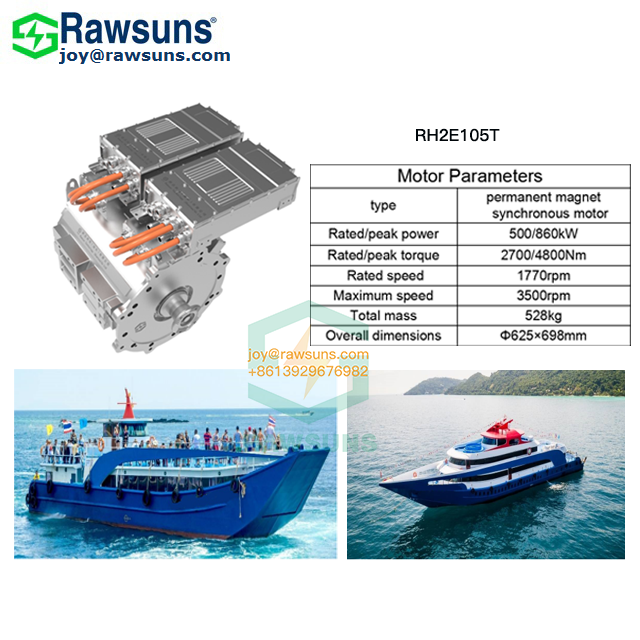

RH2E105T105 tons electric mining truck500/860kW2700/4800Nm3500rpm
Product Gallery
Conversion Kits Supporting Documents
Drive System: Data sheets, Installation drawings, System Performance Plan, 3D step files, CANbus protocols, Electrical schematics, Fault codes, Testing reports, Remote support.
Vehicle Control System: Performance simulation, VCU control strategies, VCU host computer software for vehicle parameter configuration, CANbus topological diagrams, Dashboard logic.
Battery System: Technical Specifications, BMS Control strategies, BMS host computer software for Battery parameter configuration, System layout diagrams.

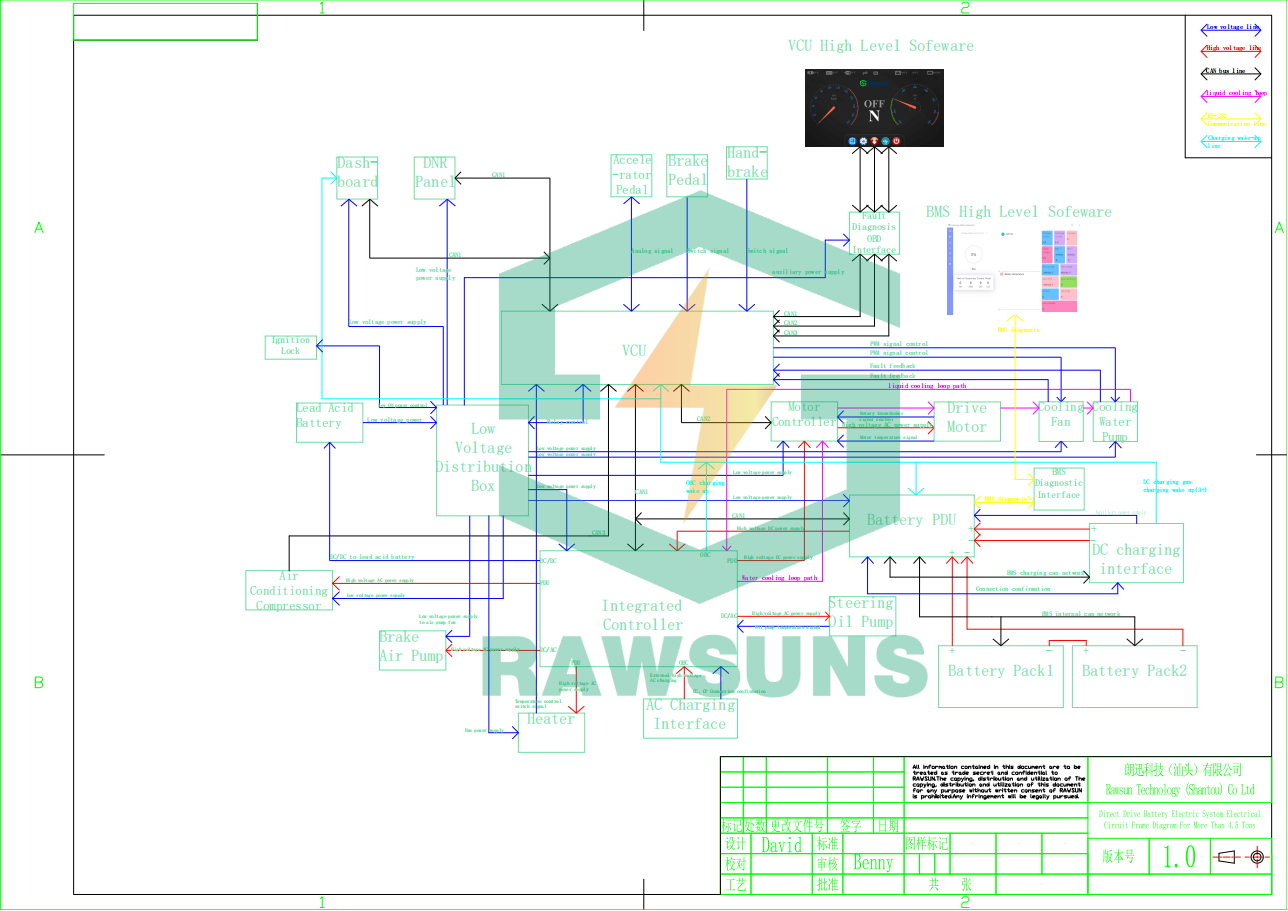

System Circuit Framework

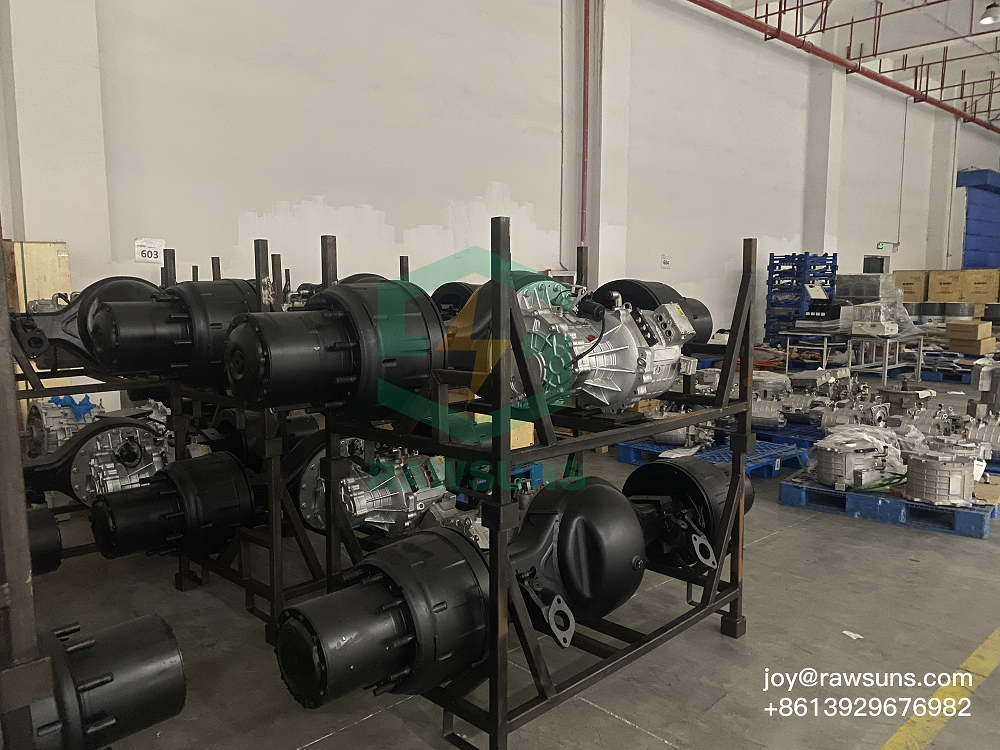

Manufacturing & Solutions
We provide complete electric propulsion solutions covering 10kw to 450kw automotive and marine electric systems. Applications include passenger cars, commercial vehicles, buses (6m-18m), trucks (2t-110t), electric boats, and engineering machinery. Our products align with global green environmental protection concepts, reducing road exhaust and water oil pollution.

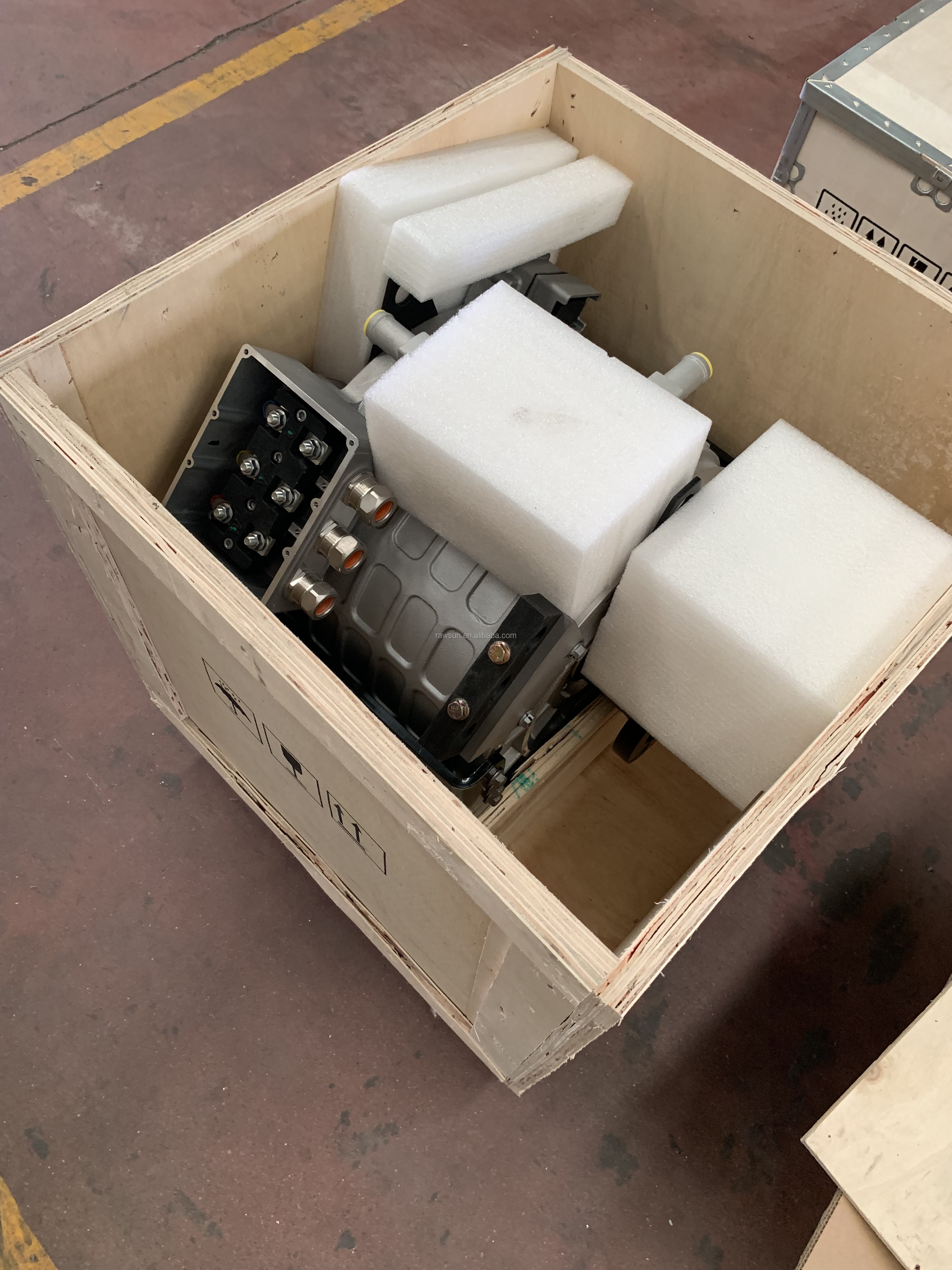

Certification & Shipping
Frequently Asked Questions
Q1: What are the primary advantages of your PMSM drive systems?
Our products are specifically designed for vehicle manufacturers. We provide a comprehensive technical documentation package, including 3D files, CANbus protocols, and specialized software, allowing clients to maintain full technical control.
Q2: Do you provide support for after-sales service and diagnostics?
Yes. We provide VCU and BMS host computer software for parameter configuration. This enables you to handle system diagnostics and repairs independently, offering direct service to your end customers without third-party reliance.
Q3: What types of vessels and vehicles are compatible with these motors?
Our solutions are versatile, covering electric passenger cars, buses from 6m to 18m, trucks up to 110 tons, electric yachts, ferries, and even heavy industrial machinery like reach stackers and mining trucks.
Q4: Can the battery and control systems be customized for specific projects?
Absolutely. We offer customized battery packs, specialized VCU control strategies, and specific wiring harness designs to match the unique parameters of your vehicle or boat project.
Q5: Is on-site installation support available for international customers?
Yes, we provide both remote technical guidance and optional on-site installation services and training to ensure the system is integrated correctly and efficiently.
Q6: What certifications do your propulsion systems hold?
Our products conform to international green environmental standards and safety regulations required for electric vehicle and marine propulsion, ensuring reliable performance across global markets.
