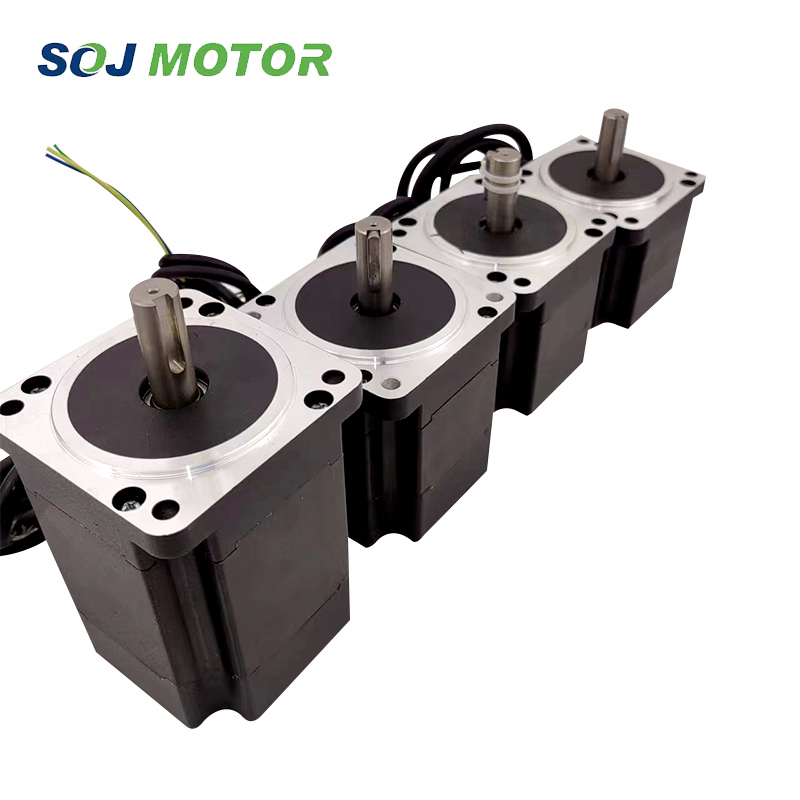

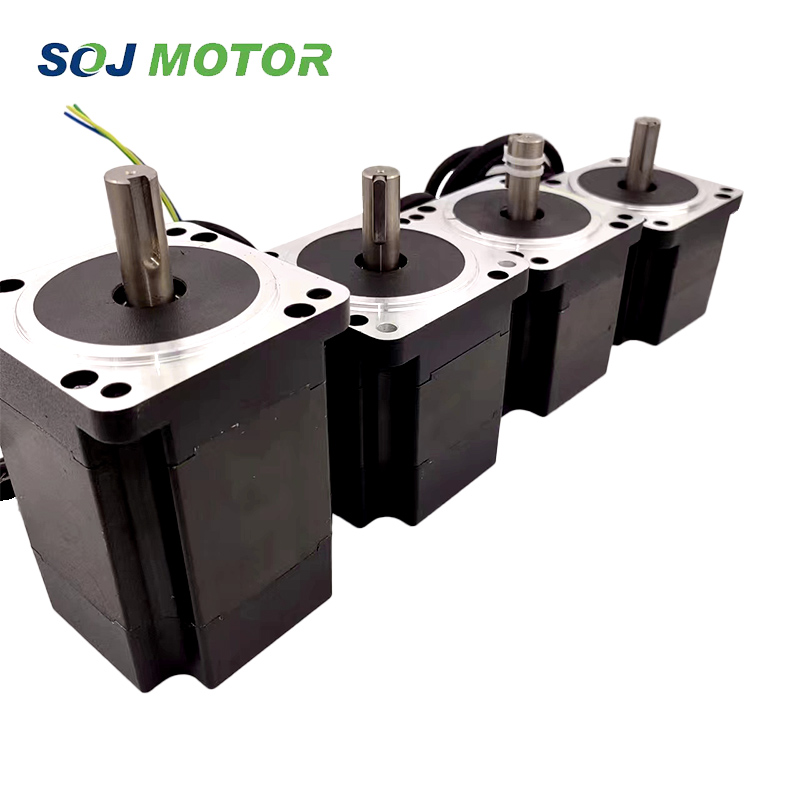

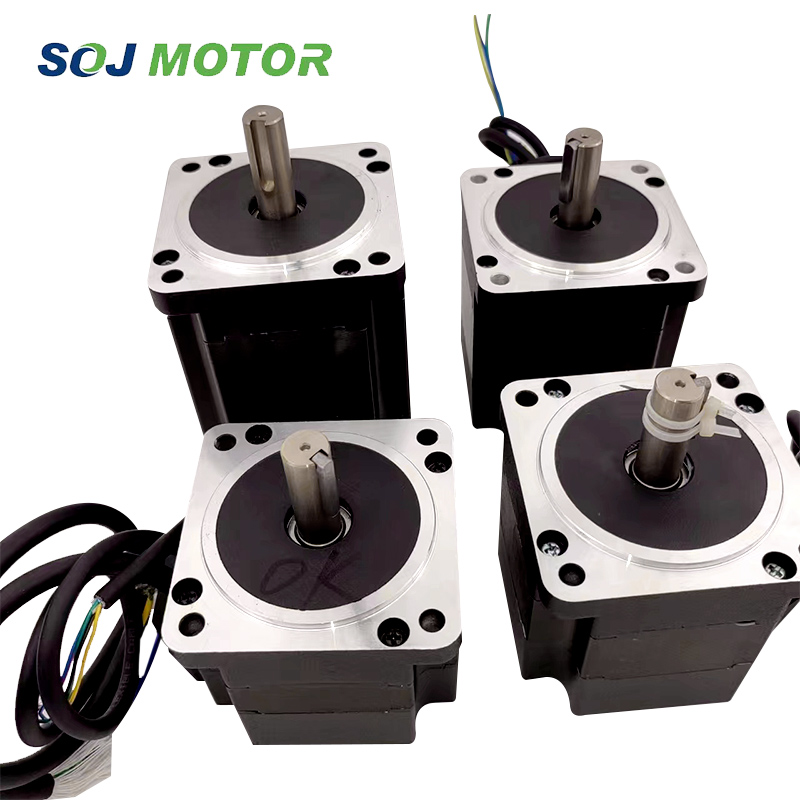

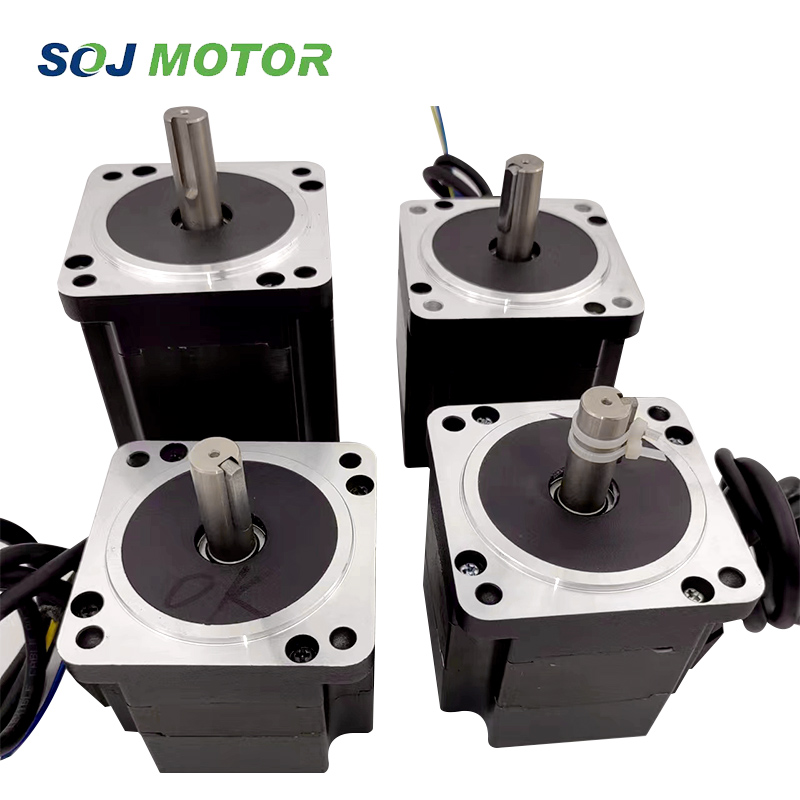

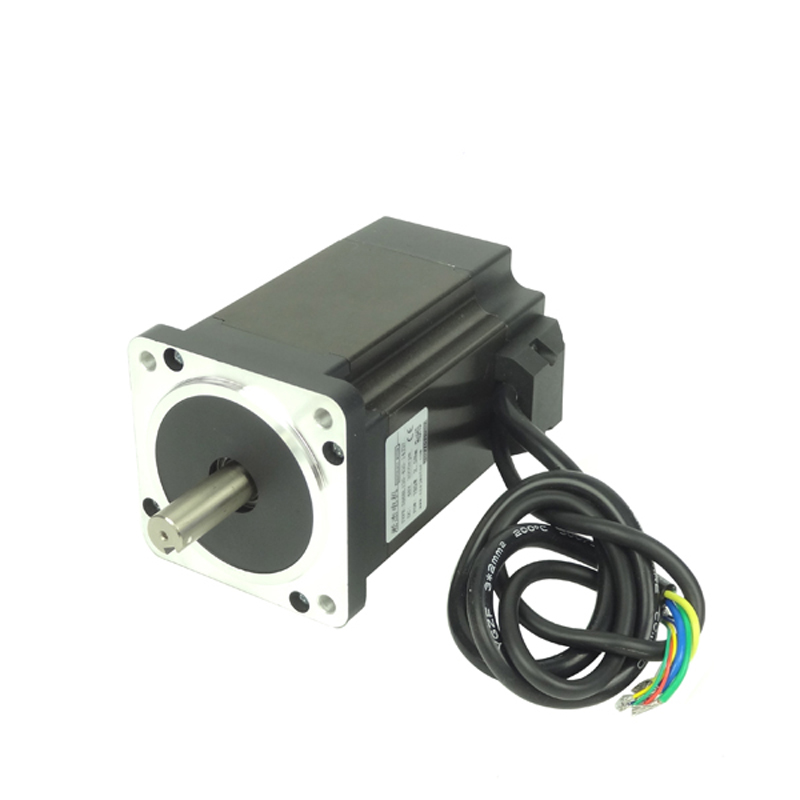

86mm 115mm 48V 310V 3000rpm 659W 3 Phase Brushless DC Permanent Magnet Motor for Fan Boat Electric Bicycle and Packing Machine
86mm 115mm 48V 310V 3000rpm 659W 3 Phase Brushless DC Permanent Magnet Motor for Fan Boat Electric Bicycle and Packing Machine
86mm 115mm 48V 310V 3000rpm 659W 3 Phase Brushless DC Permanent Magnet Motor for Fan Boat Electric Bicycle and Packing Machine
86mm 115mm 48V 310V 3000rpm 659W 3 Phase Brushless DC Permanent Magnet Motor for Fan Boat Electric Bicycle and Packing Machine
86mm 115mm 48V 310V 3000rpm 659W 3 Phase Brushless DC Permanent Magnet Motor for Fan Boat Electric Bicycle and Packing Machine
1 / 5
86mm 115mm 48V 310V 3000rpm 659W 3 Phase Brushless DC Permanent Magnet Motor for Fan Boat Electric Bicycle and Packing Machine
86mm 115mm 48V 310V 3000rpm 659W 3 Phase Brushless DC Permanent Magnet Motor for Fan Boat Electric Bicycle and Packing Machine
86mm 115mm 48V 310V 3000rpm 659W 3 Phase Brushless DC Permanent Magnet Motor for Fan Boat Electric Bicycle and Packing Machine
86mm 115mm 48V 310V 3000rpm 659W 3 Phase Brushless DC Permanent Magnet Motor for Fan Boat Electric Bicycle and Packing Machine
86mm 115mm 48V 310V 3000rpm 659W 3 Phase Brushless DC Permanent Magnet Motor for Fan Boat Electric Bicycle and Packing Machine

86mm 115mm 48V 310V 3000rpm 659W 3 Phase Brushless DC Permanent Magnet Motor for Fan Boat Electric Bicycle and Packing Machine

Send Inquiry

Product Description

Products Description
Model S86BL80-430 S86BL90-430 S86BL105-430 S86BL115-430 S86BL130-430
Number of Poles 4
Number of Phases 3
Nominal voltage VDC 48 48 48 48 48
Rated speed RPM 3000 3000 3000 3000 3000
Rated Torque N-m 1 1.3 1.8 2.1 2.6
Rated Current Amps 8.5 12 17 19.5 21.8
Output Power Watts 314 400 565 656 789
Peak Torque N-m 2.85 3.9 5.9 6.3 7.5
Peak Current Amps 25.5 36 51 56 65
Torque constant N-m/A 0.127 0.127 0.127 0.127 0.127
Back EMF V/k RPM 12.6 12.6 12.6 12.6 12.6
Body Length (L) mm 80 90 105 115 130
Weight kg 2.3 2.9 3.4 3.8 4.3
Electrical Indicators
Winding Type Star
Hall Effect Angle 120°
Insulation Class B
Ambient Temperature -20℃ ~ +50℃
Insulation Resistance 100MΩ Min 500VC DC
Dielectric Strength 700V AC 1 min

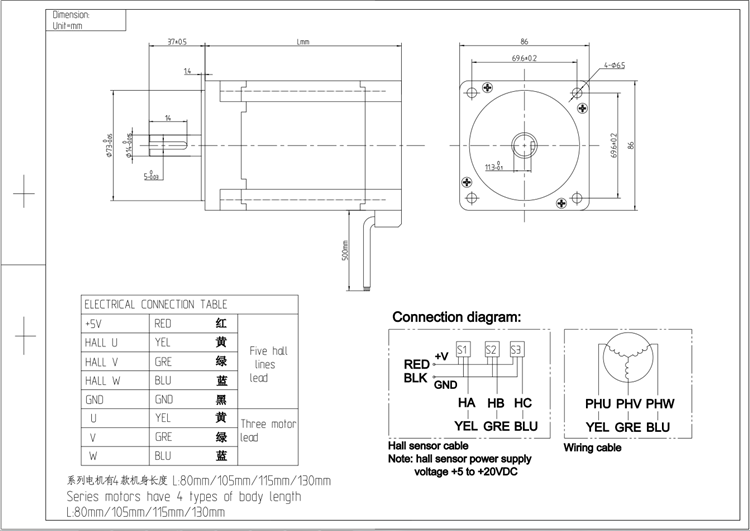

Motor Technical Drawing

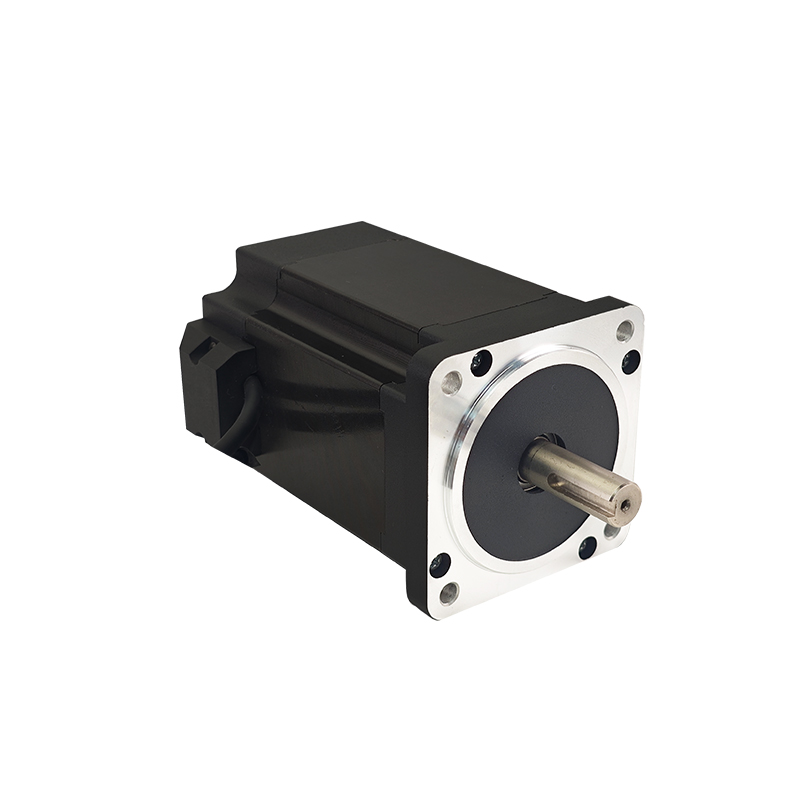

Product View 1
Product View 2

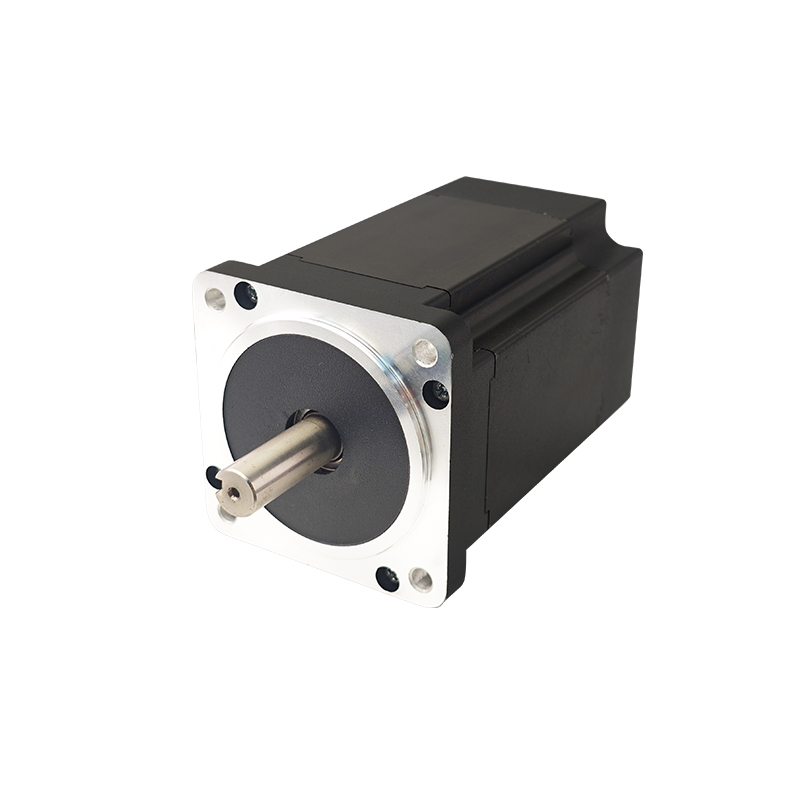

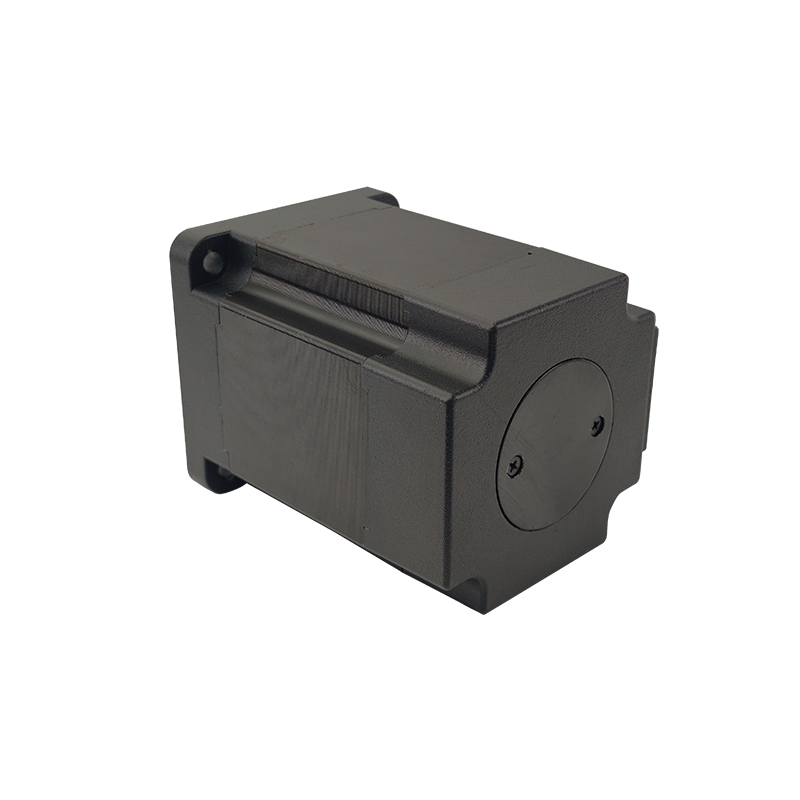

Product View 3

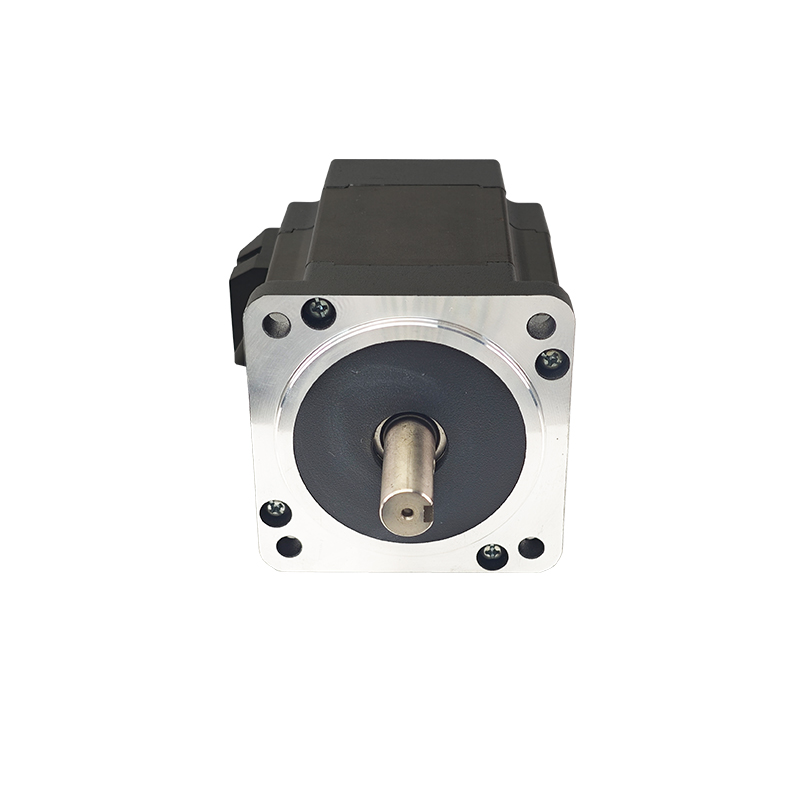

Product View 4
Production Showcase
Manufacturing 1
Manufacturing 2
Manufacturing 3
Manufacturing 4
Manufacturing 5
Manufacturing 6
Manufacturing 7
Manufacturing 8
Manufacturing 9
Manufacturing 10
Quality Inspection
Testing Equipment 1
Testing Equipment 2
Warehouse
Packaging
Frequently Asked Questions (FAQ)
What is the standard rated speed for the S86BL series motors?
The S86BL series brushless DC motors are designed with a consistent rated speed of 3000 RPM across all models.
What is the nominal voltage requirement for these motors?
The entire S86BL series operates at a nominal voltage of 48 VDC, making them suitable for various industrial power systems.
What are the environmental operating limits for this motor series?
These motors can safely operate within an ambient temperature range of -20°C to +50°C.
Does the motor use a specific winding or phase configuration?
Yes, the motors feature a 3-phase, 4-pole design with a Star winding type and a 120° Hall Effect angle.
What is the insulation rating of the S86BL series?
The motors are built to Insulation Class B standards, with an insulation resistance of at least 100MΩ (500V DC).
How does the torque output vary between the different models?
The rated torque ranges from 1 N-m in the S86BL80 model up to 2.6 N-m in the S86BL130 model, allowing for specific model selection based on load requirements.
