Sweg Motor
Sweg Motor

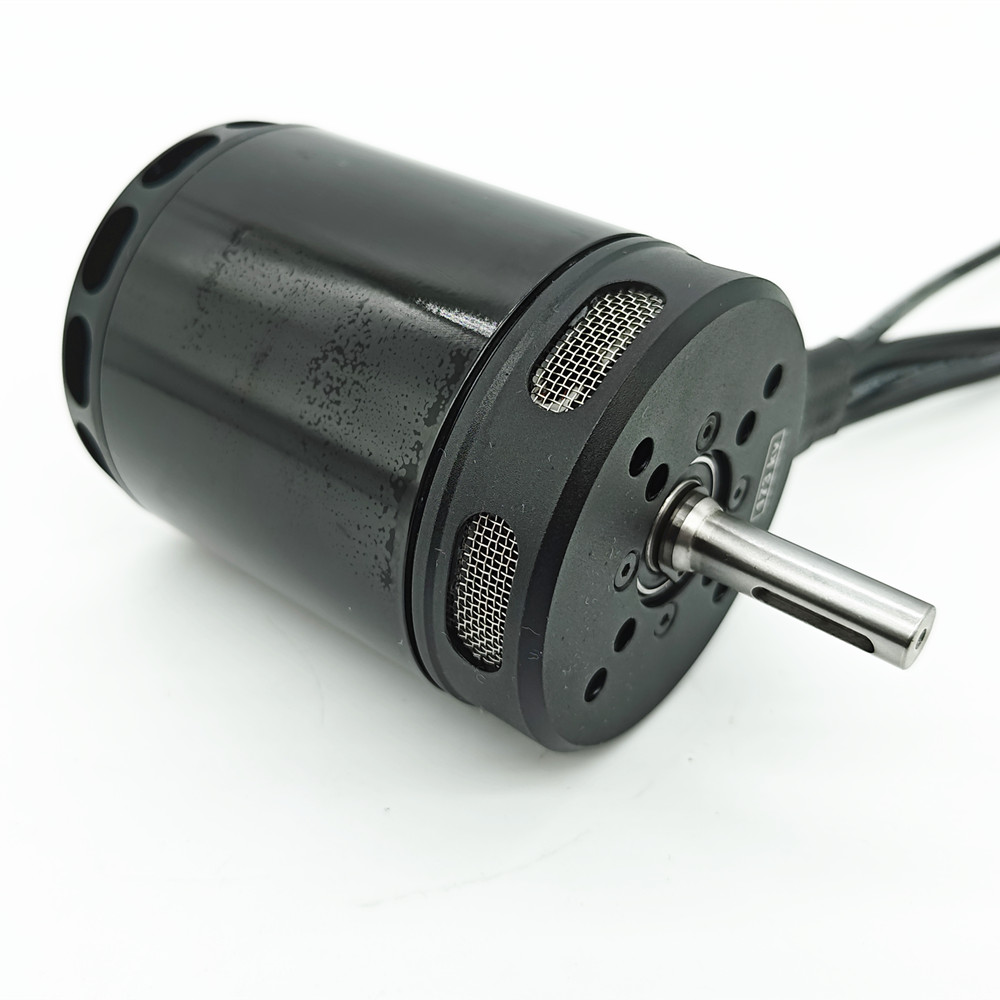

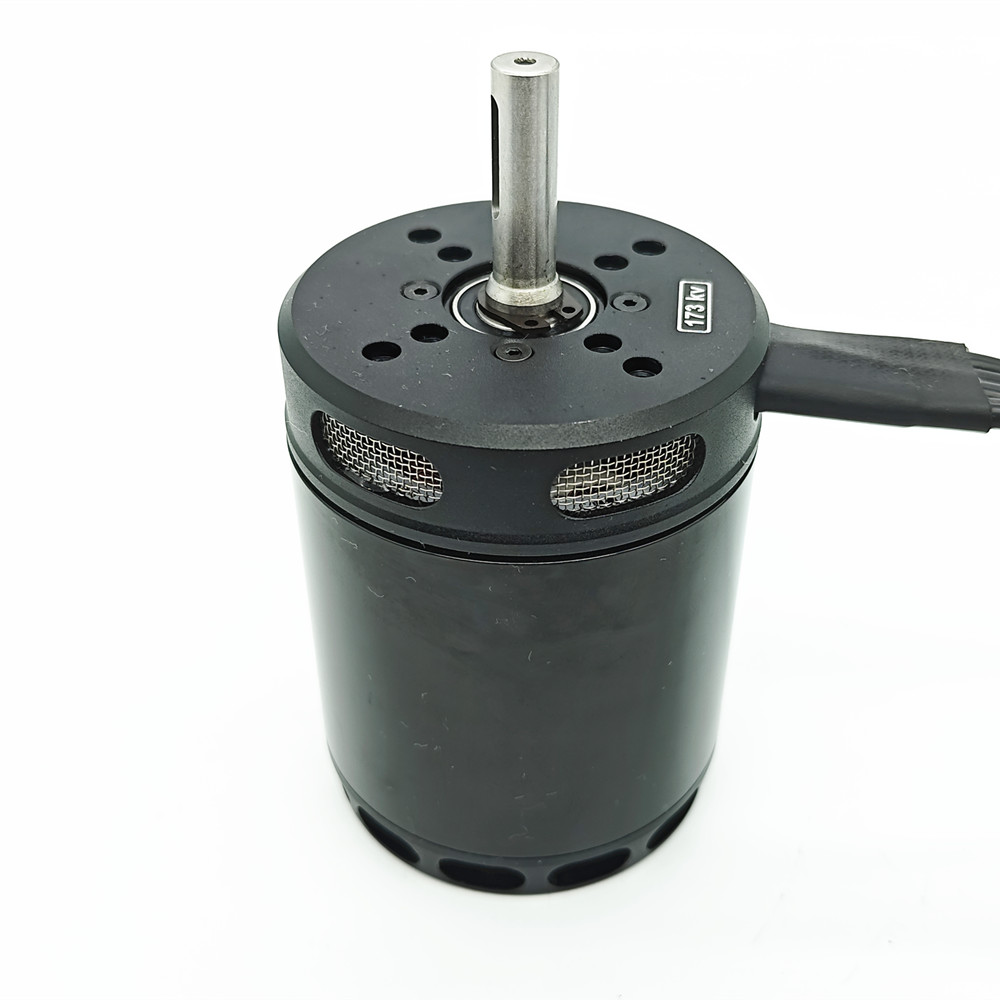

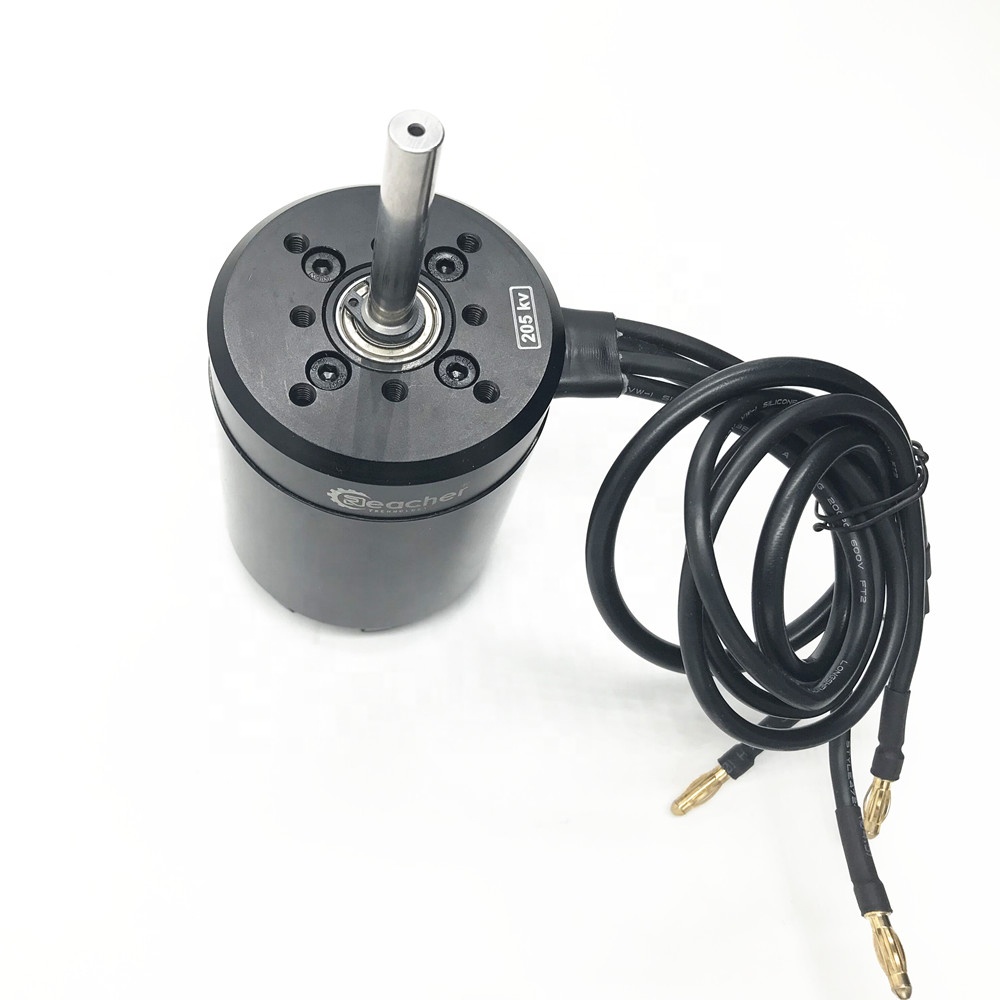

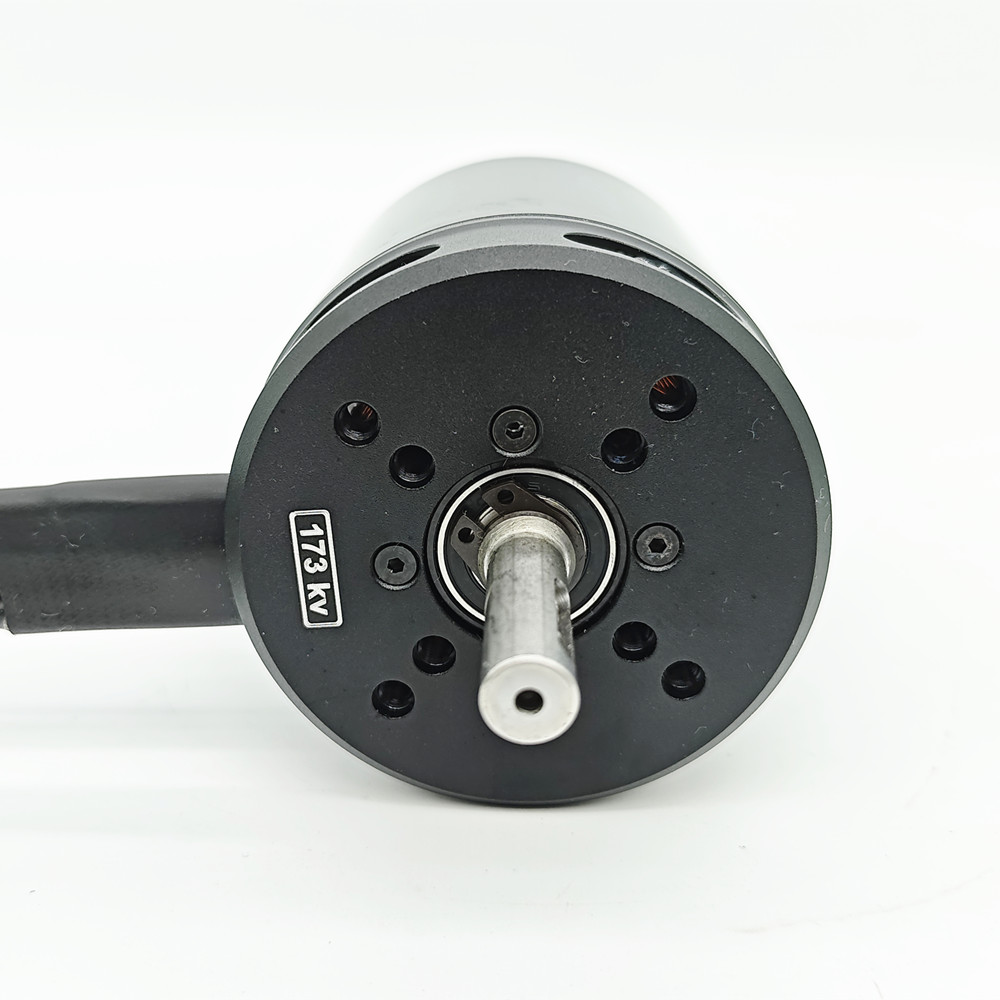

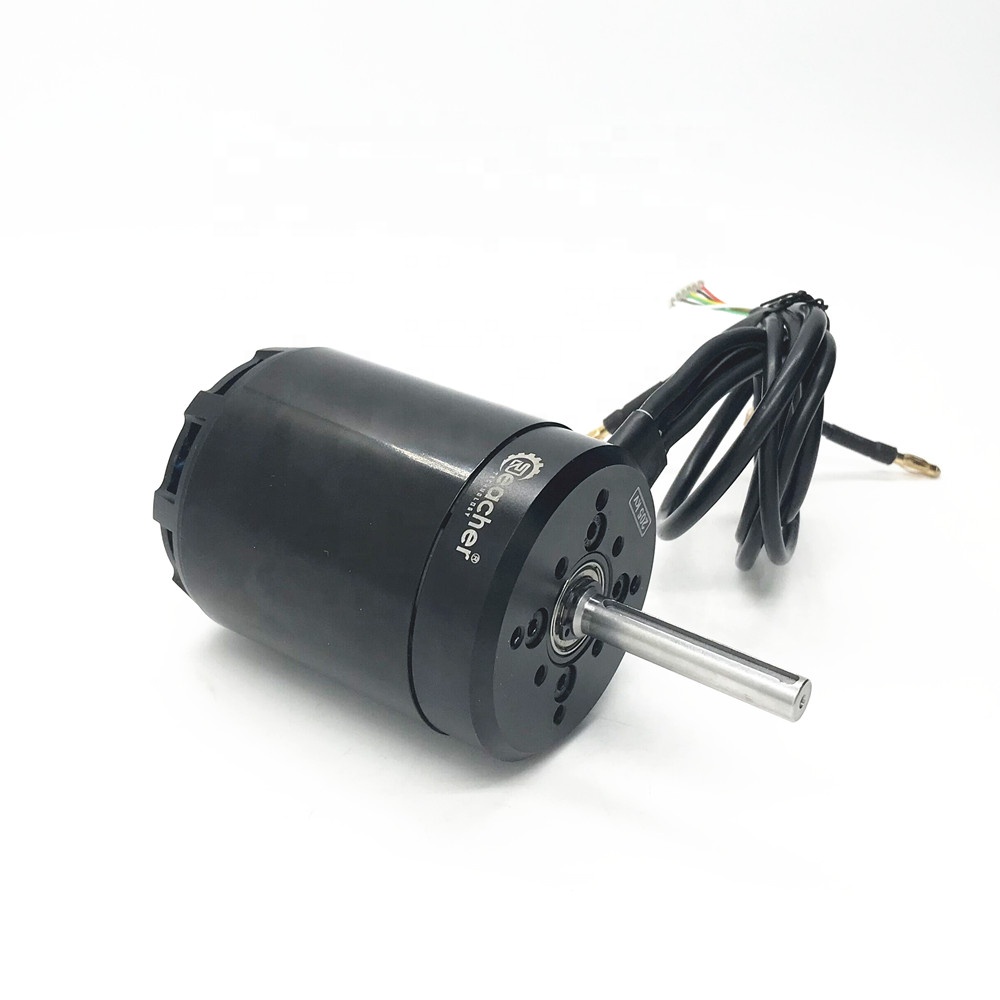

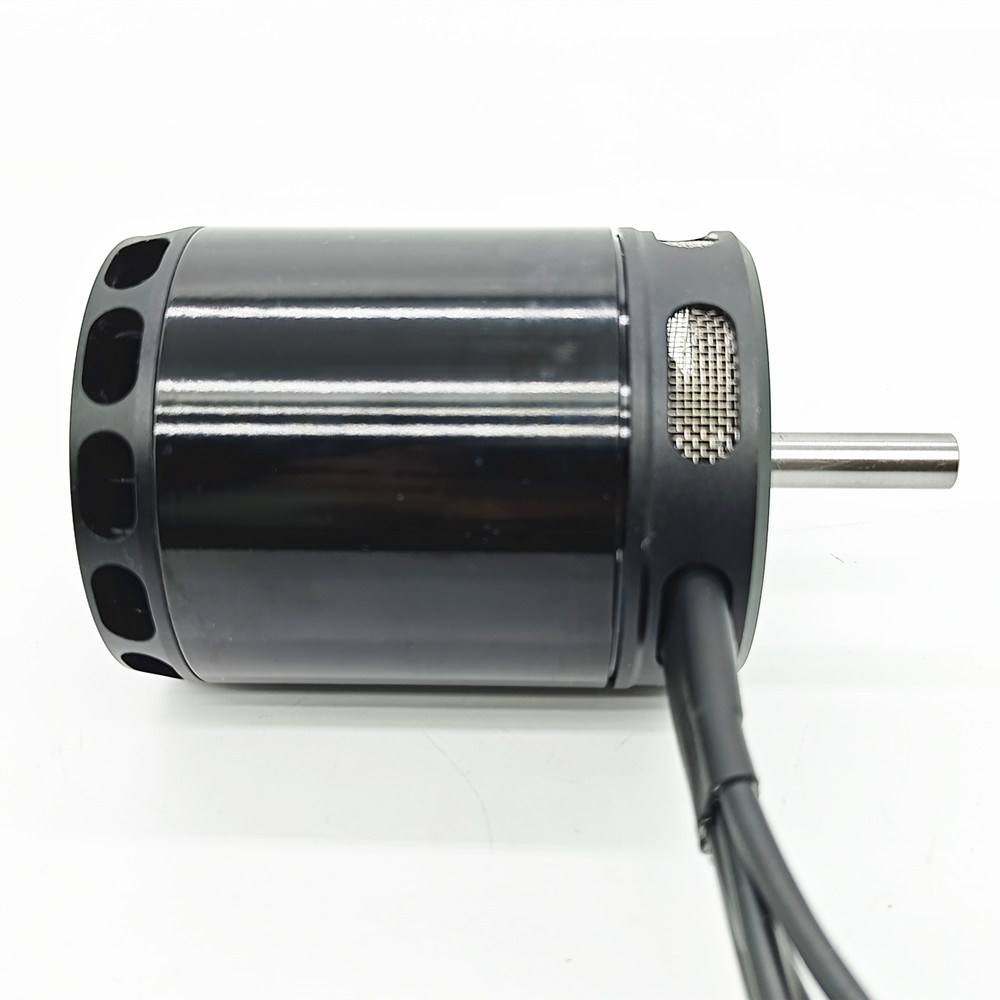

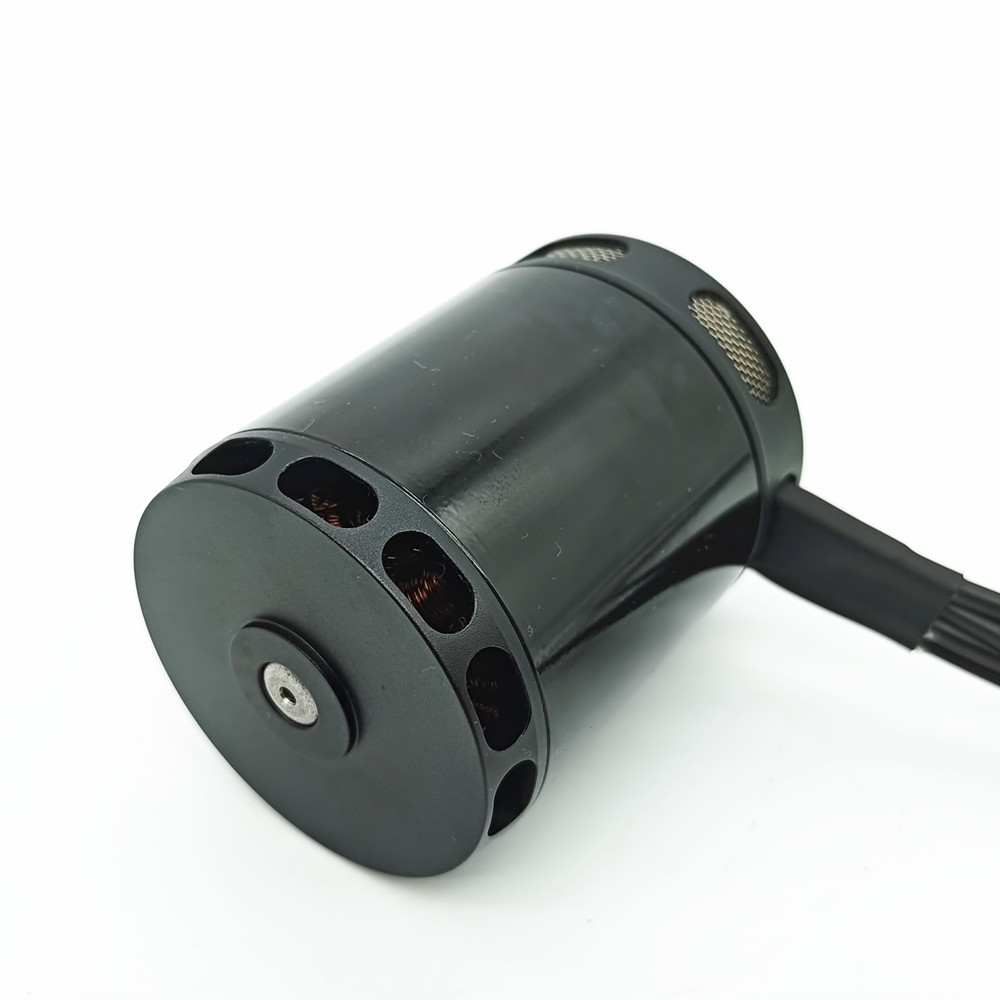

| Model No | 6385 V6.0 N45SH Grade magnet ESK8 Skateboard BLDC Motor |
|---|---|
| Construction | 12N14P |

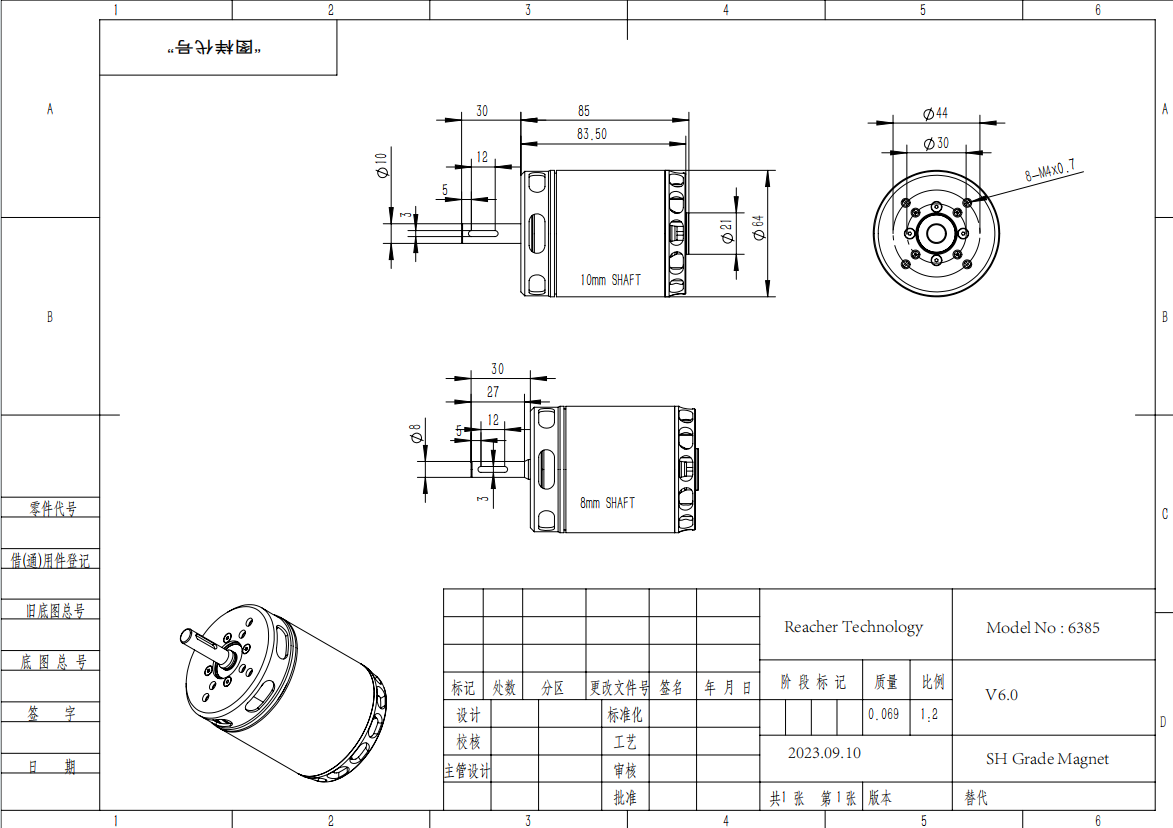

| Motor Diameter (mm) | 63mm |
| Motor Length (mm) | 85mm |
| Stator Size (mm) | 53*50mm |
| Stator Silicon steel sheets | 0.2mm |
| Magnet | N45SH magnets, with retaining ring at the top of the magnet |
| Battle Hardened | Everything (magnets, stator, sensor pcb) |
| Bearing | NMB or NSK Brand (4pcs per motor) |
| Rotor Steel Thickness | 2.5mm steel (superior protection and magnetic flux path) |
| Balancing | Balanced for high RPM |
| Shaft | 8mm shaft with keyway (10mm optional) |
| Hall Sensor | Honeywell SS41F with 100nf capacitor |

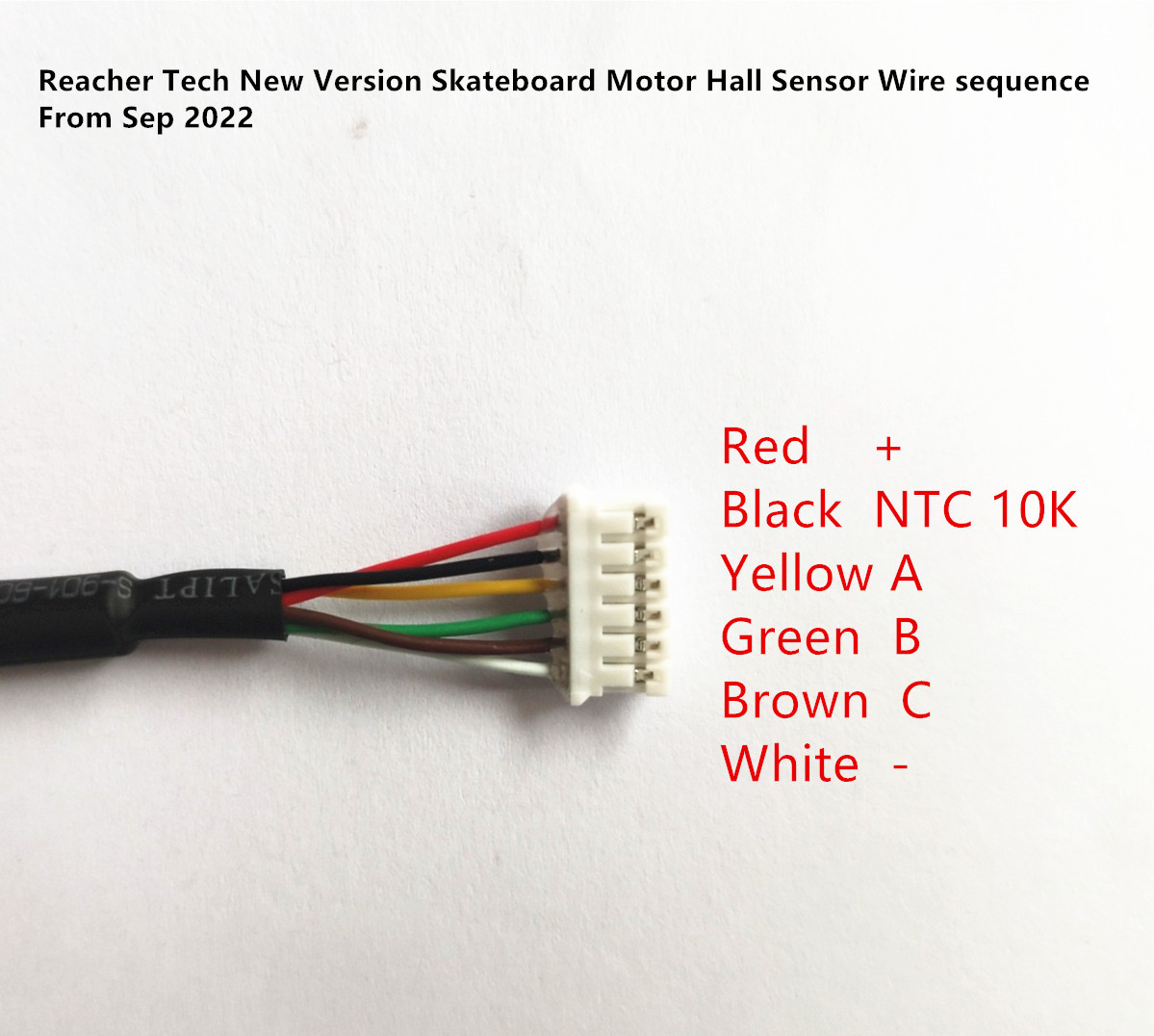

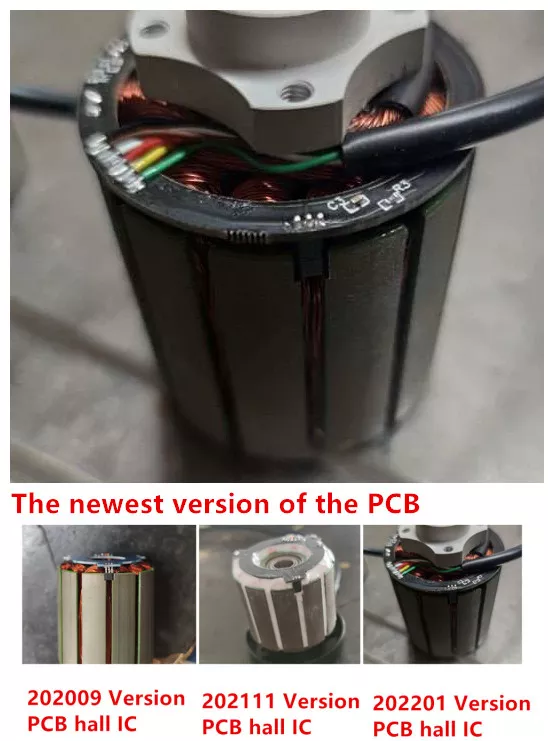

| Sensors | Hall + Temperature sensor, 2mm pitch JST Style VESC compatible plug (30cm) |
| Wires | 12awg silicone phase wires (30cm) with 4mm bullets |
| Mounting Pattern | 30mm x M4 / 44mm x M4 |
| Net Weight | 1.1kg |
