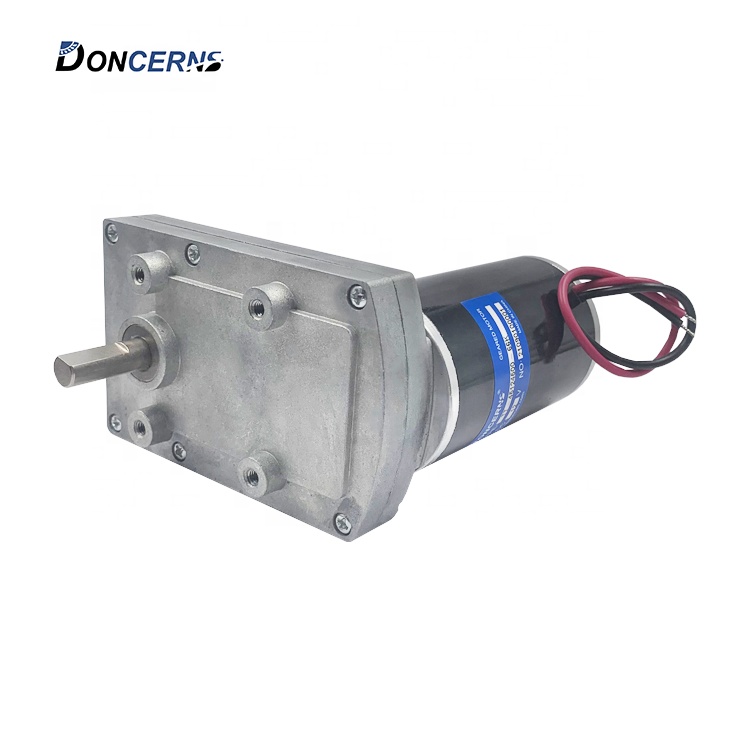

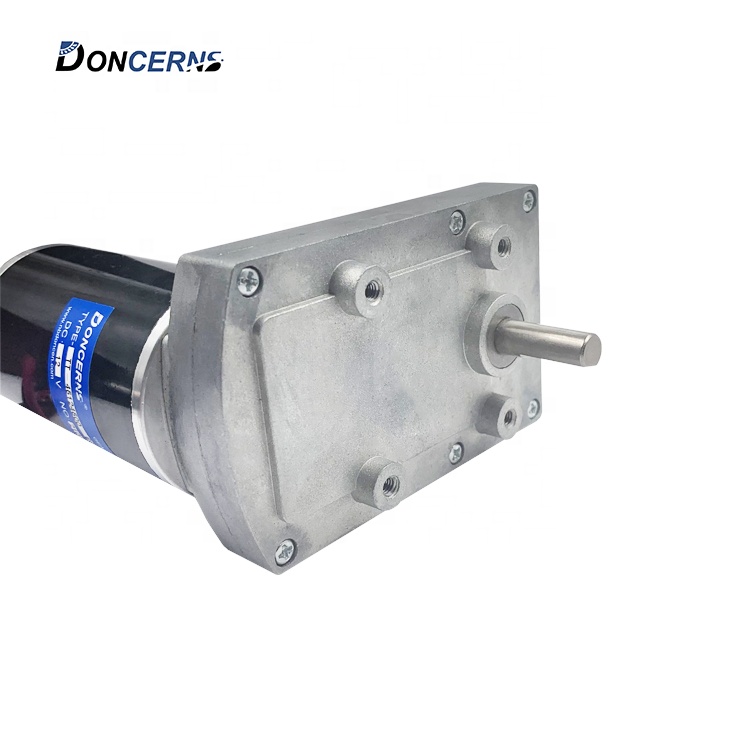

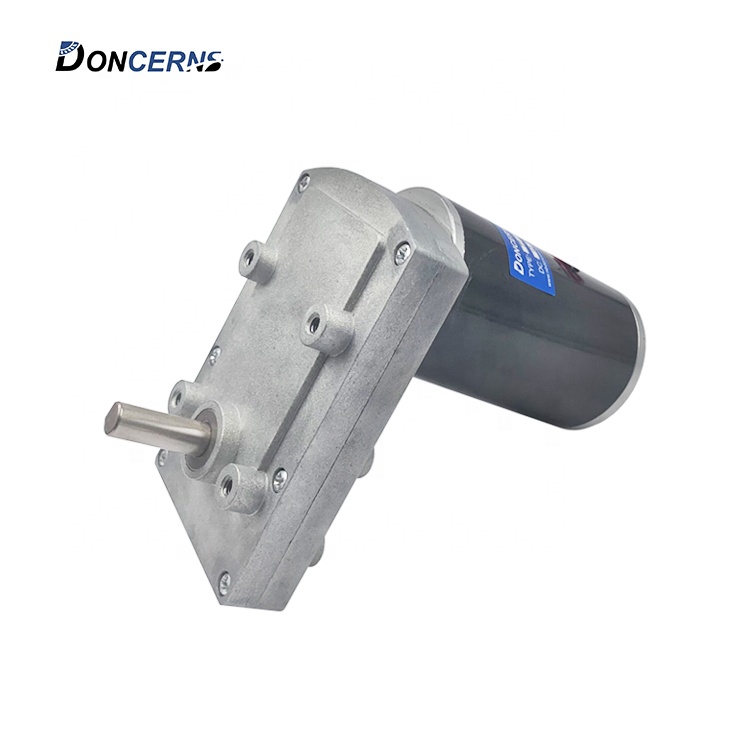

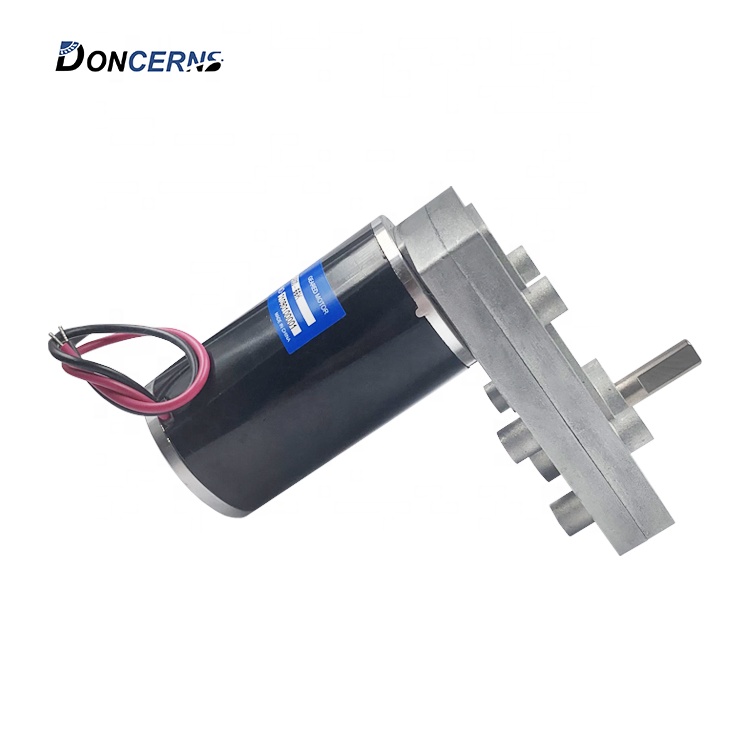

12V 24V DC 25Nm 35W 45mm High Torque High Power Gear Motor for Automatic

Product Description

Products Profile

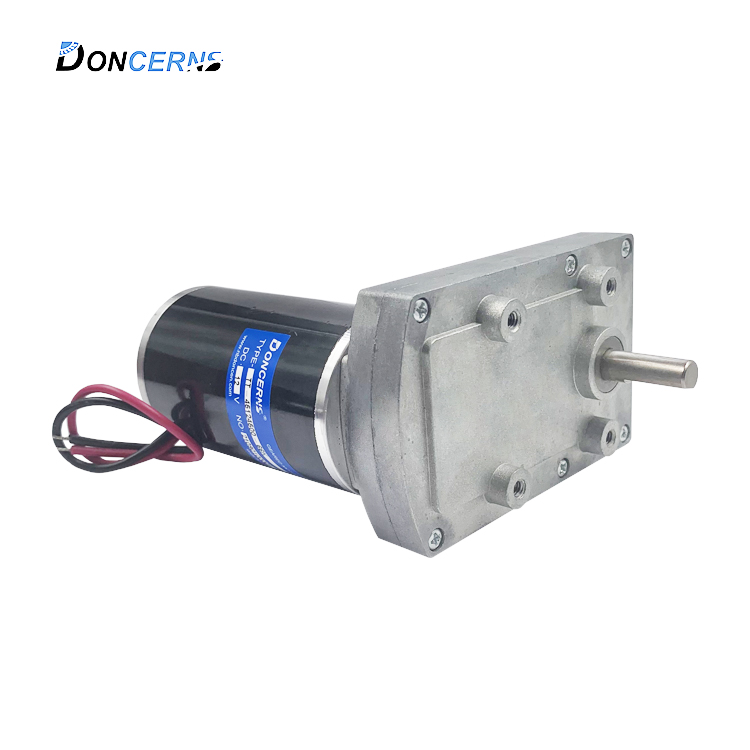

Product Profile 1

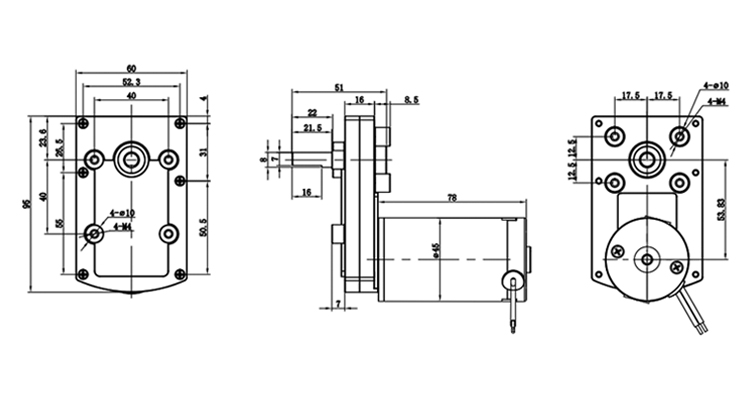

Product Profile 2
Product Parameters
Gearbox Specification:
Size 60x95mm
Material Metal
Gear Powder metallurgy Steel gear
Output Torque 0-15N.m
Operating Temperature -20℃-85℃
Gear Stages 3 4 5
Reduction Ratio 36、66、94 149、196、211、277、394 624、830、1166
Max Running Torque 5kgf.cm 20kgf.cm 50kgf.cm
Gear Breaking Torque 30kgf.cm 60kgf.cm 150kgf.cm
Gearing Efficiency 73% 65% 59%
Motor Type:
Motor Type Voltage (V) No Load Speed (rpm) Rated Speed (rpm) Rated Current (mA) Rated Torque (gf.cm) Rated Power (W)
TT-45ZY123000 12 3000 2430 ≤1200 390 9.5
TT-45ZY124500 12 4500 3710 ≤2050 480 17.8
TT-45ZY126000 12 6000 5240 ≤4150 610 31.9
TT-45ZY243000 24 3000 2590 ≤620 380 9.84
TT-45ZY244500 24 4500 3850 ≤1340 490 18.8
TT-45ZY246000 24 6000 5120 ≤2050 650 33.2
Company Profile
Company Facility 1
Company Facility 2
CERTIFICATIONS
Product Certifications
Packing & Shipping
Packing and Logistics
Frequently Asked Questions
What information is needed for an inquiry?
For AC or DC geared motors, we need to know the rated power, voltage, rpm requirements, torque requirements, working environment, life-time requirements, sound levels, waterproof rating, and installation space.
Can I request a sample order?
Yes, we provide samples for our customers. The sample fee will be refunded after a certain number of formal orders are placed.
How do you ensure quality control?
Our factory is certified with ISO9001 and TS 16949. We have more than 10 quality inspectors and professional testing equipment including three coordinates, silent rooms, dynamometers, and life testing machines.
What are your payment terms?
We accept Alibaba Trade Assurance, T/T, PayPal, and Western Union. A 30-50% deposit is available, with the balance paid before shipping.
What is your standard packing method?
We use safe packing with foam wrapping, strong inner boxes, and outer cartons. Large quantities are packaged with pallets for extra security.
Do you provide customized services?
Yes, we provide both OEM and ODM services. Our professional engineers are available to help design your specific driving solutions.
