GA36Y-3625 6V 12V 24v Reverse CW CCW High Torque 30KG 3NM
Product Specifications
| Motor type | Planetary motor |
| Motor model | GA36Y-3625 |
| Voltage | 12 / 24V |
| Electric current | 0.3/0.4A |
| Power | 4.8-7.2W |
| Torque | 0.019-3N.m |
| Rotating speed | 8-1621rpm |
| Weight | 339g |
| Shaft | D8/D6 25mm |
| Forward/Reverse | Yes |
| Speed Adjustment | Yes |

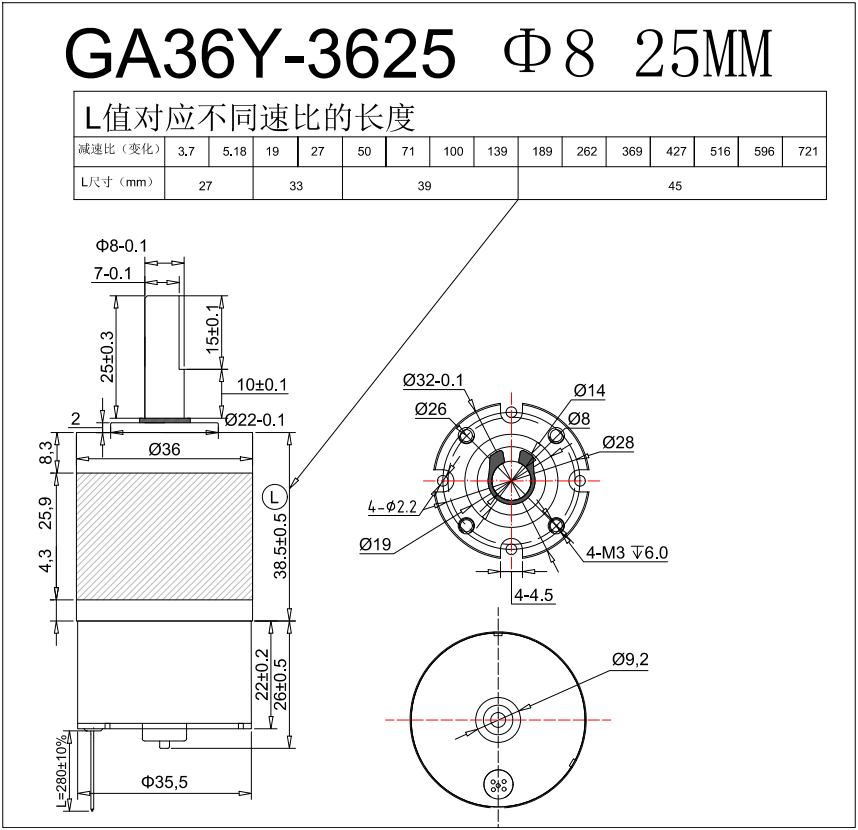

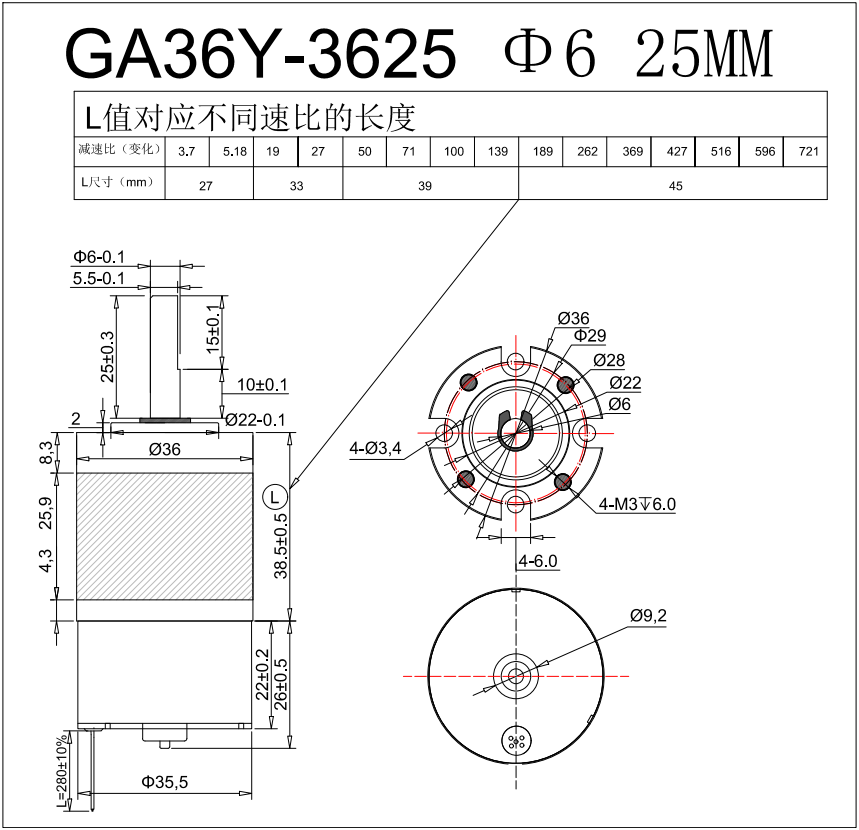

Dimensions & Technical Drawing
Performance Parameters (12V)
| Reduction Ratio |
No-Load |
Rated Load |
Stall |
| Voltage(V) |
Speed(RPM) |
Current(A) |
Speed(RPM) |
Current(A) |
Torque(Kg.cm) |
Power(W) |
Torque(Kg.cm) |
Current(A) |
| 3.7 | 12 | 1621 | 0.07 | 1324 | 0.35 | 0.19 | 6.5 | 0.69 | 1.3 |
| 5.18 | 12 | 1158 | 0.07 | 945 | 0.35 | 0.27 | 6.5 | 0.96 | 1.3 |
| 19 | 12 | 315 | 0.07 | 257 | 0.35 | 0.92 | 6.5 | 3.5 | 1.3 |
| 27 | 12 | 222 | 0.07 | 181 | 0.35 | 1.3 | 6.5 | 5 | 1.3 |
| 50 | 12 | 120 | 0.07 | 98 | 0.35 | 2.19 | 6.5 | 9.3 | 1.3 |
| 71 | 12 | 84 | 0.07 | 69 | 0.35 | 3.1 | 6.5 | 13.2 | 1.3 |
| 100 | 12 | 60 | 0.07 | 49 | 0.35 | 4.3 | 6.5 | 18.7 | 1.3 |
| 139 | 12 | 43 | 0.07 | 35 | 0.35 | 6 | 6.5 | 25.9 | 1.3 |
| 189 | 12 | 31 | 0.07 | 25 | 0.35 | 7.3 | 6.5 | 35.3 | 1.3 |
| 262 | 12 | 22 | 0.07 | 18 | 0.35 | 10.2 | 6.5 | 48.9 | 1.3 |
| 369 | 12 | 16 | 0.07 | 13 | 0.35 | 14.3 | 6.5 | 69 | 1.3 |
| 516 | 12 | 11 | 0.07 | 9 | 0.35 | 20 | 6.5 | 96.4 | 1.3 |
Performance Parameters (24V)
| Reduction Ratio |
No-Load |
Rated Load |
Stall |
| Voltage(V) |
Speed(RPM) |
Current(A) |
Speed(RPM) |
Current(A) |
Torque(Kg.cm) |
Power(W) |
Torque(Kg.cm) |
Current(A) |
| 3.7 | 24 | 1621 | 0.15 | 1324 | 0.35 | 0.21 | 8.4 | 0.75 | 0.7 |
| 19 | 24 | 315 | 0.15 | 257 | 0.35 | 1 | 8.4 | 3.8 | 0.7 |
| 50 | 24 | 120 | 0.15 | 98 | 0.35 | 2.3 | 8.4 | 10.2 | 0.7 |
| 100 | 24 | 60 | 0.15 | 49 | 0.35 | 4.7 | 8.4 | 20.4 | 0.7 |
| 262 | 24 | 22 | 0.15 | 18 | 0.35 | 11 | 8.4 | 53.4 | 0.7 |
| 516 | 24 | 11 | 0.15 | 9 | 0.35 | 21.8 | 8.4 | 100 | 0.7 |
| 721 | 24 | 8 | 0.15 | 6 | 0.35 | 30 | 8.4 | 100 | 0.7 |
⚠ Engineer Recommendation: To ensure long-term durability and performance, the motor is strictly forbidden to be operated in a locked-rotor state.
More Products & Applications
Customization & Manufacturing Process
Packing & Shipping
Why Choose Us?
Frequently Asked Questions (FAQ)
Are you a manufacturer or a trading company?
We are a professional manufacturer with over 11 years of experience, maintaining a complete supply chain from parts processing to finished products.
How do you ensure product quality?
We have professional inspection staff at every stage of the production line. Every finished motor undergoes rigorous testing using advanced equipment such as Hardness Testers, 2.5D Image Testers, Salt Spray Chambers, Life Testers, and Noise Testers.
Can I place a sample order?
Yes, samples are available. Please contact us for specific requirements. Sample fees are typically refunded upon the placement of a formal bulk order.
What is the production and shipping lead time?
Delivery time depends on quantity, usually taking 7-15 working days. Regular products can be shipped within 3 working days, while customized samples require 7-10 working days.
How quickly do you respond to inquiries?
Our customer service team is available 24 hours a day to provide prompt assistance and detailed information regarding your inquiries.
What if I need custom motor specifications?
We specialize in customization. From shaft dimensions to torque and speed requirements, our engineering team can tailor the planetary motor to your specific application needs.
