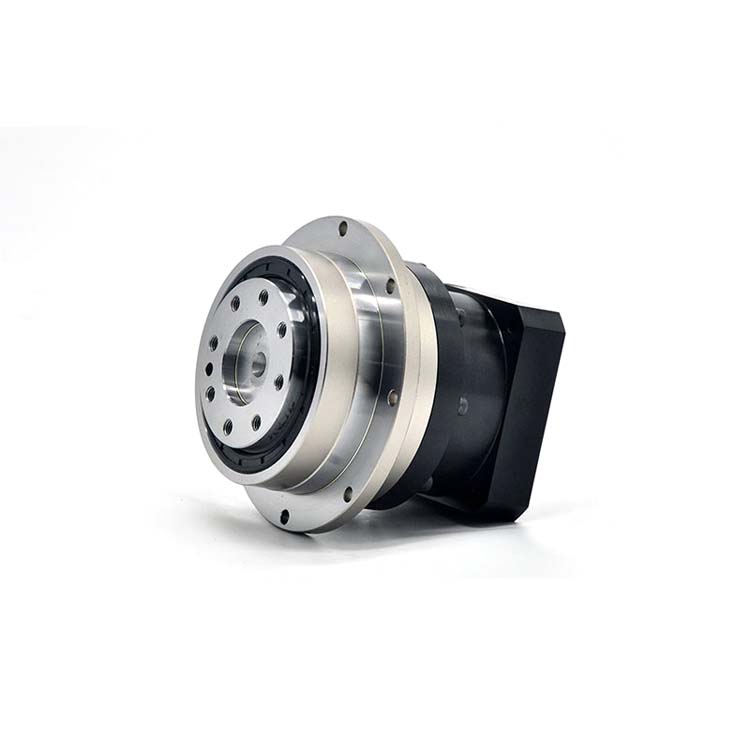

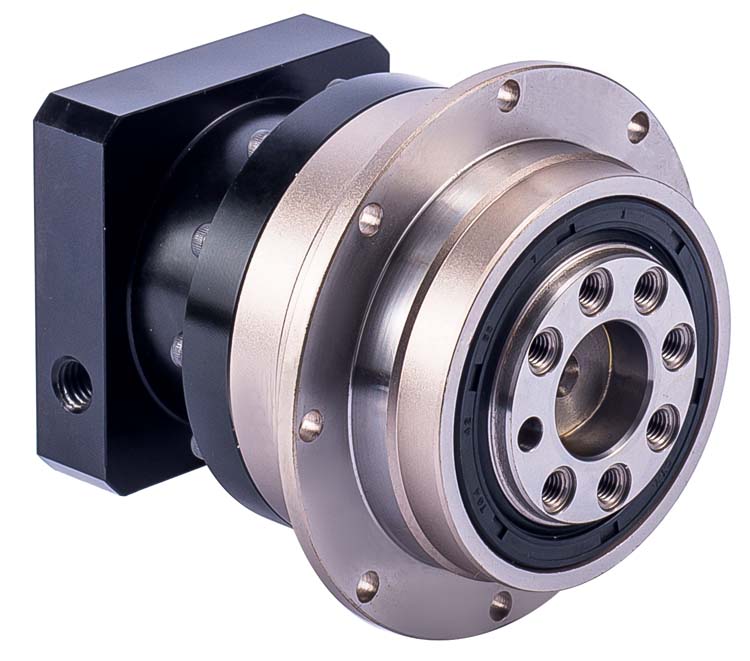

WANSHSIN High Precision Planetary Gearbox Reducer Servo Motor Three Stage Reduction Ratio 60:1-512:1 Gear Motor

Product Description

Products Description

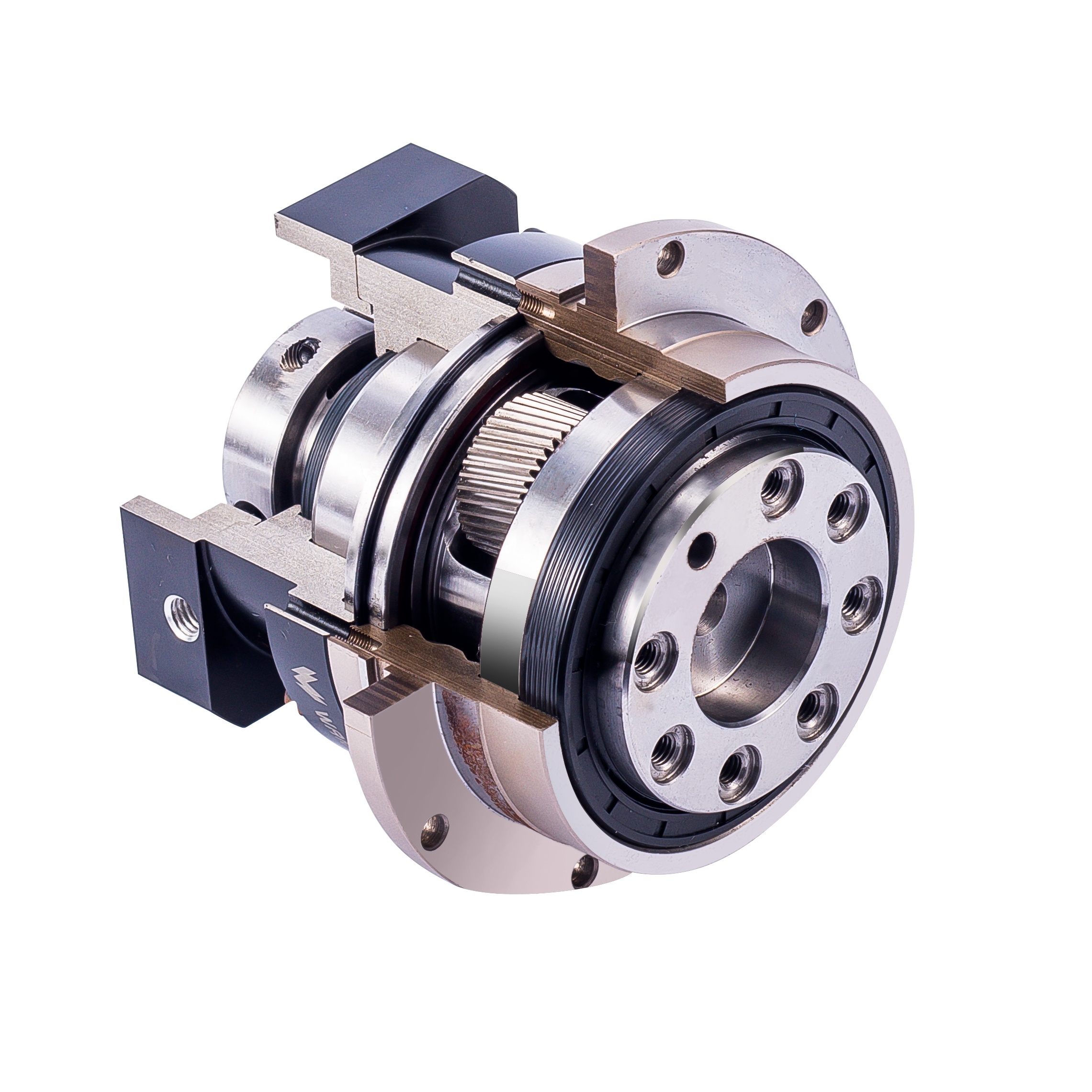

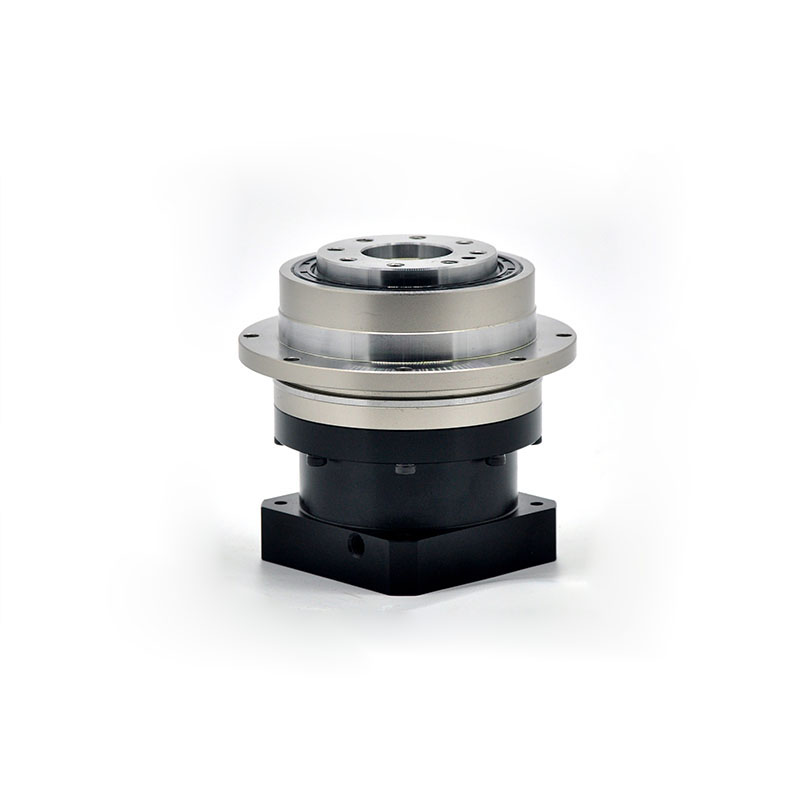

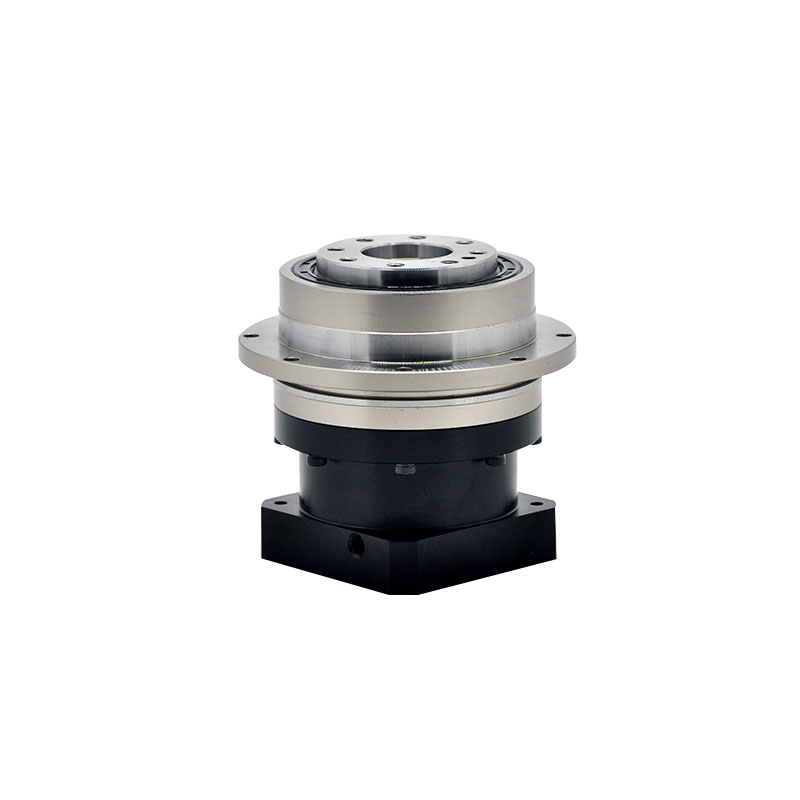

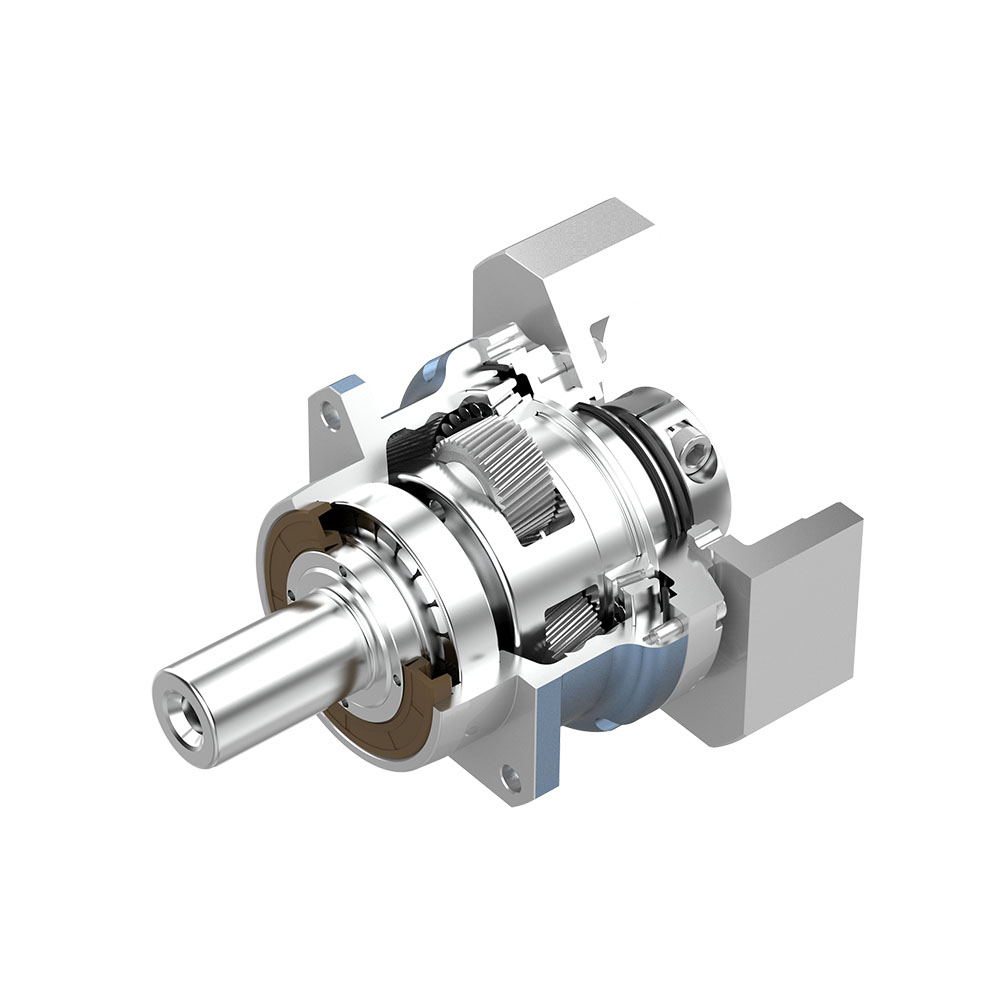

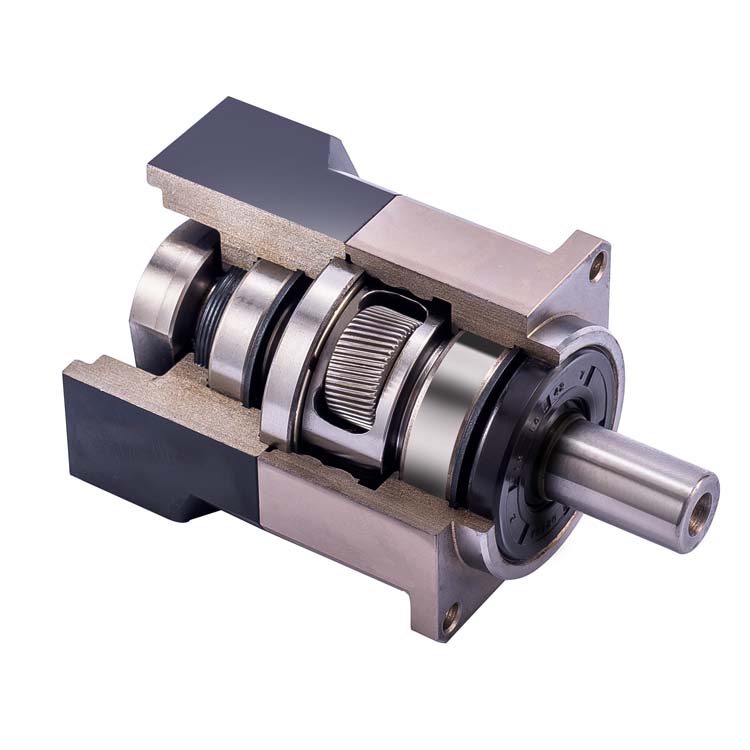

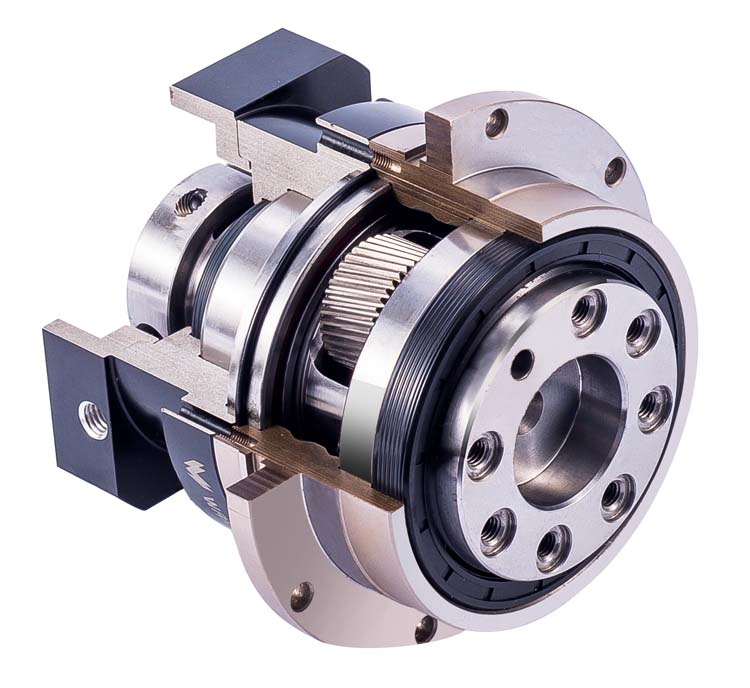

Planetary gearbox

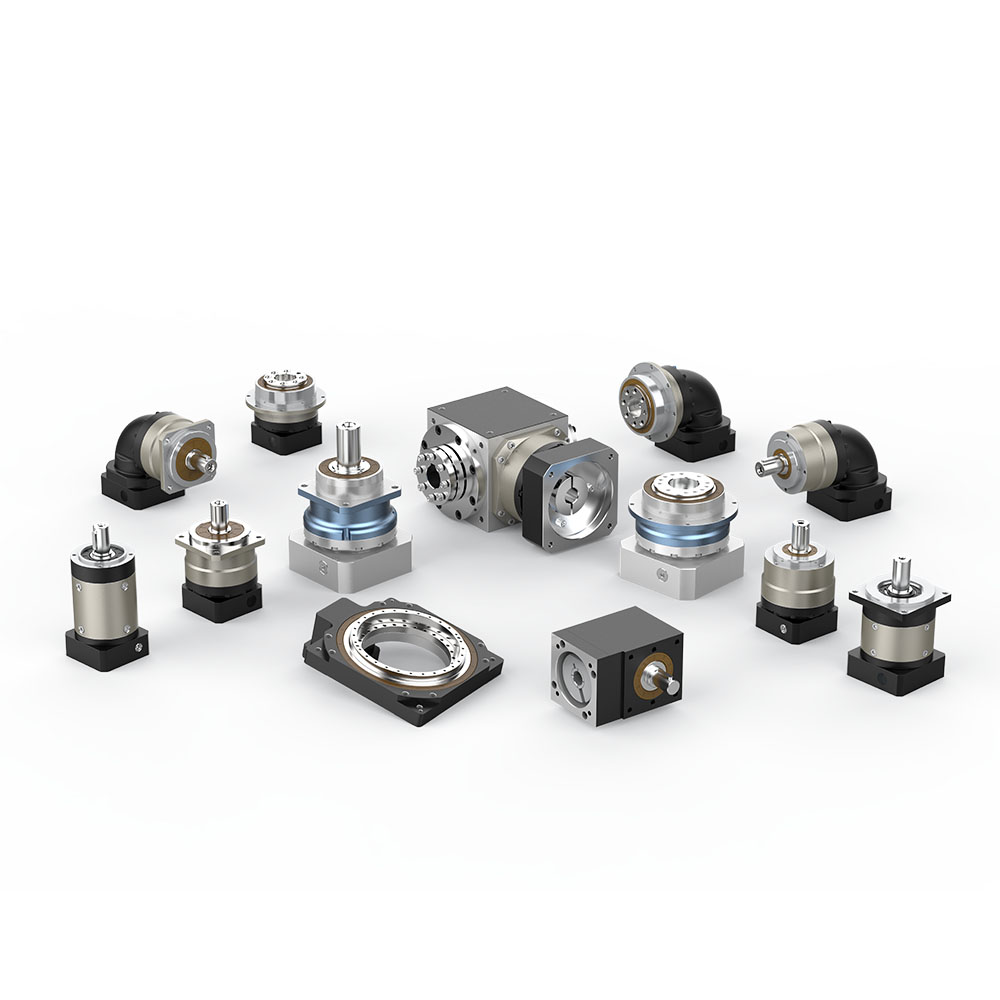

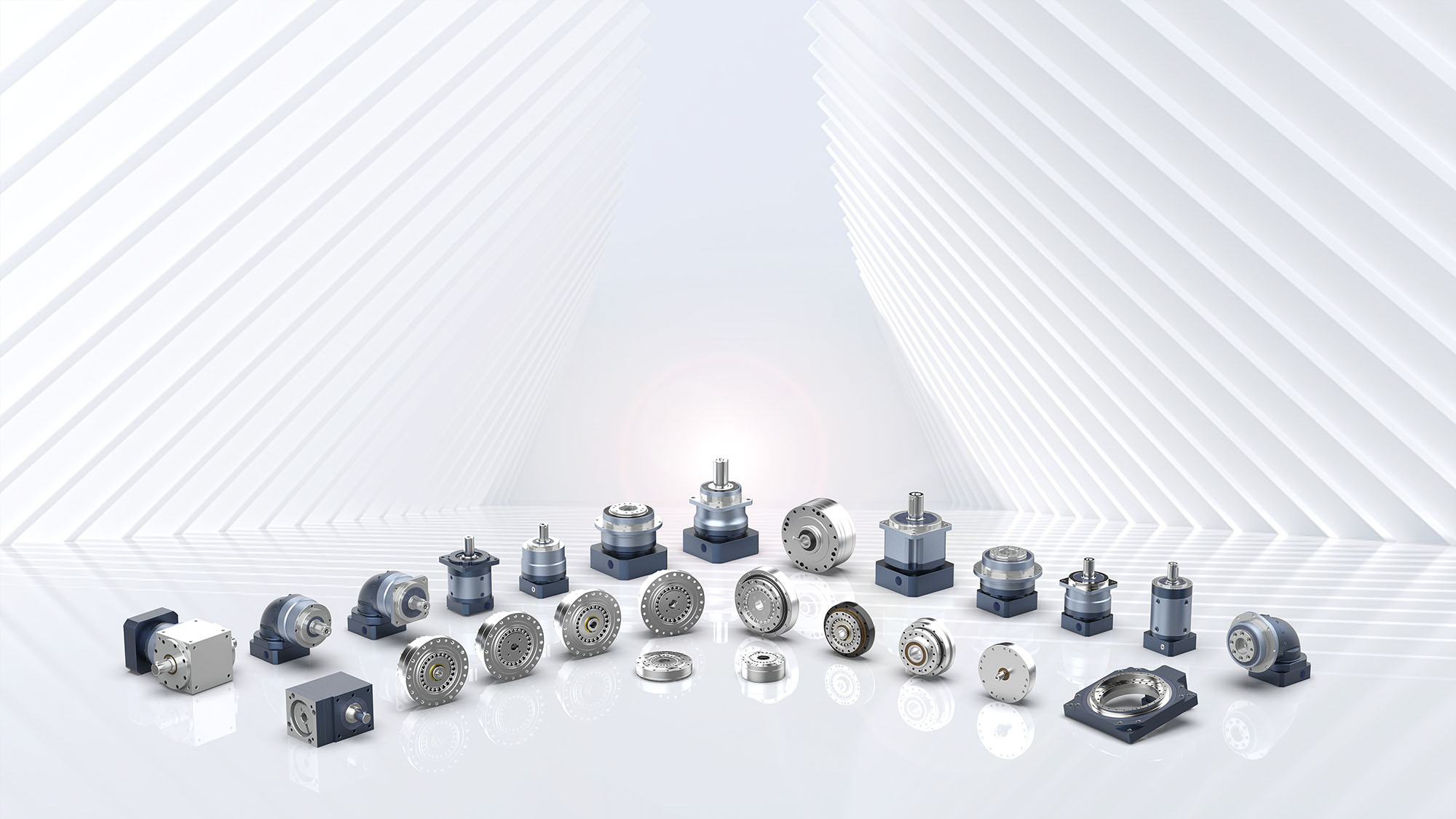

Planetary gearbox & Hollow Rotating Platform
🛡️
High durability:Adopt high strength alloy steel to ensure long lifetime and keep same precision after long use.
⚙️
High efficiency:The transmission efficiency is up to 97%.
🚀
High input speed: The max. input speed can reach 10000rpm.
🔊
Low noise:The noise is lower than 65dB(A).
🎯
Low backlash:L1 < 3arcmin, L2 < 5arcmin.
🔧
Free maintenance: Compact design and fully sealed to ensure no grease leakage.
Specification

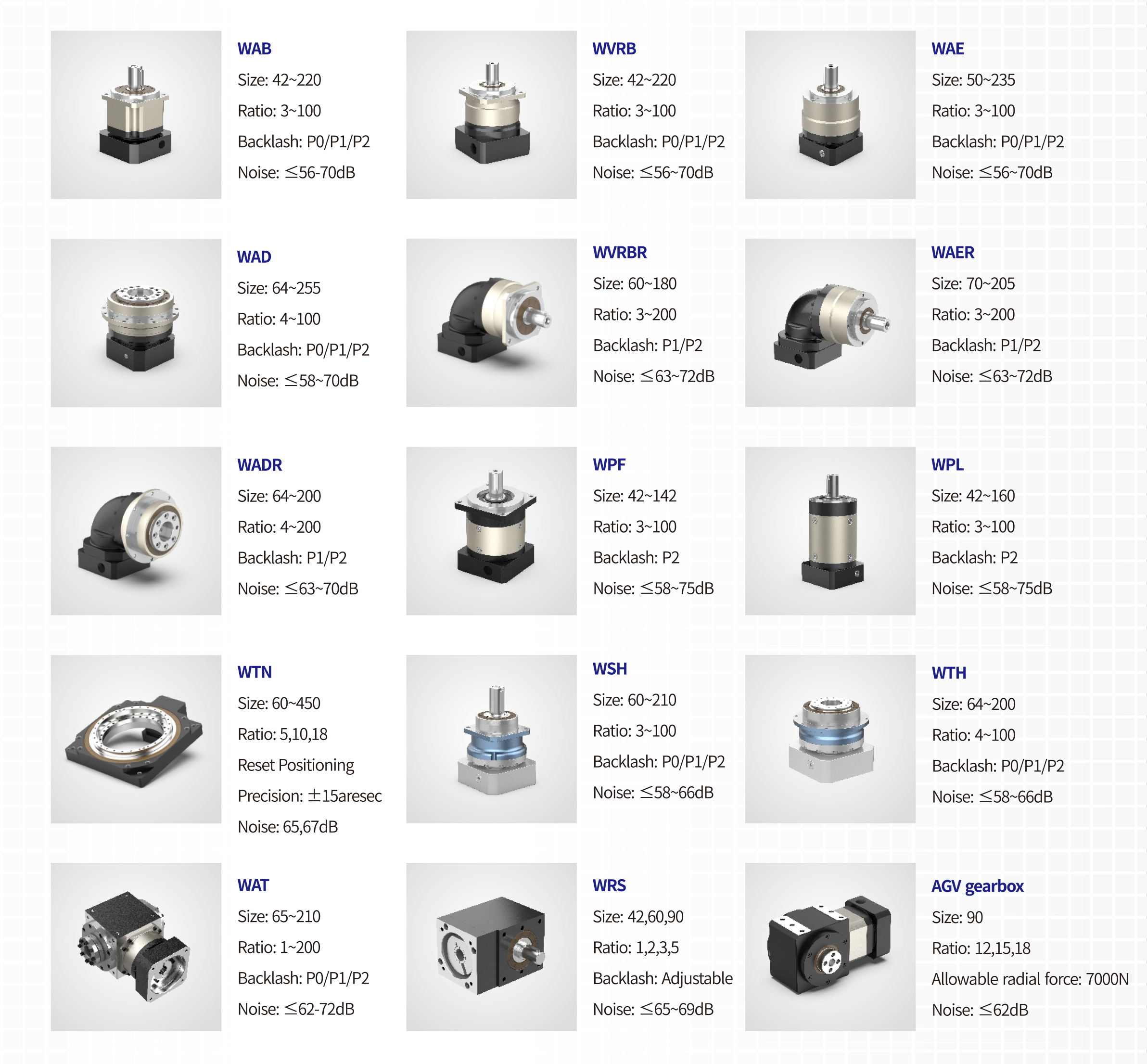

Model WAB WAD WVRB WAE WPF WPL WTN
Size 042/060/090/115/142/180/220 047/064/090/110/140/200/255 042/060/090/115/140/180/220 050/070/090/120/155/205/235 042/060/080/090/115/142 042/060/080/090/120/160 060/085/130/200
Ratio 3-100 4-100 3-100 3-100 3-100 3-100 2005/10/18
Rated input speed (RPM) 2000/3000/4000/5000 2000/3000/4000/5000 2000/3000/4000/5000 2000/3000/4000/5000 2500/3500/4000 2500/3500/4000 200PRM
Rated output torque (N.M) 14-200 14-200 14-200 14-200 5-550 5-550 1.2-70
Precision Backlash P0/P1/P2 P0/P1/P2 P0/P1/P2 P0/P1/P2 P2 P2 Adjustable
Model WABR WADR WVRBR WAER WSH WTH WRS/WAT/AGV
Size 060/090/115/142/180 064/090/110/140 060/090/115/140/180 070/090/120/115/205 60-210 64-200 042/060/090
Ratio 3-200 4-200 3-200 3-200 3-100 4-100 1/2/3/5
Rated input speed (RPM) 3000/4000/5000 3000/4000/5000 3000/4000/5000 3000/4000/5000 2000/3000/4000/5000 2000/3000/4000/5000 1000/1500
Rated output torque (N.M) 36-1200 40-650 36-1200 36-1200 14-200 14-200 10-52
Precision Backlash P1/P2 P1/P2 P1/P2 P1/P2 P0/P1/P2 P0/P1/P2 Adjustable

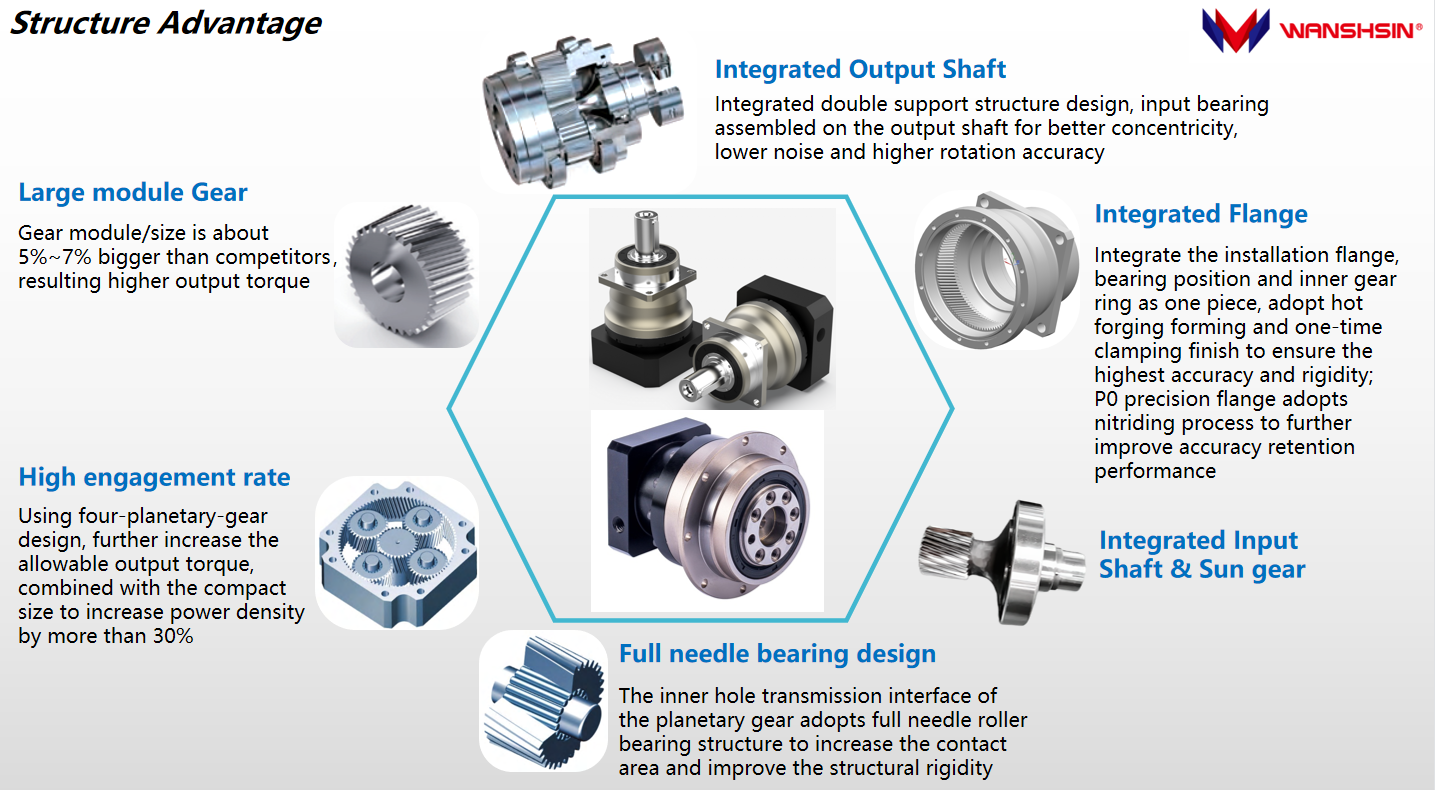

Product Detail

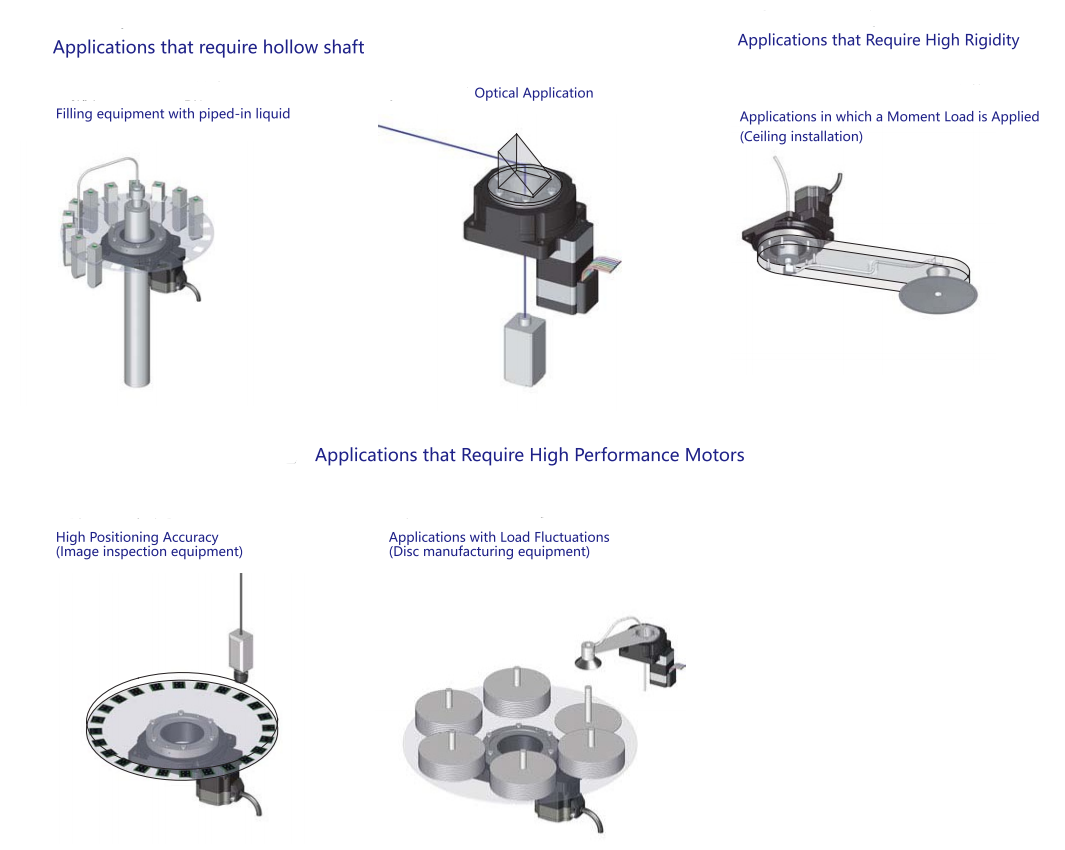

Application
Automation industry, industrial robots, metallurgical mines, tobacco light industry, warehousing and logistics, plastic machinery, lifting and transportation, textile, food, beverage, ceramic industry and other fields. The translation positioning, crank connecting rod, multi connecting rod, driving wheel, stirring and other mechanisms in these industry fields have high requirements for positioning accuracy, impact resistance, rotational inertia, and accuracy maintenance performance. These Planetary Gearboxes are widely used in these mechanisms, making them more resistant to impact loads and have a longer accuracy life.

Flying Saw Equipment

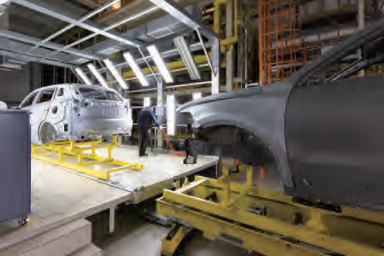

Automotive Welding Equipment

Robots

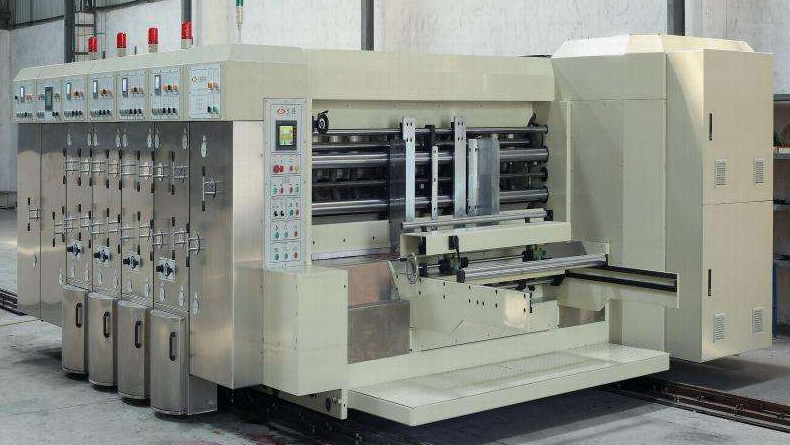

Carton Printing Machines

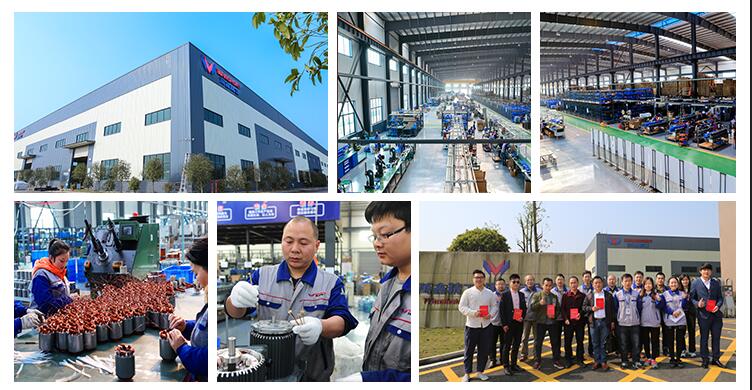

Manufacturer Profile
As a professional gear motor manufacturer integrating R&D, production, sales and service, we mainly manufacture high-precision gear motors which are widely used in robots, machine tools, solid garages and other industrial automation. As a complete intelligent automation solutions provider, we introduced advanced processing equipment and technology to meet strict high-quality requirements for worldwide customers.
To satisfy domestic and overseas customers' requirements, we have opened the international strategic layout and are determined to build a world-class electromechanical brand. We pay close attention to quality improvement and the development of new products, continuously introducing high-tech talents to strive for the development of industrial intelligent systems.
Exhibitions & Partners
Frequently Asked Questions
What should I provide when I choose a gearbox/speed reducer?
The best way is to provide the motor drawing with parameters. Or you can provide: 1) Type, model and torque. 2) Ratio or output speed. 3) Working condition and connection method. 4) Machine name. 5) Input mode and speed. 6) Motor brand model or flange size.
Are you a motor manufacturer?
Yes, we are a manufacturer. We develop and produce both the motors and gear reducers in our own factory.
How long does it take to finish my order?
Normally orders are delivered in 7-15 days. Some hot-selling products can be delivered within 1 week. Specific time depends on items and quantity.
Can I get a sample first?
Sure, we are honored to offer you samples for testing before placing a formal order.
How does your factory handle quality control?
Quality is priority. We attach great importance to quality control from beginning to end. Every product is fully assembled and carefully tested before packing.
What are your warranty terms?
We provide a warranty of 1 year after the shipping date against the Bill of Lading (B/L).
