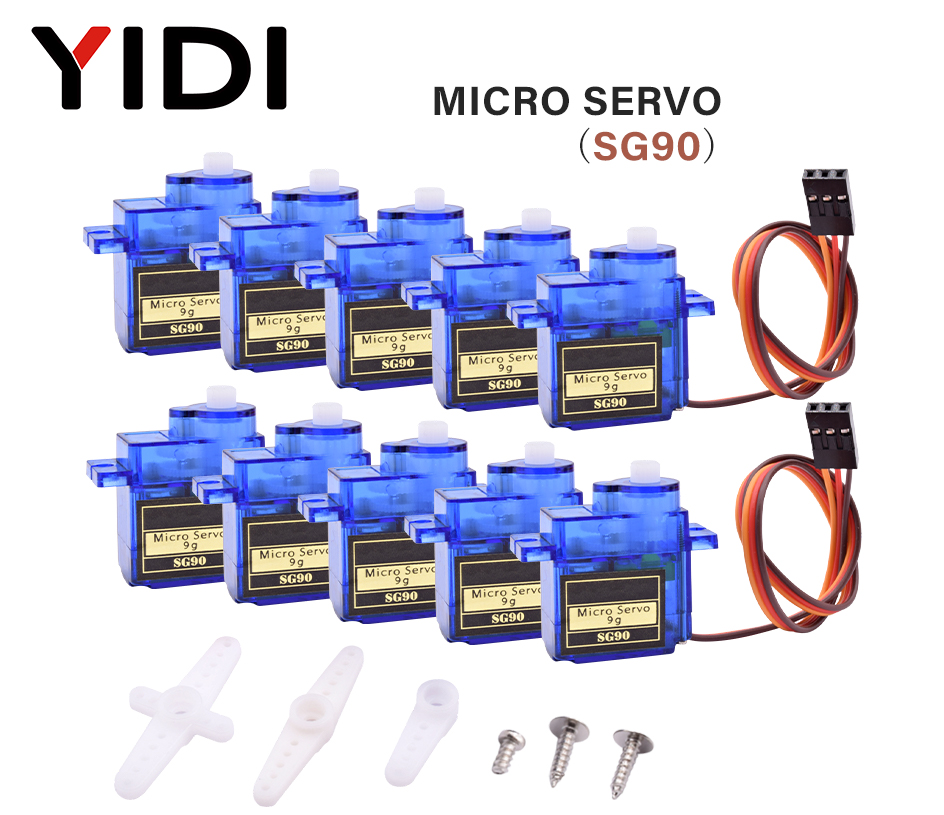

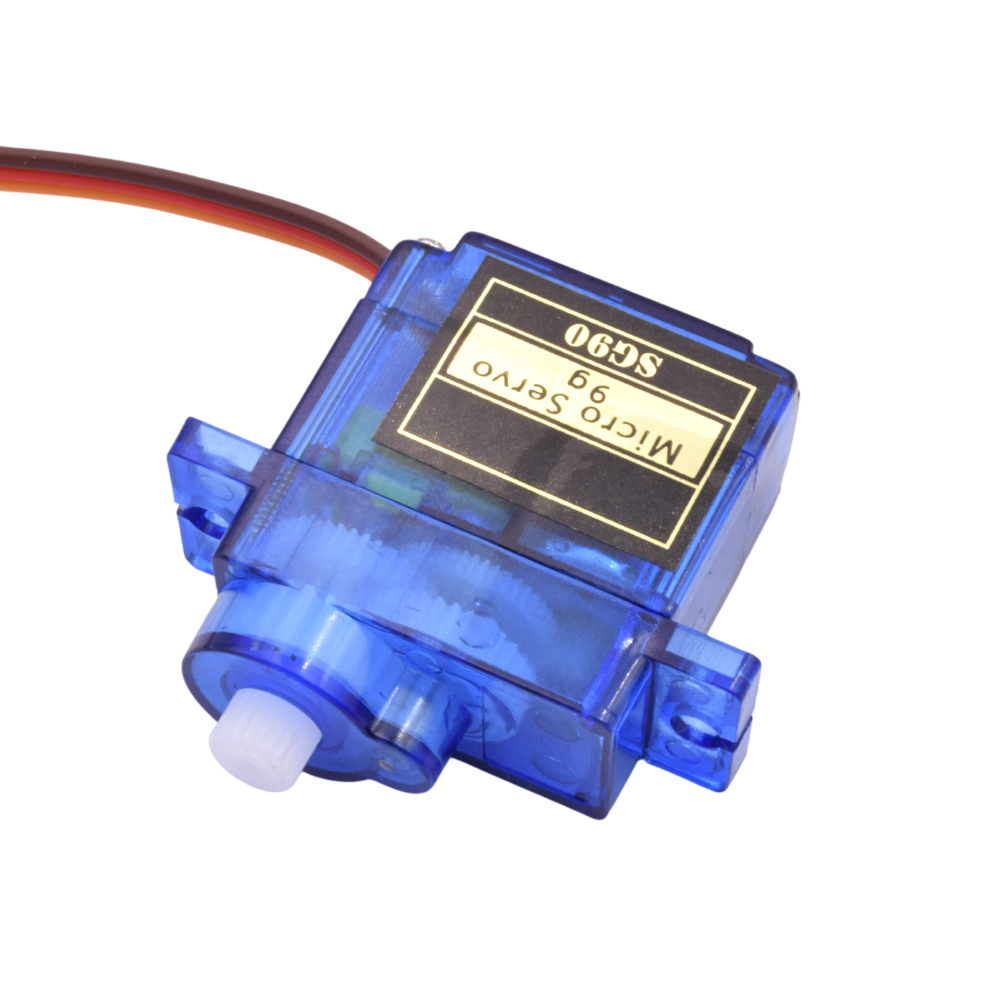

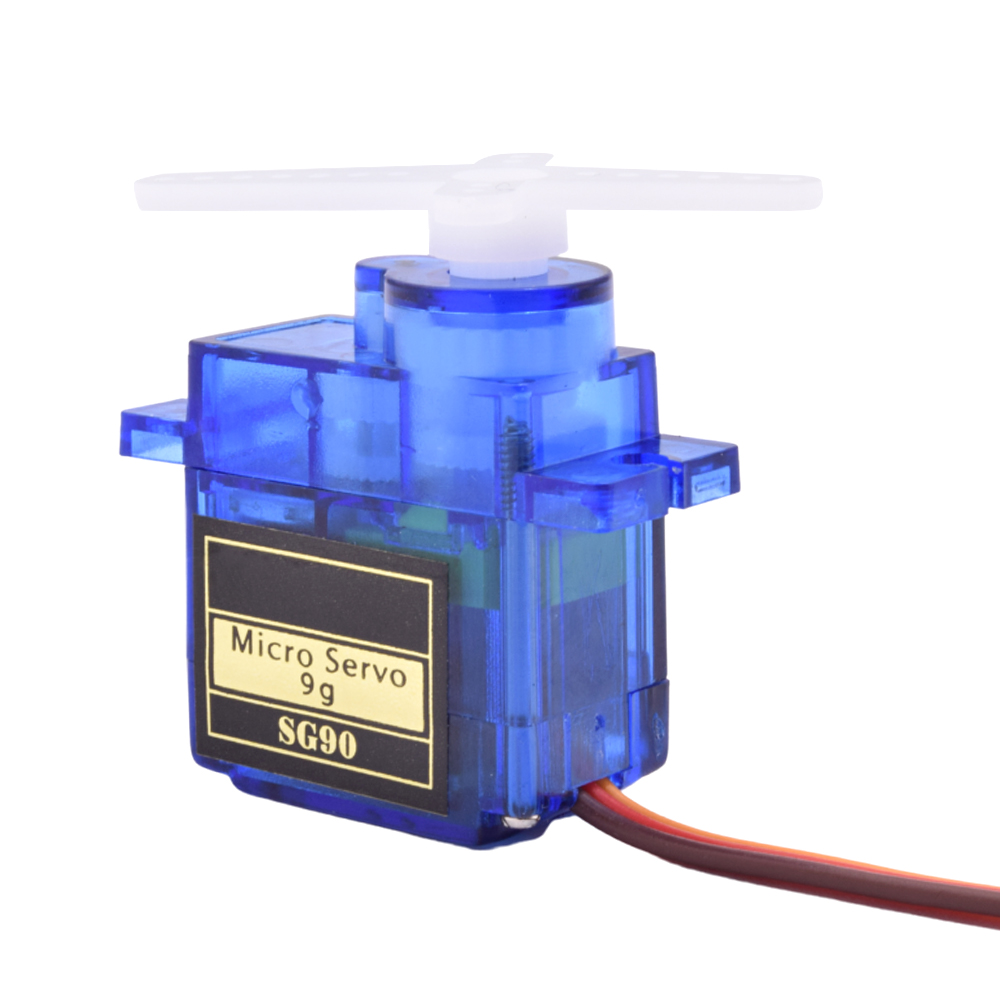

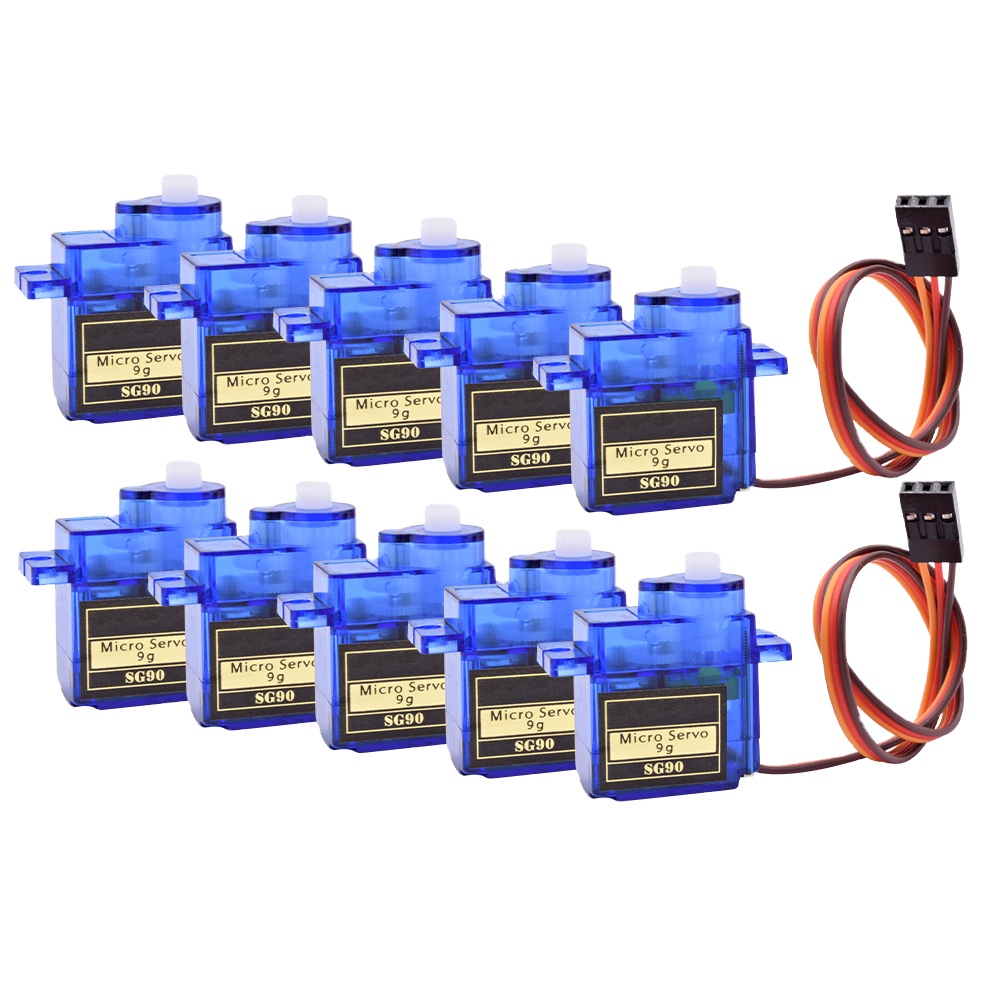

MG90S DC 360 180 Degree Rotation Small Micro Servo Motor Metal Gear Electric Microservo for Arduino Robotic Arm RC Airplane

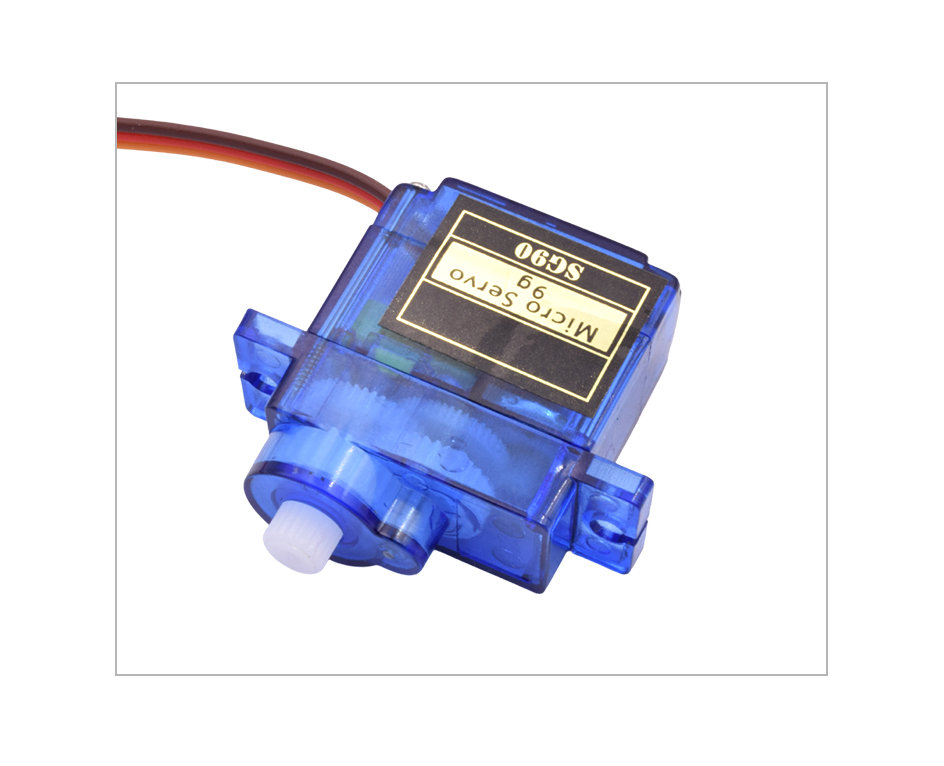

| Product Name | SG90 Servo Motor |
| Gear Material | Plastic / Metal |
| Control Signal | PWM |
| Dead Band Width | 10usec |
| Operating Mode | Digital |
| Working Temperature | -0℃ ~ +55℃ |
| Rotation Angle | 0-180°/360°(Continuous Rotation) |
| Operating Voltage | 4.8V |
| Operating Speed | 0.1seconds / 60 degrees (4.8V) |
| Stall Torque | 1.6kg/cm |
| Connector Wire Length | 250mm (Brown: Negative; Red: Positive; Orange: Pulse Input) |
| Application | Mini Car / Mini Ship / Helicopter & Airplane |
| Plug Type | JR, FUTABA General |

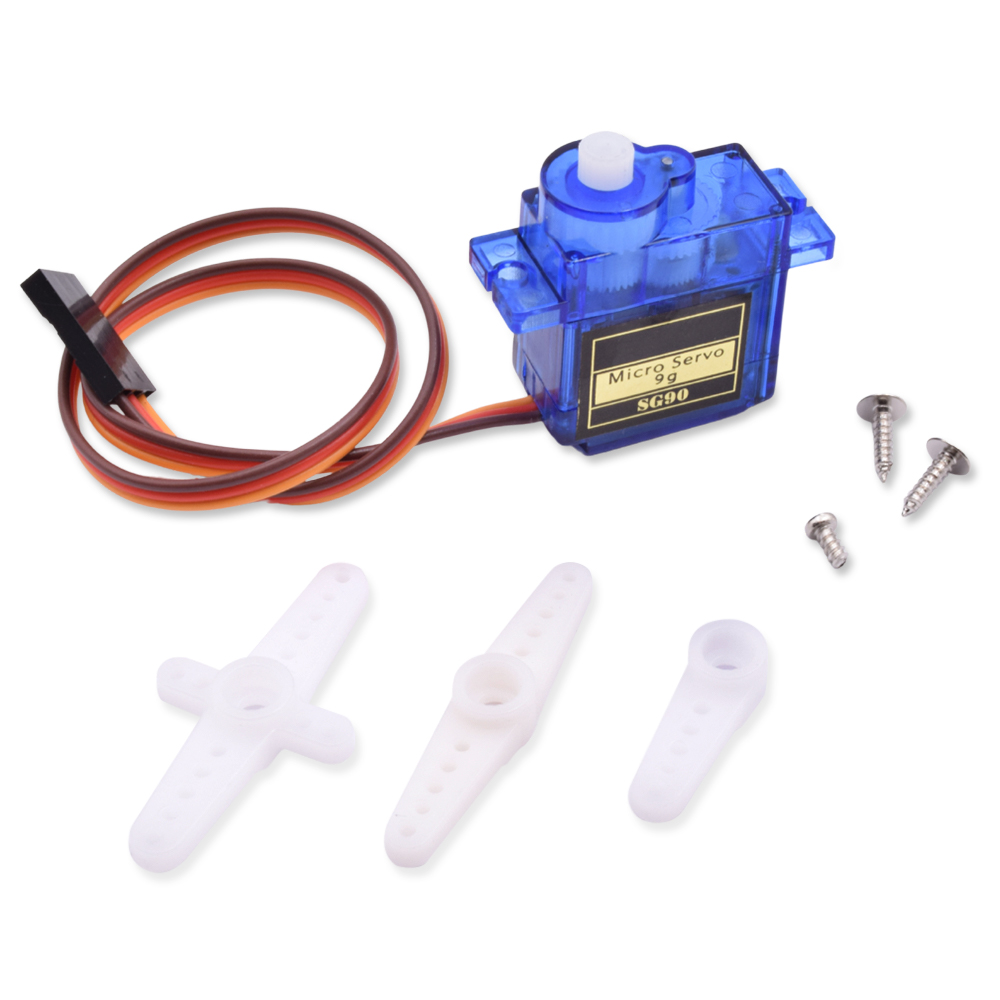

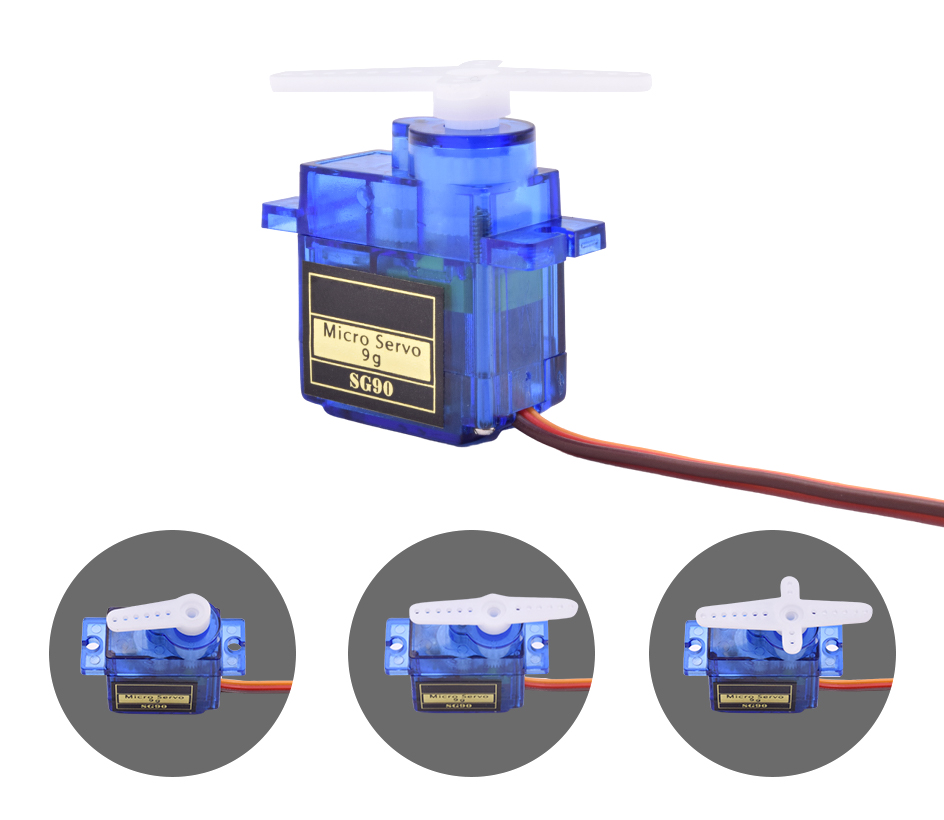

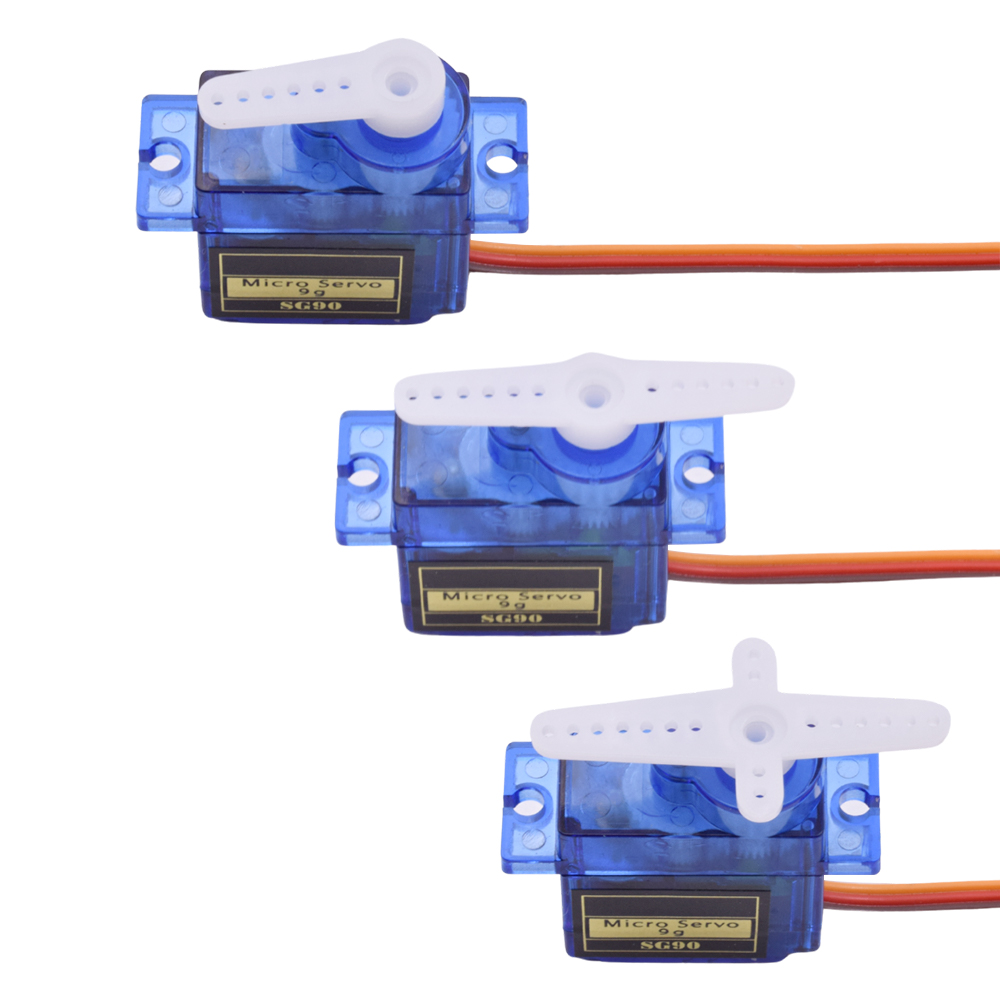

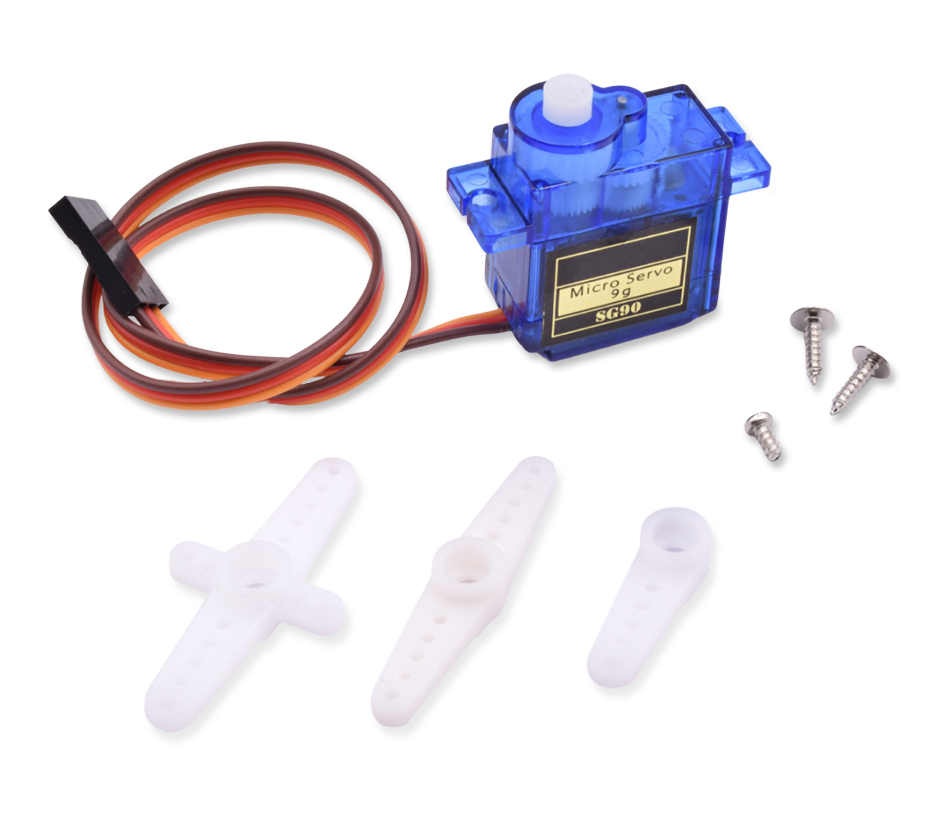

| Accessories | Multi-arm, Fixing screws |
| Symbol / Mark | Can customized |

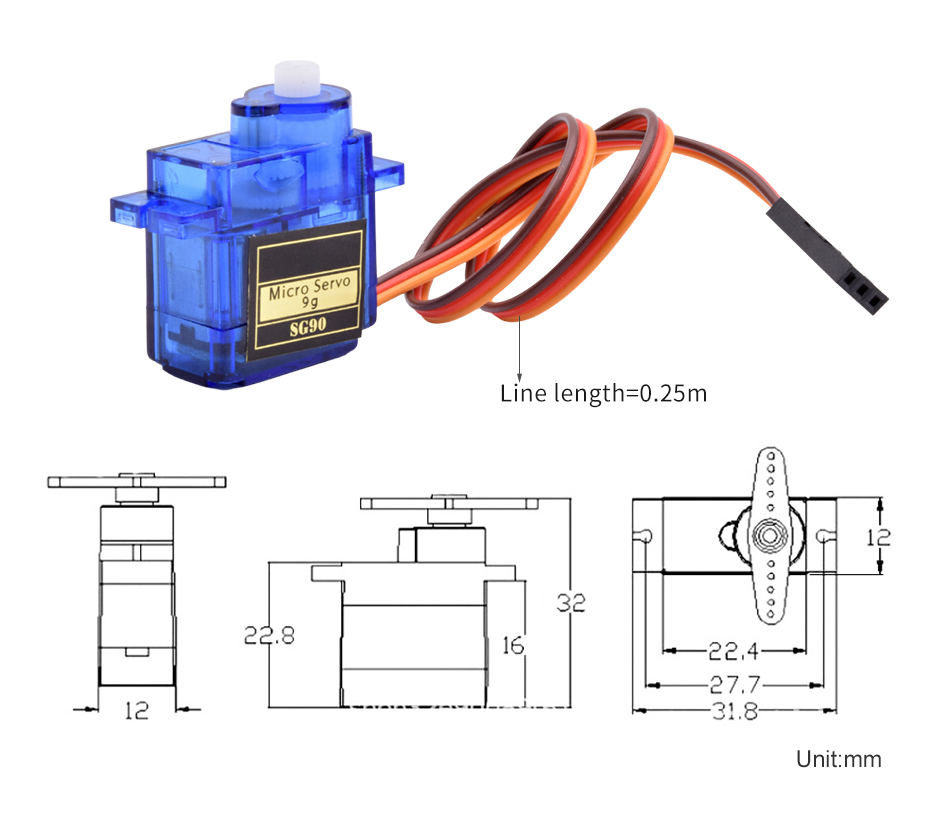

| Dimensions | 22.8 x 22.4 x 12mm |
Note:
Steering Gear Control:
The control of the steering gear generally requires a time base pulse of about 20ms, and the high level part of the pulse is generally the angle control pulse part in the range of 0.5ms~2.5ms.
1. Servo 0-180 Degree:
0.5ms --------------- 0 degrees
1.0ms -------------- 45 degrees
1.5ms -------------- 90 degrees
2.0ms -------------- 135 degrees
2.5ms -------------- 180 degrees
2. Servo 360 Degree:
The steering gear is actually equivalent to a geared motor with infinitely variable speed, which can control the speed and direction of the rotation. There is no 0-360 degree angle control function.
