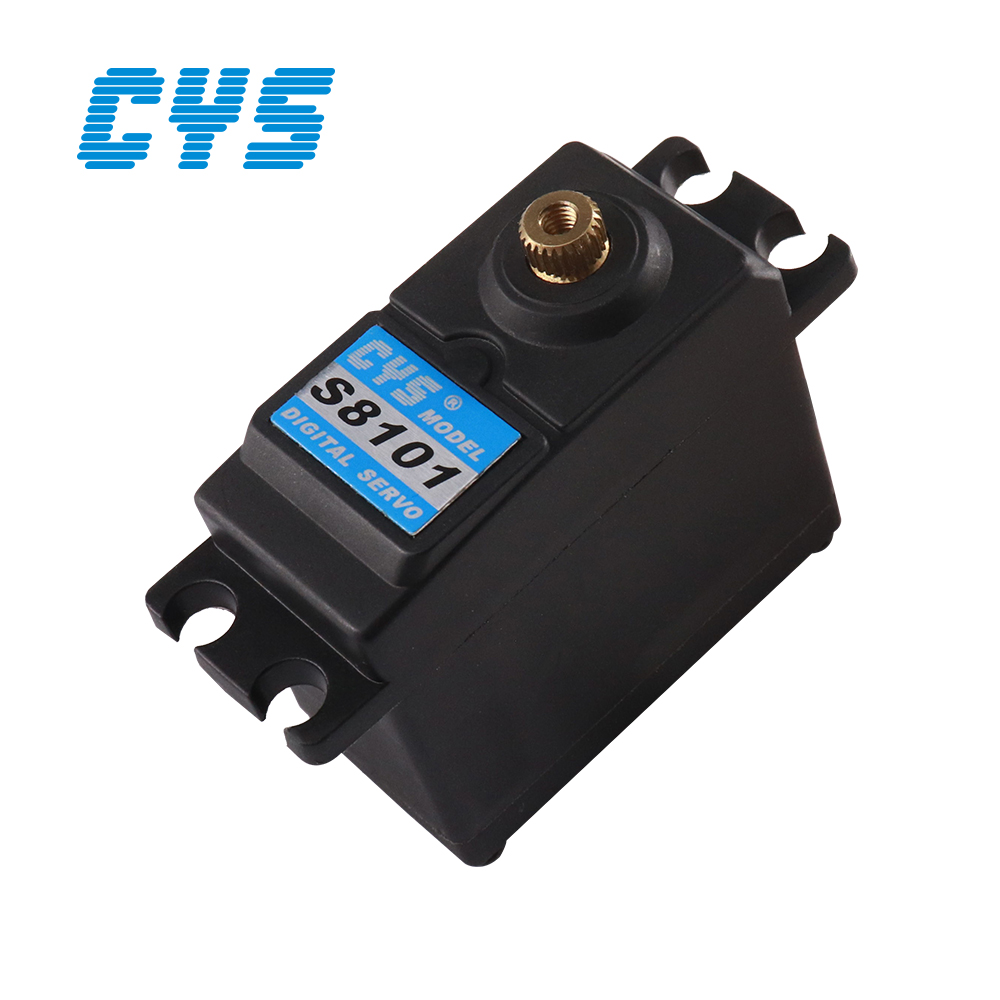

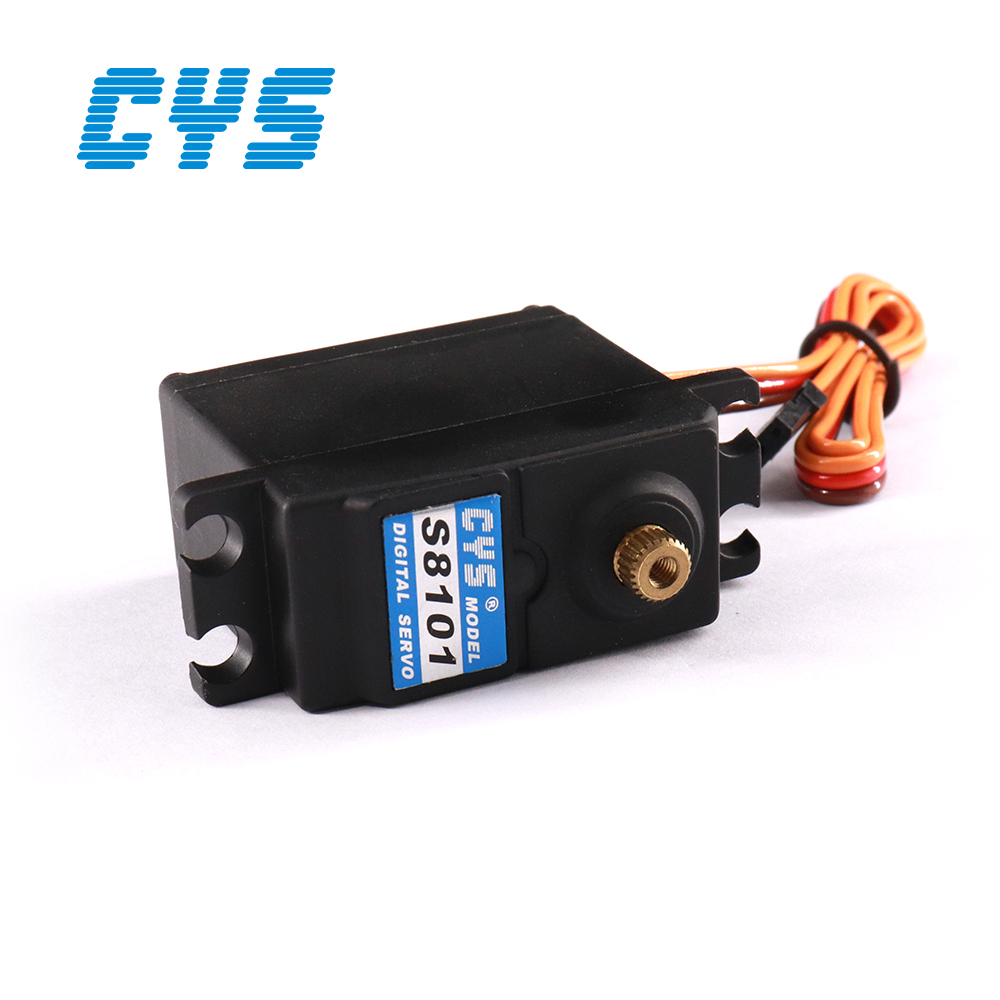

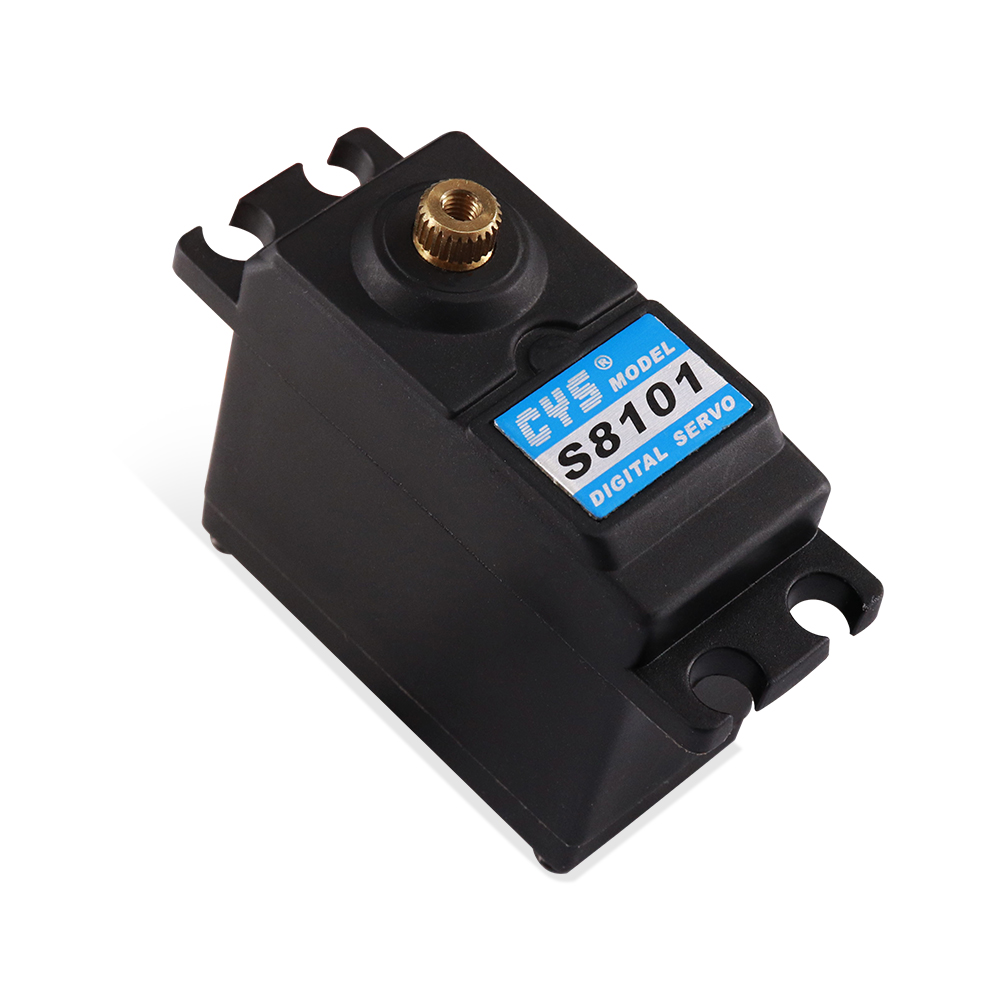

Factory Direct Selling Servo: 56g CYS-S8101 13kg Torque Digital Iron Core Motor Servo With Metal Gear For RC Robot Model

Send Inquiry

Product Description

Factory Direct Selling Servo: 56g CYS-S8101 13kg Torque Digital Iron Core Motor Servo with Metal Gear for RC Robot Model

Product Parameters

Item NO.	CYS-S8101
Type	Digital
Gear Type	Metal Gear
Weight	56g

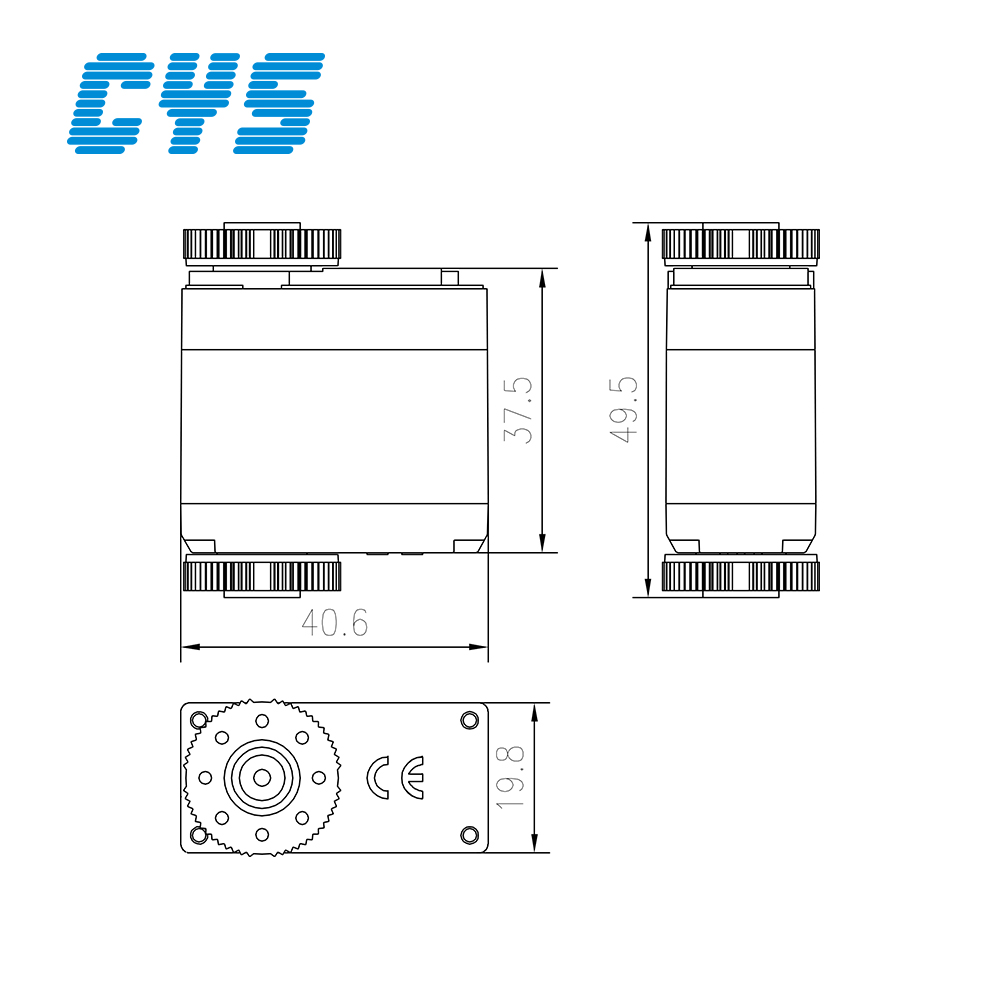

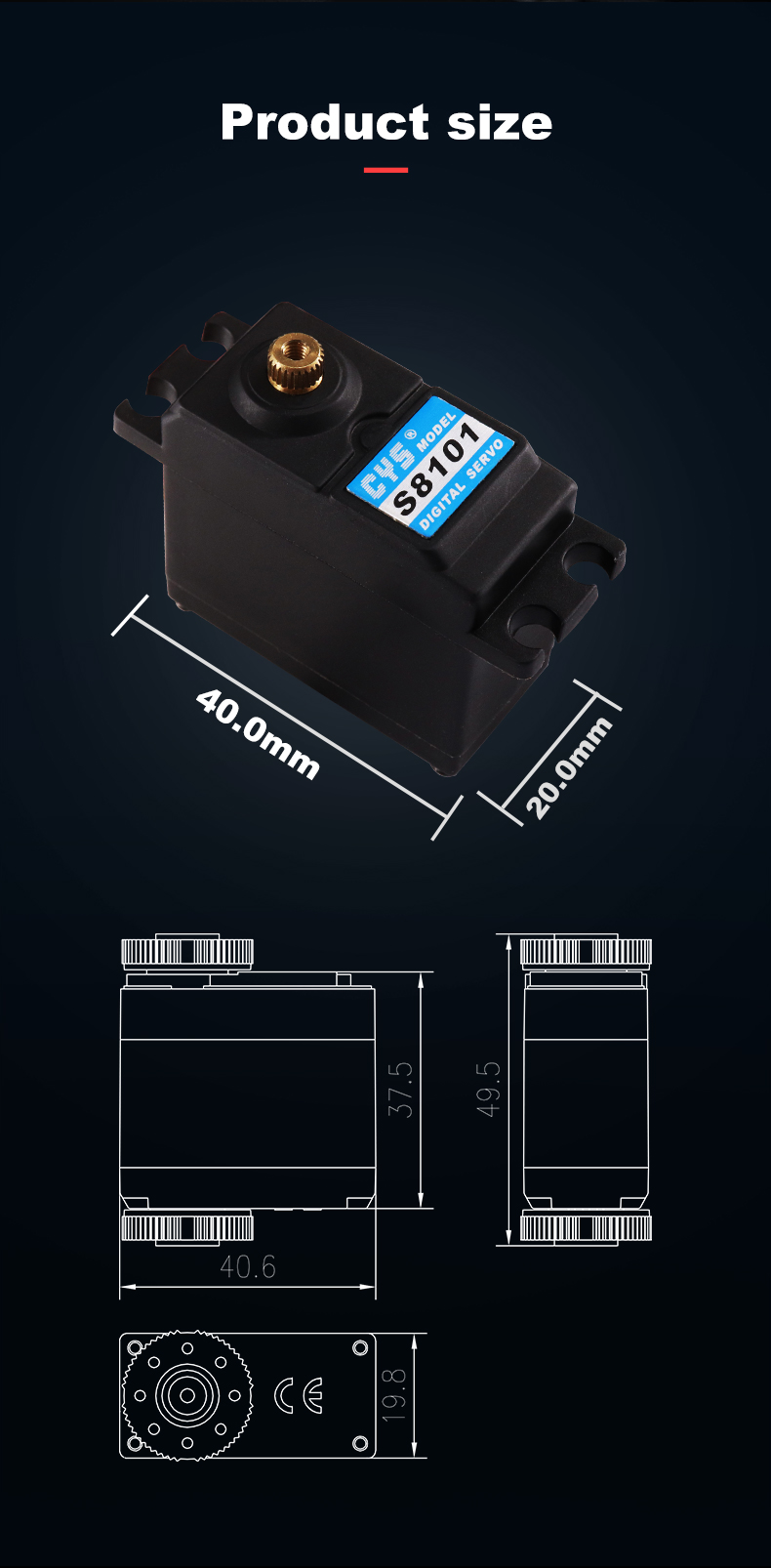

Size	402037.6 mm
Control System	(+)Pulse Width Control 1500μsec Neutral
Operating Voltage	6.0V-7.4V
Operating Temperature Range	(-)10 to +50 degree C

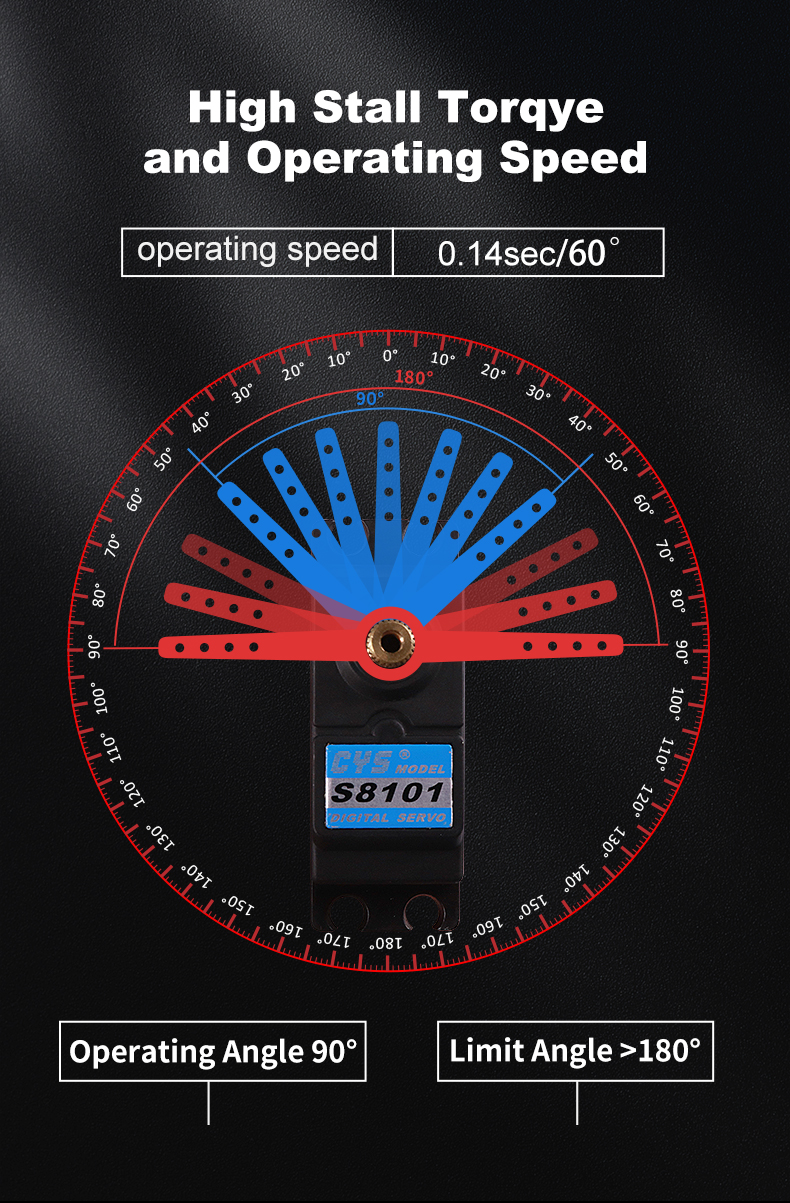

Operating Speed @ 6.0V-7.4V	0.16sec -0.14sec at no load
Stall Torque @ 6.0V -7.4V	12kg.cm-13kg.cm
Current Drain (6.0V)	20 mA/idle and 120 mA no load operating
Current Drain (7.4V)	20 mA/idle and 150 mA no load operating
Stall Current	2.7A/2.8A
Dead Band Width	3usec
Bearing Type	BB*2
Motor Type	Iron Motor
Horn gear spline	25T
Cable/Plug	300mm/JR
Wire information	Brown(N) Red (P) Orange(S)

Details Images

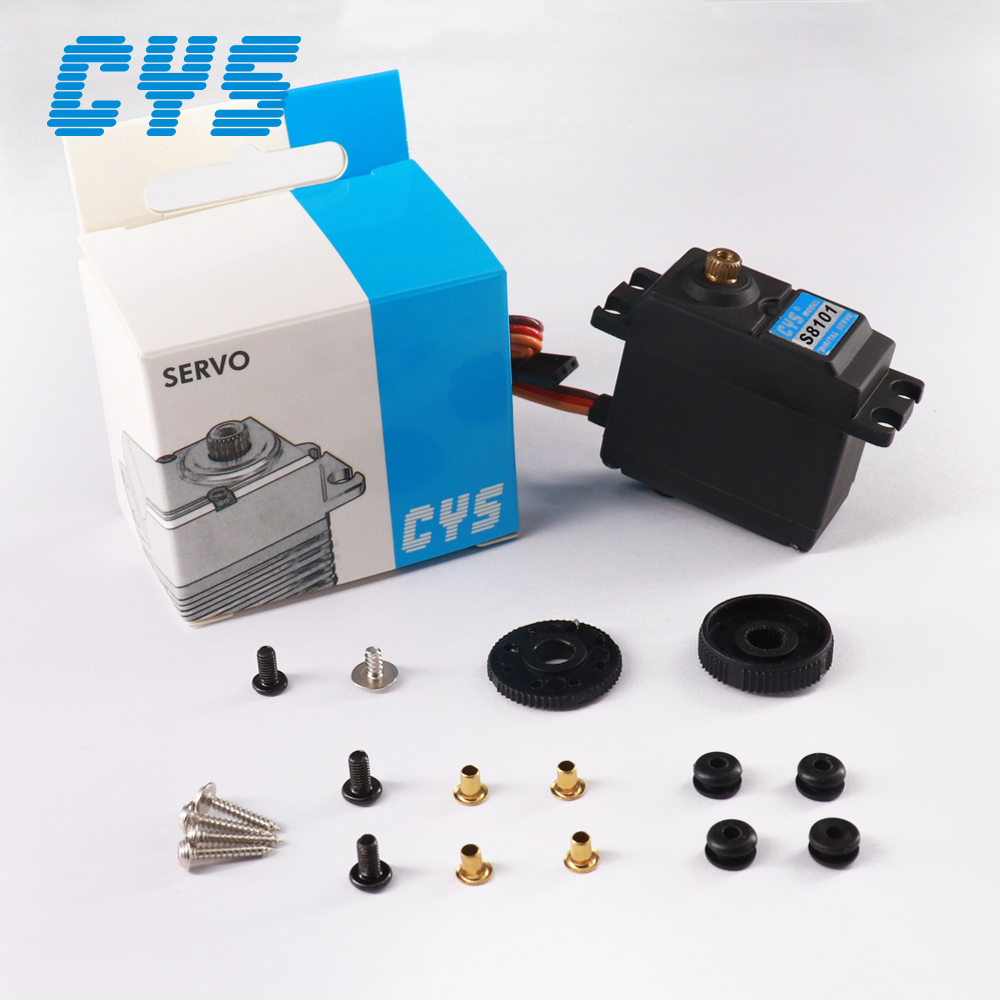

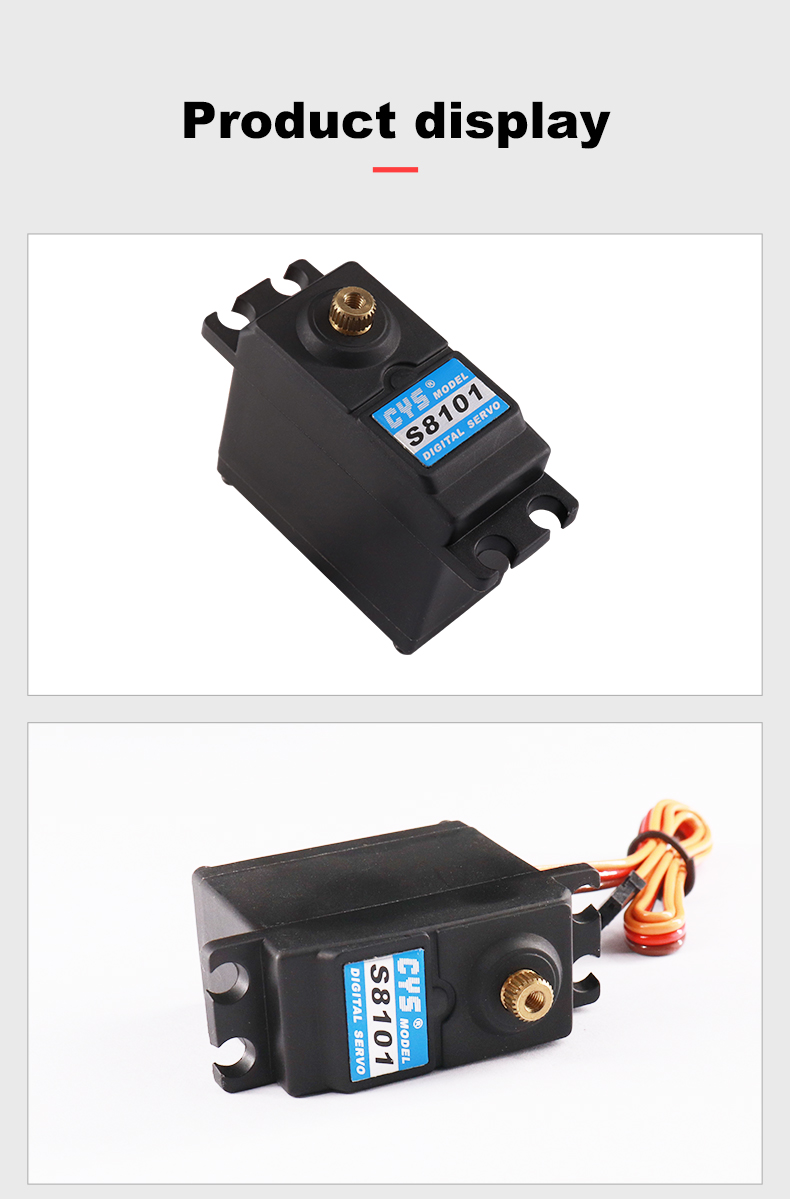

Product Presentation

Frequently Asked Questions

What is the maximum torque of the CYS-S8101 servo?

The CYS-S8101 digital servo provides a stall torque of 12kg.cm at 6.0V and up to 13kg.cm at 7.4V.

What type of gear system does this servo use?

This model is equipped with a high-durability Metal Gear system, making it ideal for high-stress applications like RC robots.

Is the CYS-S8101 servo compatible with 7.4V systems?

Yes, it has an operating voltage range of 6.0V to 7.4V, allowing for increased speed and torque performance at higher voltages.

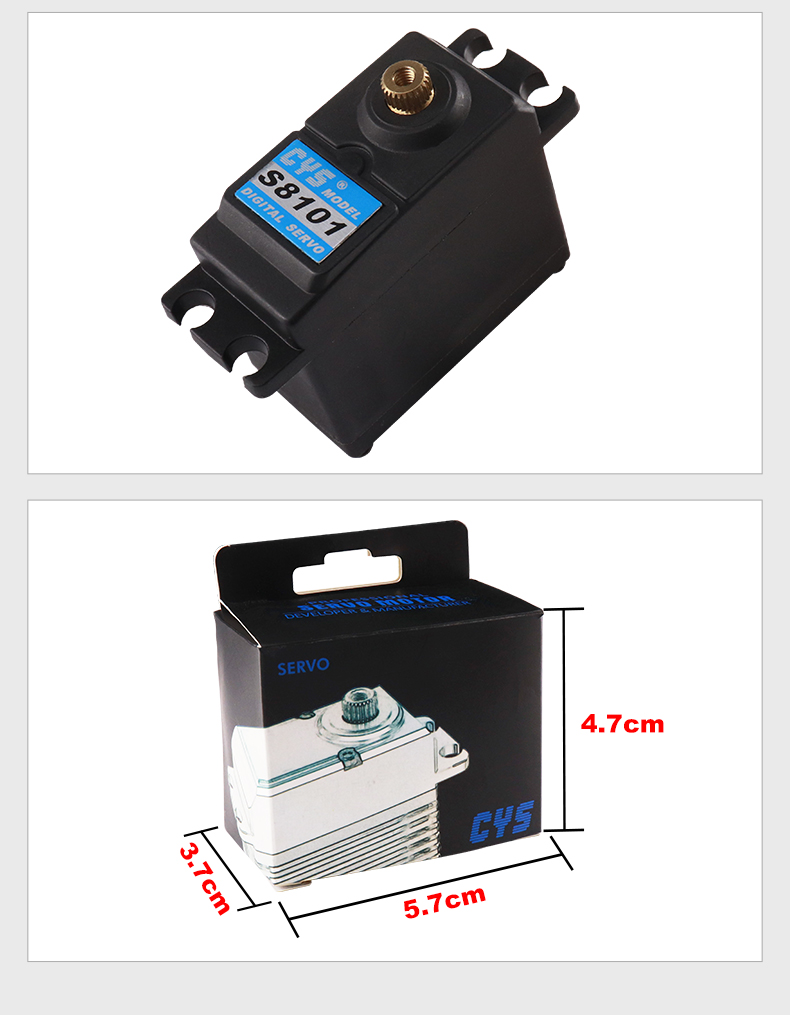

What is the weight and size of this digital servo?

The servo weighs 56g and has standard dimensions of 40*20*37.6 mm.

Does this servo include bearings?

Yes, it features a dual bearing (BB*2) design for smooth operation and long-term reliability.

What is the spline count for the horn gear?

The CYS-S8101 uses a standard 25T horn gear spline, which is compatible with most standard servo arms.
