Frequently Asked Questions
Q1: What is the standard rated speed for these BLDC motors?
A: The standard rated speed for the S60BL series is 3000 RPM at a nominal voltage of 24VDC.
Q2: What is the insulation class and temperature tolerance?
A: These motors feature Insulation Class B and are designed to operate within an ambient temperature range of -20℃ to +50℃.

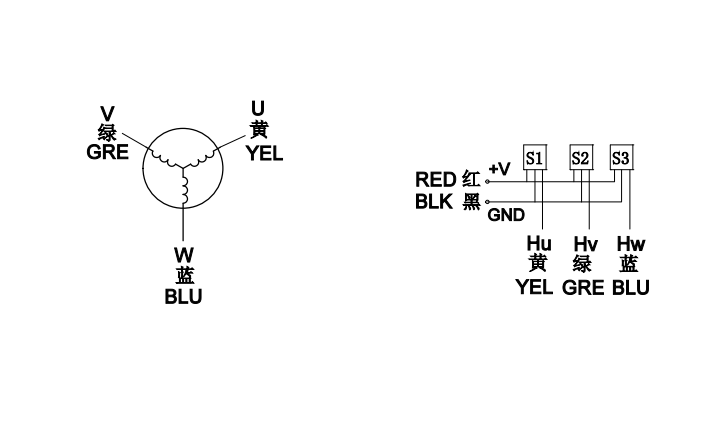

Q3: How many poles and phases do the motors have?
A: The motors are designed with 8 poles and 3 phases for efficient and smooth operation.

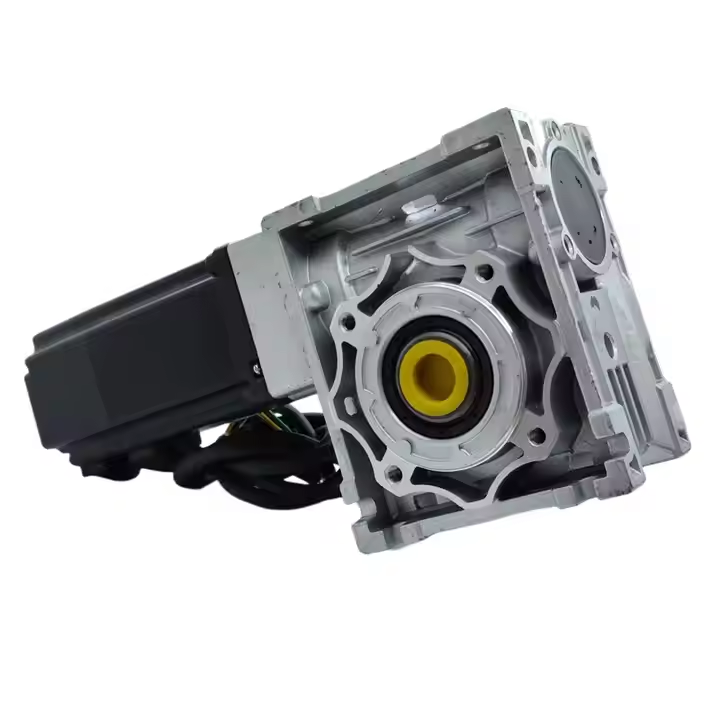

Q4: What reduction ratios are available for the gearbox?
A: For first-order geartrains, ratios include 4.5, 7, and 10. For second-level geartrains, ratios range from 15 to 100.
Q5: What is the dielectric strength of the motor?
A: The dielectric strength is rated at 700V AC for 1 minute, ensuring robust electrical safety.
Q6: What is the difference in efficiency between the gearbox levels?
A: The first-order geartrain has a transmission efficiency of 96%, while the second-level geartrain has an efficiency of 94%.
