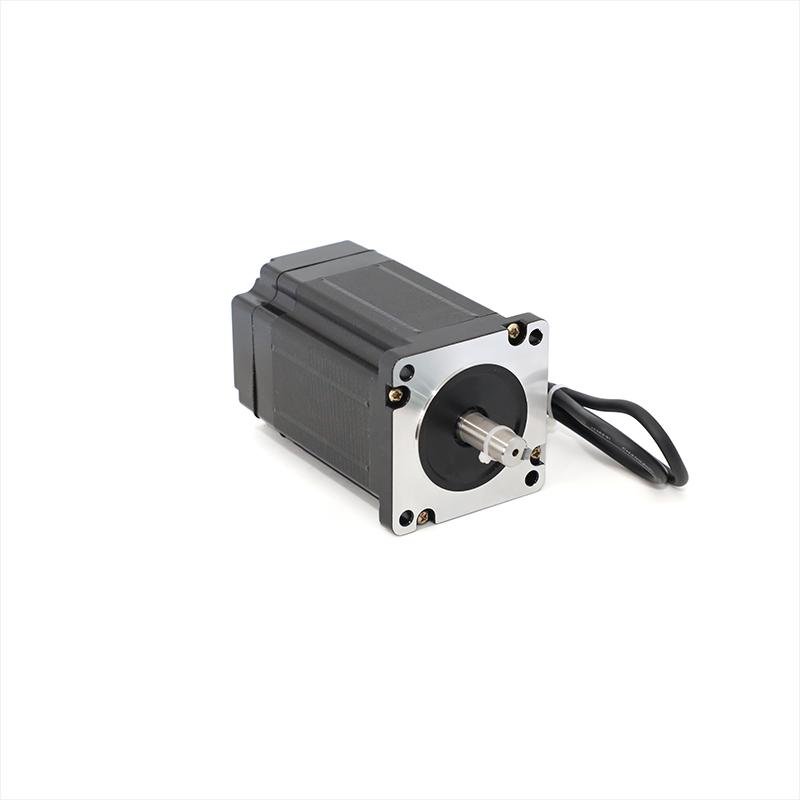

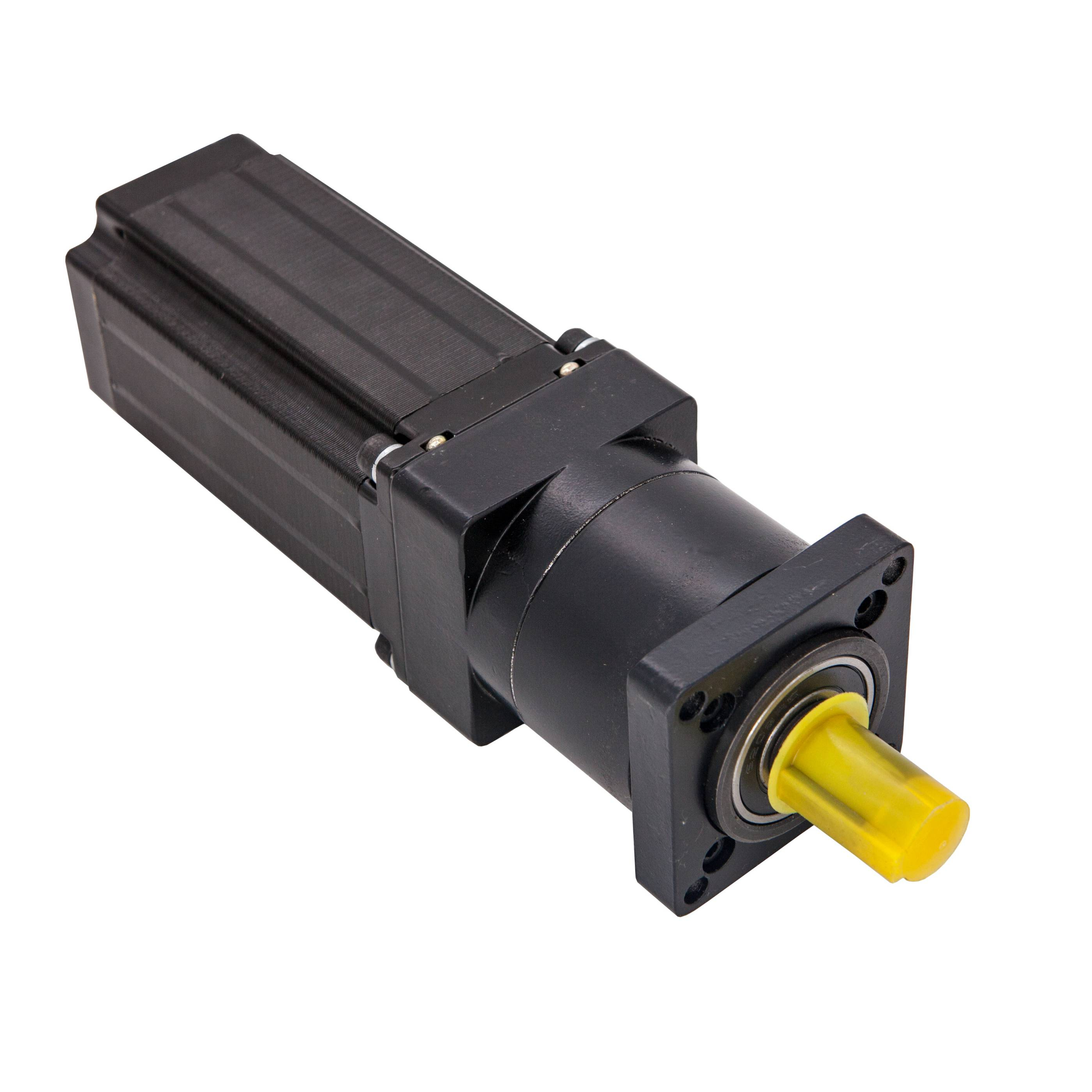

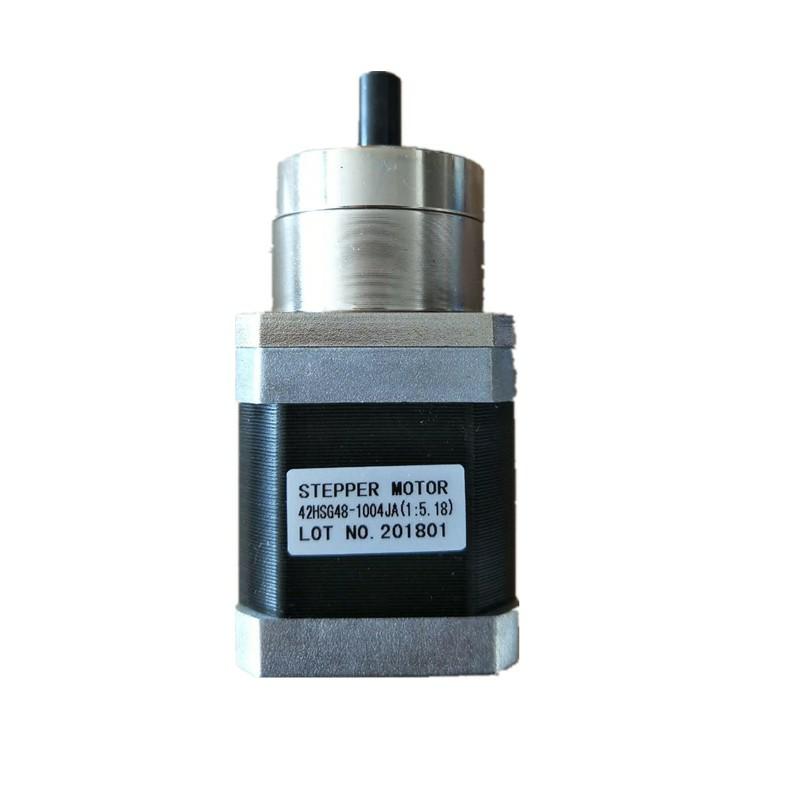

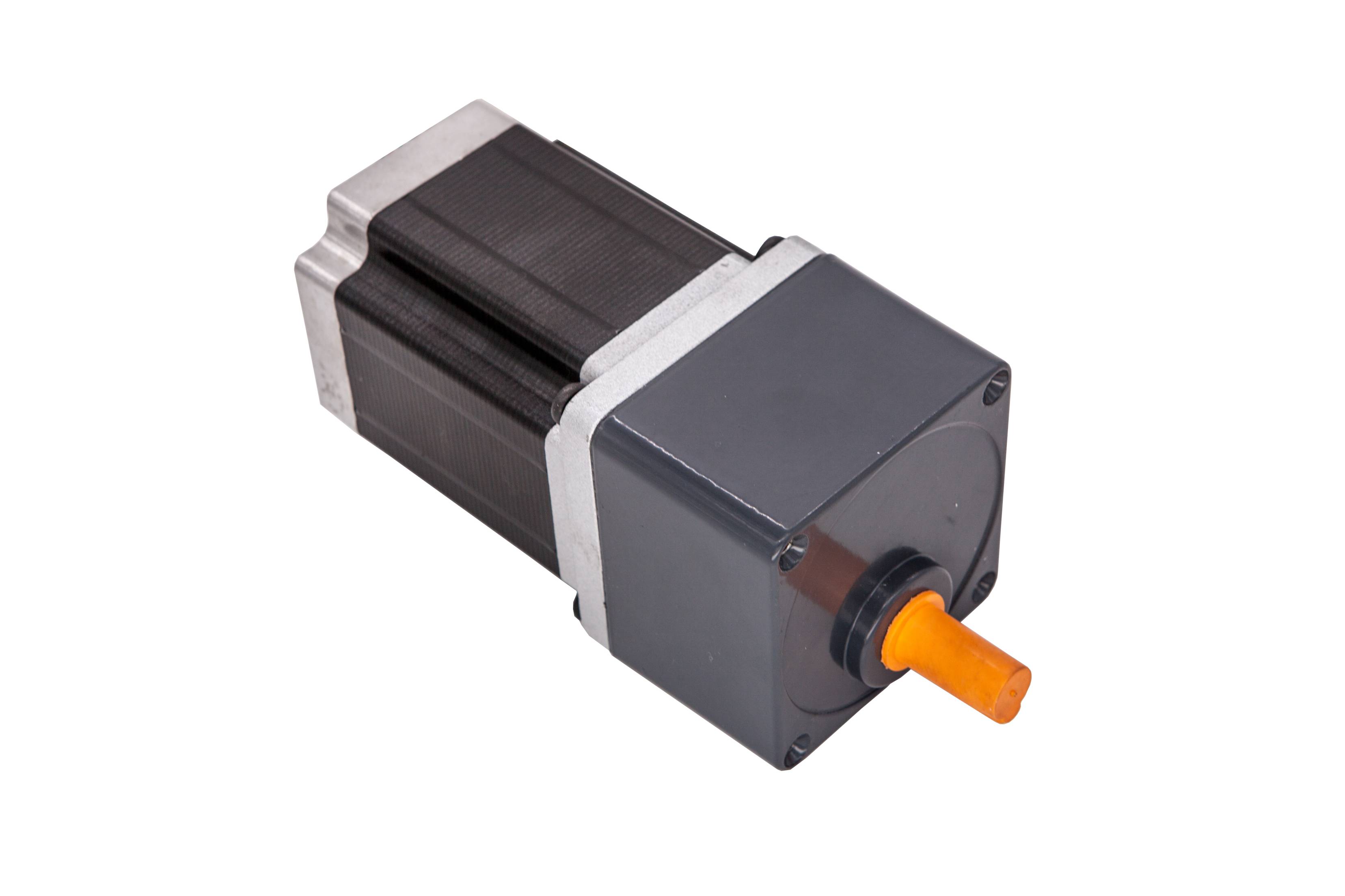

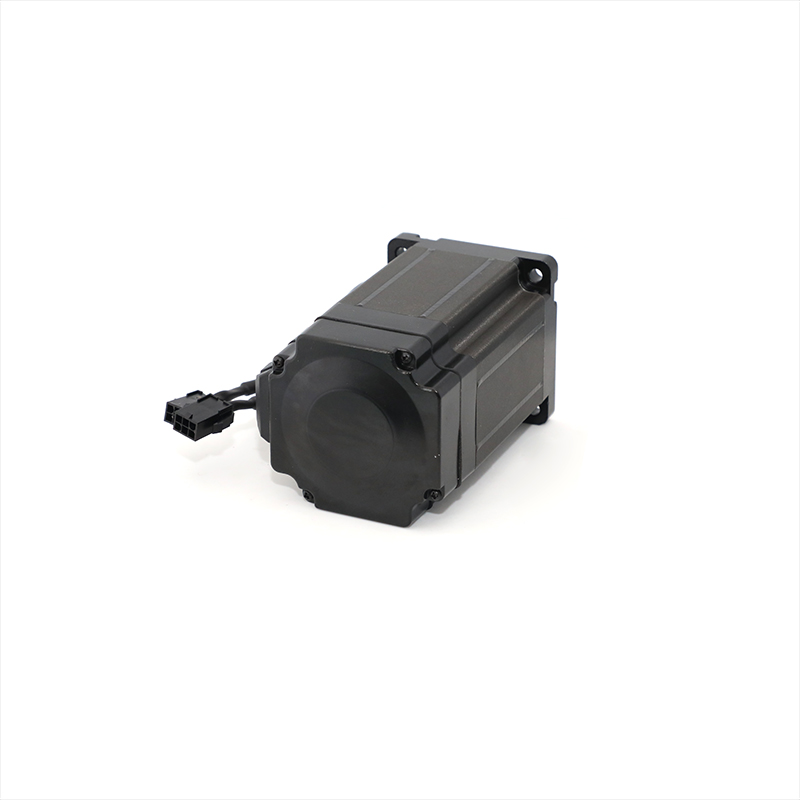

NEMA 34 IP65 Hybrid Planetary Geared Stepper Motor with Multiple Gear Ratios for Industrial Applications

Product Information

NEMA 34 Planetary Geared Stepper Motor Specifications
Specifications	1st Stage	2nd Stage
Gear Ratio	4; 5; 7; 9; 10	16; 20; 25; 28; 35; 36; 40; 45; 49; 50; 63; 70; 81; 90; 100
Length (mm)	73	78
Rated Load (N.m)	50	80
Max Load (N.m)	100	160
Efficiency (%)	96	94
Backlash (arc min)	≤15	≤25
Weight (kg)	2	2.5
Rated Input Speed (RPM)	3000	3000
Max Input Speed (RPM)	5000	5000
Protection Class (IP)	65	65
Lubrication	Grease	Grease
Noise (dB)	≤45	≤45
Lifespan (h)	20000	20000

Remark: L1 is Stepper motor Length, L2 is gearbox length.

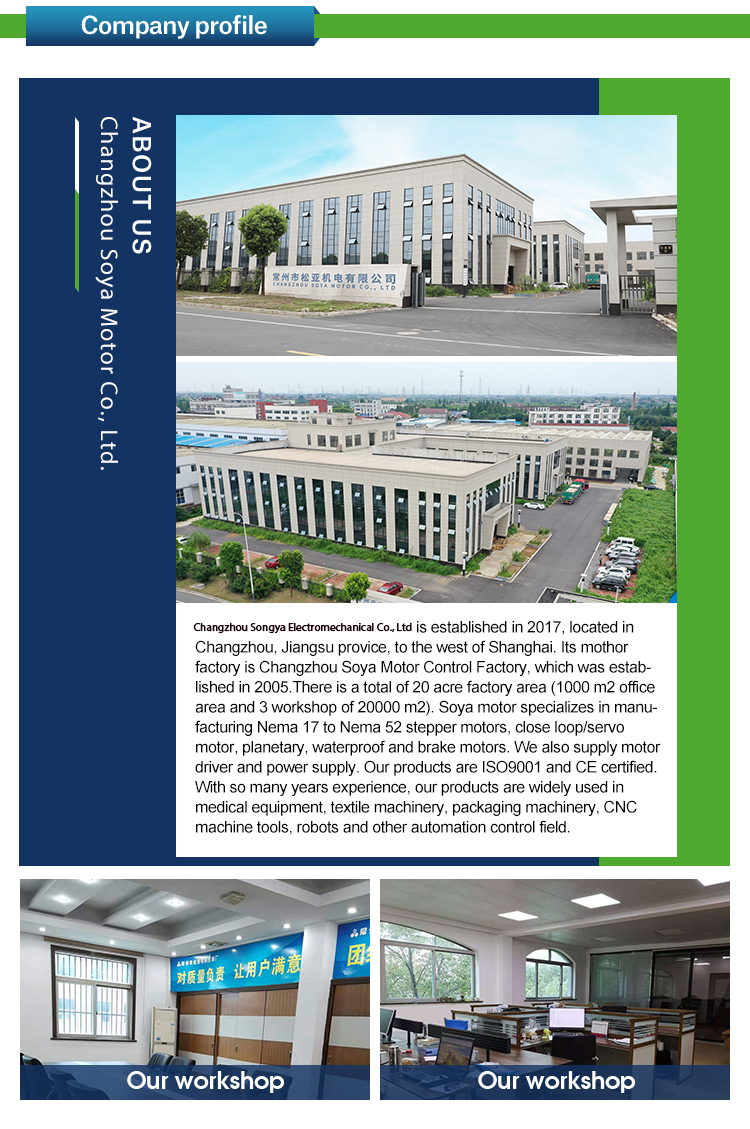

Company Profile

Our Partners

Product Packaging & Transport

Quality Assurance & Certifications

Frequently Asked Questions

Are you a factory?

Yes, we are a factory specializing in the production of stepper motors/drivers and servo motors/drivers.

How do I select the right models?

Before purchasing, please contact us to confirm the model number and detailed specifications to ensure compatibility with your requirements.

How do you ship the goods?

We ship via sea and air. We also accept shipping through customer-appointed forwarders.

Can I request a sample for testing?

Yes, samples can be offered for testing purposes (sample charges apply).

Can we apply to be an agent or distributor?

Yes, we welcome partnerships and will provide the necessary support for our agents and distributors.

Do you offer OEM or ODM services?

Yes, we have a dedicated R&D department and fully accept OEM and ODM service requests.
