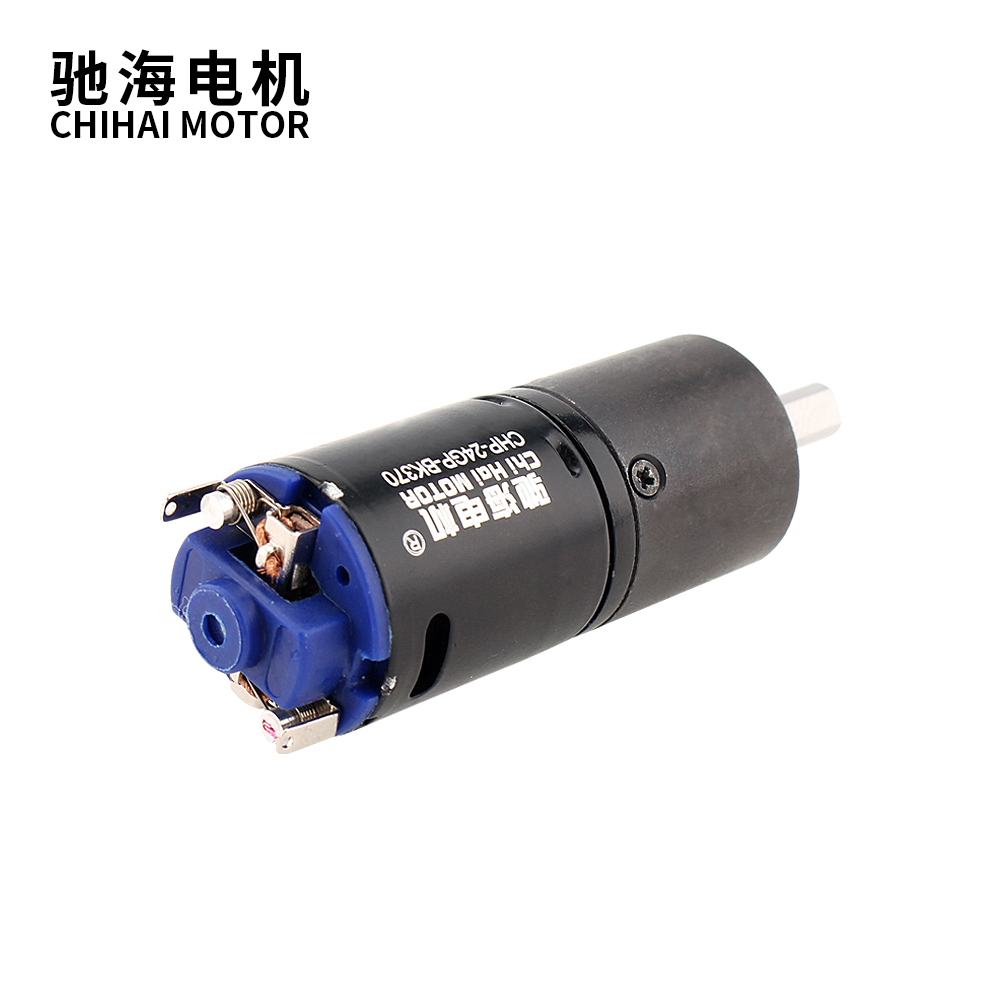

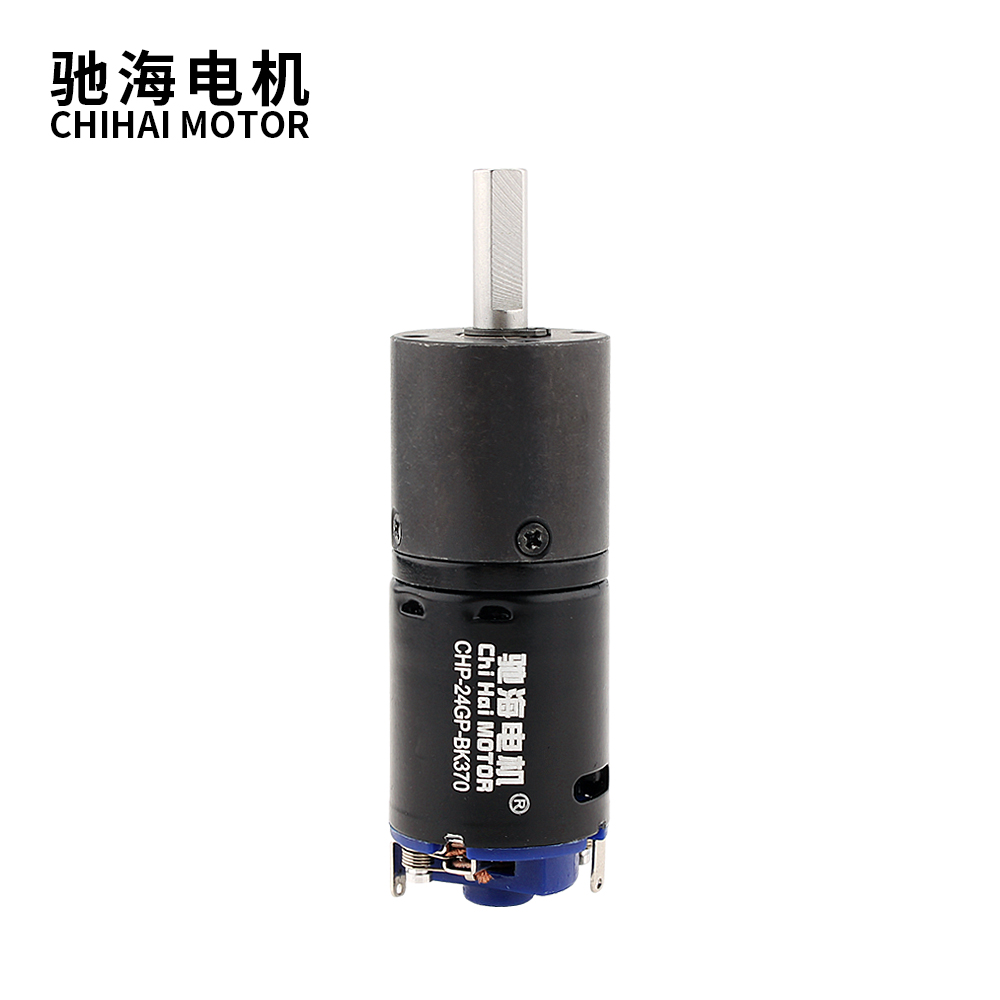

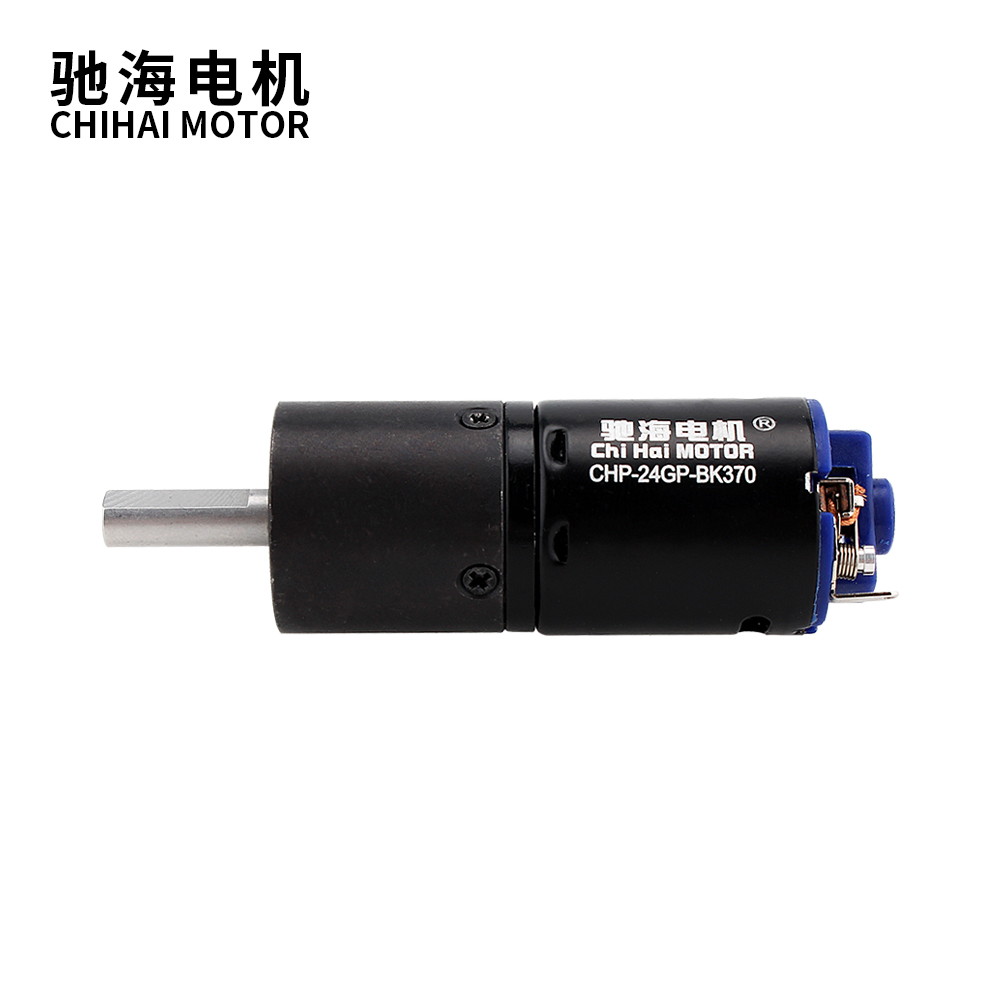

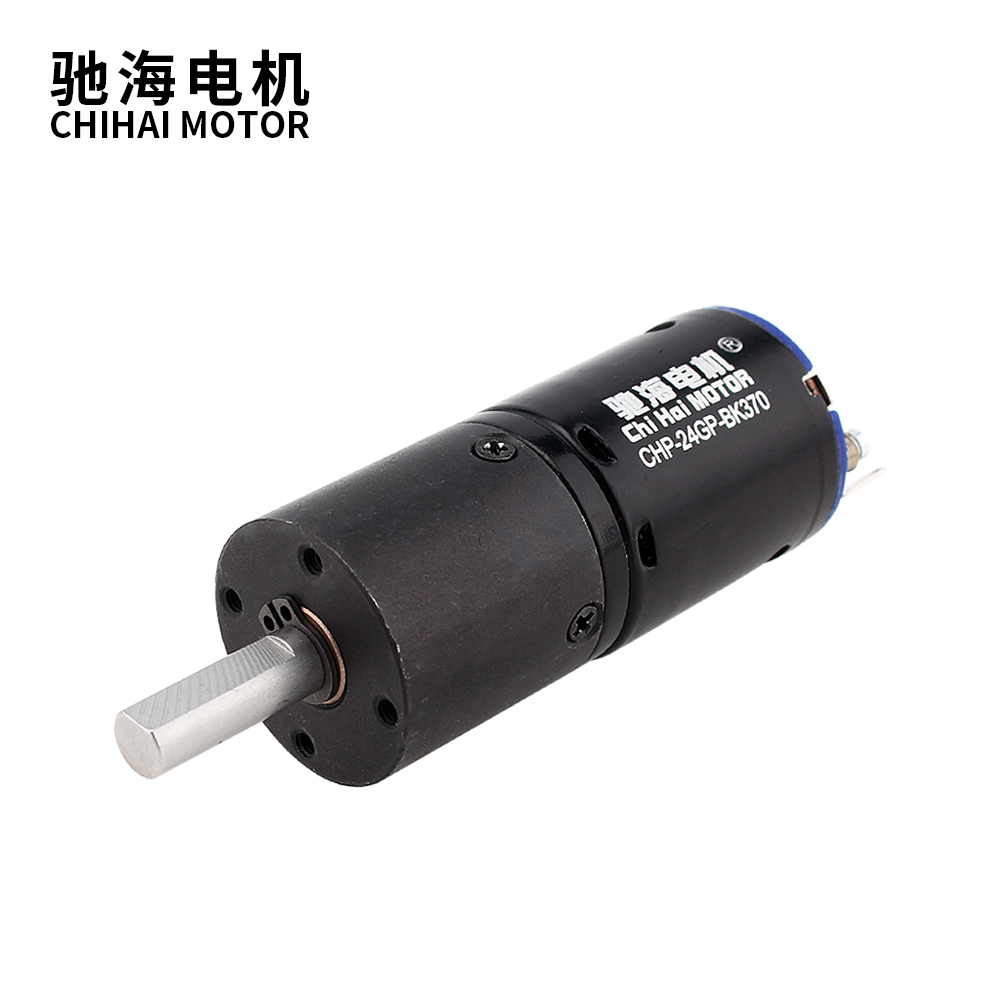

ChiHai Motor CHP-24GP-370 24 mm DC12V 6V DC Gear 370BK High Speed High Torque Planetary Motor for DIY
ChiHai Motor CHP-24GP-370 24 mm DC12V 6V DC Gear 370BK High Speed High Torque Planetary Motor for DIY
ChiHai Motor CHP-24GP-370 24 mm DC12V 6V DC Gear 370BK High Speed High Torque Planetary Motor for DIY
ChiHai Motor CHP-24GP-370 24 mm DC12V 6V DC Gear 370BK High Speed High Torque Planetary Motor for DIY
ChiHai Motor CHP-24GP-370 24 mm DC12V 6V DC Gear 370BK High Speed High Torque Planetary Motor for DIY
1 / 5
ChiHai Motor CHP-24GP-370 24 mm DC12V 6V DC Gear 370BK High Speed High Torque Planetary Motor for DIY
ChiHai Motor CHP-24GP-370 24 mm DC12V 6V DC Gear 370BK High Speed High Torque Planetary Motor for DIY
ChiHai Motor CHP-24GP-370 24 mm DC12V 6V DC Gear 370BK High Speed High Torque Planetary Motor for DIY
ChiHai Motor CHP-24GP-370 24 mm DC12V 6V DC Gear 370BK High Speed High Torque Planetary Motor for DIY
ChiHai Motor CHP-24GP-370 24 mm DC12V 6V DC Gear 370BK High Speed High Torque Planetary Motor for DIY

ChiHai Motor CHP-24GP-370 24 mm DC12V 6V DC Gear 370BK High Speed High Torque Planetary Motor for DIY

Send Inquiry

Product Description

📋 Product Description

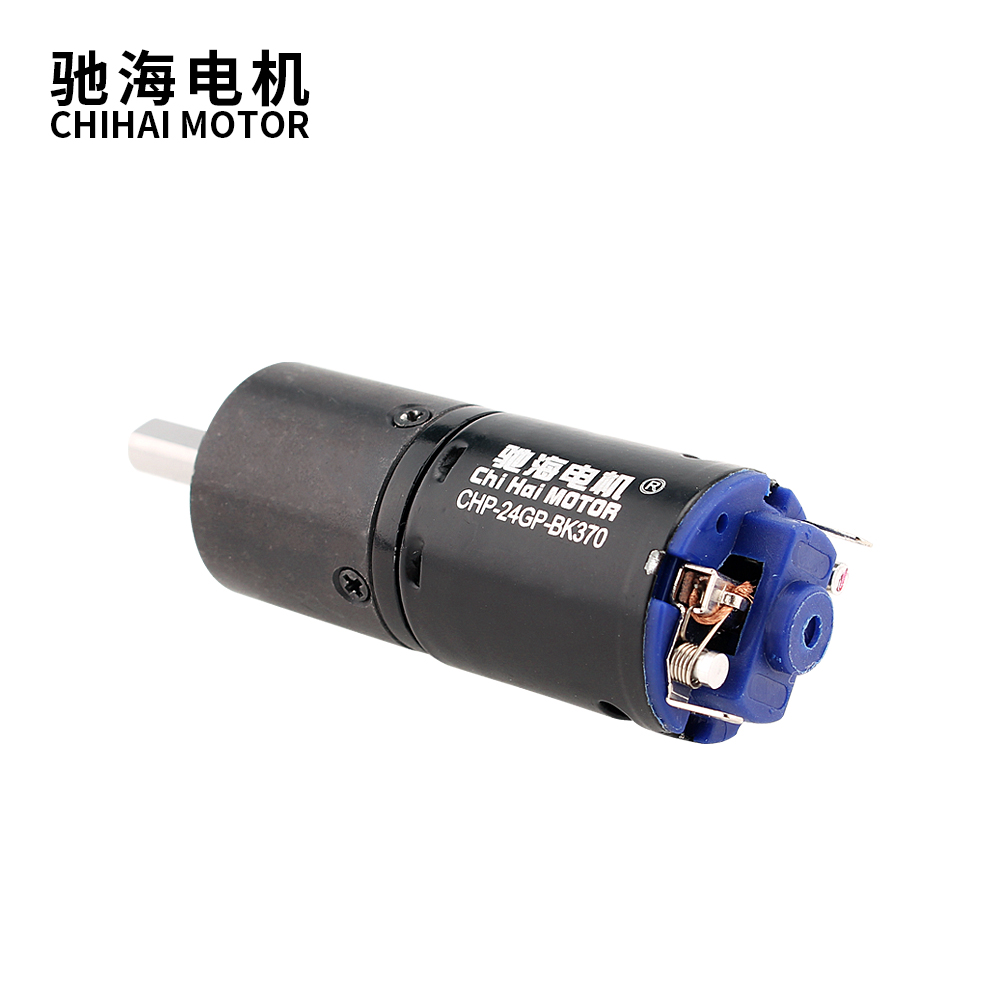

Product Type: CHP-24GP-BK370 permanent magnet dc planetary gear motor
Shaft Length: 18mm
Axle Diameter: 6 mm
Voltage: DC 12-24V (customizable with encoder)
Weight: About 117 grams
Application Case: Intelligent robot, electric curtain, intelligent balance car, intelligent manipulator, etc.

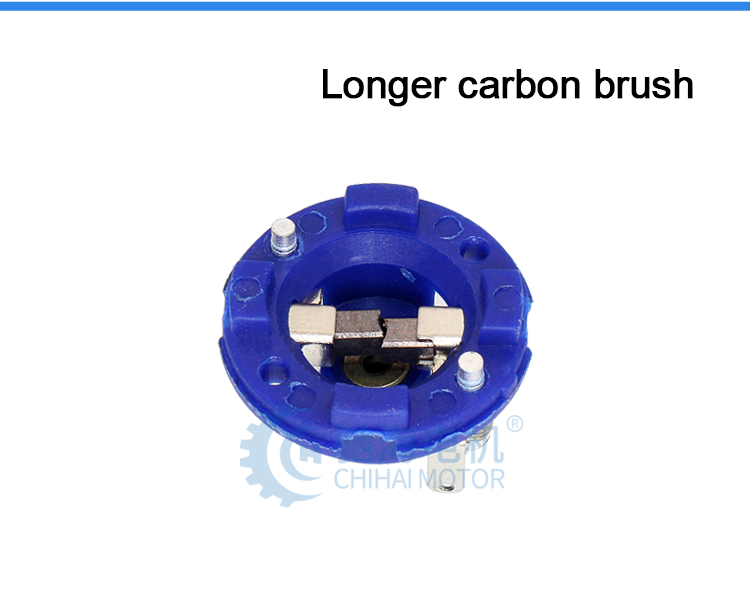

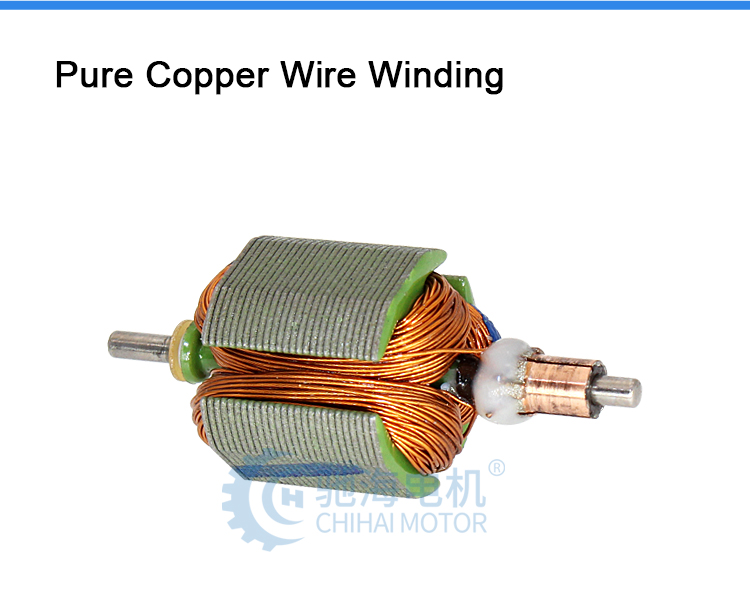

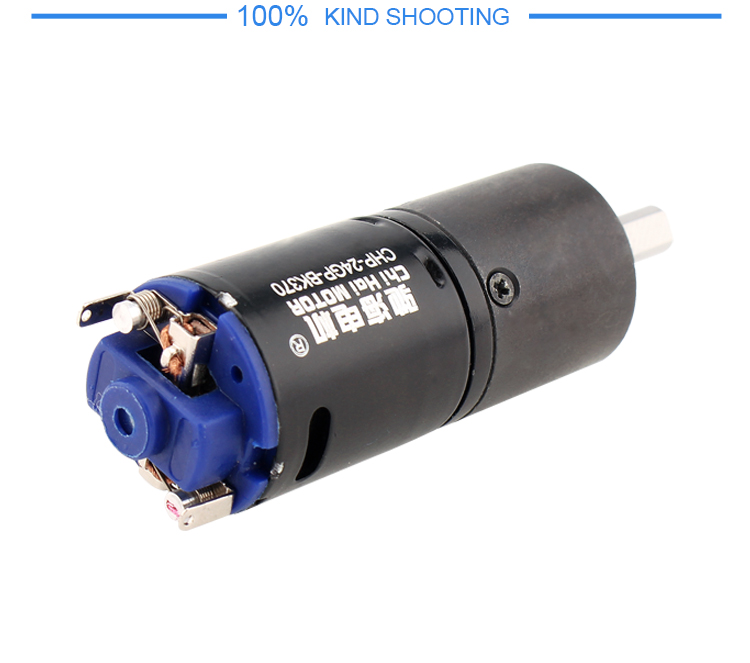

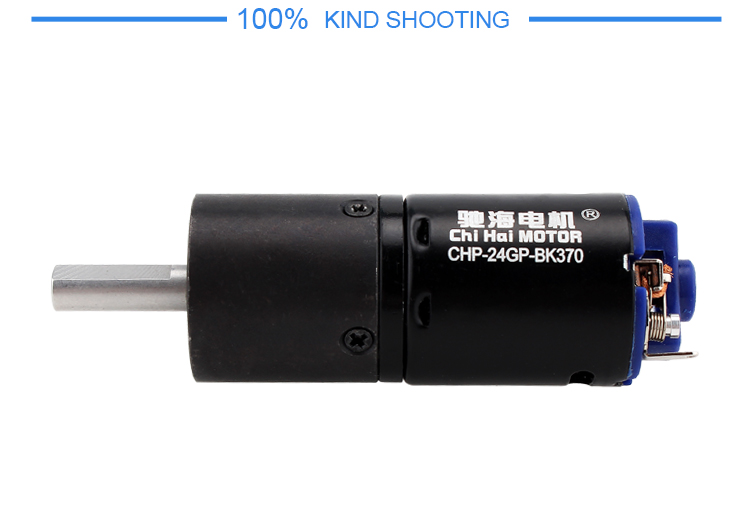

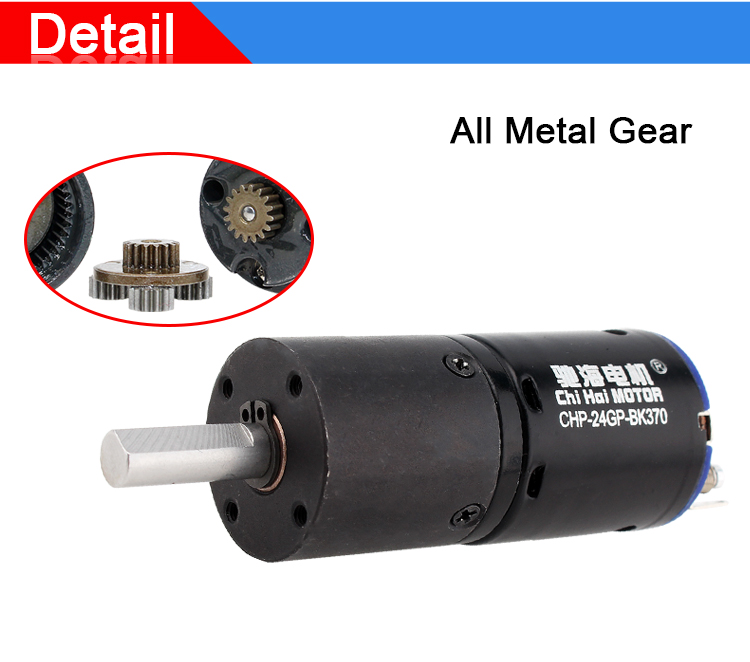

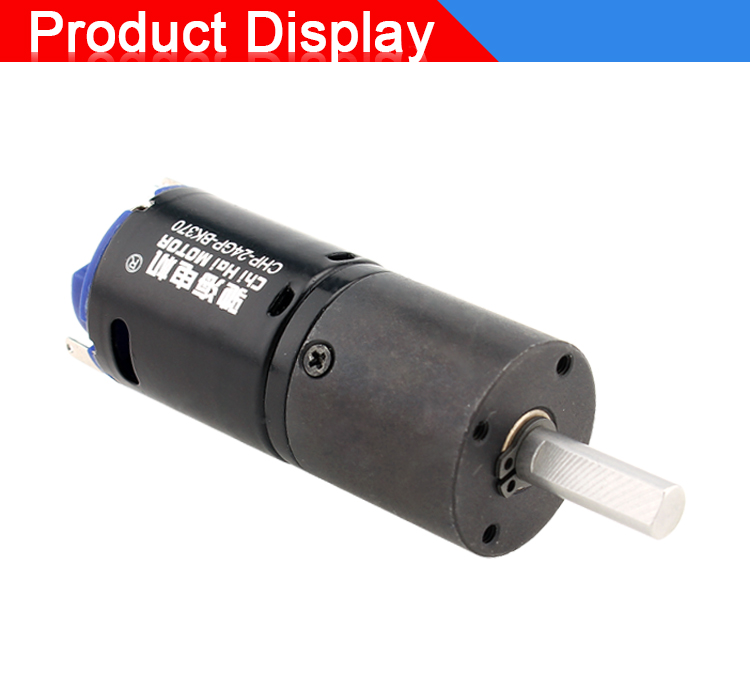

🔍 Detailed Images

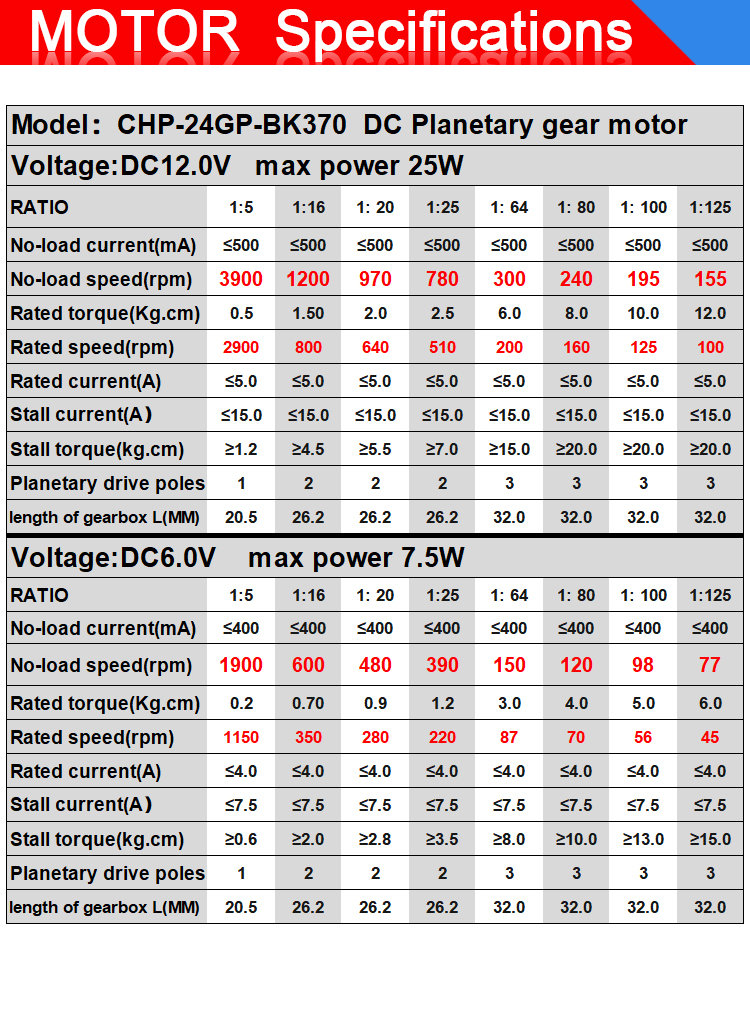

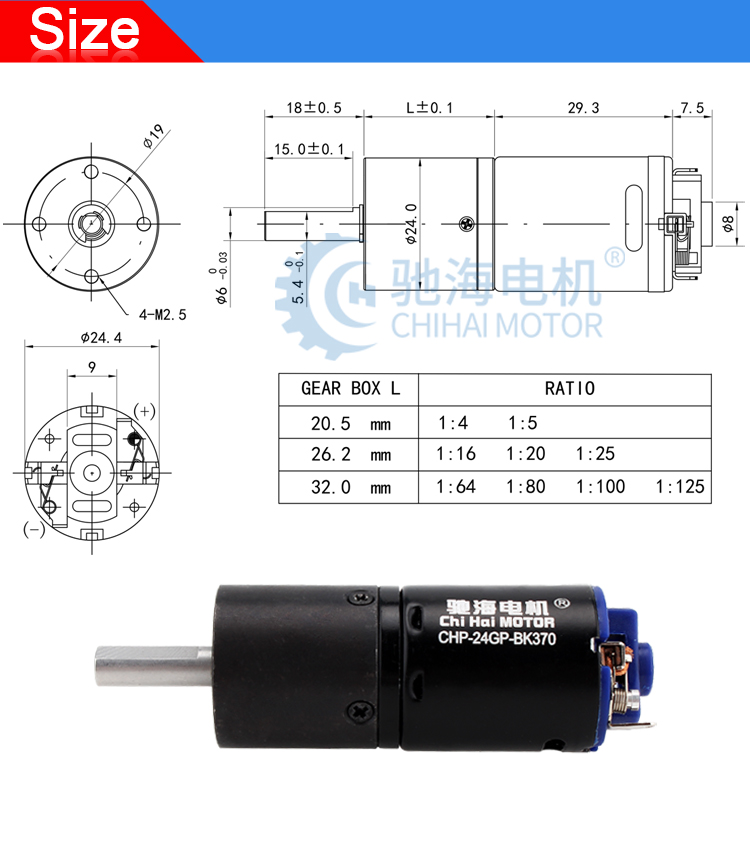

📊 Product Parameters
🚀 Application

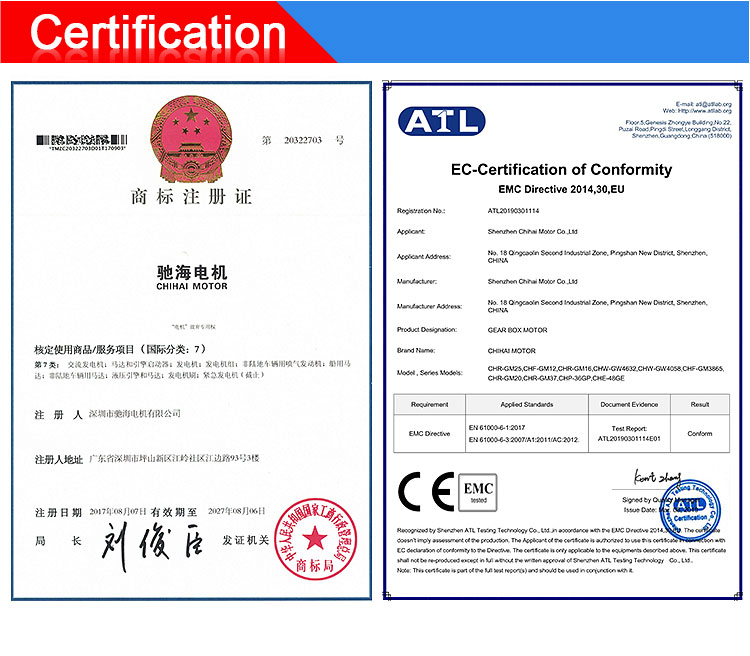

📜 Certifications
📦 Packing & Delivery
PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order, detail delivery date should be decided according to production season and order quantity.

ATTENTION:

If special customs clearance documents are required, please contact us in advance for confirmation.

Frequently Asked Questions
Q1: What kind of motors can you provide?
We mainly provide micro motors and a series of DC deceleration motors, including straight tooth deceleration motors, planetary deceleration motors, and worm deceleration motors. Currently, we focus on motors with voltage between 1VDC and 30VDC and diameters between 8 and 51mm.
Q2: Can you send me a price list?
All our motors are customized based on specific requirements like lifetime, noise, voltage, and shaft dimensions. Price also varies by annual quantity. Please share your detailed requirements and quantity, and we will provide a specific quote.
Q3: What is the lead time for regular orders?
The standard lead time is 3-25 days. This may vary based on the specific model, production period, and order quantity.
Q4: Is it possible to develop new motors if we provide tooling costs?
Yes. Please share your detailed requirements such as performance, size, annual quantity, and target price. We will evaluate the feasibility and arrange development accordingly.
Q5: Could you send me free samples?
Yes, we can provide samples, and we can also return the sample fee when you place a formal order.
Q6: Do you offer customization for motor shafts?
Yes, the shaft length, diameter, and other specifications can be customized to meet your specific application needs.
