We have strong technical strength, mature production technology, complete inspection equipment, and excellent quality assurance system and service system. It can provide personalized customization services and industry solutions according to different customer needs, and accept ODM and OEM.

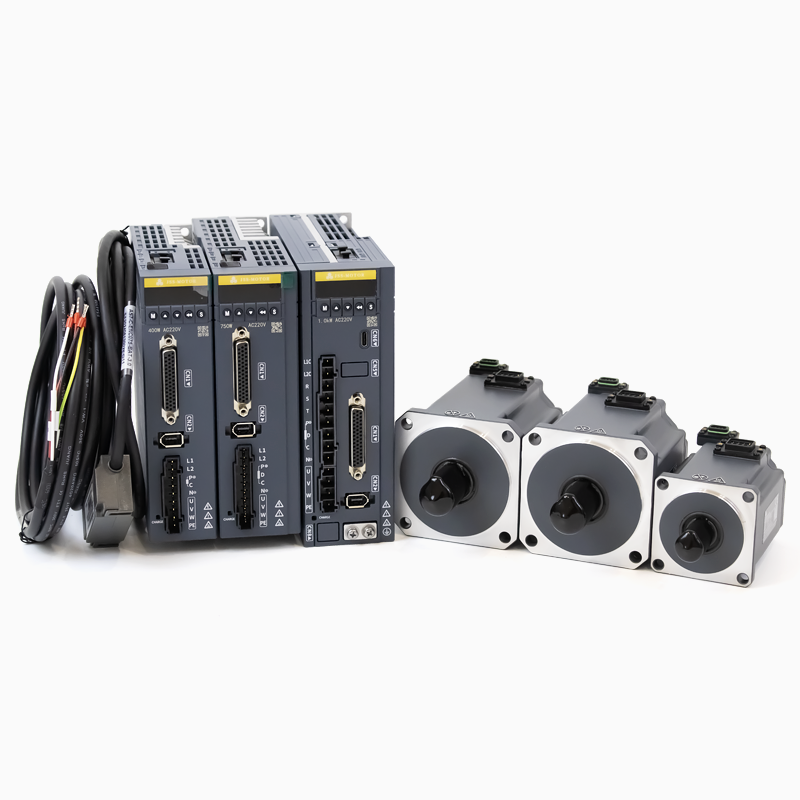

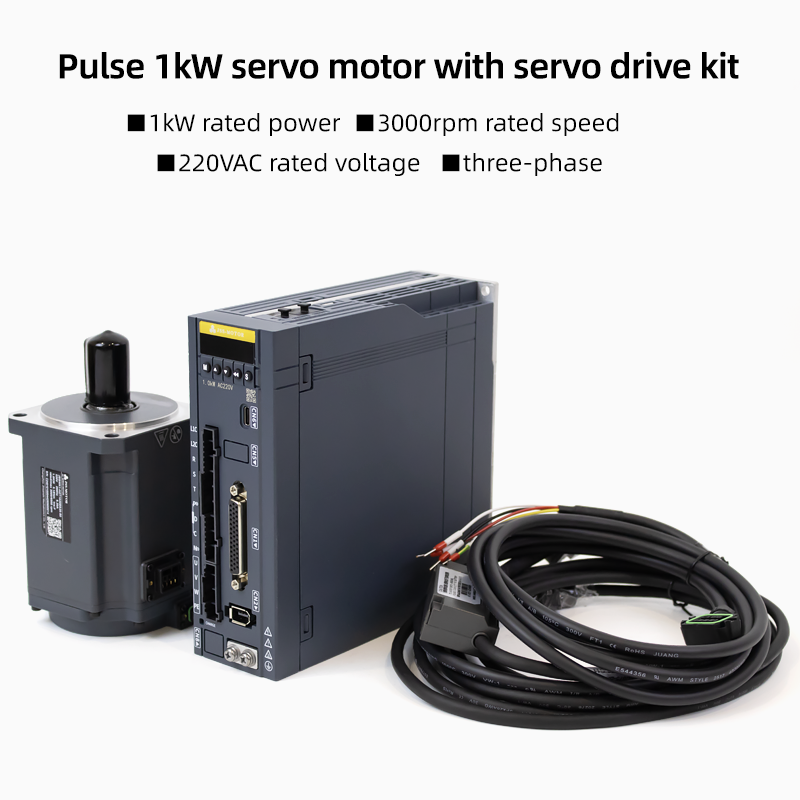

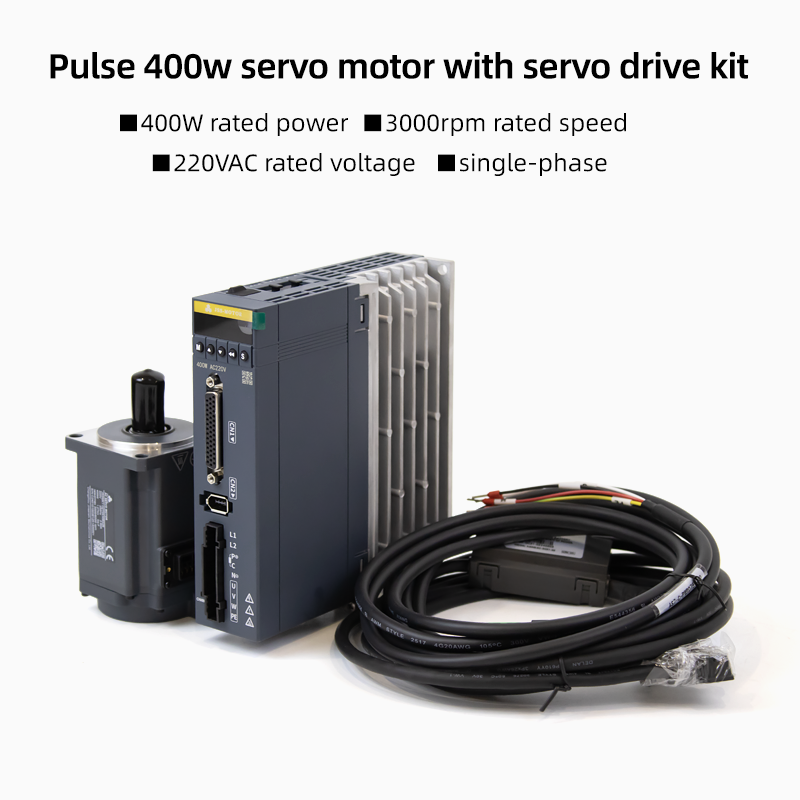

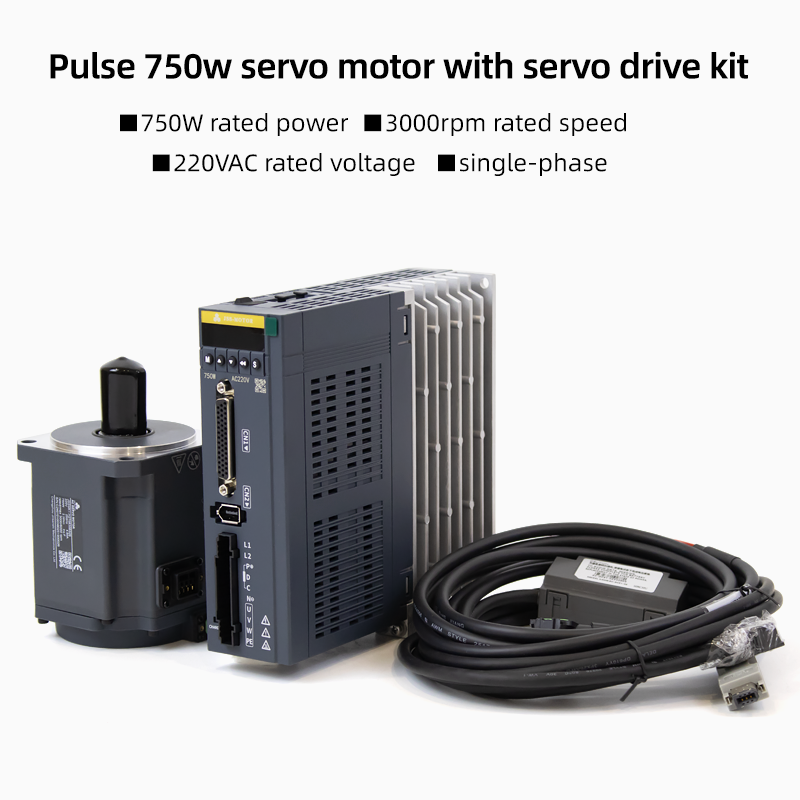

Our IP67 Pulse Servo Motor with Drive Kit is the ideal solution for precision motion control in harsh environments.
Multiple power options: 100W, 200W, 400W, 750W, 850W, 1KW, 1.3KW, 1.5KW, 1.8KW, 2KW, 2.5KW, 2.9KW, 3KW, 4KW, 5KW, 5.5KW, 7.5KW, and custom configurations.
Control Methods: Pulse, EtherCAT, CANopen, PROFINET.
High-Precision Encoders: 17-bit Magnetic Absolute Encoder or 23-bit Optical Absolute Encoder.
The system is dedicated to realizing optimized configurations with higher productivity and production efficiency and lower production costs. Power range from 50W to 7.5 kW with pulse reference mode.

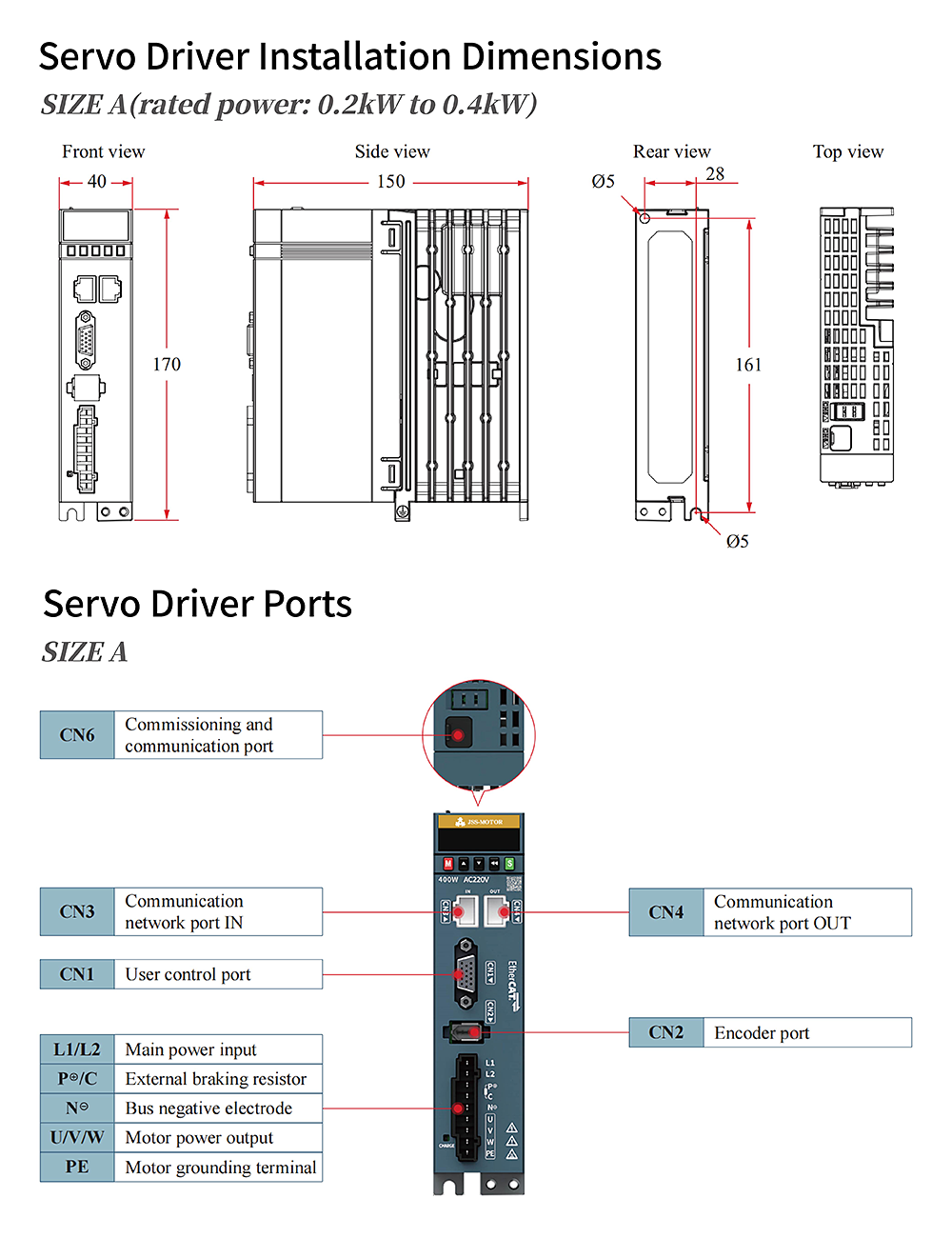

| Single-phase 220V Servo Drive Rated Data | ||
|---|---|---|
| Power | 0.4 kW | 0.75 kW |
| Continuous output current (Arms) | 2.8 | 5.5 |
| Main circuit power supply | Single-phase 200–240 VAC, 50/60 Hz | |
| Braking capability | External braking | Built-in braking |

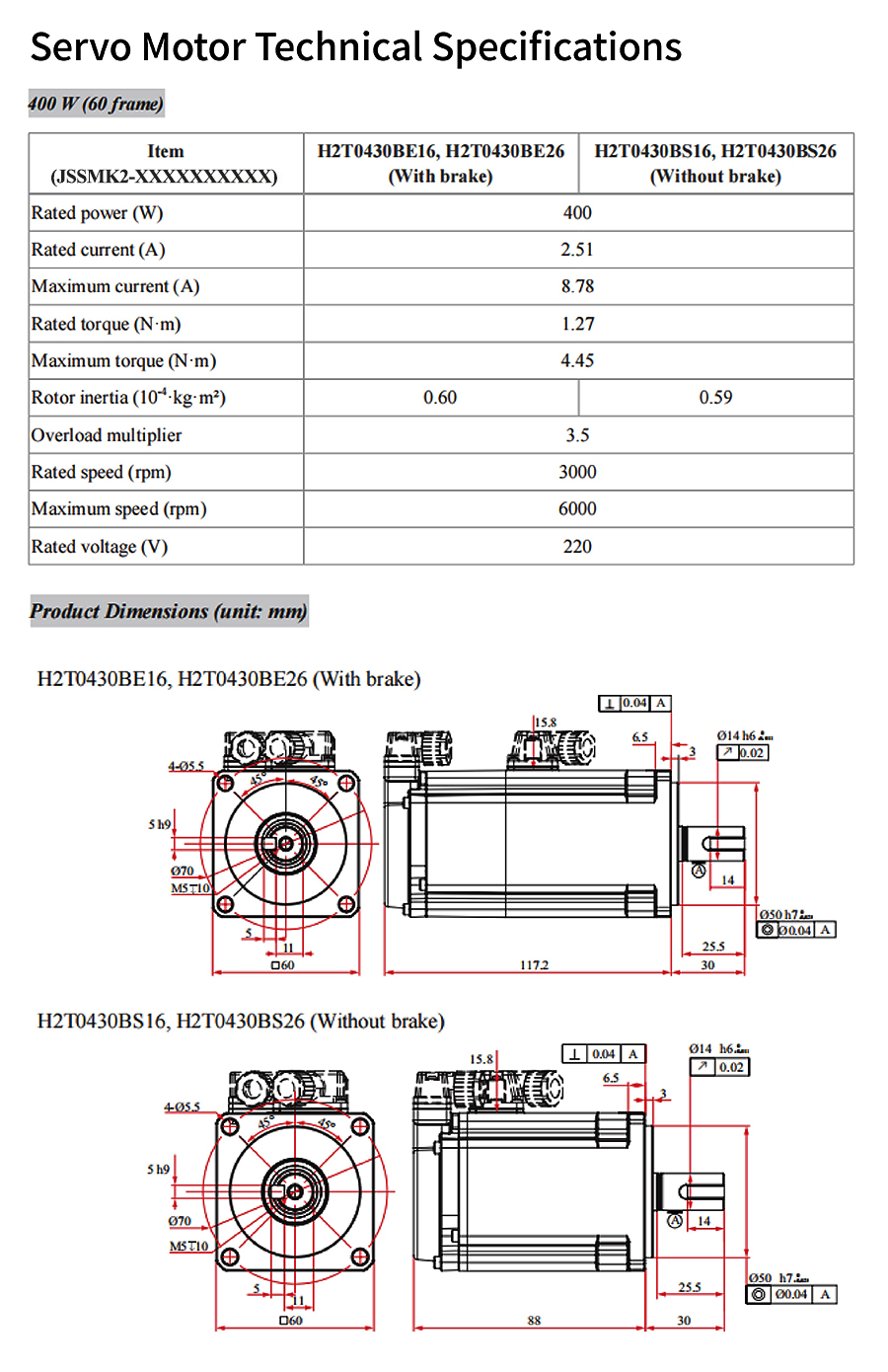

| 400 W (60 frame) Technical Specification | |
|---|---|
| Rated torque (N·m) | 1.27 |
| Rated current (A) | 2.51 |
| Rated speed (rpm) | 3000 |
| Maximum speed (rpm) | 6000 |
| Overload multiplier | 3.5 |
