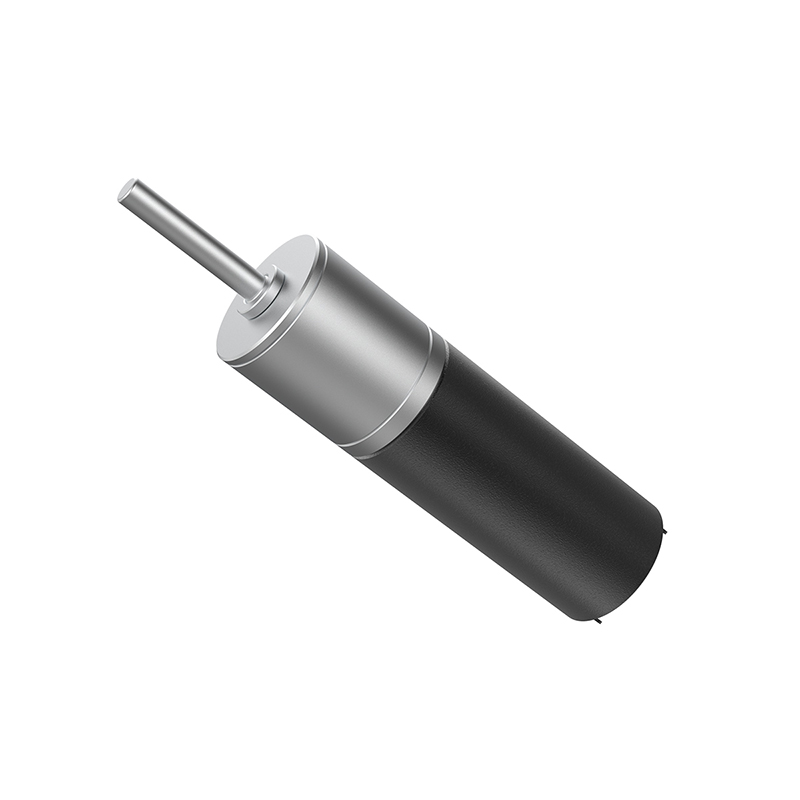

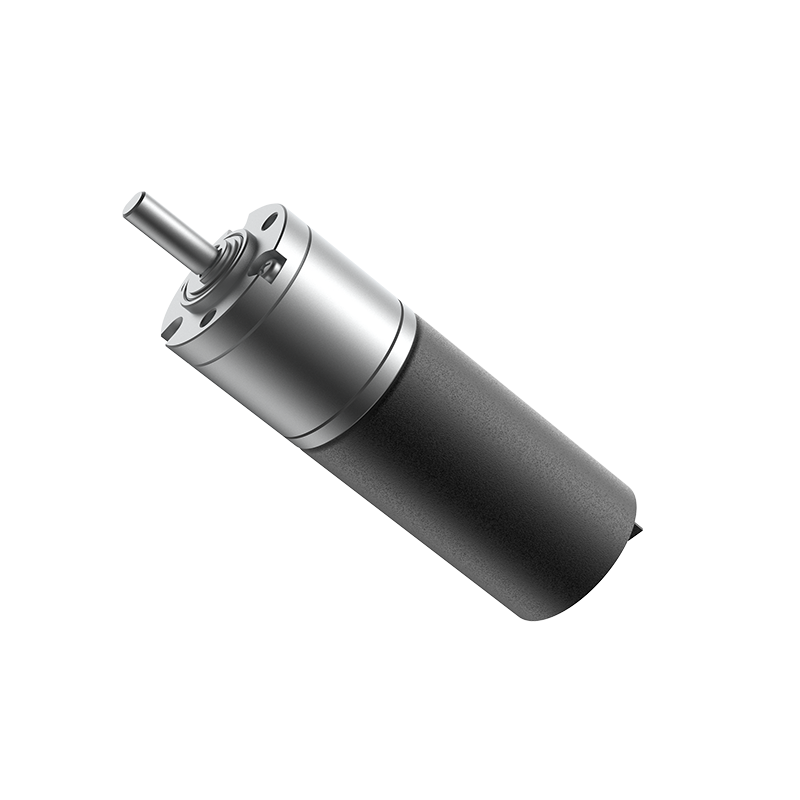

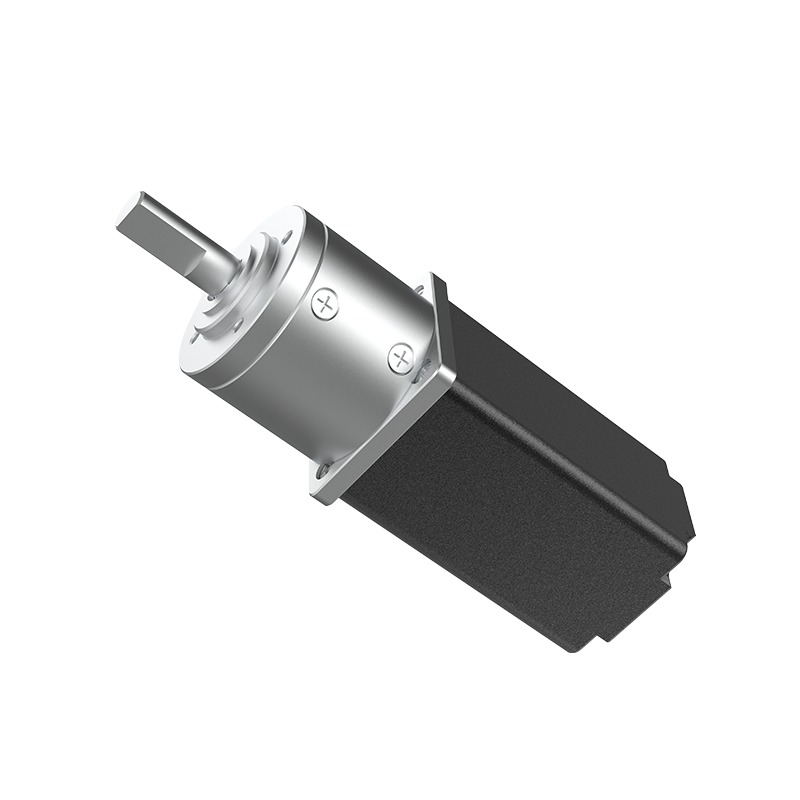

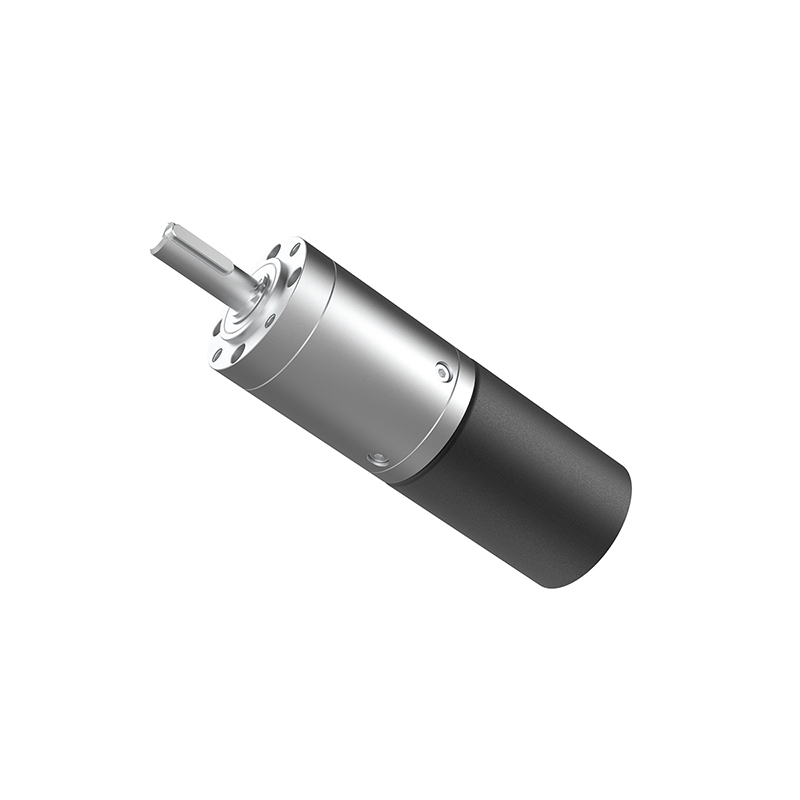

12MM Planetary Gear Motor DC 12V 24V Speed Reducer Gearbox Small Space High Torque

Send Inquiry

Product Description

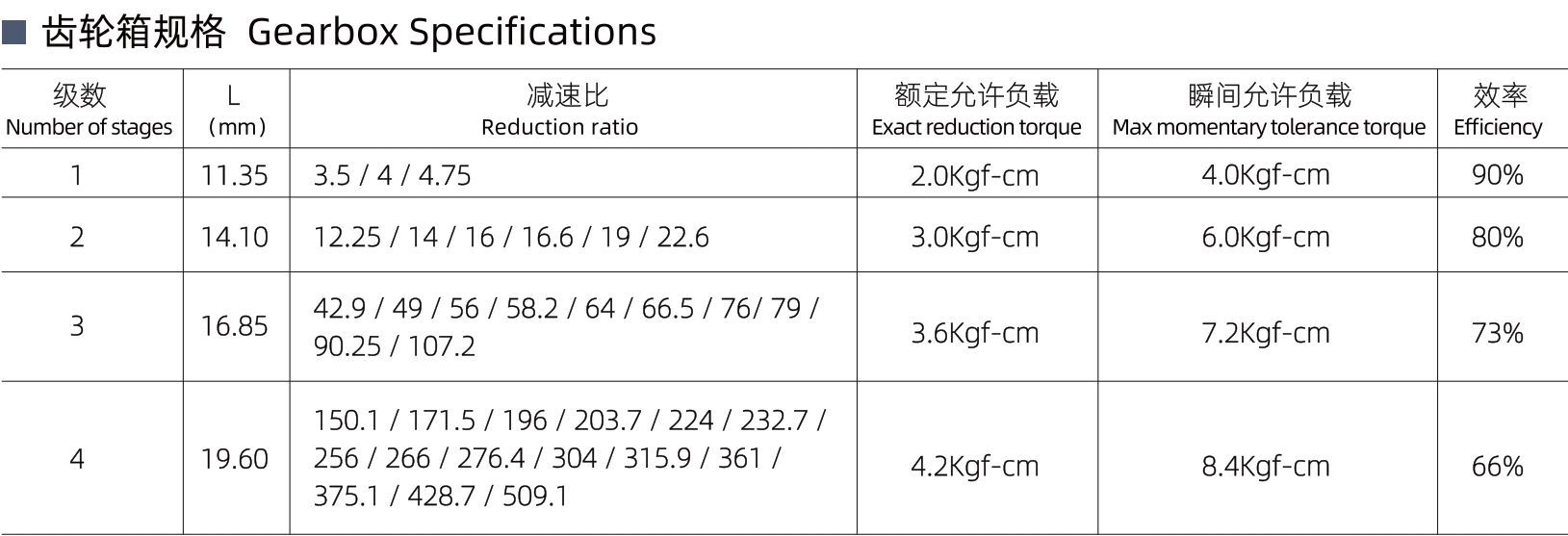

Gearbox Parameter

Welcome any customized requirement

Housing material	steel
Gear material	steel
Bearing at output	Ball bearings
Radial load (10mm from flange)	≤ 0.8 Kgf
Shaft axial load	≤ 0.25 Kgf
Radial play of shaft	≤ 0.04mm
Thrust play of shaft	≤ 0.2mm
Backlash at no-load	≤ 1.5º
Operating temperature range	-40~120℃

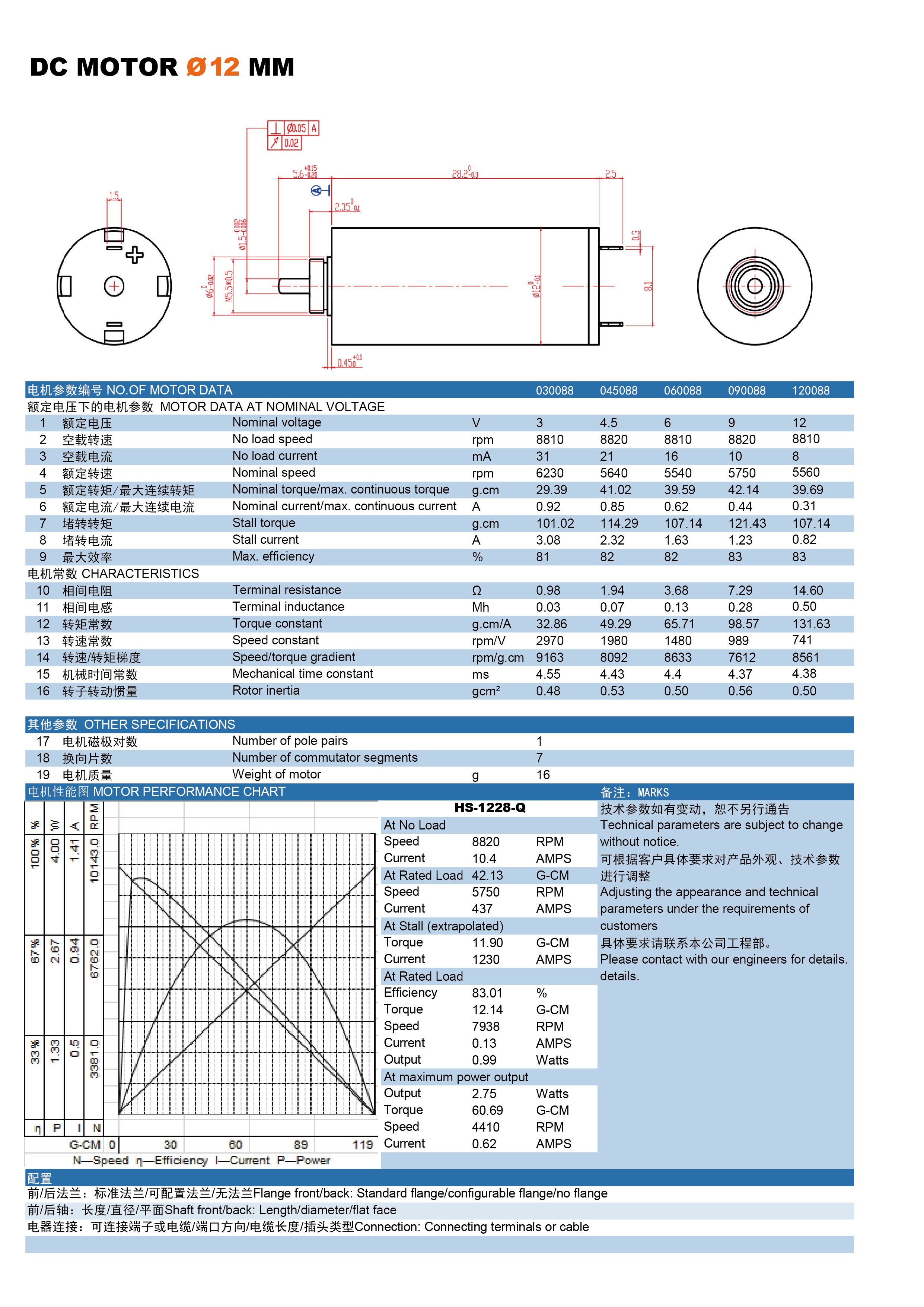

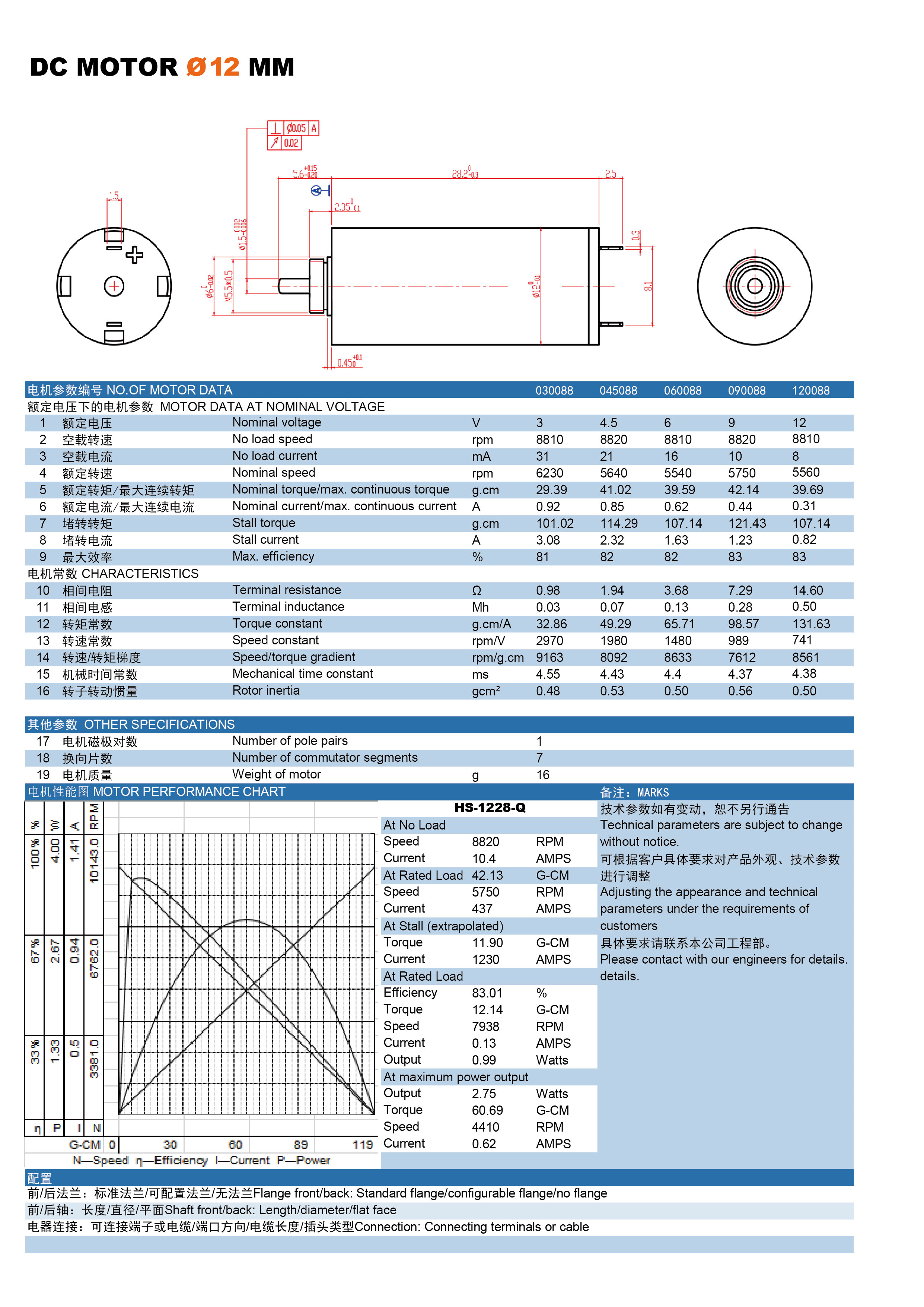

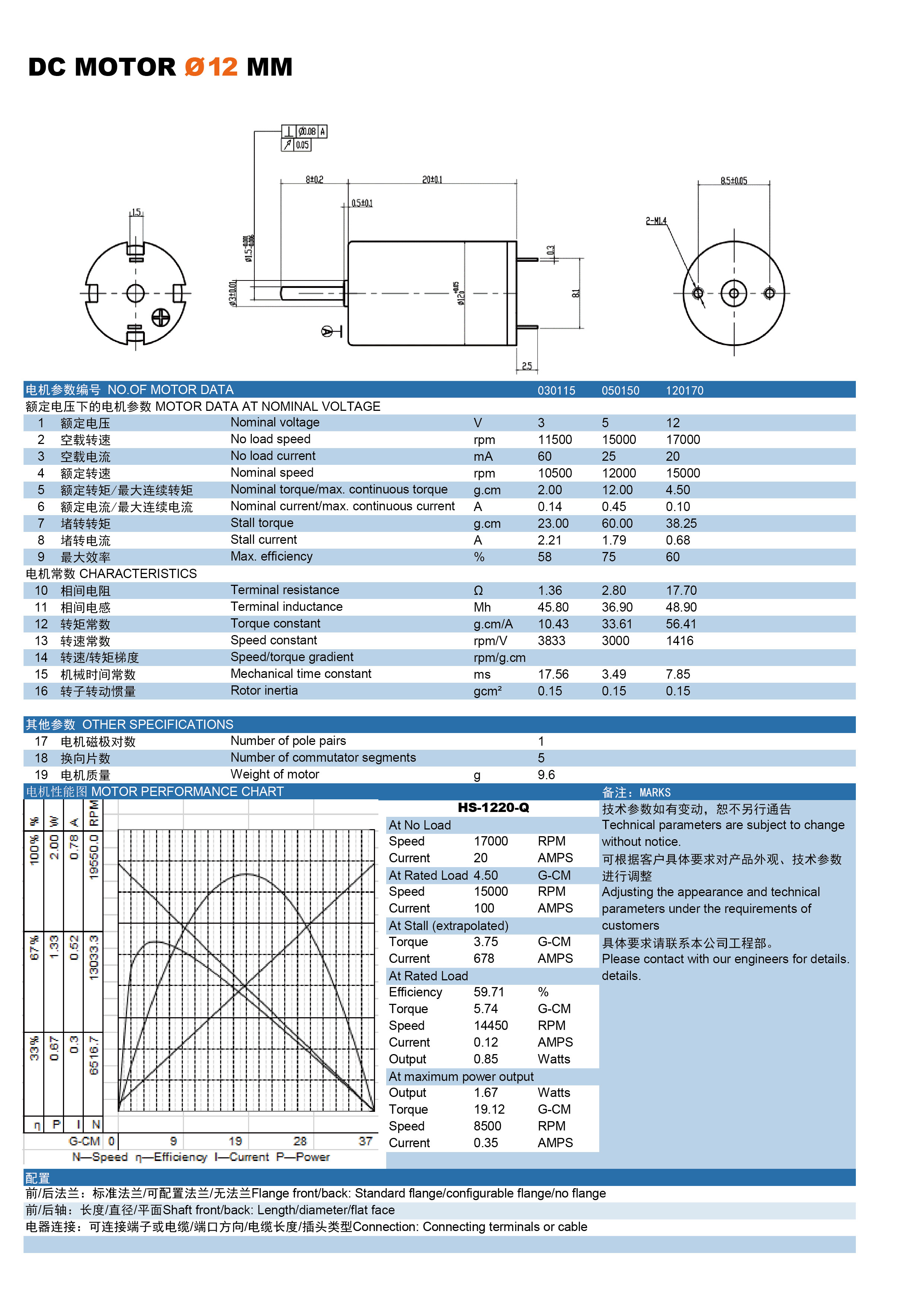

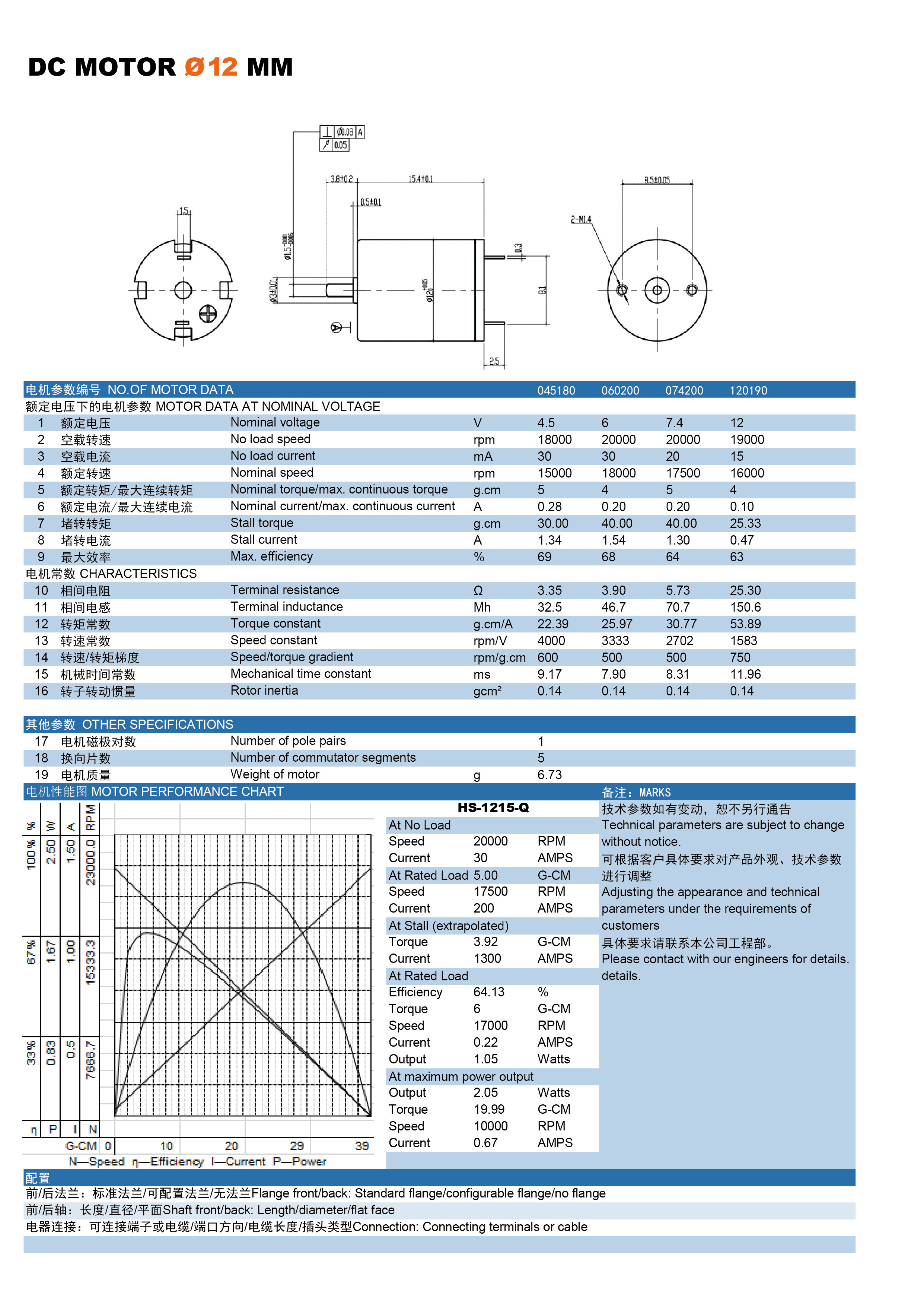

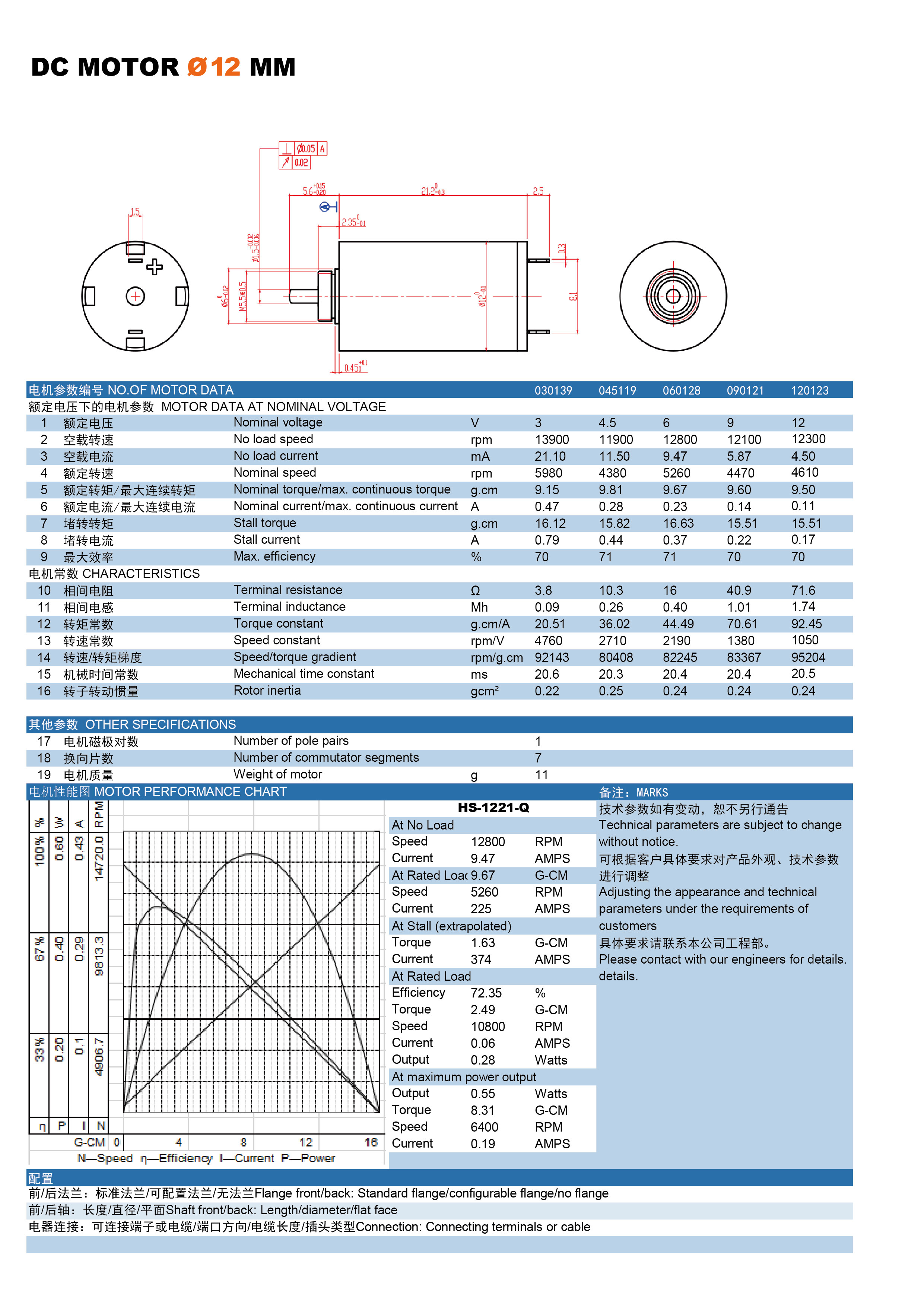

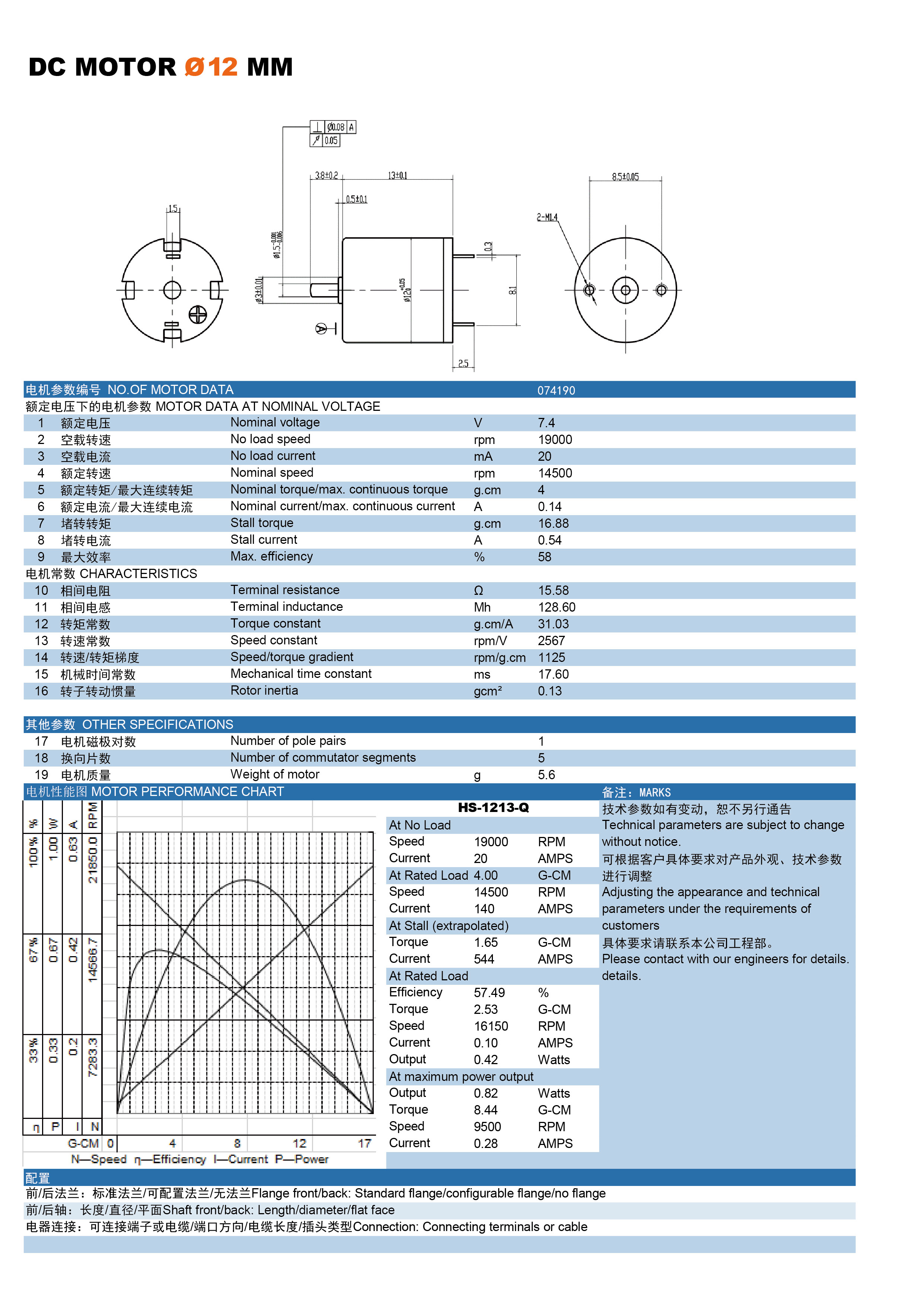

Motor Parameter Choose

Our Service

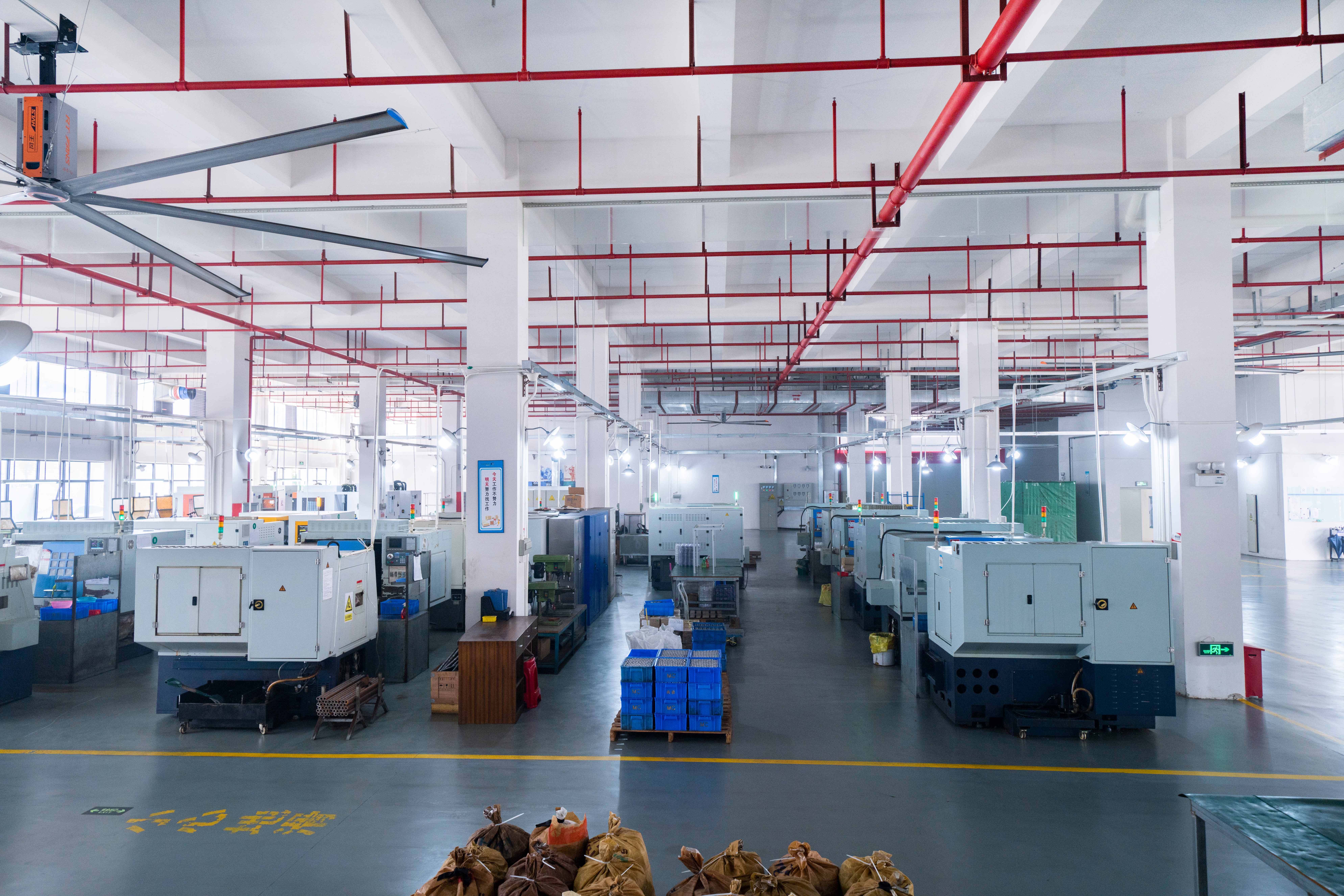

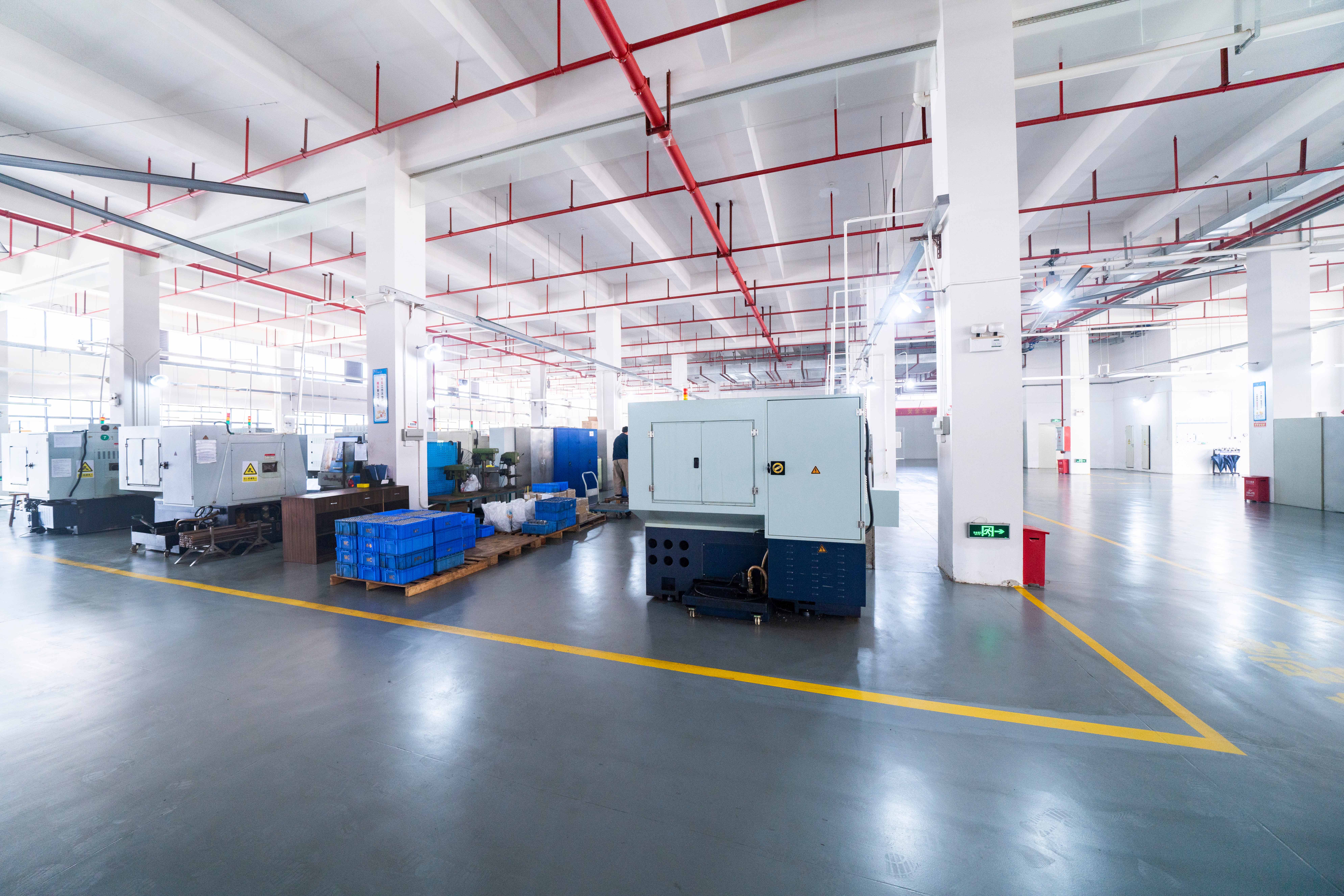

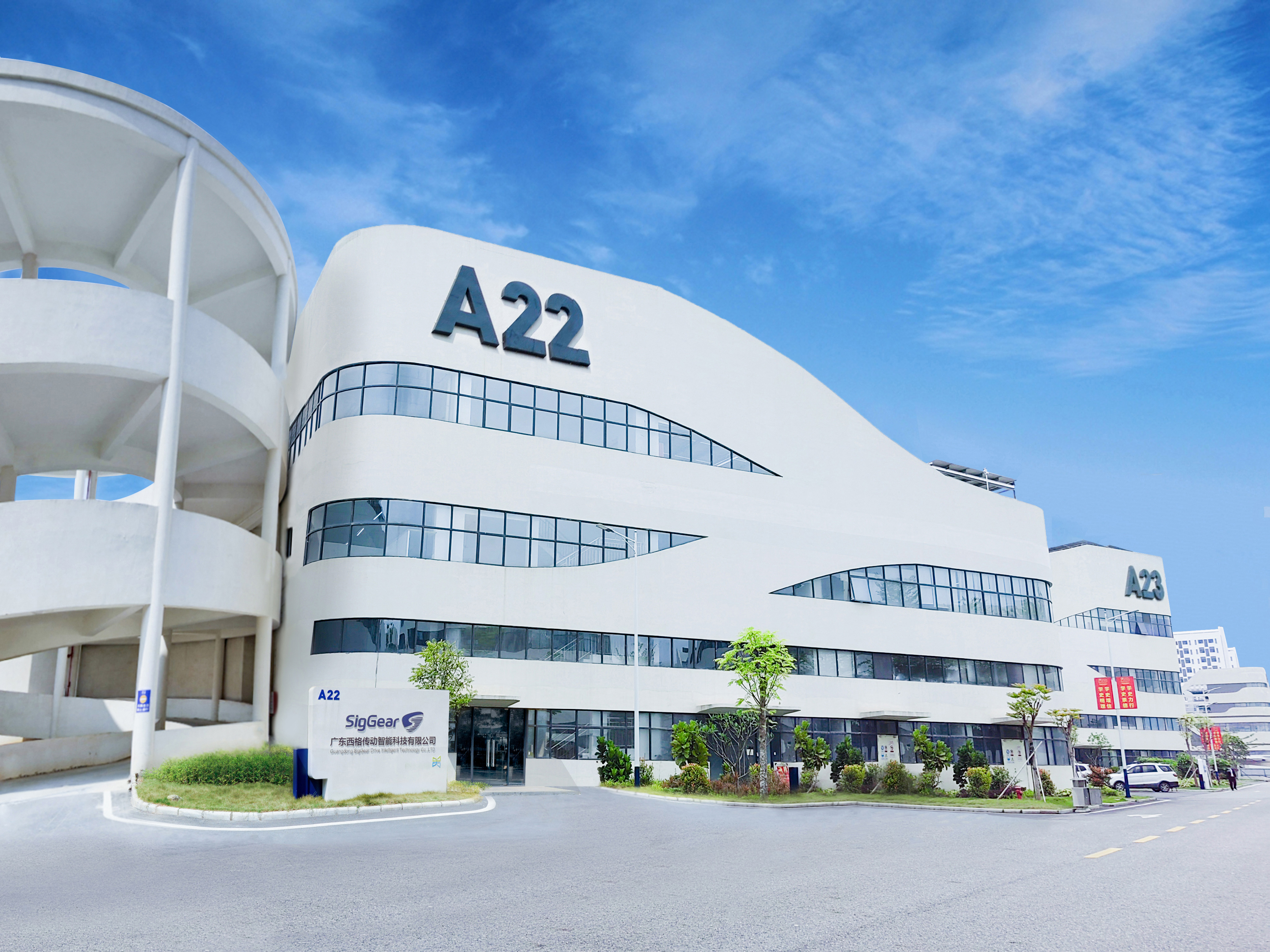

Company Profile

Exhibition

Our Customer

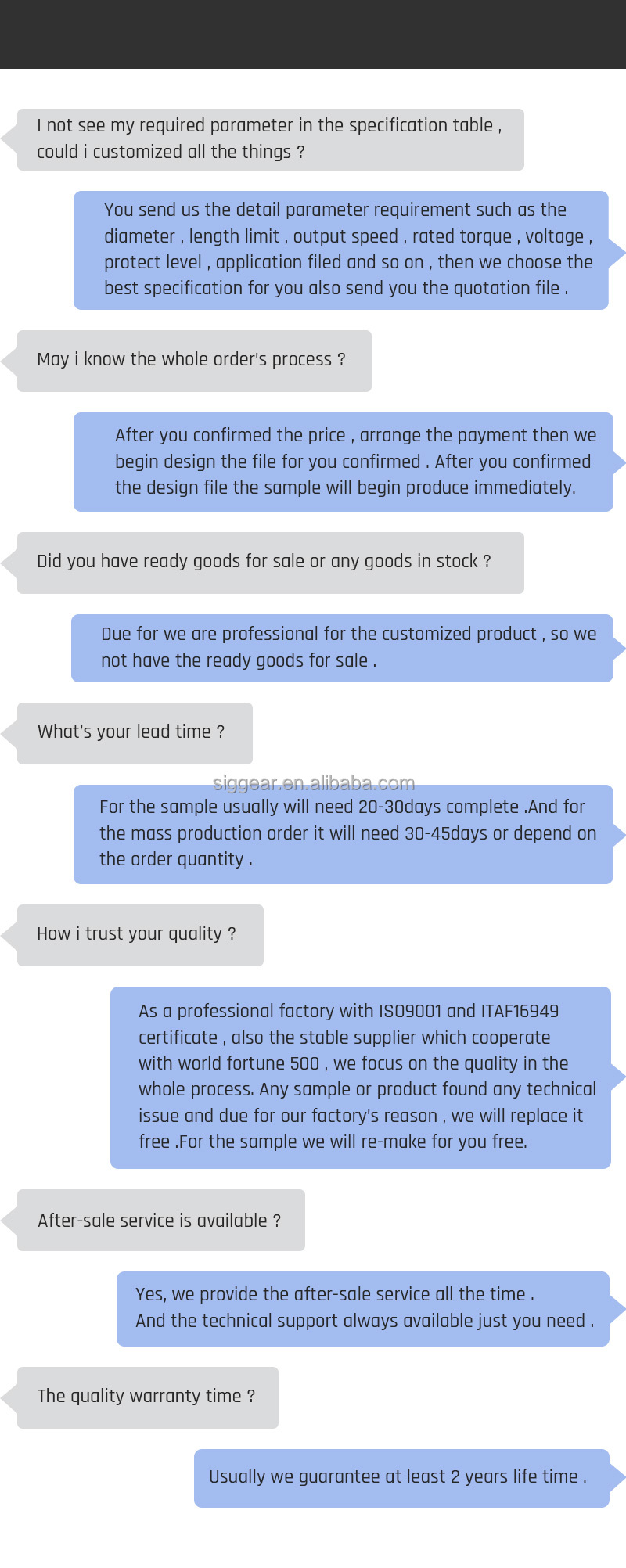

Frequently Asked Questions

Can I request customized specifications for the gearbox?

Yes, we welcome any customized requirements regarding materials, dimensions, and performance parameters to suit your specific application.

What materials are used for the housing and gears?

Both the housing and the gears are manufactured from high-grade steel to ensure durability and high-torque performance.

What is the operating temperature range for this product?

Our gearboxes are designed to operate reliably in extreme environments, with a temperature range from -40℃ to 120℃.

What type of bearings are utilized at the output stage?

We use high-precision ball bearings at the output to handle radial and axial loads efficiently while ensuring a long service life.

Is there a wide selection of motor parameters?

Absolutely. We provide a variety of motor parameter options so you can choose the ideal configuration for your project requirements.

What is the maximum backlash of the gearbox?

The gearbox is engineered for precision, maintaining a backlash of ≤ 1.5º under no-load conditions.
