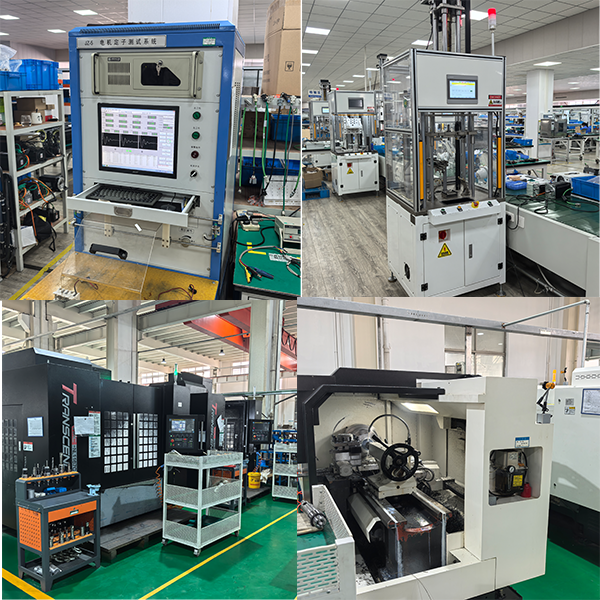

Processing capacity

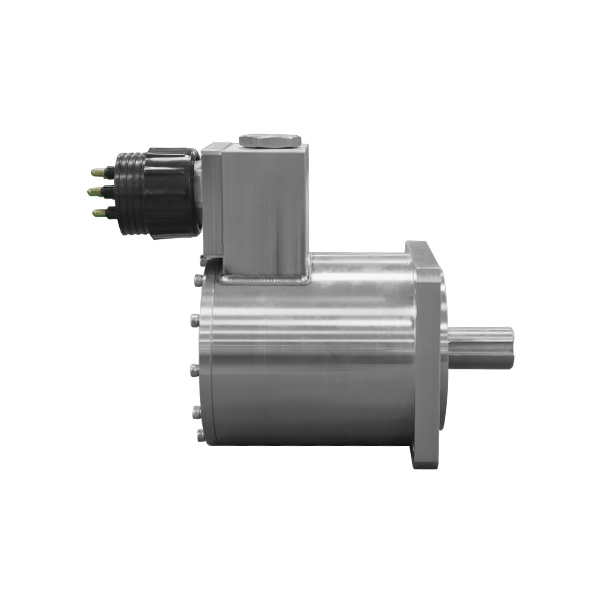

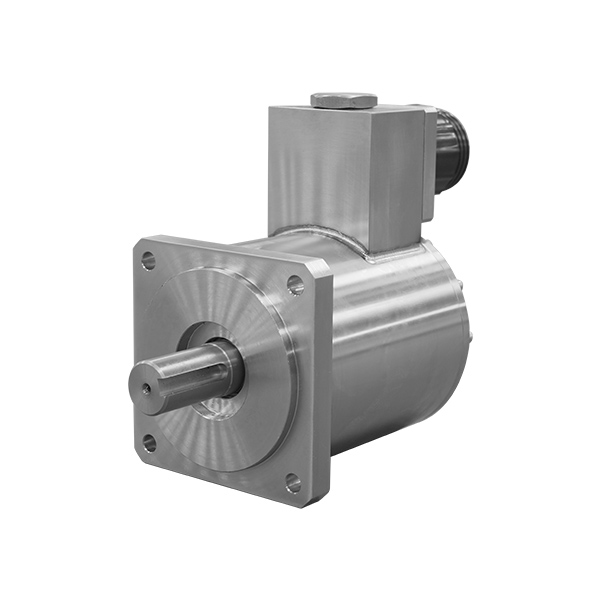

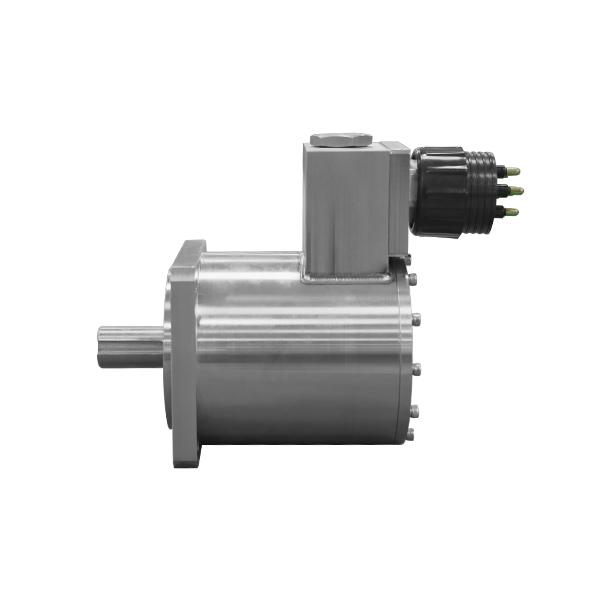

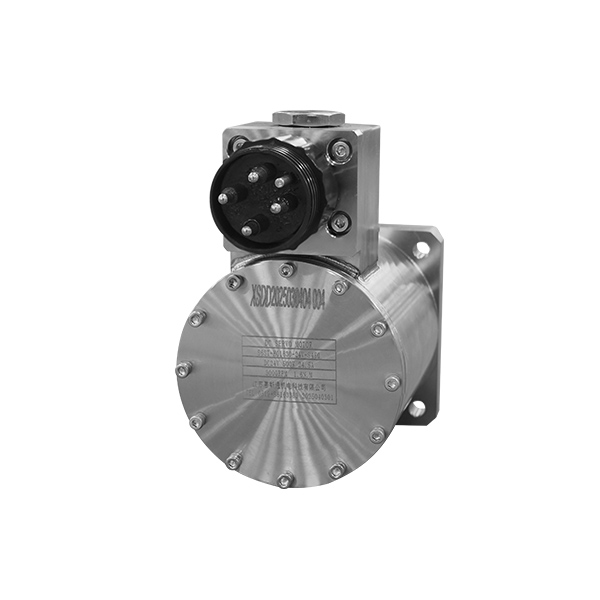

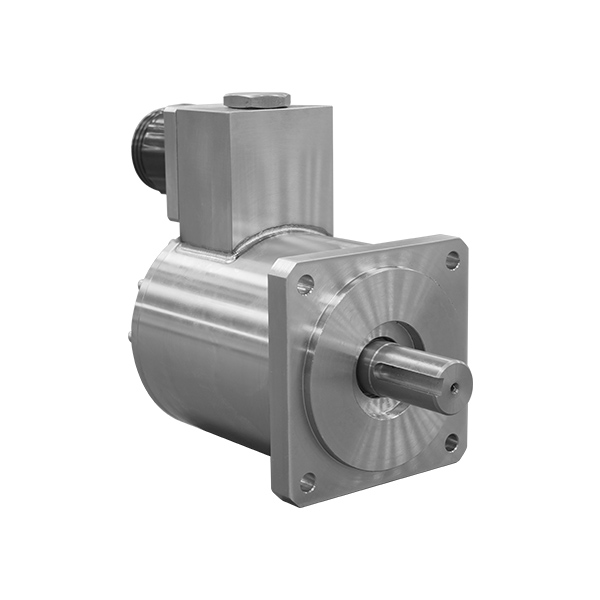

Wheatstone Deepwater DC servo motor
The deepwater DC servo motor is a precision drive device specially designed for underwater environments, combining the high-precision control of DC servo motors with the special requirements of underwater engineering. The motor body is designed with stainless steel material. Sealing design: Static sealing: O-ring, sealant. Dynamic sealing: Mechanical sealing (such as rotary shaft sealing) or magnetic coupling drive (completely isolating the inside and outside of the motor). Pressure balance: Oil-filled design (Internal oil pressure and external water pressure are balanced to prevent the shell from deforming under pressure) It is equipped with a built-in waterproof encoder or Hall sensor, and adopts a magneto-electric or optical design. The signal interface is waterproof treated (such as IP68/IP69K), which can be applied in various fields such as underwater robots, Marine engineering, and scientific research.
Motor structure
Motor parameters
| Rated Voltage(V) |
24 |
Rated Current(A) |
24.5 |
| Rated Power(KW) |
0.5 |
Maximum Torque(N.M) |
3.2 |
| Rated Speed(RPM) |
3000 |
Insulation Class |
F 155 |
| Rated Torque(N.M) |
1.6 |
Safety Class |
withstand pressure 4.5Mpa |
Frequently Asked Questions
1. What is the primary application of the Wheatstone Deepwater DC servo motor?
This motor is specifically designed for underwater environments, making it ideal for underwater robots, marine engineering projects, and scientific research applications.
2. How does the motor maintain its integrity under water pressure?
It utilizes an oil-filled design that balances internal oil pressure with external water pressure, effectively preventing shell deformation under high-pressure conditions.
3. What materials are used to construct the motor body?
The motor body is constructed using durable stainless steel, ensuring corrosion resistance and longevity in marine environments.
4. How is the motor sealed against water ingress?
The motor features both static sealing (using O-rings and sealants) and dynamic sealing (using mechanical seals or magnetic coupling drives to fully isolate internal components).
5. What is the pressure rating for this motor?
The motor is built to withstand pressure up to 4.5Mpa, suitable for various deepwater engineering tasks.
6. Does the motor include position feedback sensors?
Yes, it comes equipped with a built-in waterproof encoder or Hall sensor, utilizing either magneto-electric or optical design for high-precision control.
